DESCRIPTION

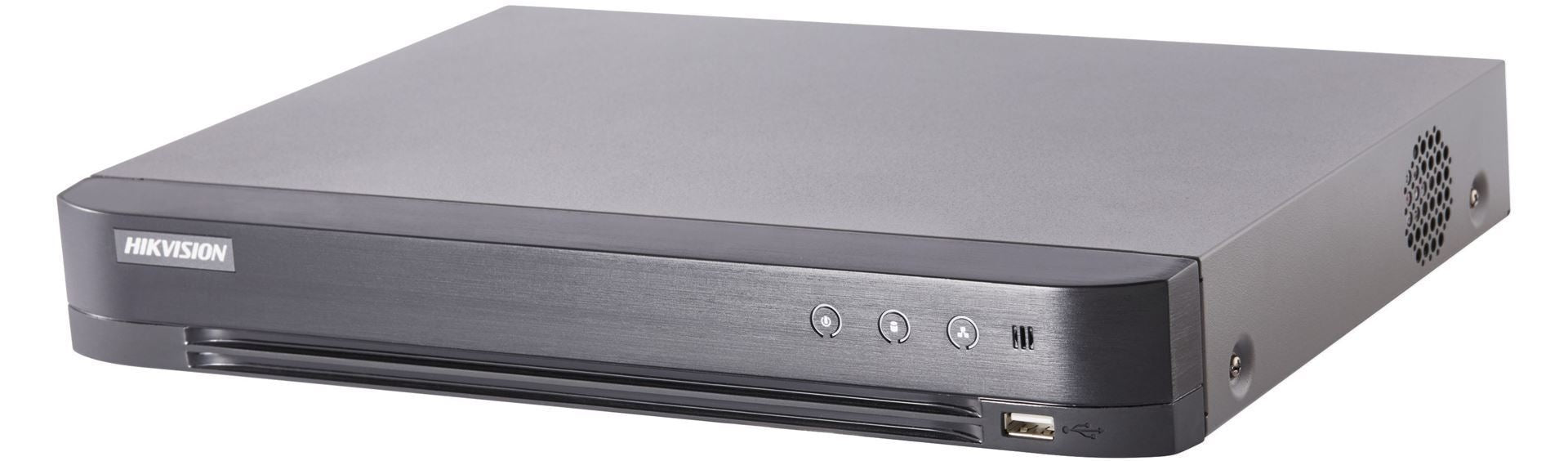

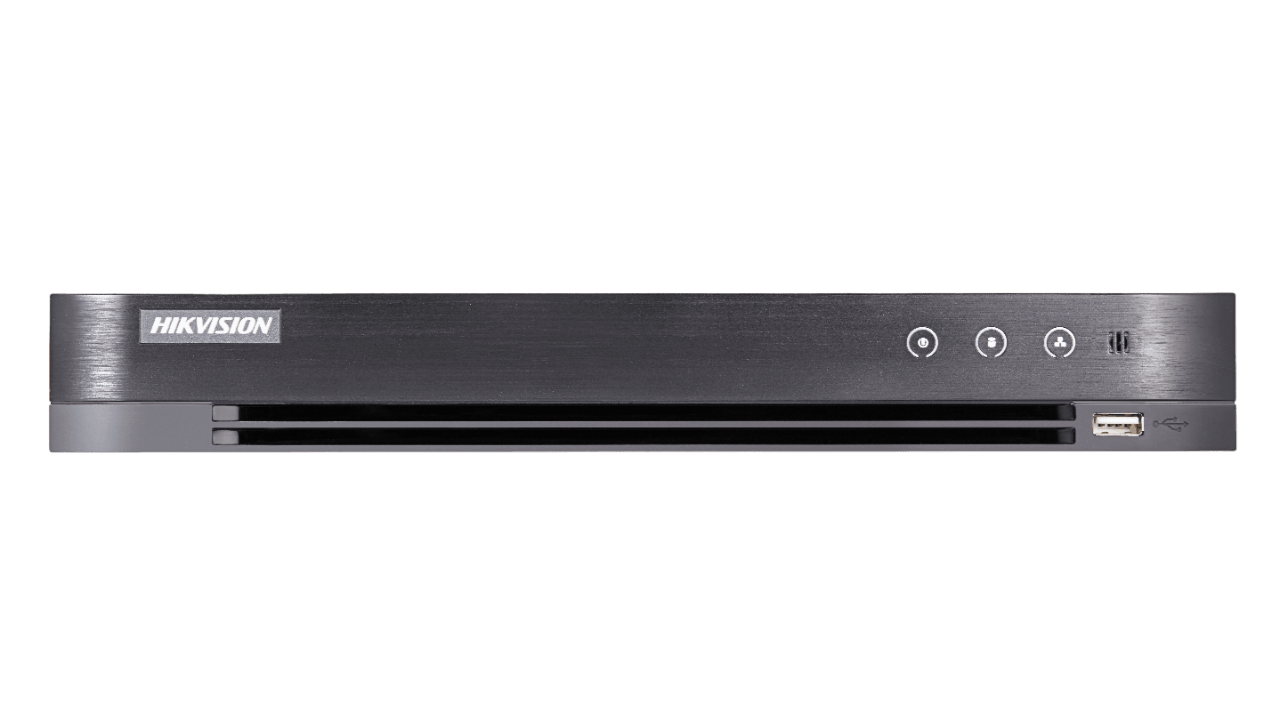

The Hikvision Turbo 8 Channel 720P HD-TVI DVR is connectable to H.265+/H.265/H.264+/H.264 IP cameras at up to 4MP lite resolution for recording and an HDMI output at up to 4K resolution on all 8 channels with synchronous playback. Keep your business safe with a Hikvision system today.

�

FEATURES

• Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input
• Connectable to H.265+/H.265/H.264+/H.264 IP cameras
• Up to 4MP lite resolution for recording
• HDMI output at up to 4K resolution
• Long-distance transmission over UTP and coaxial cable
• 8 channel synchronous playback

�

SPECIFICATIONS

• Audio Input 1-ch

• Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Analog and HD-TVI video input: 8-ch,BNC interface (1.0Vp-p, 75 ?)connection
• Supported camera types: Support HDTVI input: 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
  Support AHD input: 4 MP, 1080p25, 1080p30, 720p25, 720p30
  Support CVI input: 4 MP, 1080p25, 1080p30, 720p25, 720p30
  Support CVBS input
• Video Input Interface: BNC (1.0 Vp-p, 75?)
• Audio Compression: G.711u
• Audio Input Interface: RCA (2.0 Vp-p, 1 k?)
• Two-way Audio: 1-ch, RCA (2.0 Vp-p, 1 K?), (using the 1st channel of audio input)
• HDMI/VGA Output: 1920 � 1080 / 60 Hz,1280 � 1024 / 60 Hz, 1280 � 720 / 60 Hz, 1024 � 768 / 60 Hz
• Recording resolution: When 1080p Lite mode not enabled:
  4 MP lite/3 MP/1080p/1080p lite/720p/WD1/4CIF/VGA/CIF
  When 1080p Lite mode enabled:
  4 MP lite/3 MP/1080p lite/720p/720p lite/WD1/4CIF/VGA/CIF
• Frame Rate: Main stream:
  When 1080p Lite mode not enabled:
  For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps
  (P)/30fps (N)
  For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps
  For 1080p stream access: 1080p@15fps; 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
  For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
  When 1080p Lite mode enabled:
  4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
• Video Bit Rate: 32 Kbps-6 Mbps
• Stream Type: Video / Video & Audio
• Two-way Audio: 1-ch, RCA (2.0 Vp-p, 1 k?) (using the audio input)
• Audio Output: 1-ch RCA(Linear, 1k?)
• Audio Bit Rate: 64 kbps
• Dual Stream: Supported
• Synchronous Playback: 8-ch
• Remote connections: 64
• Network protocols: TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P,DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS,ONVIF
• Interface Type: 1 SATA Interface
• Capacity: Up to 10 TB capacity for each disk
• Network Interface: 1; 10M / 100M self-adaptive Ethernet interface
• USB Interface: 2 USB 2.0 Interfaces
• Serial Interface: 1; standard RS-485 serial interface, half-duplex
• Power Supply: 12 V DC
• Consumption: ? 7.5 W (without hard disks)
• Working Temperature: -10 - 55 C
• Working Humidity: 10% to 90%
• Dimensions:315 � 242 � 45 mm
• Weight: 1.78 kg
