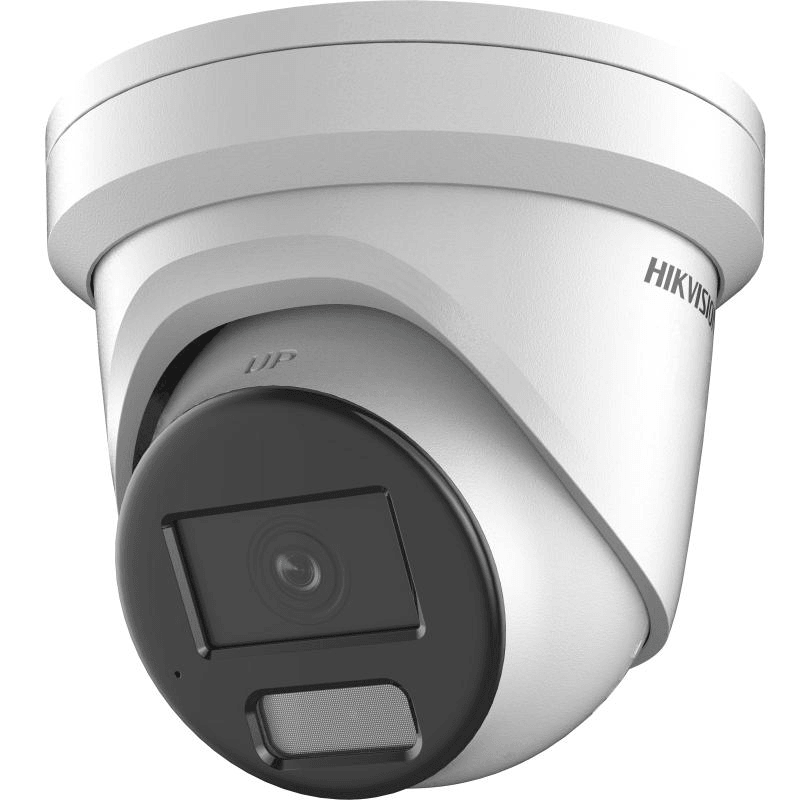

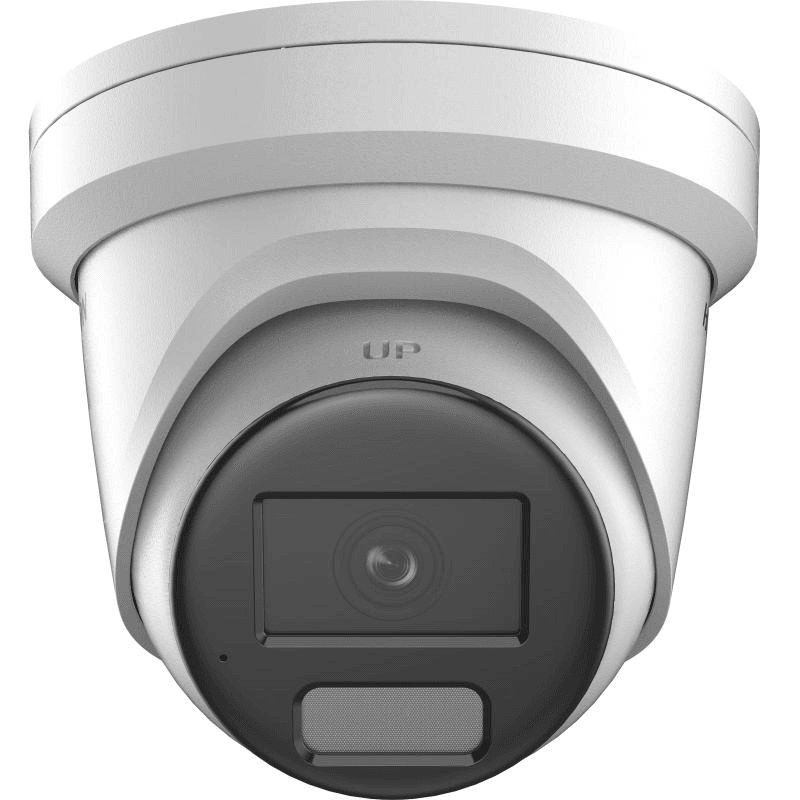

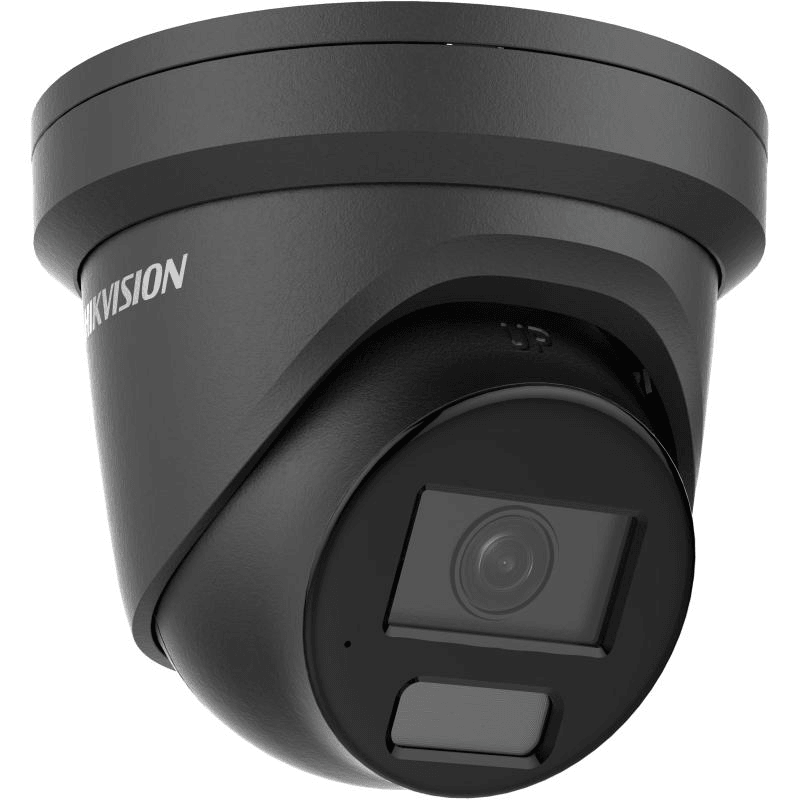

HIK 6MP COLORVU DOME 2.8MM DS-2CD2367G2-LU
DS-2CD2367G2-LU(2.8mm)(C)
Experience 24/7 color and vibrant images with Hikvision's ColorVu technology. Thanks to advanced F1.0 lenses and high-performance sensors, the super-aperture collects more light for even brighter images. Unleash the full potential of available light with advanced sensor technology.
- PLEASE NOTE THAT PICTURES ARE FOR ILLUSTRATION USE ONLY.
FEATURES:
- High quality imaging with 6 MP resolution
-
24/7 colorful imaging
-
Efficient H.265+ compression technology
-
Clear imaging against strong backlight due to 130 dB WDR technology
-
Focus on human and vehicle targets classification based on deep learning
-
-U: Built-in microphone for real-time audio security
-
Water and dust resistant (IP67)
SPECS:
- Camera
-
Image Sensor 1/1.8" Progressive Scan CMOS
- Max. Resolution 3200x1800
-
Min. Illumination Color: 0.0008 Lux @ (F1.0, AGC ON),0 Lux with light
-
Shutter Time1/3 s to 1/100,000 s
-
Day & Night 24/7 color imaging
-
Angle Adjustment Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°
- Lens
-
Lens Type Fixed focal lens, 2.8 and 4 mm optional
-
Focal Length & FOV
2.8mm, Horizontal FOV: 109°, Vertical FOV: 59°, Diagonal FOV: 130°
4 mm, Horizontal FOV: 93°, Vertical FOV: 49°, Diagonal FOV: 111°
- Lens Mount M16
- Iris Type Fixed
- Aperture F1.0
-
Depth Of Field
2.8 mm: 3.1 m to ∞
4 mm: 3.5 m to ∞
- DORI
-
DORI
2.8 mm, D: 84 m, O: 33 m, R: 16 m, I: 8 m
4 mm, D: 102 m, O: 40 m, R: 20 m, I: 10 m
- Illuminator
-
Supplement Light Type White Light
-
Supplement Light Range Up to 30 m
- Smart Supplement Light Yes
- Video
-
MainStream
50 Hz:
25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz:
24 fps (3200 × 1800)
30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
-
Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
-
Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
-
Video Compression
Mainstream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264
-
Video Bitrate 32 Kbps to 16 Mbps
-
H.264 Type Baseline Profile,Main Profile,High Profile
-
H.265 TypeMain Profile
-
Bitrate Control CBR,VBR
-
Scalable Video Coding (SVC)H.264 and H.265 encoding
-
Region Of Interest (ROI)1 fixed region(s) for main stream and sub-stream
- Audio
-
Audio Type-U: Mono sound
-
Audio Compression-U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
-
Audio Bit Rate-U: 64 Kbps (G.711 ulaw/G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
-
Audio Sampling Rate-U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
-
Environment Noise Filtering-U: Yes
- Network
- Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
-
Simultaneous Live View Up to 6 channels
- API Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
-
User/Host
Up to 32 users
3 user levels: administrator, operator, and user
- Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address)
-
Network Storage
NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
- Client iVMS-4200,Hik-Connect,Hik-Central
-
Web Browser
Plug-in required live view: IE 10, IE 11,
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Image
- Image Parameters Switch Yes
-
Image Settings Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
-
Day/Night Switch Day,Night,Auto,Schedule
-
Wide Dynamic Range (WDR)130 dB
-
SNR≥ 52 dB
-
Image Enhancement BLC,HLC,3D DNR
-
Privacy Mask 4 regions of privacy mask
- Event
-
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
-
Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)), scene change detection
- Linkage Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture,supplement light
- Deep Learning Function
- Face Capture Yes
- General
-
Power
12V DC ± 25%, 0.79 A, max. 9.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
PoE: 802.3af, Class 3, 36 V to 57 V, 0.29 A to 0.18 A, max. 10.5 W
- Material Metal
-
Dimension
Ø138.3 mm × 115.2 mm (Ø5.4 × 4.5\")"
-
Package Dimensions 170 mm × 170 mm × 160 mm (6.7" × 6.7" × 6.3")
- Weight Approx. 800 g (1.8 lb.)
-
With Package Weight Approx. 1090 g (2.4 lb.)
-
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
-
Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
-
Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
-
General FunctionHeartbeat,anti-banding,mirror,flash log,password reset via email,pixel counter,password protection,one-key reset,three streams
- Approval
-
EMC
FCC: 47 CFR Part 15, Subpart B,
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7
-
Safety
UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017
-
Environment
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
- Protection IP67: IEC 60529-2013
