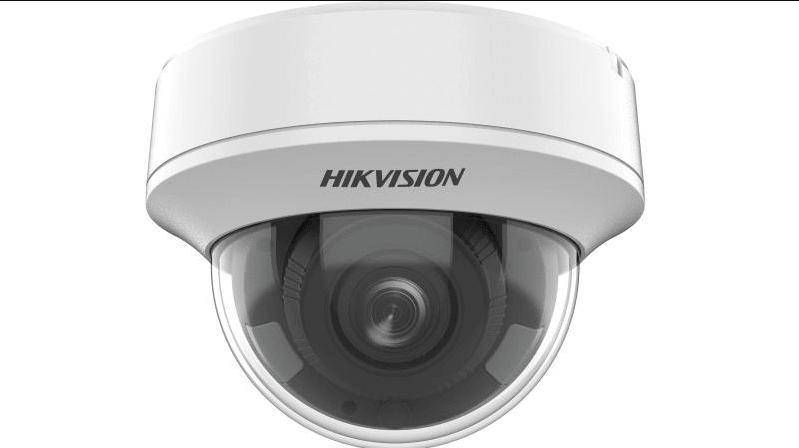

HIK 5MP TVI DOME 2.7-13.5MM DS-2CE56H8T-AITZF
HIK 5MP TVI DOME 2.7-13.5MM DS-2CE56H8T-AITZF
DS-2CE56H8T-AITZF(2.7-13.5mm)
- 5 MP high performance dome camera
- Strong night performance, capturing images in ultra-low light down to 0.003 lux
- Clear imaging even against strong backlighting due to 130 dB true WDR technology
- 3D DNR technology delivers clean and sharp images
- Lens focuses automatically when zooming in or out
- EXIR 2.0: advanced infrared technology with 60 m IR distance
- 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
SPECS:
- Camera
- Image Sensor 5mp CMOS
- Max. Resolution 2560 (H) × 1944 (V)
- Min. Illumination Color: 0.003 Lux@(F1.38, AGC ON), 0 Lux with IR
- Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
- Day & Night IR Cut Filter
- Angle Adjustment Pan: 0 to 340°, Tilt: 0 to 75°, Rotation: 0 to 355°
- Signal System PAL/NTSC
- Lens
- Lens Type Varifocal lens, motor-driven lens, 2.7 to 13.5 mm
- Focal Length & FOV Horizontal FOV: 92.3° to 29.3°
- Lens MountΦ14
- Illuminator
- Supplement Light Type IR
- Supplement Light Range Up to 60 m
- Smart Supplement Light Yes
- Image
- Image Settings Brightness; Sharpness;Mirror;AGC
-
Frame Rate
TVI: 2 MP @ 25 fps, 2 MP @ 30 fps, 4 MP @ 25 fps, 4 MP @ 30 fps, 5 MP @ 20 fps
AHD: 4 MP @ 25 fps, 4 MP @ 30 fps, 5 MP @ 20 fps
CVI: 4 MP @ 25 fps, 4 MP @ 30 fps
CVBS: PAL, NTSC
- Day/Night ModeAuto/Color/BW (Black and White)
- Wide Dynamic Range (WDR)≥130 dB
- Image Enhancement BLC
- Privacy Mask4 programmable privacy masks
- Noise Reduction3D DNR
- White Balance Auto/Manual
- Interface
- Video Output1 HD analog output;Switchable TVI/AHD/CVI/CVBS
- Event
- Motion Detection 4 programmable motion areas
- General
-
Power
9.6 VDC to 14.4 VDC; 19.2 VAC to 28.8 VAC
max. 8 W
- Material Plastic
- DimensionΦ 136 mm × 101.9 mm ( Φ 5.35" × 4.01")
- Weight Approx. 430 g (0.95 lb.)
- Operating Condition-40 °C to 50 °C (-40 °F to 122 °F), humidity 90% or less (non-condensing)
- Communication HIKVISION-C
- Language English
HIK 5MP TVI DOME 2.7-13.5MM DS-2CE56H8T-AITZF
DS-2CE56H8T-AITZF(2.7-13.5mm)
- 5 MP high performance dome camera
- Strong night performance, capturing images in ultra-low light down to 0.003 lux
- Clear imaging even against strong backlighting due to 130 dB true WDR technology
- 3D DNR technology delivers clean and sharp images
- Lens focuses automatically when zooming in or out
- EXIR 2.0: advanced infrared technology with 60 m IR distance
- 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
SPECS:
- Camera
- Image Sensor 5mp CMOS
- Max. Resolution 2560 (H) × 1944 (V)
- Min. Illumination Color: 0.003 Lux@(F1.38, AGC ON), 0 Lux with IR
- Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
- Day & Night IR Cut Filter
- Angle Adjustment Pan: 0 to 340°, Tilt: 0 to 75°, Rotation: 0 to 355°
- Signal System PAL/NTSC
- Lens
- Lens Type Varifocal lens, motor-driven lens, 2.7 to 13.5 mm
- Focal Length & FOV Horizontal FOV: 92.3° to 29.3°
- Lens MountΦ14
- Illuminator
- Supplement Light Type IR
- Supplement Light Range Up to 60 m
- Smart Supplement Light Yes
- Image
- Image Settings Brightness; Sharpness;Mirror;AGC
-
Frame Rate
TVI: 2 MP @ 25 fps, 2 MP @ 30 fps, 4 MP @ 25 fps, 4 MP @ 30 fps, 5 MP @ 20 fps
AHD: 4 MP @ 25 fps, 4 MP @ 30 fps, 5 MP @ 20 fps
CVI: 4 MP @ 25 fps, 4 MP @ 30 fps
CVBS: PAL, NTSC
- Day/Night ModeAuto/Color/BW (Black and White)
- Wide Dynamic Range (WDR)≥130 dB
- Image Enhancement BLC
- Privacy Mask4 programmable privacy masks
- Noise Reduction3D DNR
- White Balance Auto/Manual
- Interface
- Video Output1 HD analog output;Switchable TVI/AHD/CVI/CVBS
- Event
- Motion Detection 4 programmable motion areas
- General
-
Power
9.6 VDC to 14.4 VDC; 19.2 VAC to 28.8 VAC
max. 8 W
- Material Plastic
- DimensionΦ 136 mm × 101.9 mm ( Φ 5.35" × 4.01")
- Weight Approx. 430 g (0.95 lb.)
- Operating Condition-40 °C to 50 °C (-40 °F to 122 °F), humidity 90% or less (non-condensing)
- Communication HIKVISION-C
- Language English
