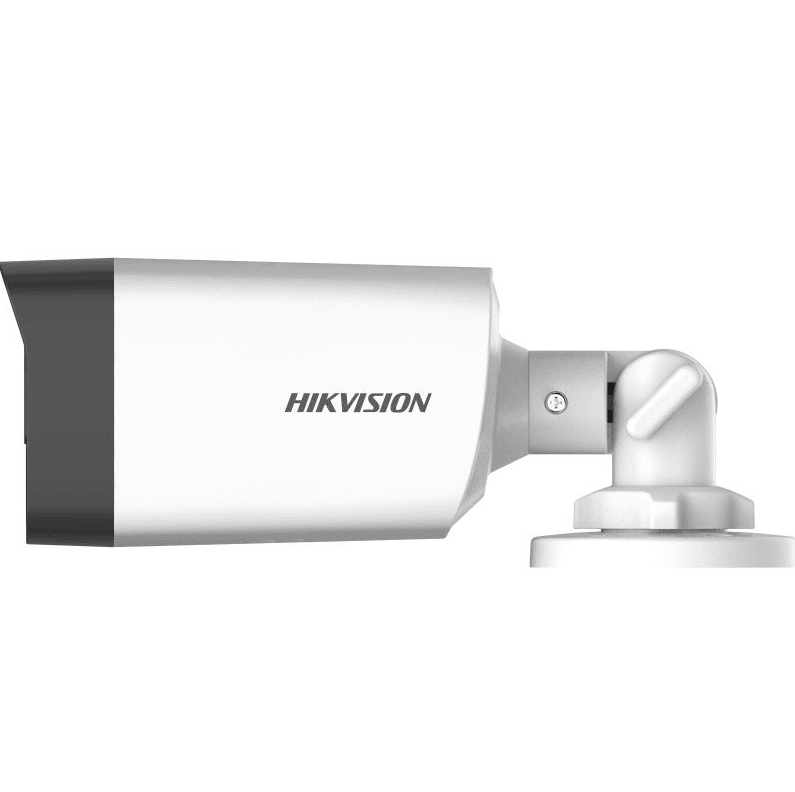

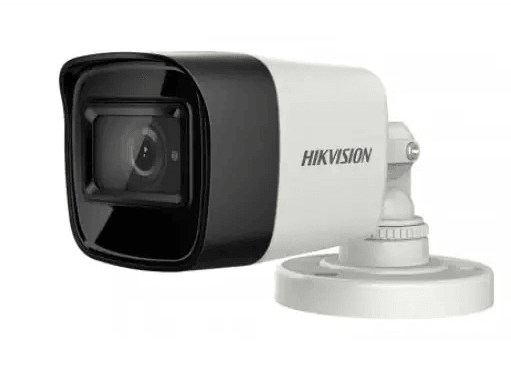

HIK 5MP FIXED FOCAL LENS BULLET CAMERA 40M IR

DS-2CE17H0T-IT3F_2.8MM

Experience incredible image quality with this 5 MP fixed focal lens bullet camera. Achieve 2560 × 1944 resolution and capture every detail. Choose from 2.8 mm, 3.6 mm, or 6 mm fixed focal lengths for versatile imaging. With up to 40 m IR distance, bright night imaging is no longer a challenge. Switch between TVI, AHD, CVI, and CVBS with just one port. Plus, this camera is water and dust resistant (IP67) for reliable outdoor use.

FEATURES:

High quality imaging with 5 MP, 2560 × 1944 resolution
2.8 mm, 3.6 mm, 6 mm fixed focal lens
Up to 40 m IR distance for bright night imaging
One port for four switchable signals (TVI/AHD/CVI/CVBS)
Water and dust resistant (IP67)

SPECS:

Camera
Image Sensor 5mp CMOS
Max. Resolution 2560 (H) × 1944 (V)
Min. Illumination 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/25 s to 1/50, 000 s

NTSC: 1/30 s to 1/50, 000 s
Day & Night ICR
Angle Adjustment Pan: 0 to 360°, Tilt: 0 to 180°, Rotation 0 to 360°
Signal System PAL/NTSC

Lens
Lens Type 2.8 mm, 3.6 mm, 6 mm fixed lens
Focal Length & FOV
2.8 mm, horizontal FOV: 86°, vertical FOV: 63°, diagonal FOV: 120°

3.6 mm, horizontal FOV: 80°, vertical FOV: 63°, diagonal FOV: 112°

6 mm, horizontal FOV: 55°, vertical FOV: 40°, diagonal FOV: 70°
Lens Mount M12

Image Parameters Switch STD/HIGH-SAT
Image Settings Brightness, Sharpness, Mirror, Smart IR
Frame Rate
TVI: 5M@20fps, 4M@30fps, 4M@25fps, 1080p@30fps, 1080p@25fps

AHD: 5M@20fps, 4M@30fps, 4M@25fps

CVI: 4M@30fps, 4M@25fps

CVBS: PAL/NTSC
Day/Night ModeAuto/Color/BW (Black and White)
Wide Dynamic Range (WDR)Digital WDR
Image Enhancement DWDR/BLC/HLC/Global
Noise Reduction Yes
White Balance Auto/Manual
AGC Support

Interface
Video Output TVI/AHD/CVI/CVBS

General
Material
Front Cover: Metal

Main Body: Plastic
Dimension 78.9 mm × 75.4 mm × 216.6 mm (3.10" × 2.97" × 8.53")
Weight Approx. 330 g (0.73 lb.)
Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
Communication HIKVISION-C
Language English
Power Supply 12vdc ± 25%
Consumption
Max. 4.3 W
IR Range Up to 40 m
