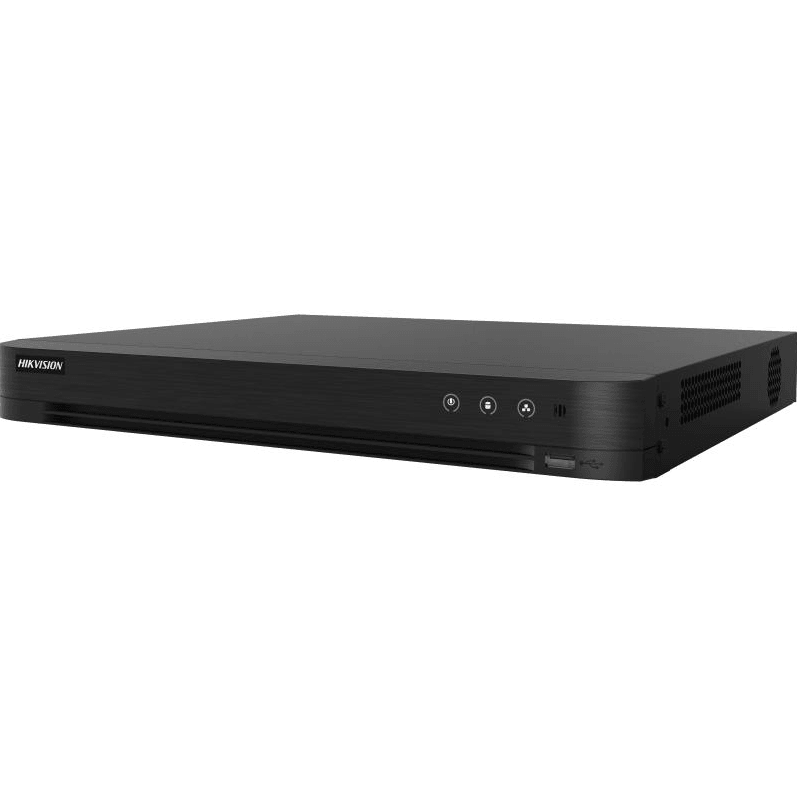

HIK 5MP 16CH ACUSENSE DVR iDS-7216HUHI-M2/S
iDS-7216HUHI-M2/S(E)/4A+16/4ALM
Record and Compress - H.265 Pro+ video encoding technology maximizes efficiency and minimizes storage costs. Record up to 8 MP resolution and playback with ease using 2 SATA interfaces. Utilize deep learning-based motion detection and perimeter protection features such as line crossing and intrusion detection. Network and connect with ease using supported WIFI dongles and Hik-Connect & DDNS (Dynamic Domain Name System).
FEATURES:
- Deep learning-based motion detection 2.0 for all analog channels
-
Deep learning-based perimeter protection
-
Efficient H.265 pro+ compression technology
-
Up to 8 MP@8 fps/5 MP@12 fps encoding capability
-
HDTVI/AHD/CVI/CVBS/IP video inputs
-
Up to 32-ch IP camera inputs (up to 8 MP)
SPECS:
- Motion Detection 2.0
-
Human/Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog channels,
it can classify human and vehicle, and extremely reduce false alarms caused by objects
like leaves and lights;
Quick search by object or event type is supported;
- Perimeter Protection
-
Human/Vehicle Analysis Up to 4-ch
- Facial Detection
-
Facial Detection And Capture Face picture detection, face picture search
- Recording
-
Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
-
Encoding Resolution8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
-
Frame Rate
Main stream:
8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps
1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
Sub-stream:
WD1/4CIF/CIF@25 fps (P)/30 fps (N)
-
Video Bitrate32 Kbps to 10 Mbps
-
Dual-StreamSupport
-
Stream Type Video, Video & Audio
-
Audio CompressionG.711u
-
Audio Bitrate64 Kbps
- Video And Audio
-
IP Video Input
8-ch (up to 24-ch)
Enhanced IP mode on: 16-ch (up to 32-ch), each up to 4 Mbps
Up to 8 MP resolution
Support H.265+/H.265/H.264+/H.264 IP cameras
-
Analog Video Input
16-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
-
HDMI Output
1-ch, 4K (3840 × 2160)/30Hz,
2K (2560 × 1440)/60Hz,
1920x1080/60Hz,
1280x1024/60Hz,
1280x720/60Hz
HDMI/VGA simultaneous output
-
VGA Output
1-ch, 1920x1080/60Hz, 1280x1024/60Hz, 1280x720/60Hz
HDMI/VGA simultaneous output
-
CVBS InputPAL/NTSC
-
CVBS Output
1-ch, BNC (1.0 Vp-p, 75 Ω),
resolution: PAL: 704 × 576, NTSC: 704 × 480
-
Synchronous Playback16-ch
-
HDTVI Input8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 3K(2960 x 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 3 MP@18 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps
-
AHD Input5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
-
HDCVI Input8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
-
Audio Output1-ch, RCA (Linear, 1 KΩ)
-
Audio Input
1-ch (up to 16-ch is optional), RCA (2.0 Vpp,1 KΩ)
16-ch via coaxial cable
-
Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the audio input)
- Auxiliary Interface
-
SATA2 SATA interfaces
- Capacity Up to 10 TB capacity for each disk
-
Serial InterfaceRS-485 (half-duplex)
-
USB Interface
Front panel: 1 × USB 2.0
Rear panel: 1 × USB 3.0
-
Alarm In/OutN/A (optional to support)
- General
-
Power Supply12 VDC, 5 A
-
Consumption≤ 19 W
-
Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
-
Working Humidity 10% to 90%
-
Dimension (W × D × H)380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch)
-
Weight≤ 2.1 kg (4.6 lb)
