HIK 4MP WIFI IP PTZ 4MM – DS-2DE3A400BW-DE/W(F1)(T5)
Compact 4MP Wi‑Fi PTZ with full‑colour night vision

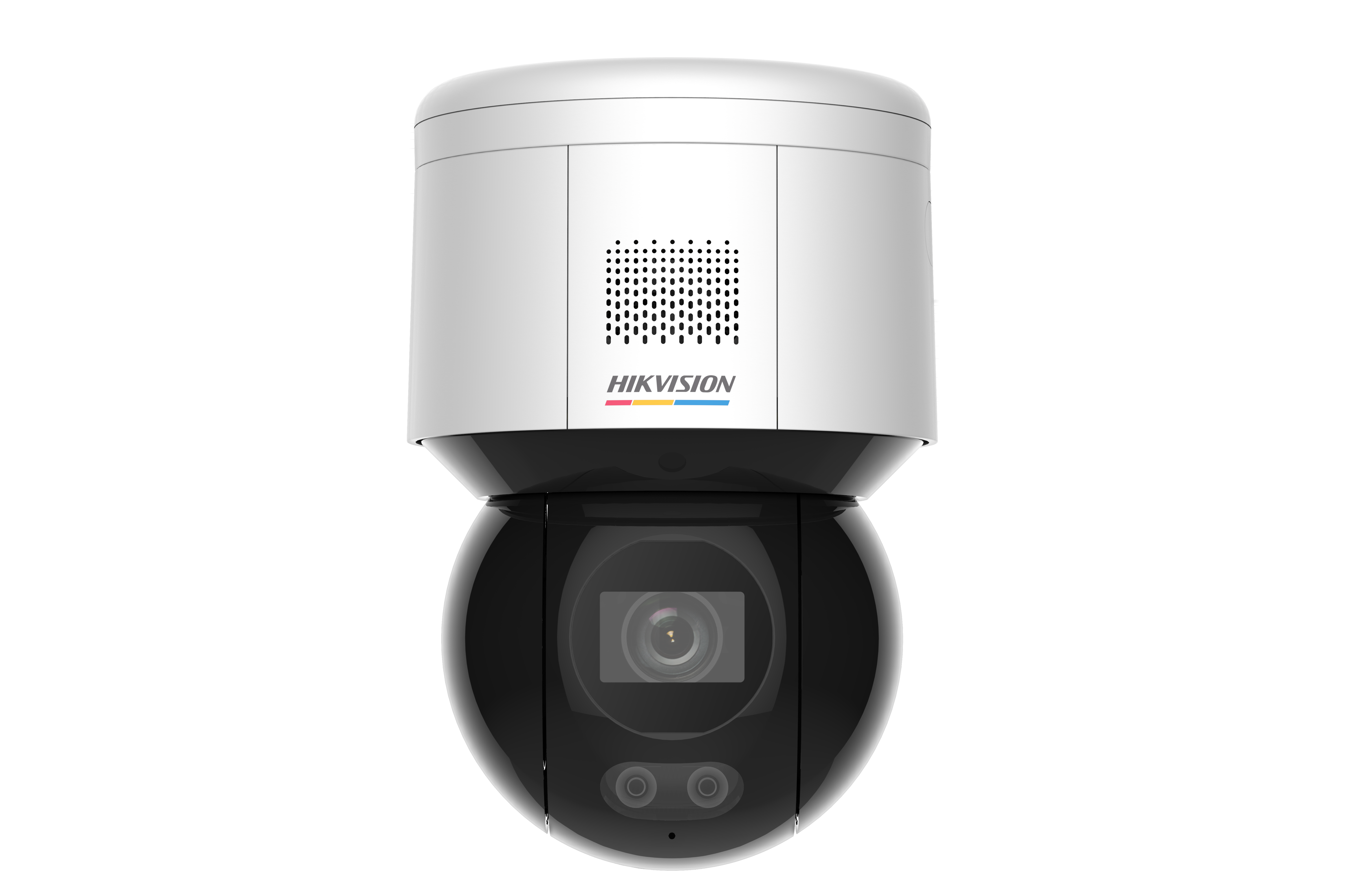

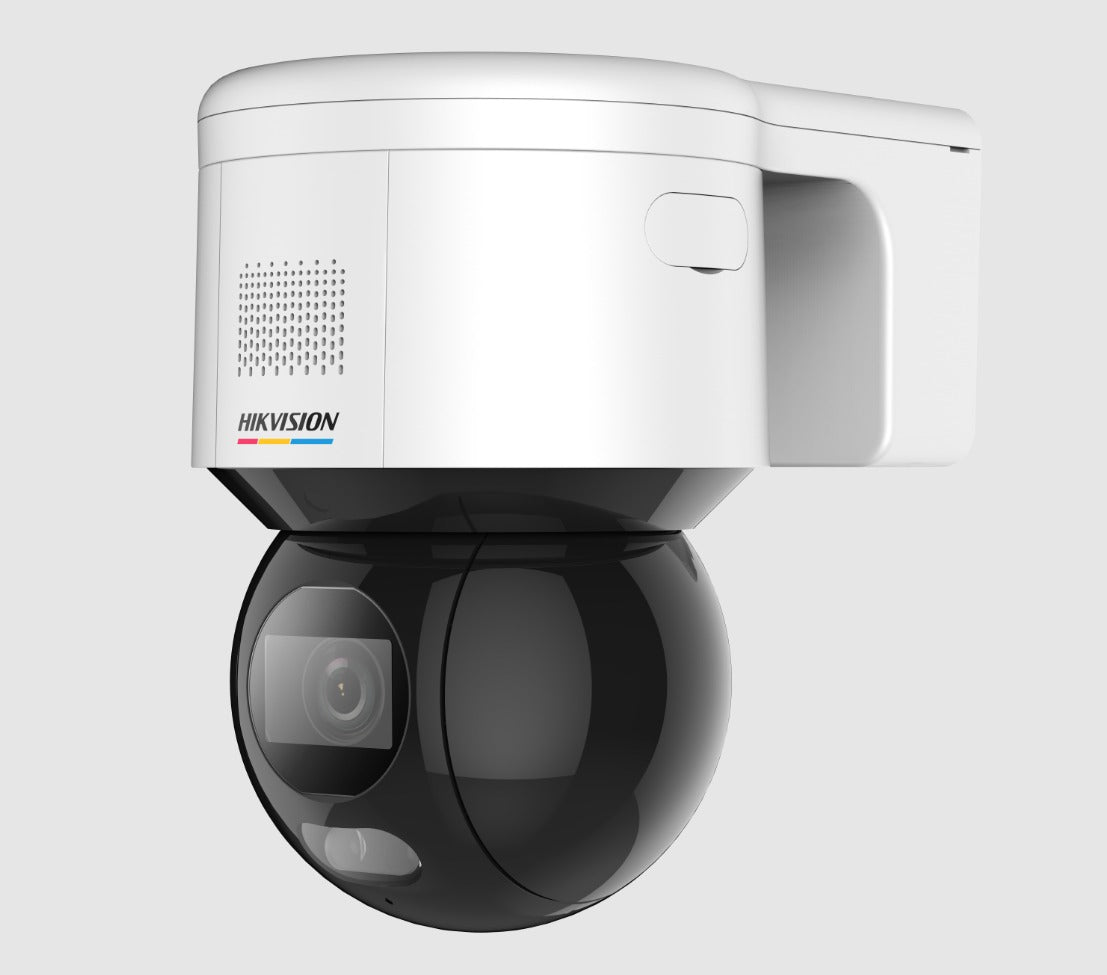

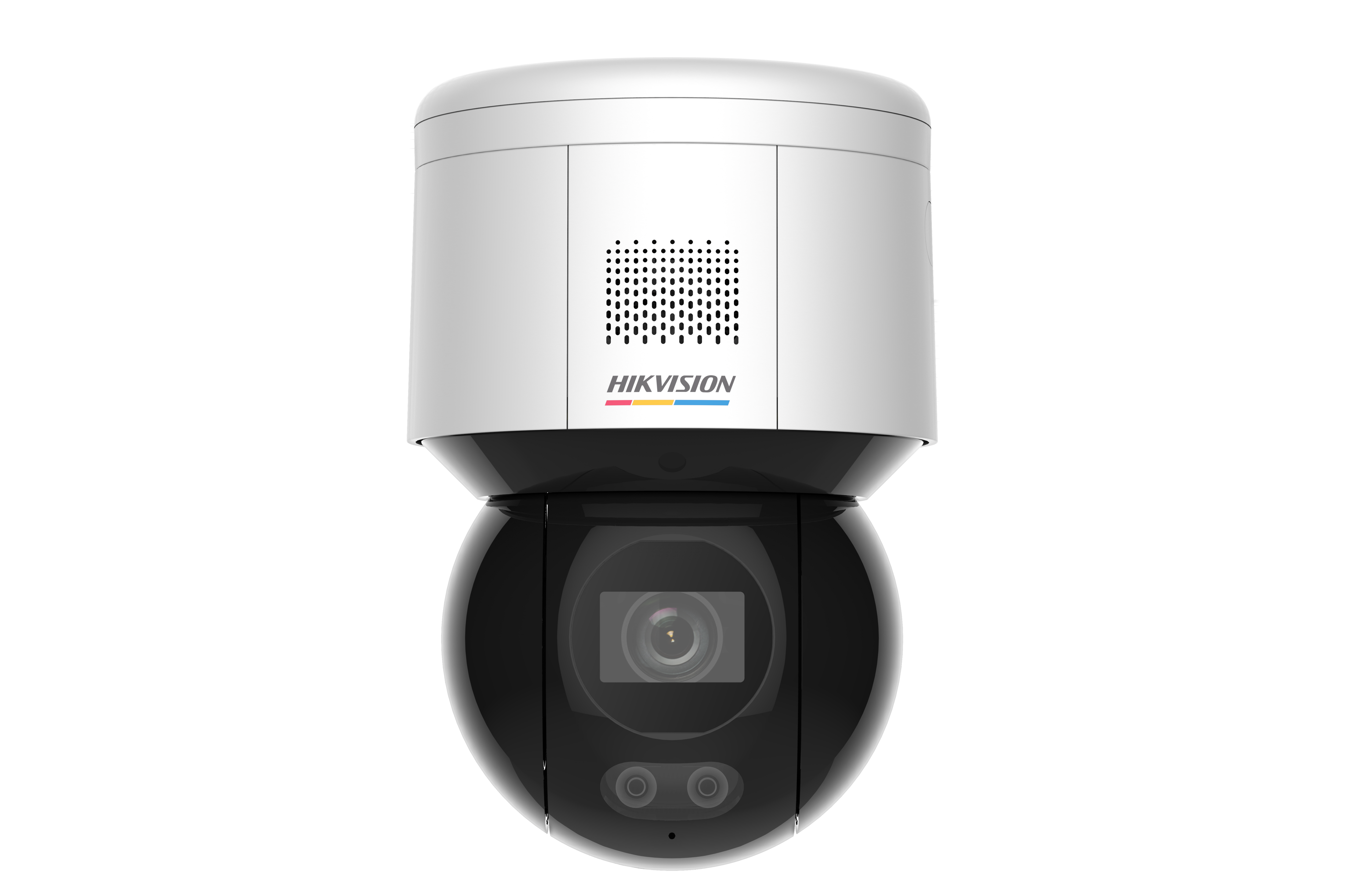

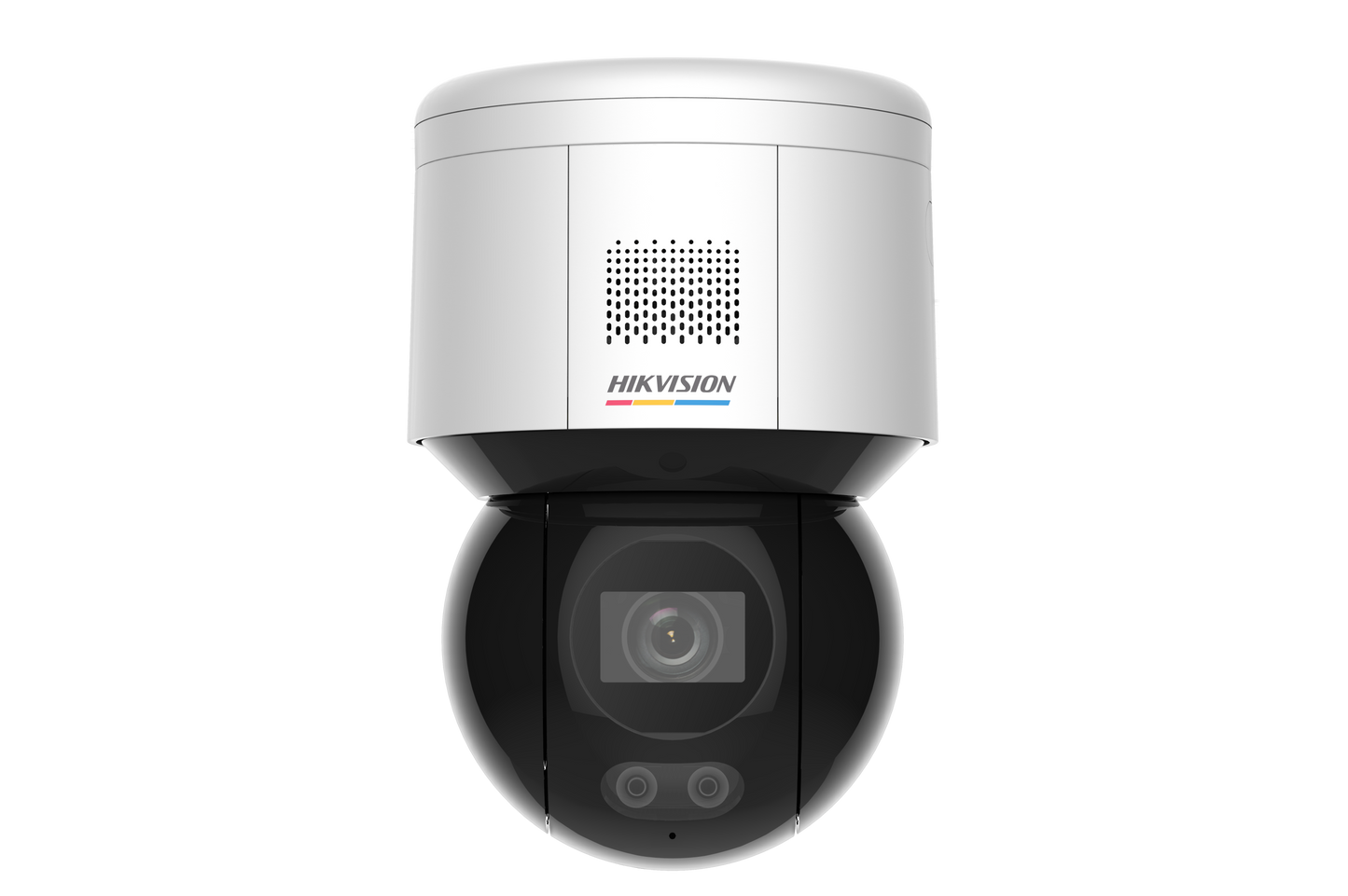

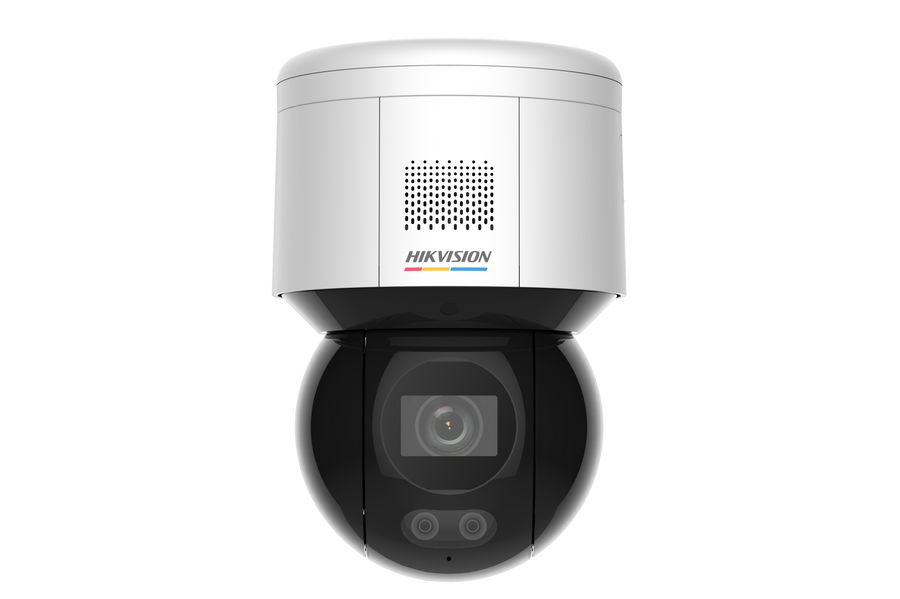

The Hikvision DS‑2DE3A400BW‑DE/W(F1)(T5) is a compact 4MP Wi‑Fi PTZ camera that delivers crisp QHD video, smooth pan/tilt control and excellent colour performance after dark. Equipped with ColourVu low‑light technology and a bright built‑in white light, this mini PTZ produces vivid colour footage around the clock — perfect for estates, shops, parking areas and small business sites where running network cable is difficult or undesirable.
Key features & benefits
-
4MP QHD resolution — clear 2560 × 1440 video for reliable identification of faces and vehicle details.
-
Full‑colour night vision — high‑sensitivity sensor plus warm white illumination retains colour in low light.
-
Built‑in Wi‑Fi — ideal where Ethernet runs are impractical; supports stable dual‑antenna connections.
-
Smooth PTZ control — 350° pan, 0°–90° tilt and fast preset speeds to cover large areas quickly.
-
Smart detection — human/vehicle classification reduces false alarms and focuses alerts on real events.
-
Flexible power — PoE (802.3at) or 12V DC for versatile installations.
-
Weatherproof & robust — IP66 rating with surge protection for tough South African exteriors.
Technical specifications
-
Sensor / Resolution: 1/1.8" CMOS — 4MP (2560 × 1440)
-
Lens: 4mm fixed (approx. 88.7° horizontal FOV)
-
Minimum illumination: Colour: 0.0005 Lux @ F1.0; 0 Lux with white light
-
Illumination range: Built‑in white light up to 30 m
-
PTZ mechanics: Pan 350°; Tilt 0°–90°; Preset speed up to 60°/s
-
Video compression: H.265+/H.265/H.264+/H.264
-
Smart features: Human / vehicle classification, motion detection, smart tracking, presets & patrols
-
Network: Wi‑Fi (dual‑antenna 2.4 GHz), ONVIF support, Hik‑Connect compatible
-
Power: PoE (802.3at) or 12V DC
-
Ingress protection: IP66; lightning/surge protection; operating temp suitable for SA climates
-
Mounting: Wall/ceiling/pole compatible with appropriate brackets
Ideal applications
- Residential estates and perimeter monitoring
- Retail shopfronts and small business façades
- Driveways, car parks and guest parking areas
- Sites that need flexible Wi‑Fi deployment and colour night footage
Installation notes
- Use PoE where possible for stable network power; confirm your switch supports 802.3at if selecting PoE mode.
- When using 12V DC, account for voltage drop on long cable runs and use appropriately sized cable.
- Mount between 3–6 m for optimal coverage and facial recognition balance.
- Configure intelligent detection zones and PTZ presets after mounting to reduce false alarms and ensure full coverage.
- Secure remote access by enabling HTTPS, using strong passwords and restricting management access to trusted IPs.
What’s in the box
- DS‑2DE3A400BW‑DE/W(F1)(T5) camera
- Quick start guide and warranty information
- Mounting template and basic fixings (verify included accessories)
