Overview

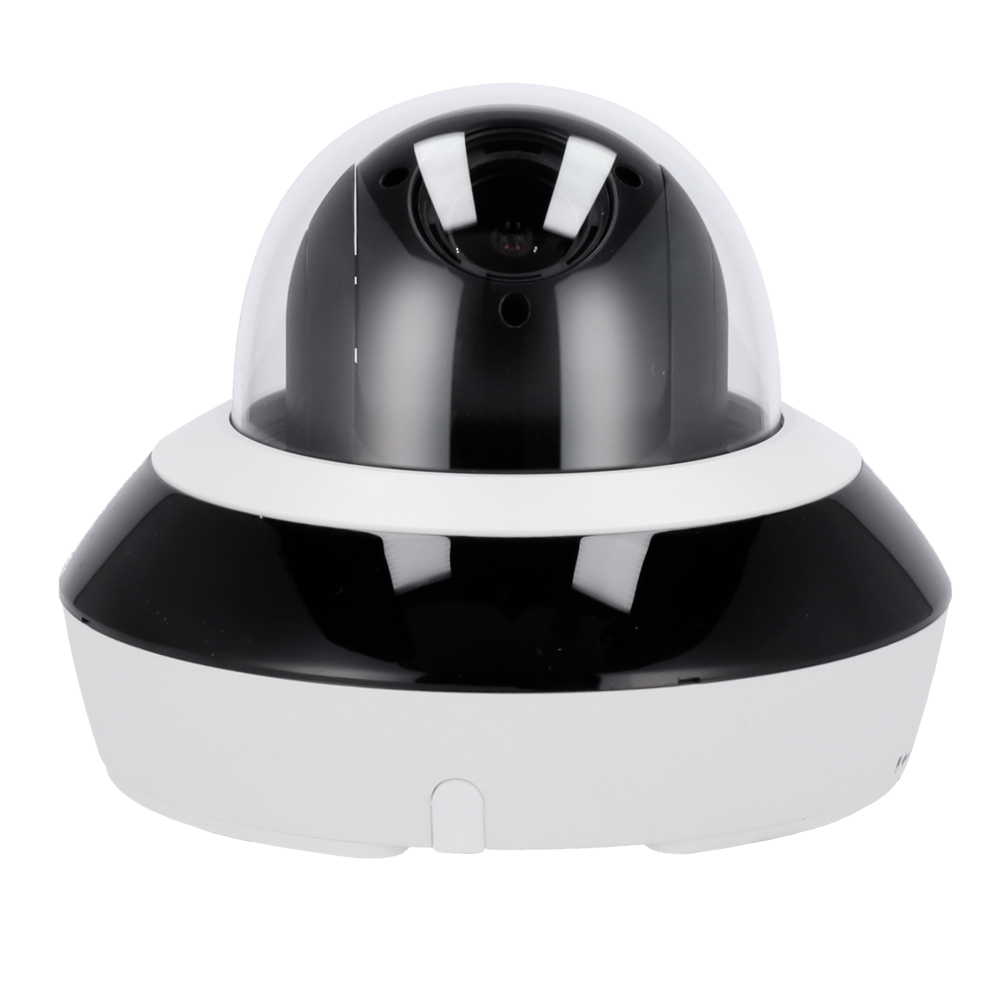

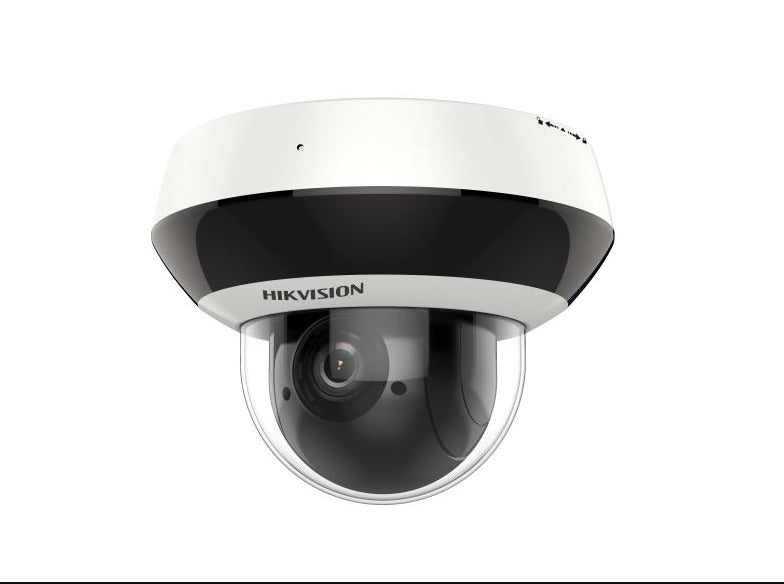

The Hikvision DS-2DE2A404IW-DE3(S6) is a high-performance 4MP mini PTZ camera offering true 4× optical zoom (2.8-12 mm) and equipped with DarkFighter low-light technology. Designed for outdoor applications, it features IR night illumination up to ~20 m, 120 dB WDR, pan/tilt control and rugged IP66 / IK10 protection — perfect for schools, offices, commercial façades and smaller perimeters in South Africa.
Key benefits
-
4 MP resolution (2560 × 1440) — delivers improved clarity for identification and monitoring.
-
4× optical zoom (2.8-12 mm) — versatile coverage from wide angle to focused detail.
-
DarkFighter low-light technology — enhanced performance in minimal ambient light.
-
IR nightvision up to ~20 m — reliable monitoring when light is limited.
-
Rugged housing — IP66 weather protection and IK10 vandal resistance suited to outdoor and exposed sites.
-
Pan / Tilt flexibility — pan 0°-355°, tilt 0°-90°, allowing wide coverage from a compact unit.
Technical specifications — 2.8-12 mm lens
-
Sensor / Resolution: 1/2.8″ Progressive Scan CMOS / 4 MP (2560 × 1440)
-
Lens & Zoom: Motorised 2.8-12 mm (4× optical); Horizontal FOV approx. 96.8°-31.7°, Vertical FOV approx. 51.1°-17.8°
-
Minimum Illumination: Colour 0.005 Lux @ F1.5 (AGC ON); B/W 0.001 Lux @ F1.5; 0 Lux with IR
-
IR Range: Up to ~20 m
-
Pan / Tilt: Pan 0°-355°; Tilt 0°-90°; Preset speed approx. 100°/s
-
Video Compression: H.265+/H.265/H.264+/H.264
-
Wide Dynamic Range (WDR): 120 dB
-
On-board Micro SD Slot: Supports up to 256 GB
-
Network Interface: 1 × RJ-45 10/100 Mbps, ONVIF compatible
-
Power: 12 V DC or PoE (IEEE 802.3af); Max power approx. 9.2 W
-
Operating Conditions: -20 °C to +60 °C; ≤ 90% humidity
Recommended applications
- Outdoor entrances and driveways at schools, estates and business premises.
- Retail façades, small commercial yards and loading zones.
- Sites requiring optical zoom and good low-light performance on a budget.
Installation notes
- Mount at an appropriate height so that the 2.8 mm field covers the desired area; avoid obstruction of pan/tilt movement.
- Use PoE where available for simpler installation; if using 12 V DC, check voltage drop for longer cable runs.
- Secure camera network access—use strong passwords, enable HTTPS and restrict access to trusted users.
- Ensure clear line-of-sight for IR and avoid reflections from nearby glass surfaces at night.
- Update firmware on commissioning and schedule periodic checks of mechanical pan/tilt movement to ensure smooth operation.
What’s in the box
- DS-2DE2A404IW-DE3(S6) camera (2.8-12 mm variant)
- Quick start guide and warranty card
- Mounting template and basic fixings — confirm included accessories before installation
