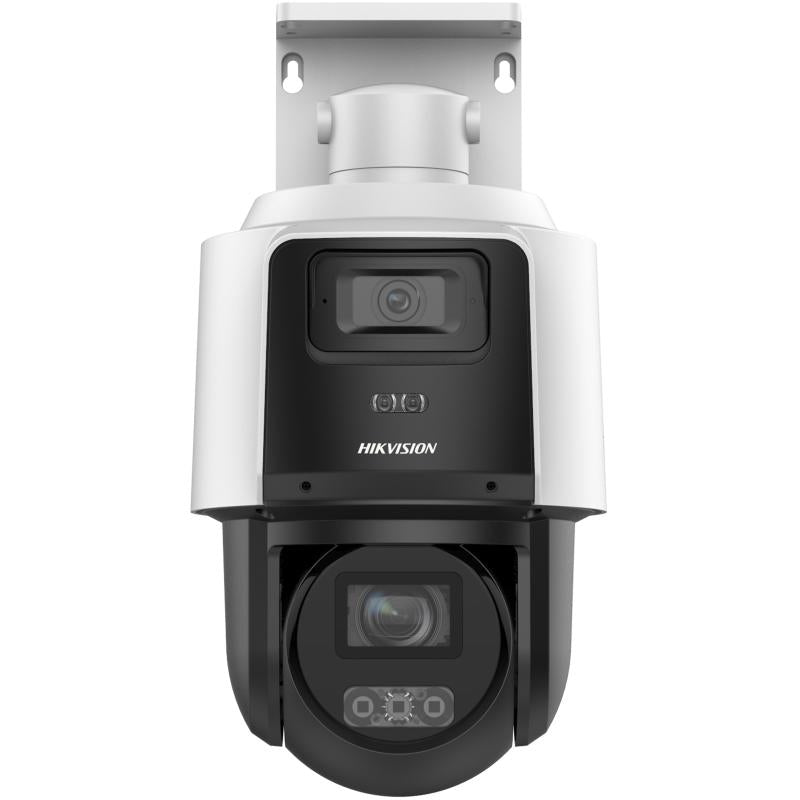

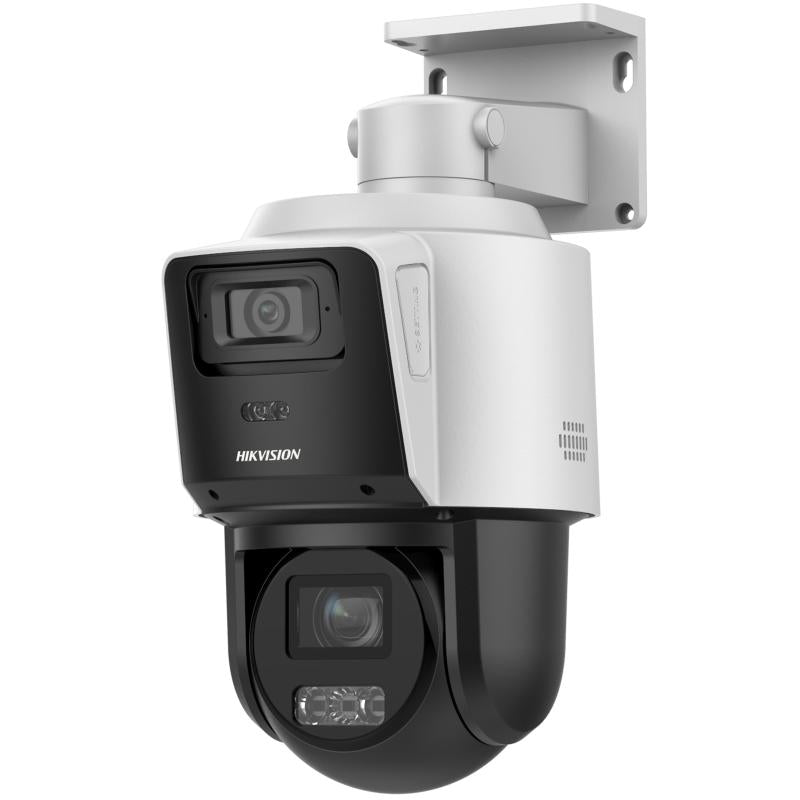

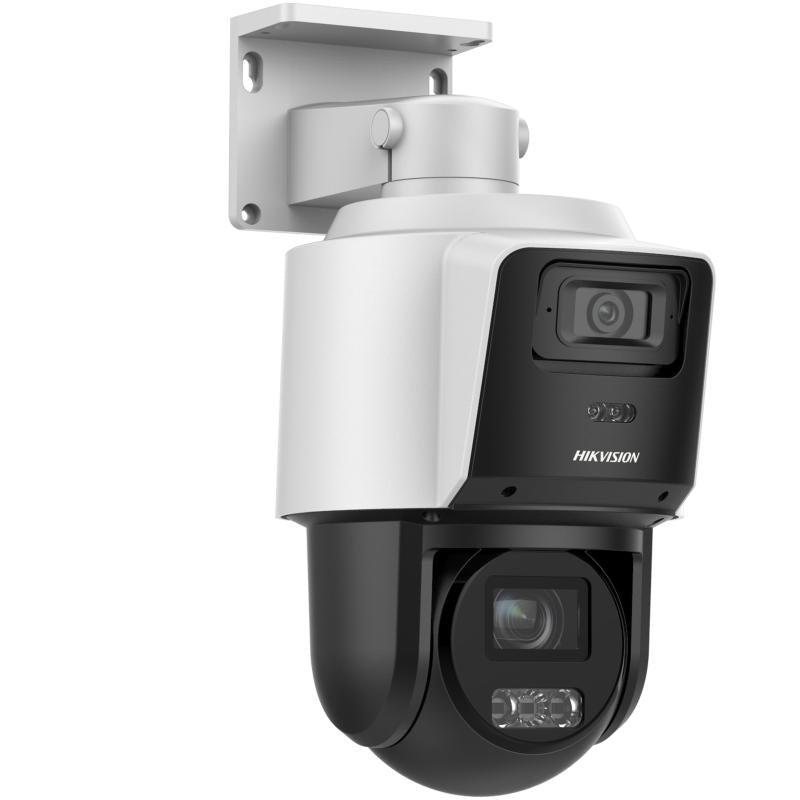

The Hikvision DS-2SE3C404MWG-E/14 TandemVu PTZ Network Camera combines a fixed bullet camera and a PTZ camera in one powerful surveillance solution. This dual 4MP system captures both a wide overview and detailed zoomed images simultaneously, allowing users to monitor large areas while focusing on specific targets.
Powered by DarkFighter low-light technology, the camera delivers clear images even in challenging lighting conditions. With 4× optical zoom, 16× digital zoom, and advanced analytics such as human and vehicle detection, this camera provides reliable and intelligent security monitoring.
Key Features
-
TandemVu Dual Camera System – Simultaneously captures wide-angle and detailed views
-
4MP + 4MP Resolution – High-quality imaging on both bullet and PTZ channels
-
DarkFighter Technology – Excellent low-light performance
-
4× Optical Zoom – Detailed monitoring with up to 16× digital zoom
-
Smart Detection – Supports human and vehicle detection
-
Hybrid Illumination – IR and white light support for enhanced night monitoring
-
Audio Support – Built-in microphone and speaker
-
Flexible Power Options – Supports 12V DC and PoE+
-
Weather Resistant – IP66 rated for outdoor installations
Camera & Optics
-
Image Sensor: 1/2.8" Progressive Scan CMOS (Bullet & PTZ)
-
Max Resolution: 2560 × 1440 (both channels)
-
Lens: Bullet 2.8 mm, PTZ 2.8–12 mm
-
Optical Zoom: 4×
-
Digital Zoom: 16×
-
Field of View: Bullet 114.9° horizontal; PTZ 98°–34.2°
-
Minimum Illumination: 0.01 Lux (color)
-
IR Range: Up to 40 m (PTZ) / 30 m (Bullet)
-
White Light Distance: Up to 30 m
PTZ Functions
-
Pan Range: 0°–350°
-
Tilt Range: -5°–90°
-
Pan Speed: 0.1°–30°/s
-
Tilt Speed: 0.1°–30°/s
-
Presets: 300
-
Patrols: 8 patrol scans
-
3D Positioning: Supported
-
Power-Off Memory: Yes
Video & Network
-
Video Compression: H.265 / H.264 / MJPEG
-
Frame Rate: Up to 30 fps at 2560 × 1440
-
Video Bitrate: 32 kbps – 16384 kbps
-
Audio Compression: G.711, G.722.1, G.726, MP3, AAC
-
Network Protocols: TCP/IP, RTSP, HTTPS, FTP, SNMP, NTP, DHCP and more
-
API: ONVIF (Profile S/G/T), ISAPI, SDK
-
Simultaneous Live View: Up to 20 channels
Storage & Interface
-
On-board Storage: MicroSD/SDHC/SDXC up to 512GB
-
Ethernet: RJ45 10/100M self-adaptive
-
Built-in Microphone: Yes
-
Built-in Speaker: Yes
-
Reset Button: Yes
Image Enhancements
-
Wide Dynamic Range: 120 dB
-
Image Enhancement: BLC, HLC, 3D DNR
-
Defog: Digital defog
-
Privacy Masks: 24 programmable masks
-
Regional Exposure / Focus: Supported (PTZ)
General Specifications
-
Power Supply: 12 VDC or PoE+
-
Max Power Consumption: 13.5 W
-
Operating Temperature: -30°C to 50°C
-
Protection Rating: IP66
-
Material: PC
-
Dimensions: 311.5 × 223.5 × 156 mm
-
Weight: Approx. 1.37 kg
With advanced analytics, dual-camera TandemVu technology, and robust PTZ capabilities, the Hikvision DS-2SE3C404MWG-E/14 is an ideal surveillance solution for monitoring large areas while capturing detailed events in real time.
