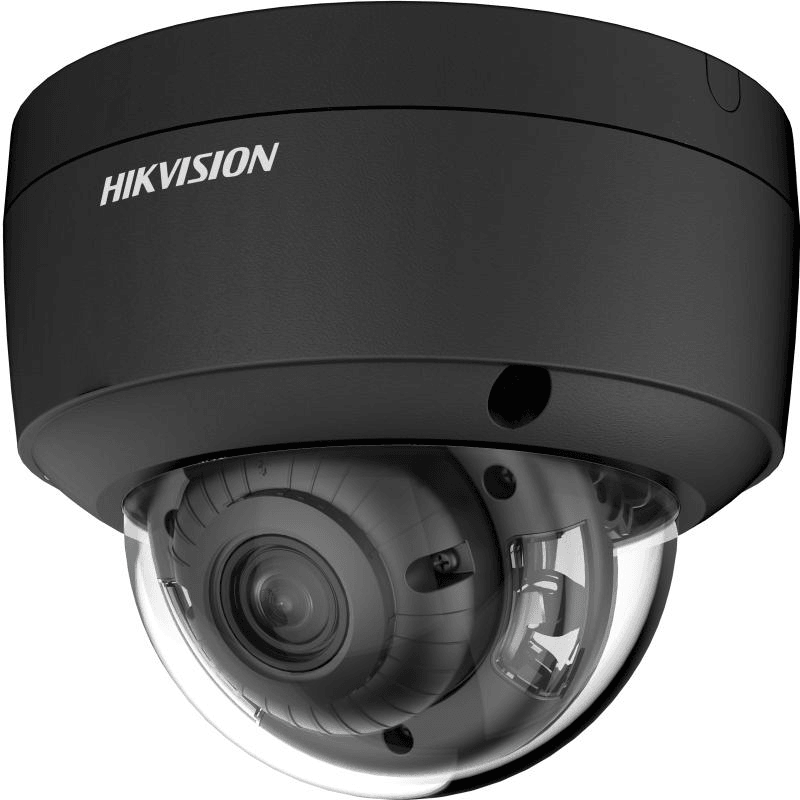

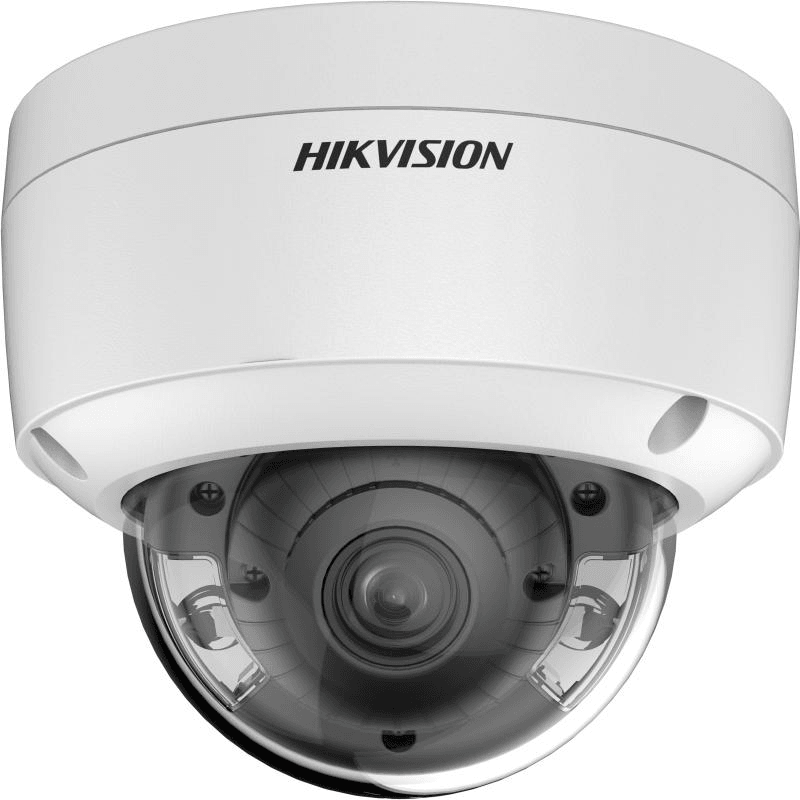

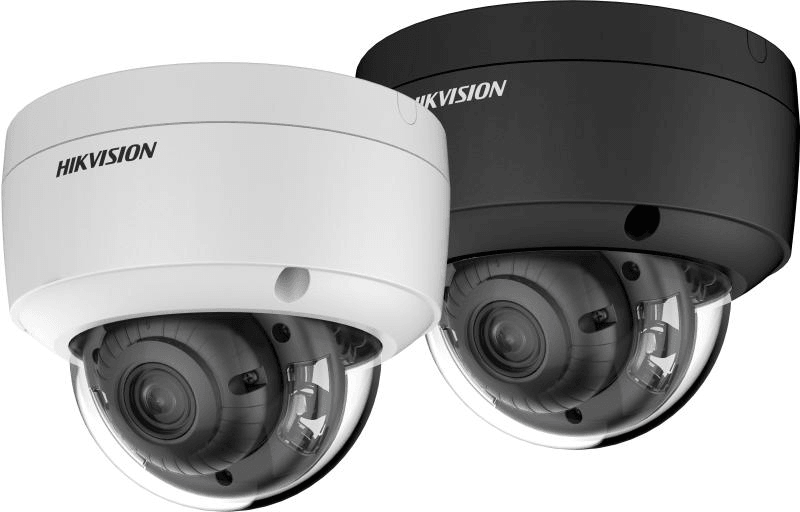

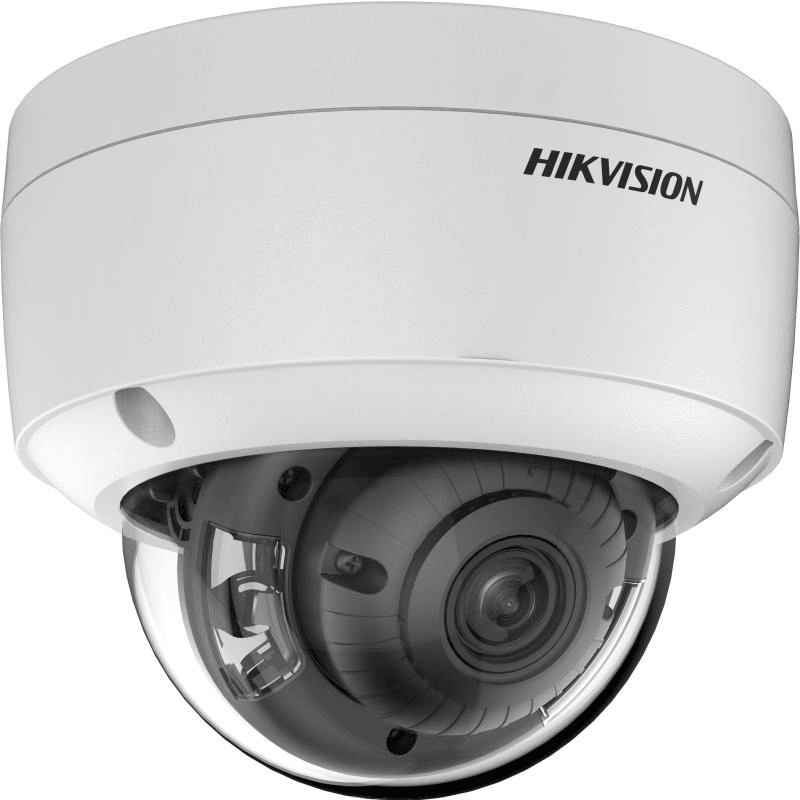

HIK 4MP COLORVU DOME 4MM DS-2CD2147G2-L
DS-2CD2147G2-L(4mm)(C)
Experience 24/7 vivid, colorful images with Hikvision's ColorVu technology, featuring F1.0 advanced lenses and high performance sensors. The super-aperture of F1.0 allows for increased light collection, resulting in brighter and more vibrant images. With advanced sensor technology, you'll see a significant improvement in available light utilization.
FEATURES:
SPECS:
CameraImage Sensor1/1.8" Progressive Scan CMOSMax. Resolution2688 × 1520Min. Illumination0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white lightShutter Time1/3 s to 1/100,000 sDay & Night24/7 Color imagingAngle AdjustmentPan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°LensLens TypeFixed focal lens, 2.8 and 4 mm optionalFocal Length & FOV2.8 mm, horizontal FOV 112°, vertical FOV 61°, diagonal FOV 134°
4 mm, horizontal FOV 95°, vertical FOV 51°, diagonal FOV 115°
Lens MountM16Iris TypeFixedApertureF1.0Depth Of Field2.8 mm: 2.5 m to ∞
4 mm: 3.5 m to ∞
DORIDORI2.8 mm, D: 58 m, O: 23 m, R: 11 m, I: 2 m
4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m
IlluminatorSupplement Light TypeWhite LightSupplement Light RangeUp to 30 mSmart Supplement LightYesVideoMain Stream50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.
Video CompressionMain stream: H.265/H.264/H.265+/H.264+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
Video Bit Rate32 Kbps to 8 MbpsH.264 TypeBaseline Profile/Main Profile/High ProfileH.265 TypeMain ProfileBit Rate ControlCBR/VBRScalable Video Coding (SVC)H.264 and H.265 encodingRegion Of Interest (ROI)1 fixed region for main stream and sub-streamAudioAudio Type-SU: Mono soundAudio Compression-SU: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LCAudio Bit Rate-SU: 64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)Audio Sampling Rate-SU: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHzEnvironment Noise Filtering-SU: YesNetworkProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSocketsSimultaneous Live ViewUp to 6 channelsAPIOpen Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK , ISUP5.0User/HostUp to 32 users. 3 user levels: administrator, operator and userSecurityPassword protection, complicated password, HTTPS encryption, IP address filter, security audit log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video InterfaceNetwork StorageMicroSD/microSDHC/microSDXC card (512 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health detection are supported
ClientiVMS-4200, Hik-Connect, Hik-CentralWeb BrowserPlug-in required live view: IE 10, IE 11
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
ImageImage Parameters SwitchYesImage SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browserDay/Night SwitchDay, Night, Auto, ScheduleWide Dynamic Range (WDR)130 dBSNR≥ 52 dBImage EnhancementBLC, HLC, 3D DNRInterfaceEthernet Interface1 RJ45 10M/100M self-adaptive Ethernet portOn-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC/TF card, up to 512 GBBuilt-In Microphone-SU: YesAudio-SU: 1 input (line in), max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium;
1 output (line out), max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound
Alarm-SU: 1 input, 1 output (max. 12 VDC, 30 mA)Reset KeyYesEventBasic EventMotion detection (human and vehicle targets classification), video tampering alarm, exceptionSmart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection
Scene change detection
LinkageUpload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger capture, send email trigger alarm output (-SU), audible warning (-SU)Deep Learning FunctionFace CaptureYesGeneralPower12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug
PoE: 802.3af, Class 3, 36 V to 57 V, 0.20 A to 0.15 A, max. 6.5 W
DimensionØ121.4 mm × 100.1 mm (Ø4.8" × 3.9")Package Dimension150 mm × 150 mm × 141 mm (5.9" × 5.9" ×5.6")WeightApprox. 600 g (1.3 lb.)With Package WeightApprox. 820 g (1.6 lb.)Language33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)General FunctionAnti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counterStartup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)ApprovalEMCFCC (47 CFR Part 15, Subpart B)
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014)
RCM (AS/NZS CISPR 32: 2015)
IC (ICES-003: Issue 7)
SafetyUL (UL 62368-1)
CB (IEC 62368-1: 2014+A11)
CE-LVD (EN 62368-1: 2014/A11: 2017)
LOA (IEC/EN 60950-1)
EnvironmentCE-RoHS (2011/65/EU)
WEEE (2012/19/EU)
Reach (Regulation (EC) No 1907/2006)
ProtectionIP67 (IEC 60529-2013)
IK10 (IEC 62262: 2002)
