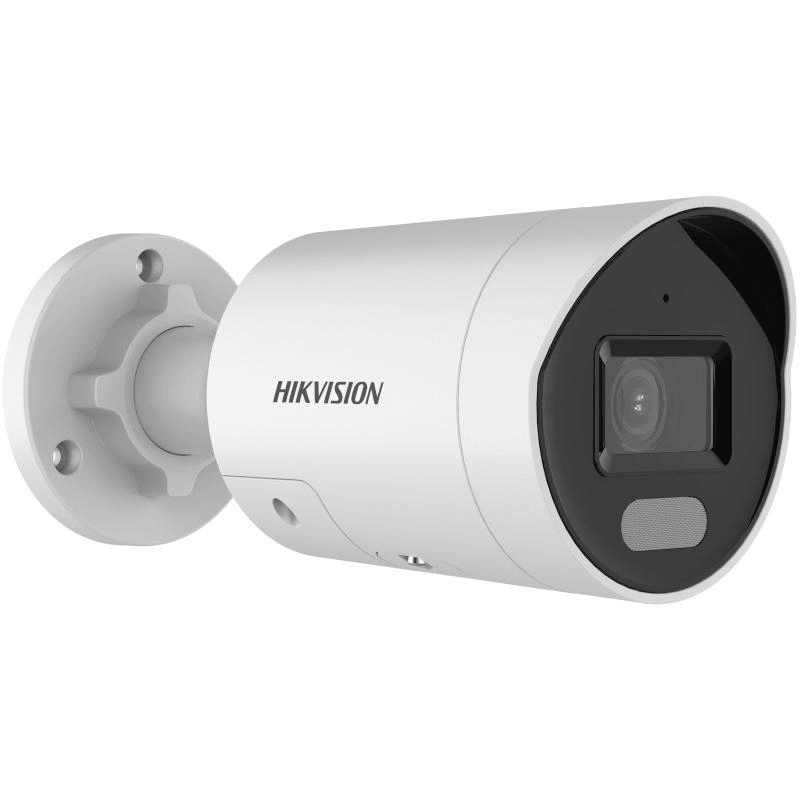

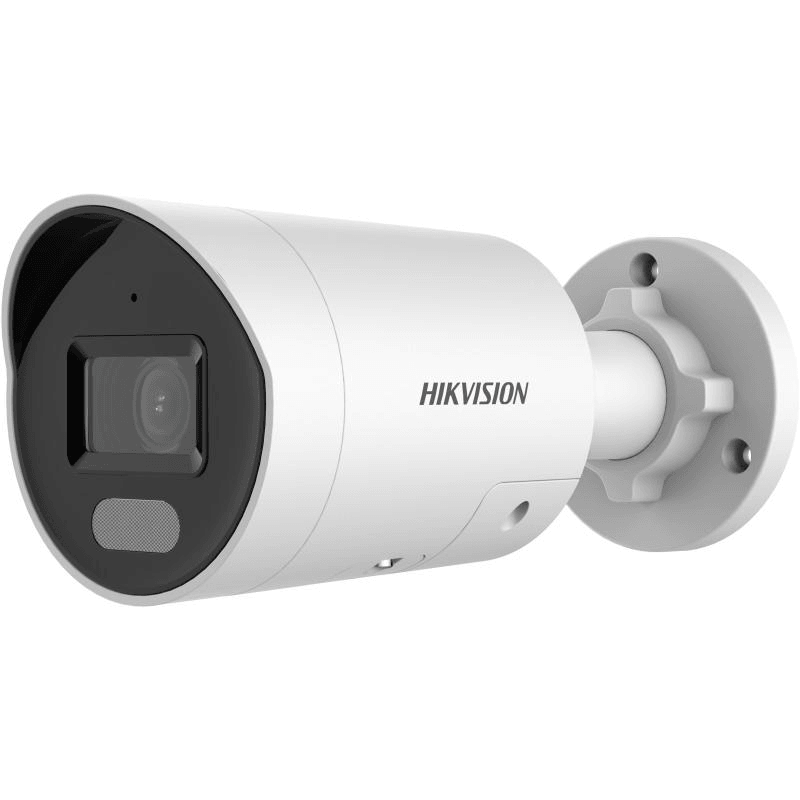

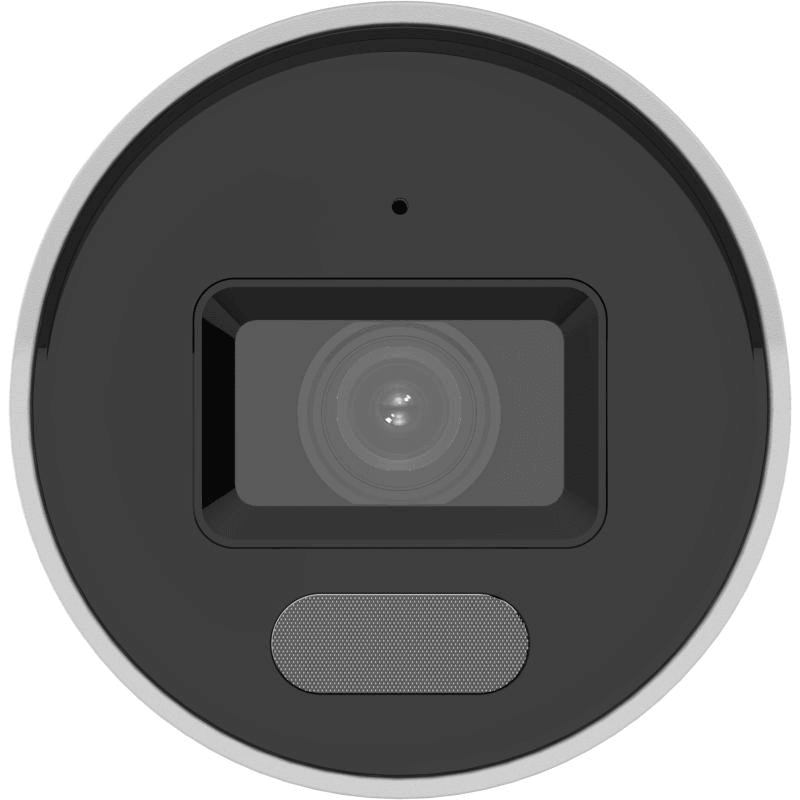

HIK 4MP COLORVU BULLET 6MM DS-2CD2047G2-LU/SL
DS-2CD2047G2-LU/SL(6mm)(C)
Experience 24/7 vibrant, colorful images with Hikvision's revolutionary ColorVu technology. Utilizing advanced F1.0 lenses and high performance sensors, this technology captures more light to produce stunningly bright visuals. Elevate your viewing experience with improved light utilization thanks to our advanced sensor technology.
FEATURES:
- High quality imaging with 4 MP resolution
- Efficient H.265+ compression technology
- Clear imaging against strong backlight due to 130 dB WDR technology
- Focus on human and vehicle targets classification based on deep learning
- 24/7 colorful imaging
- Active strobe light and audio alarm to warn intruders off
- Provide real-time security via built-in two-way audio
- Water and dust resistant (IP67)
SPECS:
- Camera
- Image Sensor 1/1.8" Progressive Scan CMOS
- Max. Resolution 2688 × 1520
- Min. Illumination Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
- Shutter Time1/3 s to 1/100,000 s
- Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
- Lens
-
Focal Length & FOV
2.8 mm, horizontal FOV 111.9°, vertical FOV 60.5°, diagonal FOV 133.6°
4 mm, horizontal FOV 95.2°, vertical FOV 50.6°, diagonal FOV 114.7°
6 mm, horizontal FOV 58.4°, vertical FOV 31°, diagonal FOV 68.7°
- Lens Mount M16
- Iris TypeFixed
- ApertureF1.0
-
Depth Of Field
2.8 mm: 3.1 m to ∞
4 mm: 5.4 m to ∞
6 mm: 12.1 m to ∞
- DORI
-
DORI
2.8 mm, D: 58.2 m, O: 23.1 m, R: 11.6 m, I: 5.8 m
4 mm, D: 77 m, O: 30.5 m, R: 15.4 m, I: 7.7 m
6 mm, D: 115.6 m, O: 45.9 m, R: 23.1 m, I: 11.6 m
- Illuminator
- Supplement Light TypeWhite Light
- Supplement Light RangeUp to 40 m
- Smart Supplement LightYes
- Video
-
Main Stream
50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
-
Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
-
Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.
-
Video Compression
Main stream: H.265/H.264/H.265+/H.264+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
*Third stream is supported under certain settings.
- Video Bit Rate32 Kbps to 8 Mbps
- H.264 TypeBaseline Profile/Main Profile/High Profile
- H.265 TypeMain Profile
- Bit Rate ControlCBR/VBR
- Scalable Video Coding (SVC)H.265 and H.264 encoding
- Region Of Interest (ROI)1 fixed region for main stream and sub-stream
- Audio
- Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Environment Noise FilteringYes
- Network
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets
- Simultaneous Live ViewUp to 6 channels
- APIOpen Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
- User/HostUp to 32 users. 3 user levels: administrator, operator and user
- SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
-
Network Storage
NAS (NFS, SMB/CIFS), auto network replenishment (ANR), microSD/microSDHC/microSDXC card (512 GB) local storage
Together with high-end Hikvision memory card, memory card encryption and health detection are supported
- ClientiVMS-4200, Hik-Connect, Hik-Central
-
Web Browser
Plug-in required live view: IE 10, IE 11
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Image
- Image Parameters SwitchYes
- Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
- Day/Night SwitchAuto, Schedule
- Wide Dynamic Range (WDR)130 dB
- SNR≥ 52 dB
- Image EnhancementBLC, HLC, 3D DNR
- Interface
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Built-In MicrophoneYes
- Built-In Speaker1.2 W, 10 cm: 95 dB
- AlarmVisual alarm
- Reset KeyYes
- Event
- Basic EventMotion detection (human and vehicle targets classification), video tampering alarm, exception
-
Smart Event
Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggering by specified target types (human and vehicle))
Scene change detection
- LinkageUpload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email, strobe light, audible warning, trigger alarm output
- Deep Learning Function
- Face CaptureYes
- General
-
Power
12 VDC, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug
PoE: 802.3af, Class 3, 36 V to 57 V, 0.25 A to 0.15 A , max. 7.5 W
- DimensionØ74.4 mm × 179.2 mm (Ø2.9" × 7.1")
- Package Dimension234 mm × 120 mm × 117 mm (9.2" × 4.7" × 4.6")
- WeightApprox. 510 g (1.1 lb.)
- With Package WeightApprox. 760 g (1.7 lb.)
- Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
-
Language
33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- General FunctionAnti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
- Approval
-
EMC
FCC SDoC: 47 CFR Part 15, Subpart B;
CE-EMC: EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014;
RCM: AS/NZS CISPR 32: 2015;
IC VoC: ICES-003: Issue 6, 2016;
KC: KN 32: 2015, KN 35: 2015
-
Safety
UL: UL 60950-1;
CB: IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014;
CE-LVD: EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014;
LOA: IEC/EN 60950-1
-
Environment
CE-RoHS: 2011/65/EU;
WEEE: 2012/19/EU;
Reach: Regulation (EC) No 1907/2006
- ProtectionIP67: IEC 60529-2013
