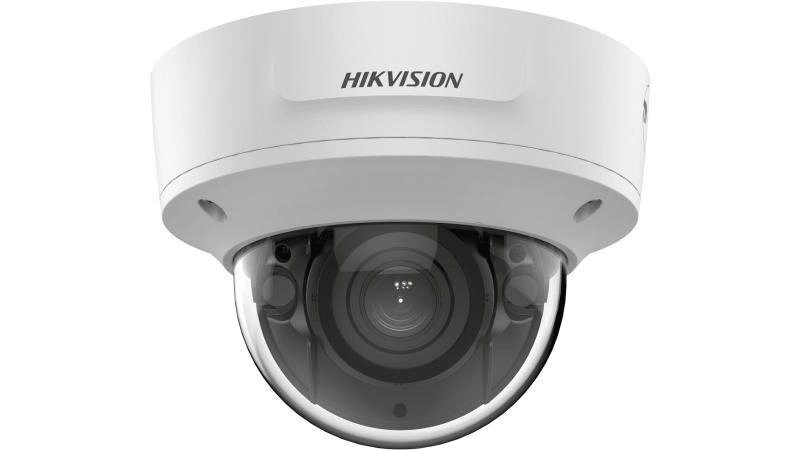

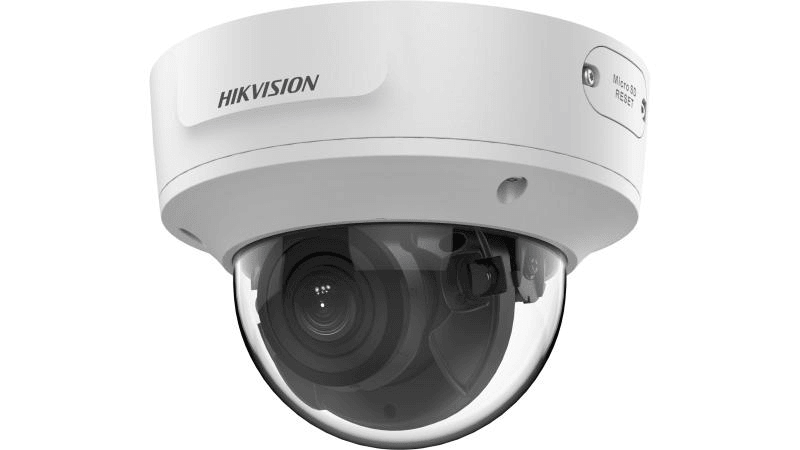

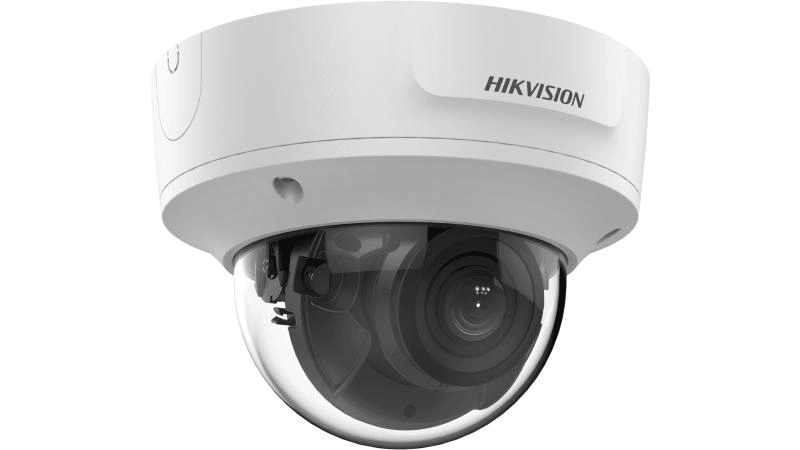

HIK 4MP ACUSENSE VRF F1.0 DOME DS-2CD2746G2T-IZS
DS-2CD2746G2T-IZS(2.8-12mm)(C)
Experience the power of deep learning with Hikvision AcuSense technology, which brings advanced human and vehicle target classification alarms to both front- and back-end devices. By focusing on humans and vehicles, our system significantly enhances alarm efficiency and effectiveness.
FEATURES:
- High quality imaging with 4 MP resolution
-
Excellent low-light performance with powered-by-DarkFighter technology
-
Motorized varifocal lens for easy installation and monitoring
-
Clear imaging against strong backlight due to 120 dB true WDR technology
-
Efficient H.265+ compression technology
-
Focus on human and vehicle targets classification based on deep learning
-
Audio and alarm interface available
-
Water and dust resistant (IP67) and vandal-resistant (IK10)
SPECS:
- Camera
-
Image Sensor 1/3" Progressive Scan CMOS
-
Max. Resolution 2688 × 1520
-
Min. Illumination Color: 0.003 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR
-
Day & Night IR cut filter
-
Shutter Time1/3 s to 1/100,000 s
-
Angle Adjustment Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
- Lens
-
Focal Length & FOV2.8 to 12 mm, horizontal FOV 108° to 30°, vertical FOV 56° to 17°, diagonal FOV 131° to 35°
-
Lens Type Varifocal lens, motor-driven lens, 2.8 to 12 mm
- Aperture F1.4
-
Lens MountØ14
- Iris Type Fixed
- DORI
-
DORI
2.8 to 12mm:
Wide: D: 64.0 m, O: 25.4 m, R: 12.8 m, I: 6.4 m
Tele: D: 190 m, O: 75.4 m, R: 38.0 m, I: 19.0 m
- Illuminator
-
Supplement Light Type IR
-
Supplement Light Range Up to 40 m
- IR Wavelength 850nm
- Smart Supplement Light Yes
- Video
-
Main Stream
50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
-
Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
-
Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.
-
Video Compression
Main stream: H.265/H.264/H.265+/H.264+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
*Third stream is supported under certain settings.
-
Video Bit Rate32 Kbps to 8 Mbps
-
H.264 TypeBaseline Profile/Main Profile/High Profile
-
H.265 TypeMain Profile
-
Bit Rate ControlCBR/VBR
-
Scalable Video Coding (SVC)H.264 and H.265 encoding
-
Region Of Interest (ROI)1 fixed region for main stream and sub-stream
- Audio
-
Environment Noise FilteringYes
-
Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
-
Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
-
Audio Bitrate 64 Kbps (G.711 ulaw/G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
- Network
-
Simultaneous Live View Up to 6 channels
- API Open Network Video Interface ( Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
- Protocol TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets
-
User/Host
Up to 32 users
3 user levels: administrator, operator, and user
- Security Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
-
Network Storage
NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
- Client iVMS-4200, Hik-Connect, Hik-Central
-
Web Browser
Plug-in required live view: IE 10, IE 11,
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Image
-
Wide Dynamic Range (WDR)120 dB
-
SNR≥ 52 dB
-
Privacy Mask4 programmable polygon privacy masks
-
Day/Night Switch Day, Night, Auto, Schedule
-
Image Enhancement BLC, HLC, 3D DNR
- Image Parameters Switch Yes
-
Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
- Interface
-
Alarm1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
-
Audio
1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium;
1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
-
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Reset Key Yes
-
Ethernet Interface 1 RJ45 10M/100M self-adaptive Ethernet port
- Event
-
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
- Linkage Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture,audible warning
-
Smart Event Scene change detection
- Deep Learning Function
- Face Capture Yes
-
Perimeter Protection
Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
- General
-
Power
12V DC ± 25%, 0.88 A, max. 10.5 W,Ø5.5 mm coaxial power plug,
PoE: IEEE 802.3af, Class 3, max. 12.5 W
-
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
-
Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Material Metal
-
DimensionØ153.3 mm × 111.6 mm (Ø6.0" × 4.4")
-
Package Dimensions 244 mm × 174 mm × 173 mm (9.6" × 6.9" × 6.8")
- Weight Approx. 865 g (1.9 lb.)
-
With Package Weight Approx. 1459 g (3.2 lb.)
- Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
-
General Function Heartbeat, mirror, flash log, password reset via email, pixel counter, anti-banding
