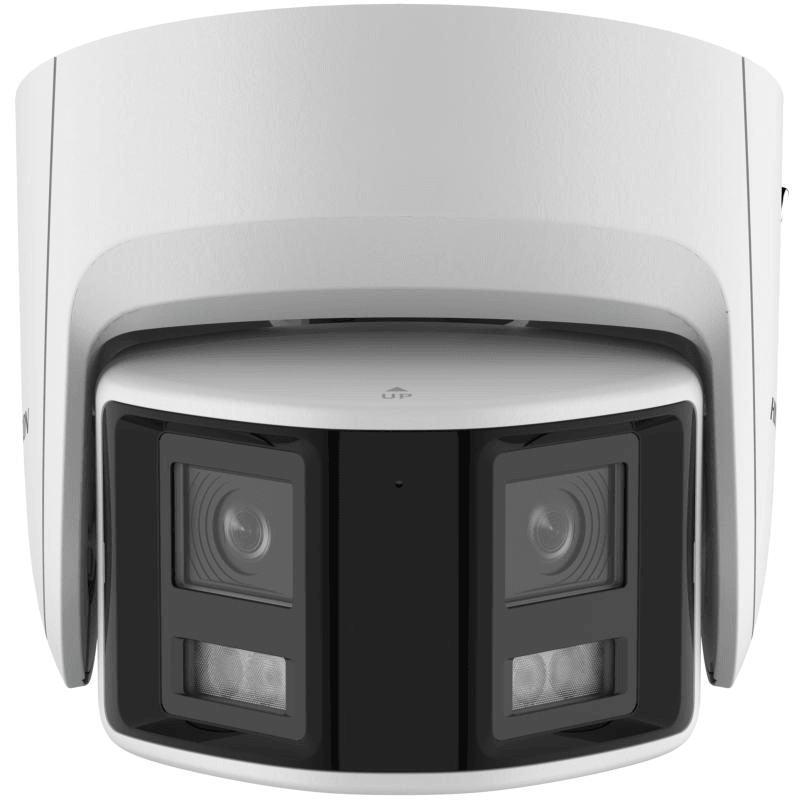

HIK 4MP ACUSENSE PANORAMIC TURRET 2.8MM
HIK 4MP ACUSENSE PANORAMIC TURRET 2.8MM
DS-2CD2346G2P-ISU/SL(2.8mm)(C)
Hikvision's AcuSense technology, powered by deep learning algorithms, enhances the effectiveness and efficiency of alarm systems by accurately classifying human and vehicle targets. Experience unparalleled precision and intelligence with this groundbreaking system.
FEATURES:
- High quality imaging with 4 MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology
- One image that presents all the scenes covered by the camera
- Clear imaging against strong back light due to 120 dB true WDR technology
- Focus on human and vehicle targets classification based on deep learning
- Active strobe light and audio alarm to warn intruders off
- Provide real-time security via built-in two-way audio
- Water and dust resistant (IP67)
SPECS:
- Camera
- Image Sensor 2 × 1/2.5" Progressive Scan CMOS
- Max. Resolution 3040 × 1368
- Min. Illumination Color: 0.003 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
- Shutter Time1/3 s to 1/100,000 s
- Day & Night IR cut filter
- Angle Adjustment Pan: 0° to 30°,tilt: -75° to 75°
- Lens
- Lens Type Fixed focal lens, dual lens, 2.8 mm
- Focal Length & FOV2.8 mm, horizontal FOV: 180°, vertical FOV: 81°
- Lens Mount M12
- Iris Type Fixed
- Aperture F1.6
- DORI
- DORI 2.8 mm, D: 37 m, O: 15 m, R: 7 m, I: 3.5 m
- Illuminator
- Supplement Light Type IR
- Supplement Light Range Up to 30 m
- Smart Supplement Light Yes
- IR Wavelength 850nm
- Video
-
Mainstream
50 Hz: 25 fps (3040 × 1368)
60 Hz: 24 fps (3040 × 1368)
-
Sub-Stream
50 Hz: 25 fps (1200 × 536, 960 × 432)
60 Hz: 24 fps (1200 × 536, 960 × 432)
-
Video Compression
Mainstream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
- Video Bitrate 32 Kbps to 8 Mbps
- H.264 Type Baseline Profile,Main Profile,High Profile
- H.265 TypeMain Profile
- Bitrate Control CBR,VBR
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Region Of Interest (ROI)1 fixed region for main stream
- Audio
- Audio TypeMono sound
- Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio Bitrate 64 Kbps (G.711 ulaw/G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate 8khz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Environment Noise Filtering Yes
- Network
- Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, Websocket, Websockets
- Simultaneous Live View Up to 6 channels
- API Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK
-
User/Host
Up to 32 users
3 user levels: administrator, operator, and user
- Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
-
Network Storage
NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
- Client iVMS-4200,Hik-Connect,Hik-Central
-
Web Browser
Plug-in required live view: IE 10, IE 11,
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Image
- Image Parameters Switch Yes
- Image Settings Saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
- Day/Night Switch Day,Night,Auto,Schedule
- Wide Dynamic Range (WDR)120 dB
- SNR≥ 52 dB
- Image Enhancement BLC,HLC,3D DNR
- Privacy Mask4 programmable polygon privacy masks
- Interface
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Built-In Microphone Yes
- Built-In Speaker Max. power consumption: 1.2 W, max. sound pressure level: 10 cm: 95 dB
-
Audio
1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,
1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
- Alarm1 input, 1 output (max. 24 VDC, 1 A)
- Reset Key Yes
- Event
- Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),alarm input and output,flashing alarm light output, audible alarm output, exception
-
Smart Event
Scene change detection
- Linkage Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning,white light flashing
- Deep Learning Function
-
Perimeter Protection
Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
- General
-
Power
12V DC ± 25%, 0.88 A, max. 10.5 W,Ø5.5 mm coaxial power plug,
PoE: IEEE 802.3af, Class 3, 36 V to 57 V, 0.35 A to 0.22 A, max. 12.5 W
-
Material
Base: metal, cover: metal
-
Dimension
Ø140 mm × 145.6 mm (Ø5.5 × 5.7\")"
- Package Dimensions 230mm × 230 mm × 230 mm (9" × 9" × 9")
- Weight Approx. 940 g (2.1 lb.)
- With Package Weight Approx. 1700 g (3.7 lb.)
- Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- General Function Anti-banding, heartbeat, flash log, pixel counter
- Flashing Light Yes
- Approval
-
EMC
FCC: 47 CFR Part 15, Subpart B,
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7
-
Safety
UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017
-
Environment
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
- Protection IP67: IEC 60529-2013
HIK 4MP ACUSENSE PANORAMIC TURRET 2.8MM
DS-2CD2346G2P-ISU/SL(2.8mm)(C)
Hikvision's AcuSense technology, powered by deep learning algorithms, enhances the effectiveness and efficiency of alarm systems by accurately classifying human and vehicle targets. Experience unparalleled precision and intelligence with this groundbreaking system.
FEATURES:
- High quality imaging with 4 MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology
- One image that presents all the scenes covered by the camera
- Clear imaging against strong back light due to 120 dB true WDR technology
- Focus on human and vehicle targets classification based on deep learning
- Active strobe light and audio alarm to warn intruders off
- Provide real-time security via built-in two-way audio
- Water and dust resistant (IP67)
SPECS:
- Camera
- Image Sensor 2 × 1/2.5" Progressive Scan CMOS
- Max. Resolution 3040 × 1368
- Min. Illumination Color: 0.003 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
- Shutter Time1/3 s to 1/100,000 s
- Day & Night IR cut filter
- Angle Adjustment Pan: 0° to 30°,tilt: -75° to 75°
- Lens
- Lens Type Fixed focal lens, dual lens, 2.8 mm
- Focal Length & FOV2.8 mm, horizontal FOV: 180°, vertical FOV: 81°
- Lens Mount M12
- Iris Type Fixed
- Aperture F1.6
- DORI
- DORI 2.8 mm, D: 37 m, O: 15 m, R: 7 m, I: 3.5 m
- Illuminator
- Supplement Light Type IR
- Supplement Light Range Up to 30 m
- Smart Supplement Light Yes
- IR Wavelength 850nm
- Video
-
Mainstream
50 Hz: 25 fps (3040 × 1368)
60 Hz: 24 fps (3040 × 1368)
-
Sub-Stream
50 Hz: 25 fps (1200 × 536, 960 × 432)
60 Hz: 24 fps (1200 × 536, 960 × 432)
-
Video Compression
Mainstream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
- Video Bitrate 32 Kbps to 8 Mbps
- H.264 Type Baseline Profile,Main Profile,High Profile
- H.265 TypeMain Profile
- Bitrate Control CBR,VBR
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Region Of Interest (ROI)1 fixed region for main stream
- Audio
- Audio TypeMono sound
- Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio Bitrate 64 Kbps (G.711 ulaw/G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate 8khz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Environment Noise Filtering Yes
- Network
- Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, Websocket, Websockets
- Simultaneous Live View Up to 6 channels
- API Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK
-
User/Host
Up to 32 users
3 user levels: administrator, operator, and user
- Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
-
Network Storage
NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
- Client iVMS-4200,Hik-Connect,Hik-Central
-
Web Browser
Plug-in required live view: IE 10, IE 11,
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Image
- Image Parameters Switch Yes
- Image Settings Saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
- Day/Night Switch Day,Night,Auto,Schedule
- Wide Dynamic Range (WDR)120 dB
- SNR≥ 52 dB
- Image Enhancement BLC,HLC,3D DNR
- Privacy Mask4 programmable polygon privacy masks
- Interface
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Built-In Microphone Yes
- Built-In Speaker Max. power consumption: 1.2 W, max. sound pressure level: 10 cm: 95 dB
-
Audio
1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,
1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
- Alarm1 input, 1 output (max. 24 VDC, 1 A)
- Reset Key Yes
- Event
- Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),alarm input and output,flashing alarm light output, audible alarm output, exception
-
Smart Event
Scene change detection
- Linkage Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning,white light flashing
- Deep Learning Function
-
Perimeter Protection
Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
- General
-
Power
12V DC ± 25%, 0.88 A, max. 10.5 W,Ø5.5 mm coaxial power plug,
PoE: IEEE 802.3af, Class 3, 36 V to 57 V, 0.35 A to 0.22 A, max. 12.5 W
-
Material
Base: metal, cover: metal
-
Dimension
Ø140 mm × 145.6 mm (Ø5.5 × 5.7\")"
- Package Dimensions 230mm × 230 mm × 230 mm (9" × 9" × 9")
- Weight Approx. 940 g (2.1 lb.)
- With Package Weight Approx. 1700 g (3.7 lb.)
- Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- General Function Anti-banding, heartbeat, flash log, pixel counter
- Flashing Light Yes
- Approval
-
EMC
FCC: 47 CFR Part 15, Subpart B,
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7
-
Safety
UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017
-
Environment
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
- Protection IP67: IEC 60529-2013
