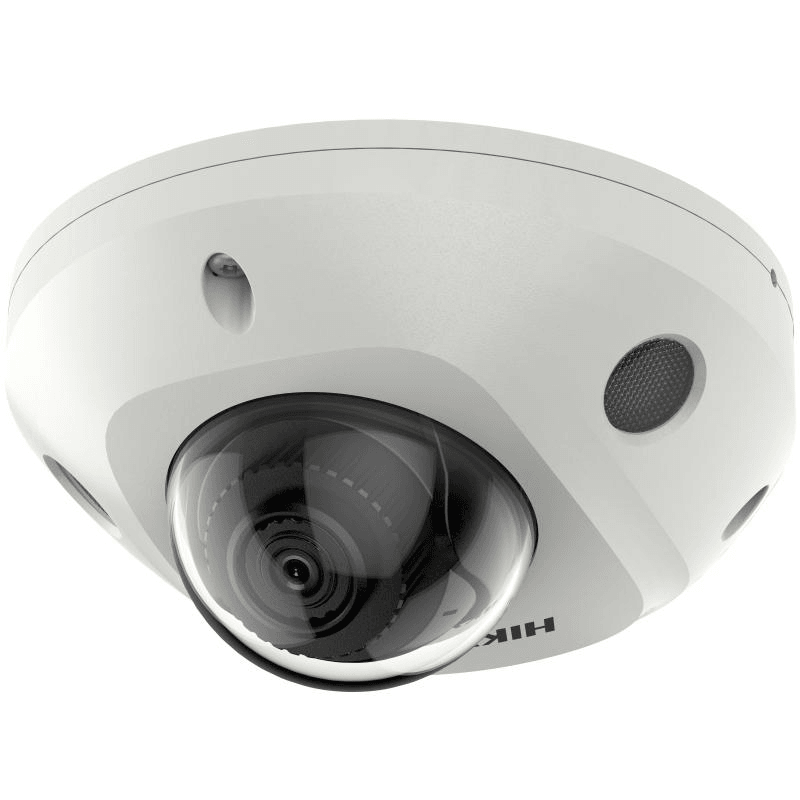

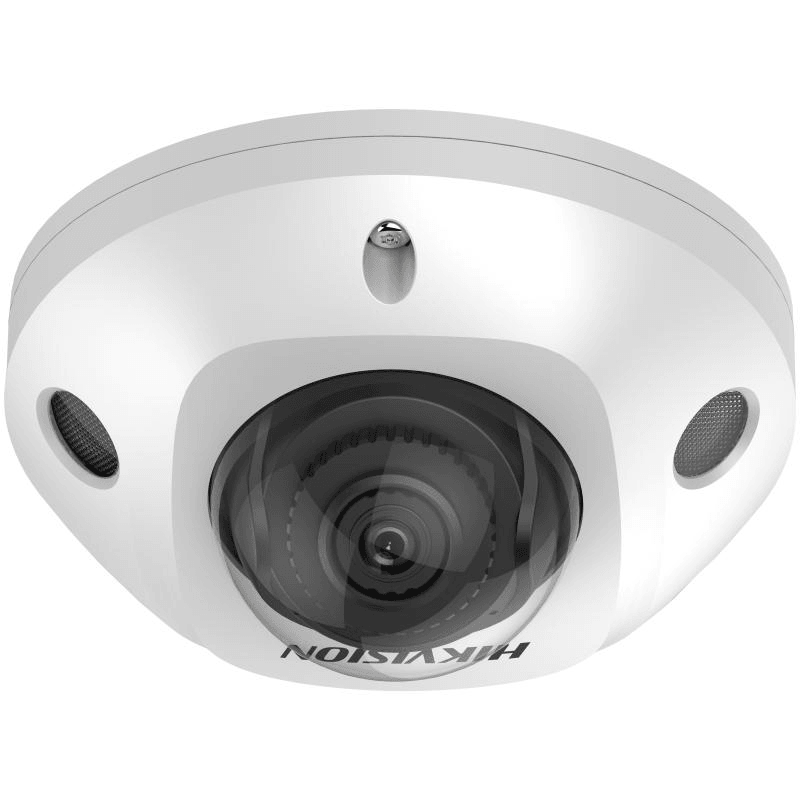

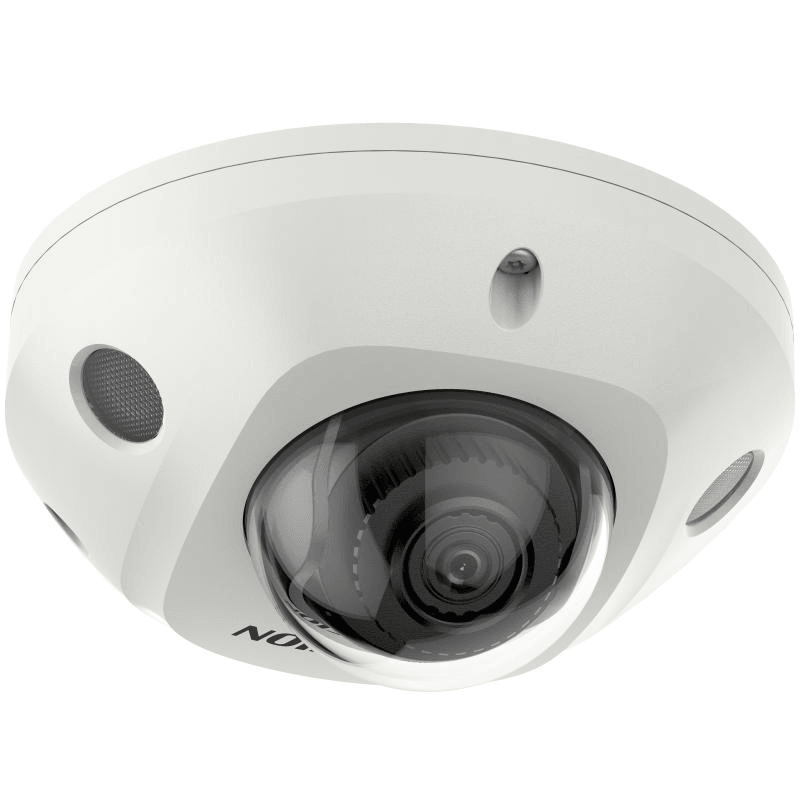

HIK 4MP ACUSENSE IP DOME 2.8MM DS-2CD2546G2-IS

Name: HIK 4MP ACUSENSE IP DOME 2.8MM DS-2CD2546G2-IS
Brand: HIKVISION
SKU: 11483
Price: 3902.0 ZAR
Availability: InStock

R 3,902.00

Quantity

history

Notify me

Safe & Secure Payment Options

Visa & Mastercard

Payfast By Network

Float

PayJustNow

Yoco Payment

Happy Pay

Payflex

HIK 4MP ACUSENSE IP DOME 2.8MM DS-2CD2546G2-IS

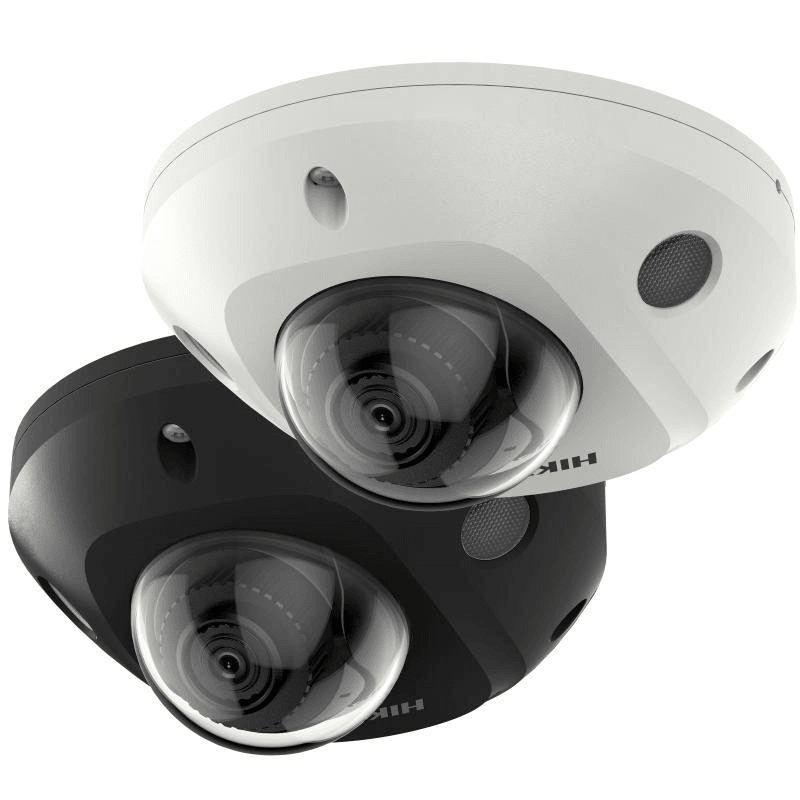

DS-2CD2546G2-IS(2.8mm)(C)(BLACK)

Experience the power of Hikvision AcuSense technology, utilizing advanced deep learning algorithms to provide accurate human and vehicle target classification alarms on both front- and back-end devices. Enhance your security system with improved alarm efficiency and effectiveness, specifically designed for human and vehicle targets.

- PLEASE NOTE THAT PICTURES ARE USED FOR ILLUSTRATION USE ONLY.

FEATURES:

High quality imaging with 4 MP resolution
Excellent low-light performance with powered-by-DarkFighter technology
Focusing on human and vehicle classification based on deep learning
Clear imaging against strong back light due to 120 dB WDR technology
Efficient H.265+ compression technology
-S: audio and alarm interface available
-W: Realizing Wi-Fi connection and easy installation
Water and dust resistant IP67 and vandal proof IK08

SPECS:

Camera
Image Sensor 1/3" Progressive Scan CMOS
Max. Resolution 2688 × 1520
Min. Illumination Color: 0.003 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR
Shutter Time1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: -30° to 30°, tilt: 0° to 75°, rotate: 0° to 360°

Lens
Lens Type Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV 102.7°, vertical FOV 55.2°, diagonal FOV 122.5°

4 mm, horizontal FOV 82.8°, vertical FOV 45.3°, diagonal FOV 97.7°
Lens Mount M12
Iris Type Fixed
Aperture F1.4
Depth Of Field
2.8 mm: 1.6 m to ∞

4 mm: 2.1 m to ∞

DORI
DORI
2.8 mm:

D: 64 m

O: 26 m

R: 13 m

I: 6 m

4 mm

D: 77 m

O: 31 m

R: 16 m

I: 8 m

Illuminator
Supplement Light Type IR
Supplement Light Range Up to 30 m
Smart Supplement Light Yes
IR Wavelength 850nm

Video
Mainstream
50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

*Third stream is supported under certain settings.
Video Compression
Mainstream: H.265/H.264/H.265+/H.264+

Sub-stream: H.265/H.264/MJPEG

Third stream: H.265/H.264

*Third stream is supported under certain settings.
Video Bitrate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 TypeMain Profile
Bit Rate Control CBR/VBR
Scalable Video Coding (SVC)H.264 and H.265 encoding
Region Of Interest (ROI)1 fixed region for main stream and sub-stream

Audio
Audio Type-IS/IWS: Mono sound
Audio Compression-IS/IWS: G.711 ulaw/G.711 alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate-IS/IWS: 64 Kbps (G.711 ulaw/G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate-IS/IWS: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering-IS/IWS: Yes

Network
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1 (except for -W model), QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets
Simultaneous Live View Up to 6 channels
API Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
User/Host Up to 32 users. 3 user levels: administrator, operator and user
Security Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Network Storage
NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

Together with high-end Hikvision memory card, memory card encryption and health detection are supported
Client iVMS-4200, Hik-Connect, Hik-Central
Web Browser
Plug-in required live view: IE 10, IE 11,

Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,

Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Wi-Fi
Encryption Mode-W: 64/128-bit WEP, WPA-EAP/WPA2-EAP, WPA-PSK/WPA2-PSK
Wi-Fi Protocol
-W:

802.11b: CCK, QPSK, BPSK

802.11g/n: OFDM
Frequency Range-W: 2.4 GHz to 2.4835 GHz
Channel Bandwidth-W: 20/40 MHz
Modulation
-W:

802.11b: CCK, QPSK, BPSK

802.11g/n: OFDM
Transfer Rate
-W:

802.11b: 11 Mbps

802.11g: 54 Mbps

802.11n: up to 300 Mbps
Wireless Range-W: Up to 80 m (The performance varies based on actual environment)

Image Parameters Switch Yes
Image Settings Rotate, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Day/Night Switch Day, Night, Auto, Schedule
Wide Dynamic Range (WDR)120 dB
SNR≥ 52 dB
Image Enhancement BLC, HLC, 3D DNR

Interface
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD card, up to 512 GB
Built-In Microphone Yes
Audio
-IS/IWS:

1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium

1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm
-IS/IWS:

1 input, 1 output (max. 12 VDC, 20 mA)
Reset Key Yes

Event
Basic Event Motion detection (human and vehicle targets classification), video tampering alarm, exception
Smart Event
Line crossing, intrusion, region entrance, region exiting (support alarm triggering by specified target types (human and vehicle))

Scene change detection
Linkage Upload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger capture, send email

Deep Learning Function
Face CaptureYes

General
Power
-IS:

12V DC ± 25%, 0.45 A, max. 5.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection

PoE: 802.3af, Class 3, 36 V to 57 V, 0.18 A to 0.11 A, max. 6.5 W

-IWS:

12V DC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug, reverse polarity protection

PoE: 802.3af, Class 3, 36 V to 57 V, 0.19 A to 0.12 A, max. 7 W
Material Base: aluminum, cover: plastic
DimensionØ110 mm × 57.4 mm (Ø 4.3" × 2.3")
Package Dimensions 134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3")
Weight Approx. 380 g (0.8 lb.)
With Package Weight Approx. 620 g (1.4 lb.)
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter

Approval
RF
-W:

FCC ID (FCC Part 15.247(BT or 2.4G));

CE-RED (EN 301489-1 V2.1.1(BT or 2.4G); EN 301489-17 V3.1.1(BT or 2.4G); EN 300328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G))
EMC
FCC (47 CFR Part 15, Subpart B)

CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014)

RCM (AS/NZS CISPR 32: 2015)

IC (ICES-003: Issue 7)

KC (KN32: 2015, KN35: 2015)
Safety
UL (UL 62368-1)

CB (IEC 62368-1: 2014+A11)

CE-LVD (EN 62368-1: 2014/A11: 2017)

LOA (IEC/EN 60950-1)
Environment
CE-RoHS (2011/65/EU)

WEEE (2012/19/EU)

Reach (Regulation (EC) No 1907/2006)
Protection
IP67 (IEC 60529-2013)

IK8 (IEC 62262:2002)
