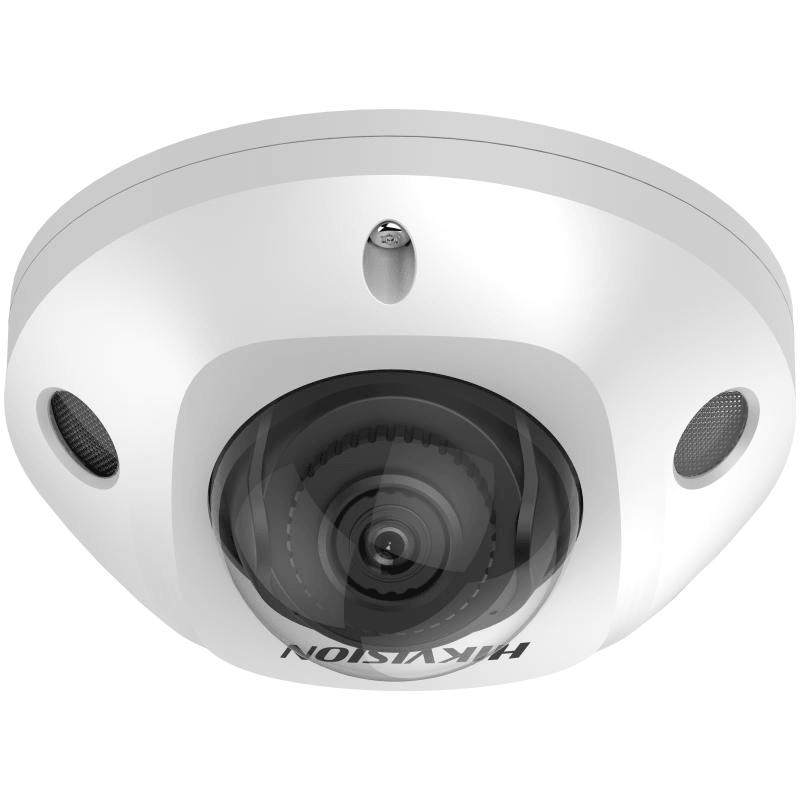

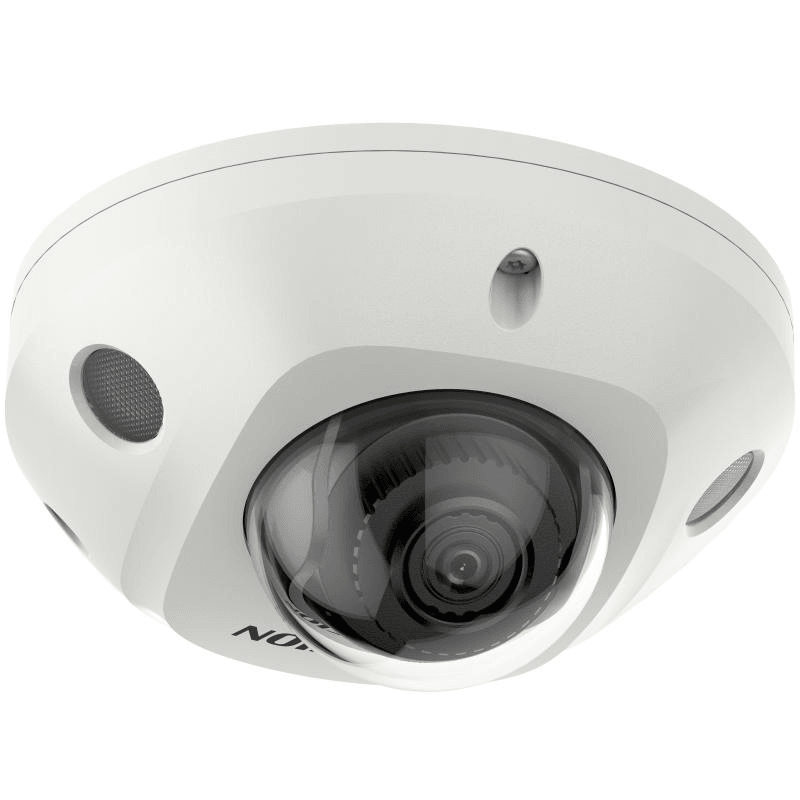

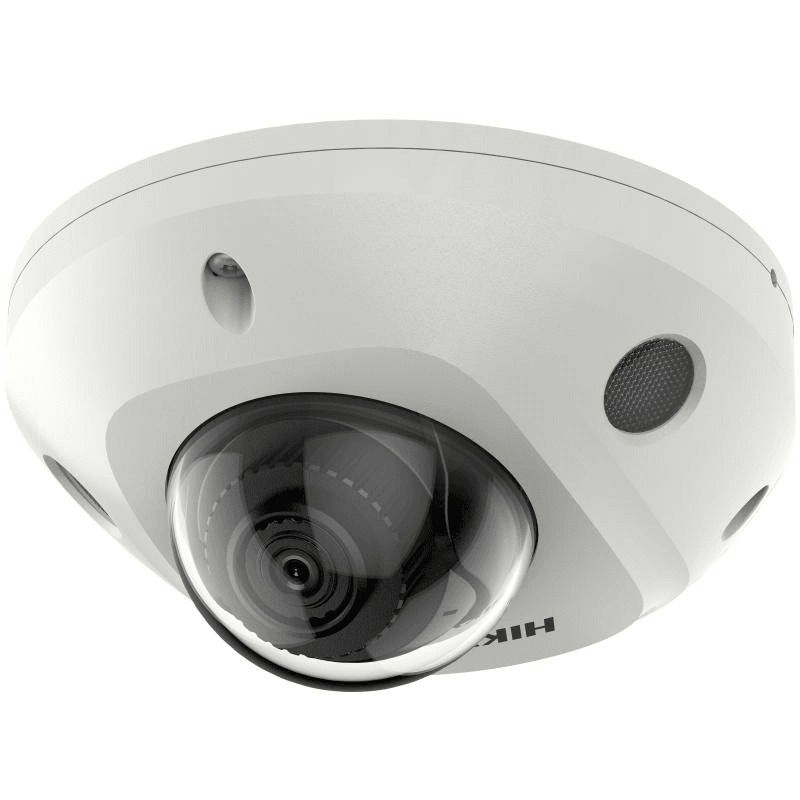

HIK 4MP ACUSENSE IP DOME 2.8MM DS-2CD2546G2-IS
DS-2CD2546G2-IS(2.8mm)(C)
Harnessing the power of cutting-edge deep learning algorithms, Hikvision AcuSense technology revolutionizes target classification by detecting and alerting for human and vehicle presence. With a strong focus on these specific targets, this system greatly enhances alarm accuracy and effectiveness.
FEATURES:
SPECS:
CameraImage Sensor1/3" Progressive Scan CMOSMax. Resolution2688 × 1520Min. IlluminationColor: 0.003 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IRShutter Time1/3 s to 1/100,000 sDay & NightIR cut filterAngle AdjustmentPan: -30° to 30°, tilt: 0° to 75°, rotate: 0° to 360°LensLens TypeFixed focal lens, 2.8 and 4 mm optionalFocal Length & FOV2.8 mm, horizontal FOV 102.7°, vertical FOV 55.2°, diagonal FOV 122.5°
4 mm, horizontal FOV 82.8°, vertical FOV 45.3°, diagonal FOV 97.7°
Lens MountM12Iris TypeFixedApertureF1.4Depth Of Field2.8 mm: 1.6 m to ∞
4 mm: 2.1 m to ∞
DORIDORI2.8 mm:
D: 64 m
O: 26 m
R: 13 m
I: 6 m
4 mm
D: 77 m
O: 31 m
R: 16 m
I: 8 m
IlluminatorSupplement Light TypeIRSupplement Light RangeUp to 30 mSmart Supplement LightYesIR Wavelength850 nmVideoMain Stream50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.
Video CompressionMain stream: H.265/H.264/H.265+/H.264+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
Video Bit Rate32 Kbps to 8 MbpsH.264 TypeBaseline Profile/Main Profile/High ProfileH.265 TypeMain ProfileBit Rate ControlCBR/VBRScalable Video Coding (SVC)H.264 and H.265 encodingRegion Of Interest (ROI)1 fixed region for main stream and sub-streamAudioAudio Type-IS/IWS: Mono soundAudio Compression-IS/IWS: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LCAudio Bit Rate-IS/IWS: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)Audio Sampling Rate-IS/IWS: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHzEnvironment Noise Filtering-IS/IWS: YesNetworkProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1 (except for -W model), QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSocketsSimultaneous Live ViewUp to 6 channelsAPIOpen Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDKUser/HostUp to 32 users. 3 user levels: administrator, operator and userSecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video InterfaceNetwork StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health detection are supported
ClientiVMS-4200, Hik-Connect, Hik-CentralWeb BrowserPlug-in required live view: IE 10, IE 11,
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Wi-FiEncryption Mode-W: 64/128-bit WEP, WPA-EAP/WPA2-EAP, WPA-PSK/WPA2-PSKWi-Fi Protocol-W:
802.11b: CCK, QPSK, BPSK
802.11g/n: OFDM
Frequency Range-W: 2.4 GHz to 2.4835 GHzChannel Bandwidth-W: 20/40 MHzModulation-W:
Transfer Rate-W:
802.11b: 11 Mbps
802.11g: 54 Mbps
802.11n: up to 300 Mbps
Wireless Range-W: Up to 80 m (The performance varies based on actual environment)ImageImage Parameters SwitchYesImage SettingsRotate, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browserDay/Night SwitchDay, Night, Auto, ScheduleWide Dynamic Range (WDR)120 dBSNR≥ 52 dBImage EnhancementBLC, HLC, 3D DNRInterfaceEthernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet portOn-Board StorageBuilt-in memory card slot, support microSD card, up to 512 GBBuilt-In MicrophoneYesAudio-IS/IWS:
1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium
1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm-IS/IWS:
1 input, 1 output (max. 12 VDC, 20 mA)
Reset KeyYesEventBasic EventMotion detection (human and vehicle targets classification), video tampering alarm, exceptionSmart EventLine crossing, intrusion, region entrance, region exiting (support alarm triggering by specified target types (human and vehicle))
Scene change detection
LinkageUpload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger capture, send emailDeep Learning FunctionFace CaptureYesGeneralPower-IS:
12 VDC ± 25%, 0.45 A, max. 5.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection
PoE: 802.3af, Class 3, 36 V to 57 V, 0.18 A to 0.11 A, max. 6.5 W
-IWS:
12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug, reverse polarity protection
PoE: 802.3af, Class 3, 36 V to 57 V, 0.19 A to 0.12 A, max. 7 W
MaterialBase: aluminum, cover: plasticDimensionØ110 mm × 57.4 mm (Ø 4.3" × 2.3")Package Dimension134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3")WeightApprox. 380 g (0.8 lb.)With Package WeightApprox. 620 g (1.4 lb.)Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), UkrainianGeneral FunctionAnti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counterApprovalRF-W:
FCC ID (FCC Part 15.247(BT or 2.4G));
CE-RED (EN 301489-1 V2.1.1(BT or 2.4G); EN 301489-17 V3.1.1(BT or 2.4G); EN 300328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G))
EMCFCC (47 CFR Part 15, Subpart B)
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014)
RCM (AS/NZS CISPR 32: 2015)
IC (ICES-003: Issue 7)
KC (KN32: 2015, KN35: 2015)
SafetyUL (UL 62368-1)
CB (IEC 62368-1: 2014+A11)
CE-LVD (EN 62368-1: 2014/A11: 2017)
LOA (IEC/EN 60950-1)
EnvironmentCE-RoHS (2011/65/EU)
WEEE (2012/19/EU)
Reach (Regulation (EC) No 1907/2006)
ProtectionIP67 (IEC 60529-2013)
IK8 (IEC 62262:2002)
