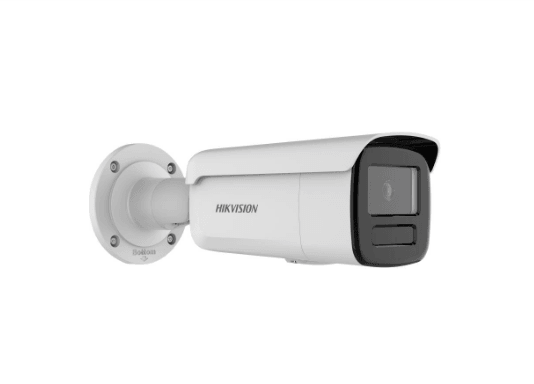

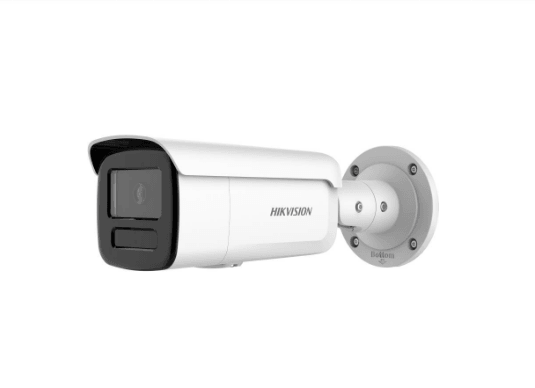

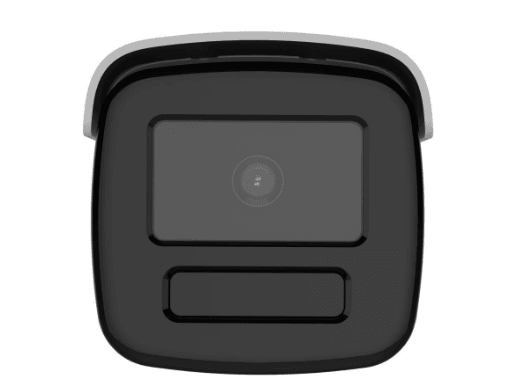

HIK 4MP ACUSENSE IP BULLET 6MM DS-2CD2T46G2-4IY
DS-2CD2T46G2-4IY(6mm)(C)
Unleash the power of deep learning algorithms with Hikvision's AcuSense technology. Experience advanced human and vehicle target classification alarms on both front-end and back-end devices. This system is specifically designed for human and vehicle targets, significantly enhancing the efficiency and effectiveness of alarms.
FEATURES:
SPECS:
CameraImage Sensor1/3" Progressive Scan CMOSMax. Resolution2688 × 1520Min. IlluminationColor: 0.003 Lux @ (F1.4, AGC ON),B/W: 0 Lux with IRDay & NightIR cut filterShutter Time1/3 s to 1/100,000 sAngle AdjustmentPan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°LensFocal Length & FOV2.8 mm, horizontal FOV 103°, vertical FOV 55°, diagonal FOV 123°
4 mm, horizontal FOV 83°, vertical FOV 45°, diagonal FOV 98°
6 mm, horizontal FOV 53°, vertical FOV 28°, diagonal FOV 62°
Lens TypeFixed focal lens, 2.8, 4, and 6 mm optionalApertureF1.4Lens MountM12Iris TypeFixedDORIDORI2.8 mm: D: 60.0 m, O: 23.8 m, R: 12.0 m, I: 6.0 m
4 mm: D: 80.0 m, O: 31.7 m, R: 16.0 m, I: 8.0 m
6 mm: D: 120.0 m, O: 47.6 m, R: 24.0 m, I: 12.0 m
IlluminatorIR Wavelength850 nmSupplement Light RangeUp to 80 mSmart Supplement LightYesSupplement Light TypeIRVideoMain Stream50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360),
*Third stream is supported under certain settings.
Video CompressionMain stream: H.265/H.264/H.265+/H.264+,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264
Video Bit Rate32 Kbps to 8 MbpsH.264 TypeBaseline Profile,Main Profile,High ProfileH.265 TypeMain ProfileBit Rate ControlCBR,VBRScalable Video Coding (SVC)H.264 and H.265 encodingRegion Of Interest (ROI)1 fixed region for main stream and sub-streamNetworkProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSocketsSimultaneous Live ViewUp to 6 channelsAPIOpen Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDKUser/HostUp to 32 users
3 user levels: administrator, operator, and user
SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video InterfaceNetwork StorageNAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
ClientiVMS-4200,Hik-Connect,Hik-CentralWeb BrowserPlug-in required live view: IE 10, IE 11,
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
ImageWide Dynamic Range (WDR)120 dBSNR≥ 52 dBPrivacy Mask4 programmable polygon privacy masksDay/Night SwitchDay,Night,Auto,ScheduleImage EnhancementBLC,HLC,3D DNRImage Parameters SwitchYesImage SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browserInterfaceEthernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet portOn-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Reset KeyYesEventBasic EventMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exceptionSmart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection, scene change detectionLinkageUpload to FTP/NAS/memory card,notify surveillance center,trigger recording,trigger capture,send emailDeep Learning FunctionFace CaptureYesGeneralPower12 VDC ± 25%, 0.88 A, max. 10.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
PoE: 802.3af, Class 3, 36 V to 57 V, 0.34 A to 0.21 A, max. 12 W
MaterialFront cover: metal, body: metal, bracket: metalDimension286.7 mm × 93.3 mm × 91.2 mm (11.3" × 3.7" × 3.6")Package Dimension386 mm × 156 mm × 155 mm (15.2" × 6.1" × 6.1")WeightApprox. 1075 g (2.4 lb.)With Package WeightApprox. 1584 g (3.5 lb.)Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)General FunctionHeartbeat,anti-flicker,mirror,flash log,password reset via email,pixel counter,privacy maskLanguage33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), UkrainianApprovalEMCFCC: 47 CFR Part 15, Subpart B,
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
RCM: AS/NZS CISPR 32: 2015
SafetyUL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
LOA: IEC/EN 60950-1
EnvironmentCE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
ProtectionIP67: IEC 60529-2013Anti-Corrosion ProtectionNEMA 4X (NEMA 250-2018)
