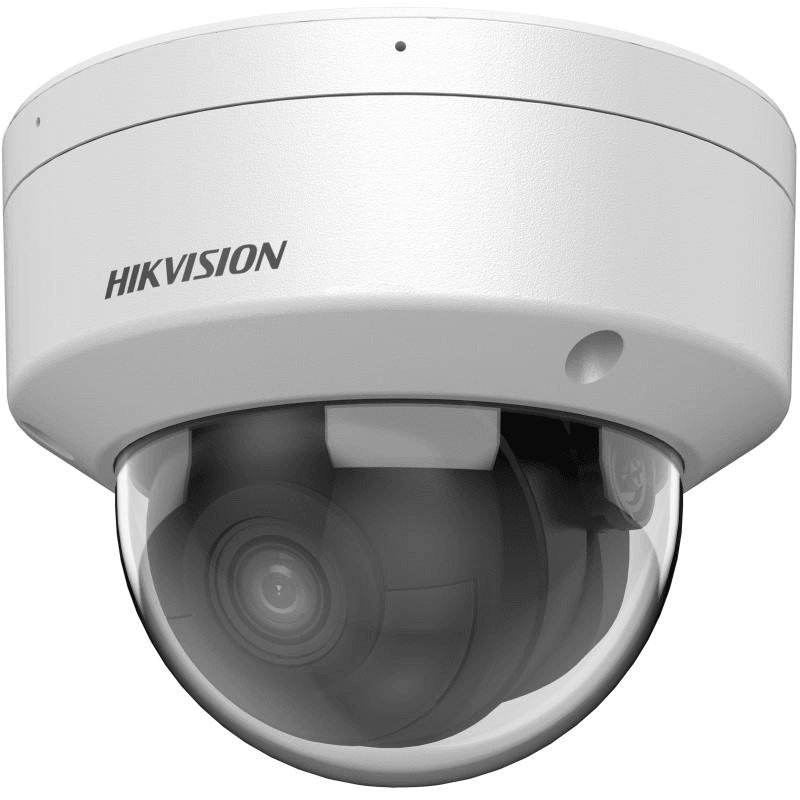

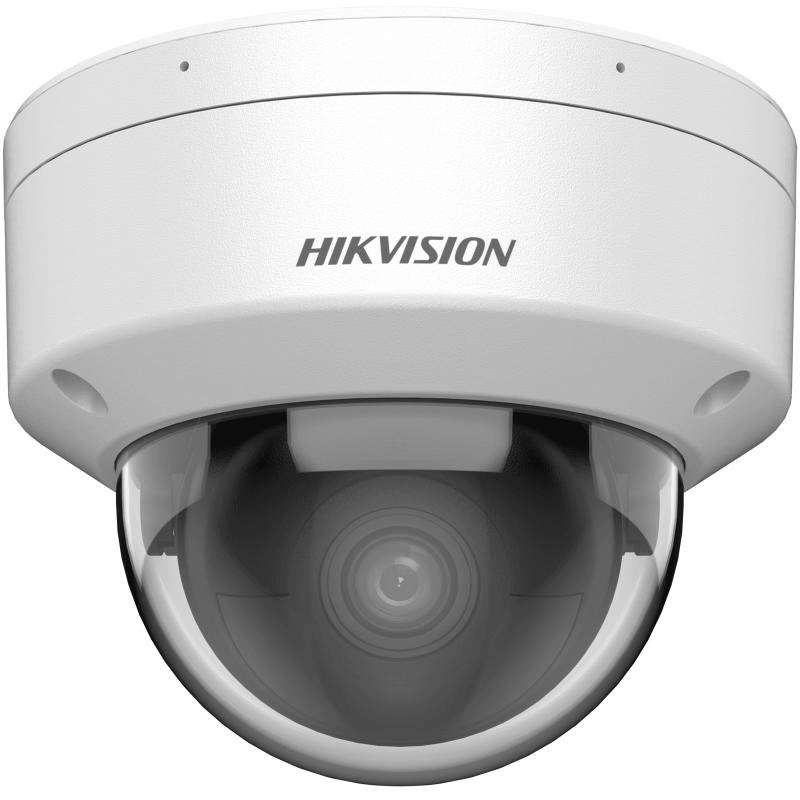

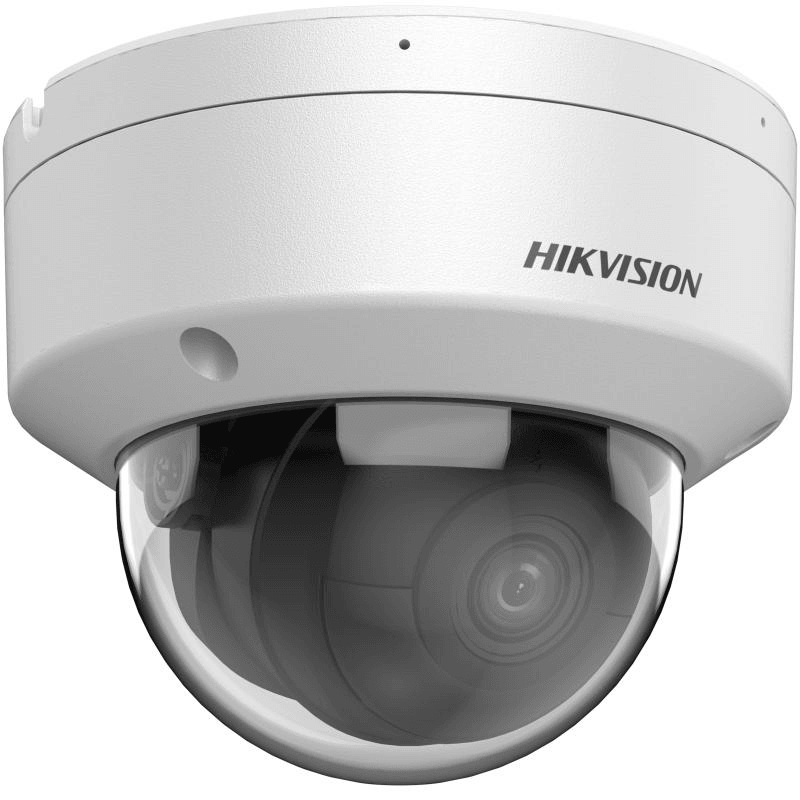

HIK 4MP ACUSENSE F1.0 DOME 4MM DS-2CD2146G2H-I
DS-2CD2146G2H-I(4mm)
Unleash the power of deep learning algorithms with Hikvision AcuSense technology, bringing advanced classification alarms for human and vehicle targets to both front and back-end devices. This revolutionary system is specially designed to efficiently and effectively detect human and vehicle targets.
FEATURES:
SPECS:
CameraImage Sensor1/3" Progressive Scan CMOSMax. Resolution2688 × 1520Min. IlluminationColor: 0.001 Lux @ (F1.0, AGC ON), B/W: 0 Lux with IRShutter Time1/3 s to 1/100,000 sDay & NightIR cut filterAngle AdjustmentPan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°LensLens TypeFixed focal lens, 2.8 and 4 mm optionalFocal Length & FOV2.8 mm, horizontal FOV 100.2°, vertical FOV 54.7°, diagonal FOV 119.7°
4 mm, horizontal FOV 81.1°, vertical FOV 44.7°, diagonal FOV 94.6°
Lens MountM12Iris TypeFixedApertureF1.0Depth Of Field2.8 mm: 1.9 m to ∞
4 mm: 2.5 m to ∞
DORIDORI2.8mm: D: 63 m, O: 25 m, R: 12 m, I: 6 m
4mm: D: 78 m, O: 31 m, R: 15 m, I: 7 m
IlluminatorSupplement Light TypeIRSupplement Light RangeUp to 30 mSmart Supplement LightYesIR Wavelength850nmVideoMainStream50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.
Video CompressionMainstream: H.265/H.264/H.265+/H.264+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
Video Bitrate32 Kbps to 8 MbpsH.264 TypeBaseline Profile/Main Profile/High ProfileH.265 TypeMain ProfileBit Rate ControlCBR/VBRScalable Video Coding (SVC)H.264 and H.265 encodingRegion Of Interest (ROI)1 fixed region for main stream and sub-streamAudioAudio Compression-SU: G.711 ulaw/G.711 alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LCAudio Bit Rate-SU: 64 Kbps (G.711 ulaw/G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)Audio Sampling Rate-SU: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHzEnvironment Noise Filtering-SU: YesNetworkProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSocketsSimultaneous Live ViewUp to 6 channelsAPIOpen Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDKUser/HostUp to 32 users. 3 user levels: administrator, operator and userSecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video InterfaceNetwork StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
ClientiVMS-4200, Hik-Connect, Hik-CentralWeb BrowserPlug-in required live view: IE 10, IE 11
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
ImageImage Parameters SwitchYesImage SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browserDay/Night SwitchDay, Night, Auto, ScheduleWide Dynamic Range (WDR)120 dBSNR≥ 52 dBImage EnhancementBLC, HLC, 3D DNRPrivacy Mask4 programmable polygon privacy masksInterfaceEthernet Interface1 RJ45 10M/100M self-adaptive Ethernet portOn-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-In Microphone-SU: YesAudio-SU: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium
-SU: 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm-SU: 1 input, 1 output (max. 12 VDC, 30 mA)Reset KeyYesEventBasic EventMotion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exceptionSmart EventScene change detectionLinkageUpload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email, audible warningDeep Learning FunctionFace CaptureYesPerimeter ProtectionLine crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
GeneralPower12 VDC ± 25%, 0.6 A, max. 7.2 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
PoE: IEEE 802.3af, Class 3, max. 8.5 W
MaterialCover: aluminum alloy, main body: aluminum alloy
DimensionØ121.5 mm × 97.6 mm (Ø4.8" × 3.8")Package Dimension150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")WeightApprox. 550 g (1.2 lb.)With Package WeightApprox. 800 g (1.8 lb.)Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)Language33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General FunctionHeartbeat,mirror,flash log,password reset via email,pixel counter,anti-bandingApprovalEMCCE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021SafetyUL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017
EnvironmentCE-RoHS: 2011/65/EUProtectionIP67: IEC 60529-2013,IK10: IEC 62262:2002
