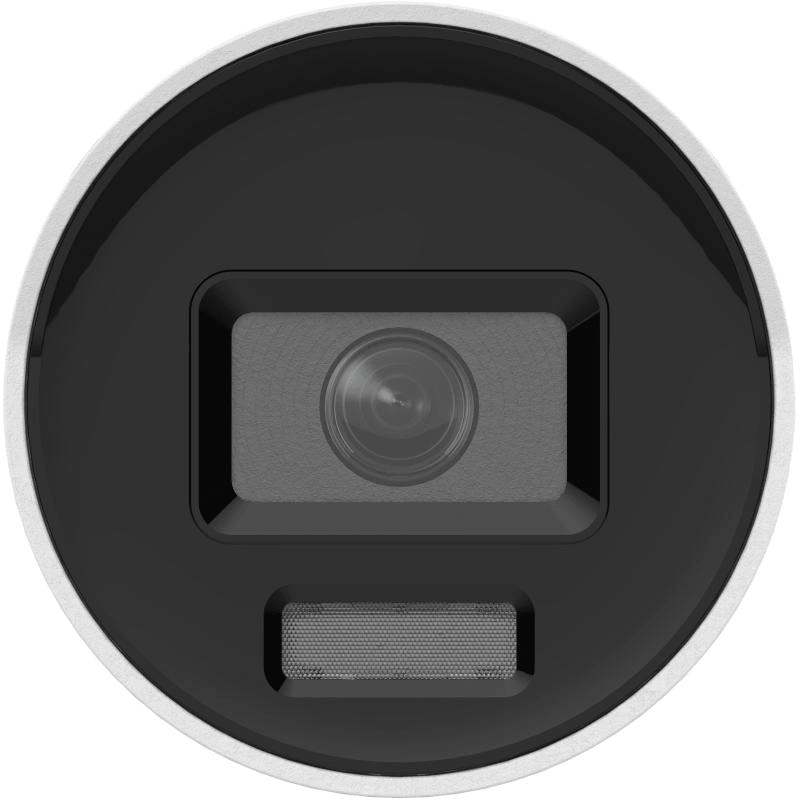

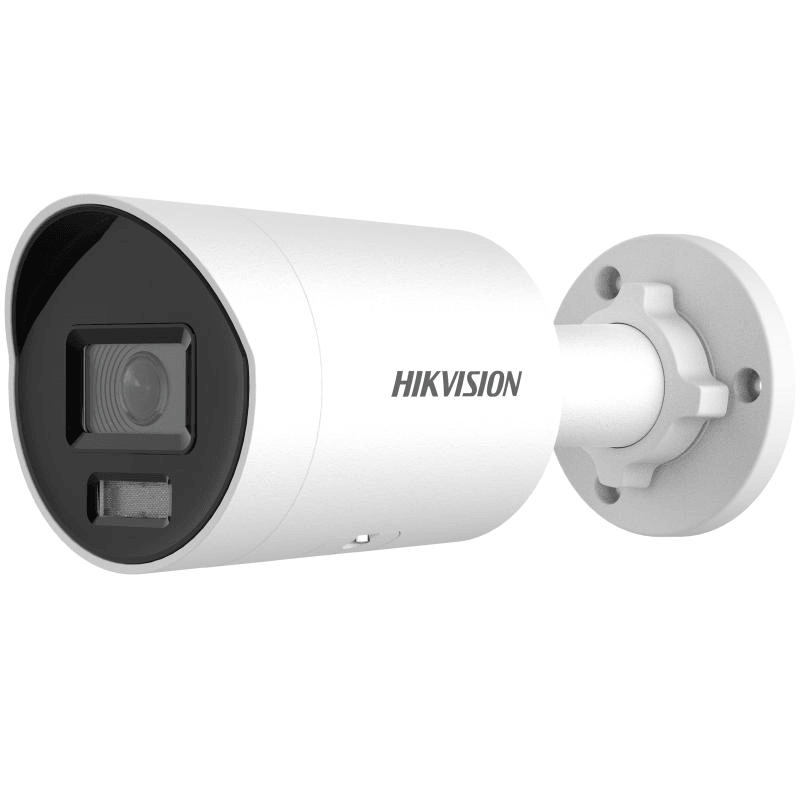

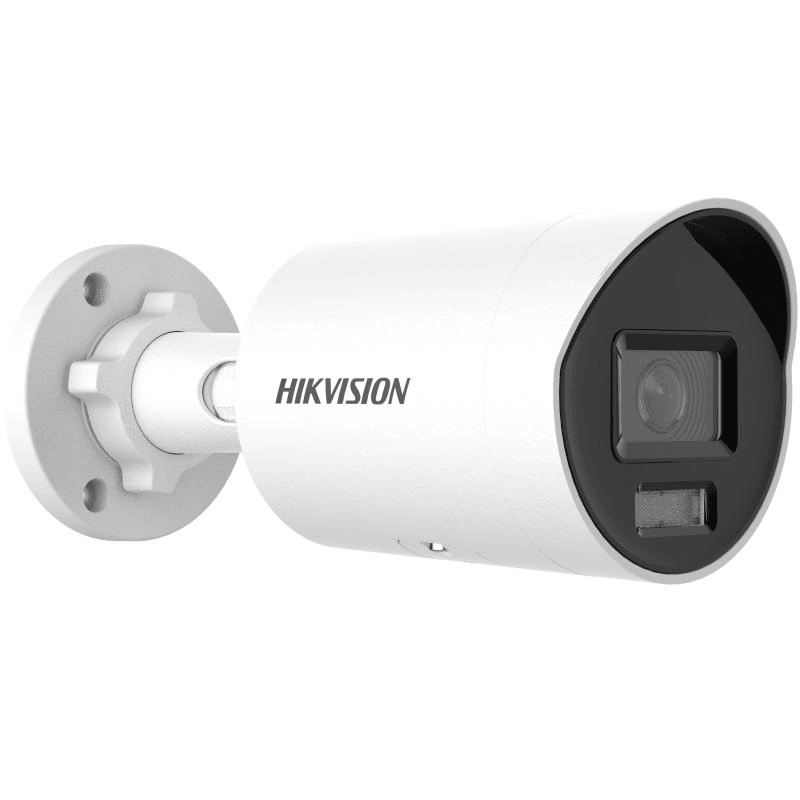

HIK 4MP ACUSENSE F1.0 BULLET 4MM DS-2CD2046G2H-IU
DS-2CD2046G2H-IU(4mm)
Empowered by deep learning algorithms, Hikvision AcuSense technology brings human and vehicle targets classificationalarms to front- and back-end devices. The system focuses on human and vehicle targets, vastly improving alarm efficiencyand effectiveness.
FEATURES:
SPECS:
CameraImage Sensor1/3" Progressive Scan CMOSMax. Resolution2688 × 1520Min. IlluminationColor: 0.001 Lux @ (F1.0, AGC ON),B/W: 0 Lux with IRShutter Time1/3 s to 1/100,000 sDay & NightIR cut filterAngle AdjustmentPan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°LensLens TypeFixed focal lens, 2.8 and 4 mm optionalFocal Length & FOV2.8 mm, horizontal FOV 100.2°, vertical FOV 54.7°, diagonal FOV 119.7°
4 mm, horizontal FOV 81.1°, vertical FOV 44.7°, diagonal FOV 94.6°
Lens MountM12Iris TypeFixedApertureF1.0Depth Of Field2.8 mm: 1.9 m to ∞
4 mm: 2.5 m to ∞
DORIDORI2.8mm: D: 63 m, O: 25 m, R: 12 m, I: 6 m
4mm: D: 78 m, O: 31 m, R: 15 m, I: 7 m
IlluminatorSupplement Light TypeIRSupplement Light RangeUp to 40 mSmart Supplement LightYesIR Wavelength850nmVideoMain Stream50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.
Video CompressionMainstream: H.265/H.264/H.265+/H.264+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
Video Bitrate32 Kbps to 8 MbpsH.264 TypeBaseline Profile/Main Profile/High ProfileH.265 TypeMain ProfileBit Rate ControlCBR/VBRScalable Video Coding (SVC)H.264 and H.265 encodingRegion Of Interest (ROI)1 fixed region for main stream and sub-streamAudioAudio Type-U: mono soundAudio Compression-U: G.711 ulaw/G.711 alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LCAudio Bit Rate-U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)Audio Sampling Rate-U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHzEnvironment Noise Filtering-U: YesNetworkProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSocketsSimultaneous Live ViewUp to 6 channelsAPIOpen Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDKUser/HostUp to 32 users. 3 user levels: administrator, operator and userSecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video InterfaceNetwork StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
ClientiVMS-4200, Hik-Connect, Hik-CentralWeb BrowserPlug-in required live view: IE 10, IE 11
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
ImageImage Parameters SwitchYesImage SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browserDay/Night SwitchDay, Night, Auto, ScheduleWide Dynamic Range (WDR)120 dBSNR≥ 52 dBImage EnhancementBLC, HLC, 3D DNRPrivacy Mask4 programmable polygon privacy masksInterfaceEthernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet portOn-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-In Microphone-U: YesReset KeyYesEventBasic EventMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exceptionSmart EventScene change detectionLinkageUpload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send emailDeep Learning FunctionFace CaptureYesPerimeter ProtectionLine crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
GeneralPower12 VDC ± 25%, 0.45 A, max. 5.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
PoE: IEEE 802.3af, Class 3, max. 7 W
MaterialFront cover: Metal, body: Metal, bracket: MetalDimensionØ74.4 mm × 179.2 mm (Ø2.9" × 7.1")Package Dimension234 mm × 120 mm × 117 mm (9.2" × 4.7" × 4.6")WeightApprox. 525 g (1.2 lb.)With Package WeightApprox. 750 g (1.7 lb.)Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)Language33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General FunctionHeartbeat,mirror,flash log,password reset via email,pixel counter,anti-bandingApprovalEMCCE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021SafetyUL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017
EnvironmentCE-RoHS: 2011/65/EUProtectionIP67: IEC 60529-2013
