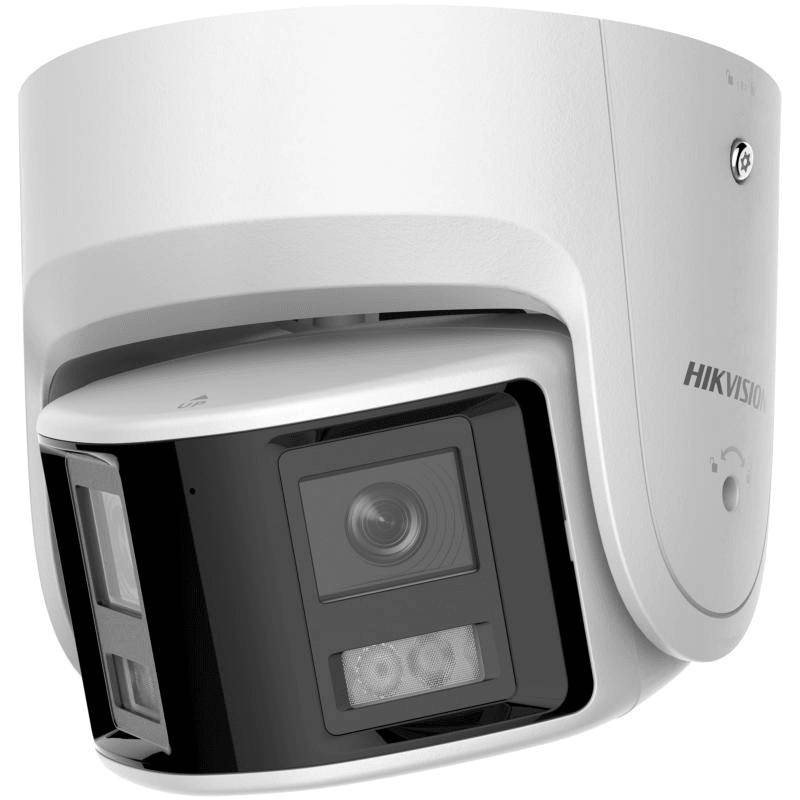

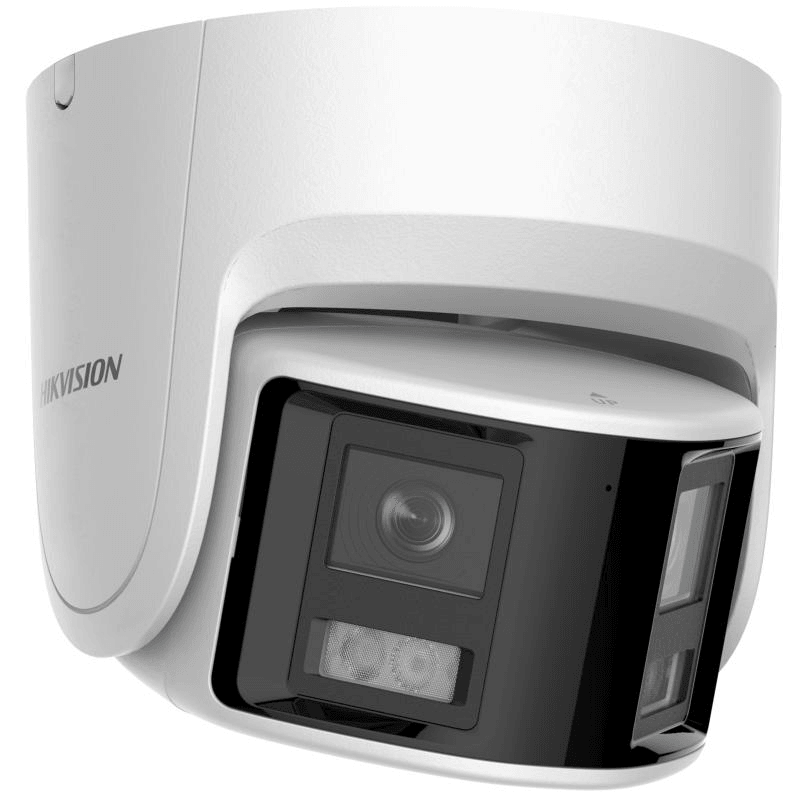

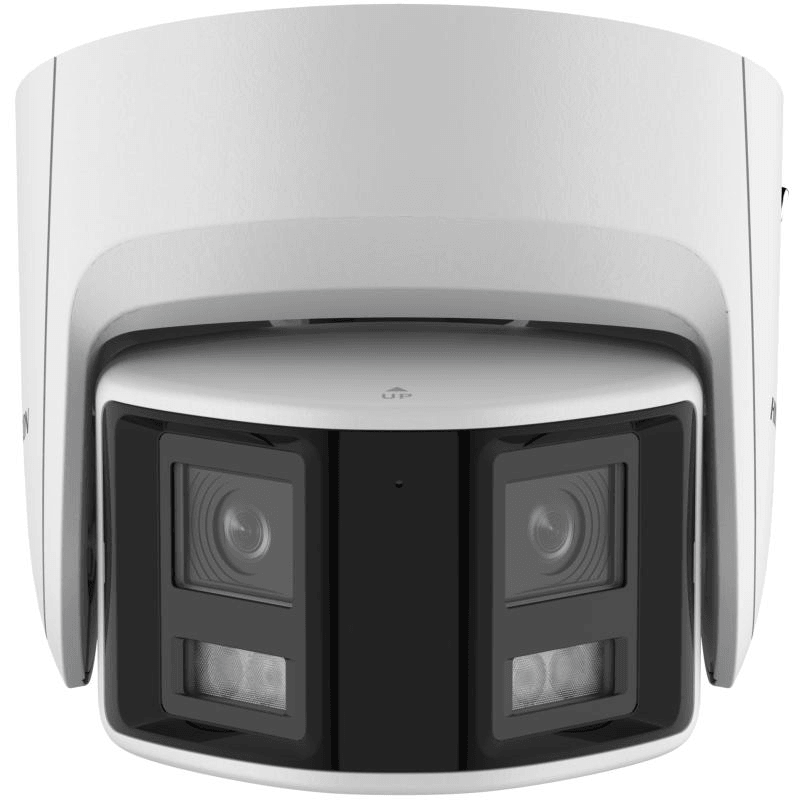

HIK 4MP ACUSENSE COLORVU PANORAMIC TURRET 2.8MM
HIK 4MP ACUSENSE COLORVU PANORAMIC TURRET 2.8MM
DS-2CD2347G2P-LSU/SL(2.8mm)(C)
Experience 24/7 vivid, colorful, and bright images with Hikvision's ColorVu technology. Its F1.0 advanced lenses and high performance sensors, paired with friendly lighting, ensure that every image is bursting with life.
The F1.0 super-aperture captures more light, resulting in brighter and more vibrant images. With advanced sensor technology, available light is utilized to its fullest potential, providing stunning and vibrant images.
FEATURES;
- High quality imaging with 4 MP resolution
- One image that presents all the scenes covered by the camera
- 24/7 colorful imaging
- Efficient H.265+ compression technology
- Clear imaging against strong back light due to 130 dB WDR technology
- Focus on human and vehicle classification based on deep learning
- Active strobe light and audio alarm to warn intruders off
- Water and dust resistant (IP67)
SPECS:
- Camera
- Image Sensor 2 × 1/2.5" Progressive Scan CMOS
- Max. Resolution 3040 × 1368
- Min. Illumination Color: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light
- Shutter Time1/3 s to 1/100,000 s
- Angle Adjustment Pan: 0° to 30°,tilt: -75° to 75°
- Lens
- Lens Type Fixed focal lens, dual lens, 2.8 mm
- Focal Length & FOV2.8 mm, horizontal FOV: 180°, vertical FOV: 81°
- Lens Mount M12
- Iris Type Fixed
- Aperture F1.0
- Depth Of Field 2 m to ∞
- DORI
- DORI2.8 mm, D: 38 m, O: 15 m, R: 7.5 m, I: 3.5 m
- Illuminator
- Supplement Light Type White Light
- Supplement Light Range Up to 30 m
- Smart Supplement Light Yes
- Video
-
MainStream
50 Hz: 25 fps (3040 × 1368)
60 Hz: 24 fps (3040 × 1368)
-
Sub-Stream
50 Hz: 25 fps (1200 × 536, 960 × 432)
60 Hz: 24 fps (1200 × 536, 960 × 432)
-
Video Compression
Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG
- Video Bit Rate32 Kbps to 8 Mbps
- H.264 TypeBaseline Profile,Main Profile,High Profile
- H.265 TypeMain Profile
- Bit Rate ControlCBR,VBR
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Region Of Interest (ROI)1 fixed region for main stream
- Audio
- Audio Type Mono sound
- Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio Bitrate 64 Kbps (G.711 ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate 8khz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Environment Noise Filtering Yes
- Network
- Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, Websocket, Websockets
- Simultaneous Live View Up to 6 channels
- API Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK
-
User/Host
Up to 32 users
3 user levels: administrator, operator, and user
- Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
-
Network Storage
NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
- Client iVMS-4200,Hik-Connect,Hik-Central
-
Web Browser
Plug-in required live view: IE 10, IE 11,
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Image
- Image Parameters Switch Yes
- Image Settings Saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
- Day/Night Switch Day,Night,Auto,Schedule
- Wide Dynamic Range (WDR)130 dB
- SNR≥ 52 dB
- Image Enhancement BLC,HLC,3D DNR
- Privacy Mask4 programmable polygon privacy masks
- Interface
- Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Built-In Microphone Yes
- Built-In SpeakerMax. power consumption: 1.2 W, max. sound pressure level: 10 cm: 95 dB.
-
Audio
1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,
1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
- Alarm1 input(s), 1 output(s) (max. 24 VDC/24 VAC, 1 A)
- Reset Key Yes
- Event
- Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),alarm input and output,flashing alarm light output, audible alarm output, exception
-
Smart Event
Scene change detection
- Linkage Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning,white light flashing
- Deep Learning Function
-
Perimeter Protection
Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
- General
-
Power
12V DC ± 25%, 0.88 A, max. 10.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
PoE: IEEE 802.3af, Class 3, 36 V to 57 V, 0.35 A to 0.22 A, max. 12.5 W
-
Material
Base: metal, cover: metal
-
Dimension
Ø140 mm × 145.6 mm (Ø5.5 × 5.7\")"
- Package Dimensions 230mm × 230 mm × 230 mm (9" × 9" × 9")
- Weight Approx. 920 g (2.0 lb.)
- With Package Weight Approx. 1670 g (3.7 lb.)
- Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- General Function Anti-banding, heartbeat, mirror, flash log, pixel counter
- Flashing Light Yes
- Approval
-
EMC
FCC: 47 CFR Part 15, Subpart B,
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7
-
Safety
UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017
-
Environment
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
- Protection IP67: IEC 60529-2013
