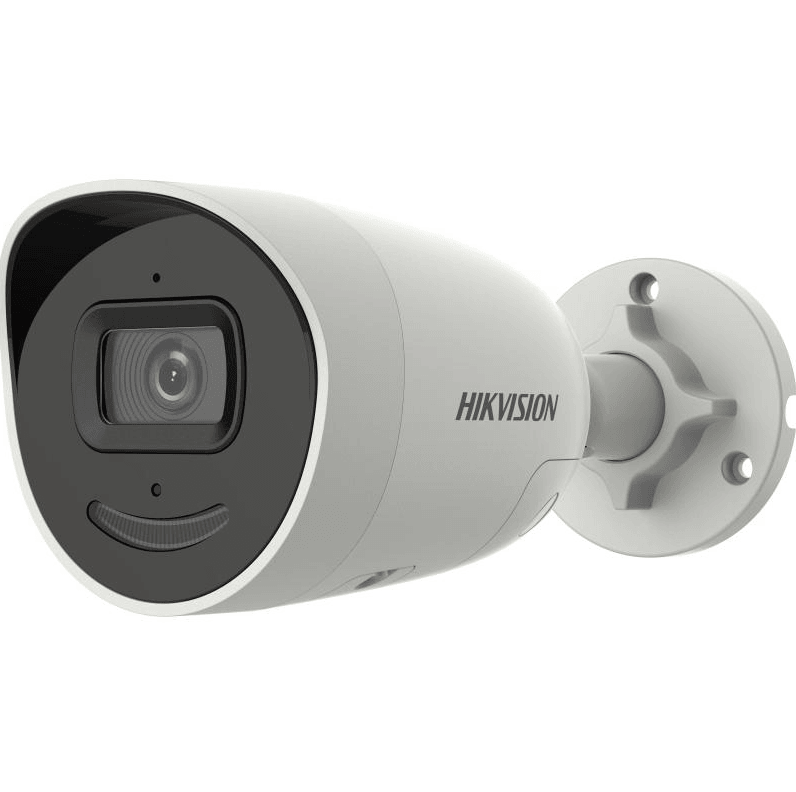

HIK 4MP ACUSENSE BULLET CAMERA W/ STROBE 4MM
Discover the power of deep learning algorithms with Hikvision AcuSense technology. Experience the heightened efficiency and effectiveness of front- and back-end devices with targeted human and vehicle classification alarms. Elevate your security with this advanced system.
FEATURES:
- High quality imaging with 4 MP resolution
-
Excellent low-light performance with powered-by-DarkFighter technology
-
Clear imaging against strong backlight due to 120 dB true WDR technology
-
Efficient H.265+ compression technology
-
Focus on human and vehicle targets classification based on deep learning
-
Active strobe light and audio alarm to warn intruders off
-
Provides real-time security via built-in two-way audio
-
Water and dust resistant (IP67)
SPECS:
- Camera
-
Image Sensor 1/3" Progressive Scan CMOS
-
Min. Illumination Color: 0.003 Lux @ (F1.4, AGC ON), B/w: 0 Lux with IR
-
Shutter Time1/3 s to 1/100,000 s
-
Day & Night IR cut filter
-
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
-
Max. Resolution 2688 × 1520
- Lens
-
Lens Type Fixed focal lens, 2.8, 4, and 6 mm optional
- Iris Type Fixed
-
Focal Length & FOV
2.8 mm, horizontal FOV: 103°, vertical FOV: 55°, diagonal FOV: 123°
4 mm, horizontal FOV: 83°, vertical FOV: 45°, diagonal FOV: 98°
6 mm, horizontal FOV: 53°, vertical FOV: 29°, diagonal FOV: 62°
-
ApertureF1.4
-
Lens MountM12
- DORI
-
DORI
2.8 mm: D: 60.0 m, O: 23.8 m, R: 12.0 m, I: 6.0 m
4 mm: D: 80.0 m, O: 31.7 m, R: 16.0 m, I: 8.0 m
6 mm: D: 120.0 m, O: 47.6 m, R: 24.0 m, I: 12.0 m
- Illuminator
-
Supplement Light TypeIR
-
Supplement Light RangeUp to 40 m
-
Smart Supplement LightYes
-
IR Wavelength850 nm
- Video
-
Main Stream
50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
-
Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
-
Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.
-
Video Compression
Main stream: H.265/H.264/H.265+/H.264+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
*Third stream is supported under certain settings.
-
Video Bit Rate32 Kbps to 8 Mbps
-
H.264 TypeBaseline Profile/Main Profile/High Profile
-
H.265 TypeMain Profile
-
Bit Rate ControlCBR/VBR
-
Scalable Video Coding (SVC)H.264 and H.265 encoding
-
Region Of Interest (ROI)1 fixed region for main stream and sub-stream
- Audio
-
Environment Noise FilteringYes
-
Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
-
Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
-
Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
-
Audio TypeMono sound
- Network
-
Simultaneous Live ViewUp to 6 channels
-
APIOpen Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK
-
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets
-
User/HostUp to 32 users. 3 user levels: administrator, operator and user
-
SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
-
Network Storage
NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
-
ClientiVMS-4200, Hik-Connect, Hik-Central
-
Web Browser
Plug-in required live view: IE 10, IE 11
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Image
-
SNR≥ 52 dB
-
Day/Night SwitchDay, Night, Auto, Schedule
-
Image EnhancementBLC, HLC, 3D DNR
-
Image Parameters SwitchYes
-
Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
-
Wide Dynamic Range (WDR)120 dB
- Interface
-
Built-In MicrophoneYes
-
Built-In SpeakerPower: 1.2 W. Max. sound pressure level: 10 cm: 95 dB.
-
On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
-
Reset KeyYes
-
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- Deep Learning Function
-
Face CaptureYes
-
Perimeter Protection
Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
- General
-
General FunctionAnti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
-
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
-
Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
-
MaterialMetal
-
Dimension72.9 mm × 73.3 mm × 191.1 mm (2.9" × 2.9" × 7.5")
-
Package Dimension234 mm × 120 mm × 117 mm (9.2" × 4.7" × 4.6")
-
WeightApprox. 590 g (1.3 lb.)
-
With Package WeightApprox. 820 g (1.8 lb.)
-
Power
12 VDC ± 25%, 0.54 A, max. 6.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection
PoE: 802.3af, Class 3, 36 V to 57 V, 0.3 A to 0.2 A, max. 8 W
-
Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- Approval
-
EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 + A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
-
Safety
UL (UL 60950-1);
CB (IEC 60950-1: 2005 + Am 1: 2009 + Am 2: 2013, IEC 62368-1: 2014 );
CE-LVD (EN 60950-1: 2005 + Am 1: 2009 + Am 2: 2013, IEC 62368-1: 2014 );
BIS (IS 13252(Part 1): 2010+A1: 2013+A2: 2015);
LOA (IEC/EN 60950-1)
-
EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
-
ProtectionIP67 (IEC 60529-2013)
