Hikvision DS-2SE4C425MWG-E/26(F0) – TandemVu 6+4MP 25× ColorVu & IR Speed Dome
Overview
The DS-2SE4C425MWG-E/26(F0) combines panoramic and zoom capabilities in one premium unit: a 6 MP panoramic channel with ultra-wide view and a 4 MP PTZ channel with a 25× optical zoom. It features ColorVu full-time colour imaging, DarkFighter low-light performance, deep-learning human/vehicle classification and is built for large exterior environments such as logistics yards, campus perimeters, transport hubs and high-security sites.
Key Features
-

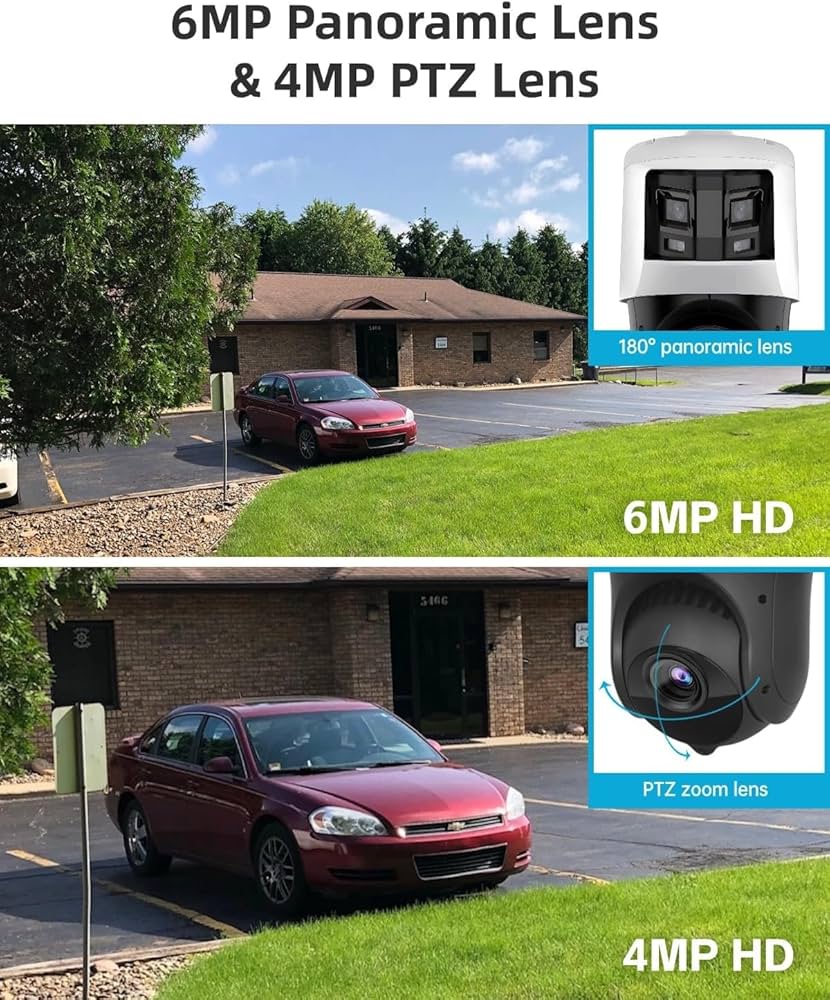

Dual-channel imaging — 6 MP fixed panoramic channel plus 4 MP PTZ channel for overview and detail in one device.
-
25× optical zoom — 4.8–120 mm lens on the PTZ channel delivers long-distance identification.
-
ColorVu & DarkFighter technologies — full-colour output in low-light or minimal ambient light conditions.
-
Night illumination — IR up to 100 m for PTZ channel, white-light up to ~30 m for panoramic channel.
-
Smart analytics — human and vehicle classification to reduce false alarms and improve incident detection.
-
Outdoor rugged build — IP66 rating, 6000 V lightning protection and surge/transient protection for harsh environments.
Technical Specifications (summary)
-
Panoramic channel sensor: 1/2.5″ Progressive Scan CMOS
-
Panoramic resolution: 3632 × 1632 (approx. 6 MP)
-
Panoramic lens: Fixed 2.8 mm, ~180° horizontal view
-
Panoramic minimum illumination: Colour 0.0005 Lux @ F1.0; 0 Lux with white-light
-
PTZ channel sensor: 1/2.8″ Progressive Scan CMOS
-
PTZ channel resolution: 2560 × 1440 (4 MP)
-
PTZ channel lens / zoom: 4.8–120 mm, 25× optical zoom, 16× digital zoom
-
PTZ minimum illumination: Colour 0.005 Lux @ F1.6; B/W 0.001 Lux; 0 Lux with IR
-
Night illumination range: PTZ channel IR up to ~100 m; panoramic white-light up to ~30 m
-
Pan / Tilt: Pan 360°; Tilt −15° to +90° (auto-flip enabled)
-
Video compression: H.265 / H.264 / MJPEG
-
On-board storage: microSD/SDHC/SDXC up to 256 GB
-
Network interface: 10/100 Mbps Ethernet (RJ-45)
-
Power options: 12 V DC or PoE+ (model variant dependent)
-
Protection rating: IP66; operating temperature approx. −30 °C to +65 °C
-
Dimensions / Weight (approx): Ø166 mm × 375 mm; ~2.4 kg
Recommended Applications
- Vast outdoor premises such as ports, airports, logistics yards and utilities.
- Commercial complexes, campuses and estates requiring both wide-area awareness and distant zoom detail.
- Sites needing full-colour day/night imaging and advanced analytics to reduce false alerts.
- Installations where camera count needs minimisation but coverage and identification detail must remain high.
Installation Notes
- Mount at an appropriate height to allow the 25× zoom to resolve faces or plates at distance while still covering the panoramic zone.
- Ensure network link and power supply (PoE+ or 12 V DC) meet site requirements for high-performance PTZ streaming.
- Program presets, patrols, pattern scans and auto-pan to exploit the PTZ channel’s capabilities.
- Enable secure network access, update firmware during commissioning and use VLAN or separate storage where needed.
- Consider environmental sealing and lightning protection if site is exposed to coastal conditions or storms.
What’s in the Box (Typical)
- DS-2SE4C425MWG-E/26(F0) TandemVu Speed Dome
- Quick start guide and mounting template
- Basic mounting fixings
