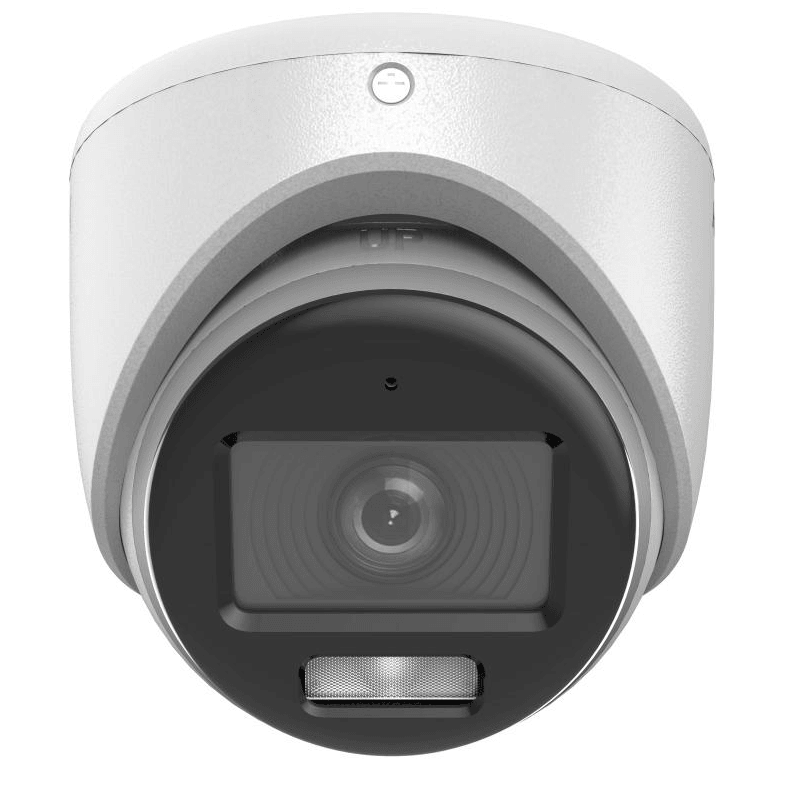

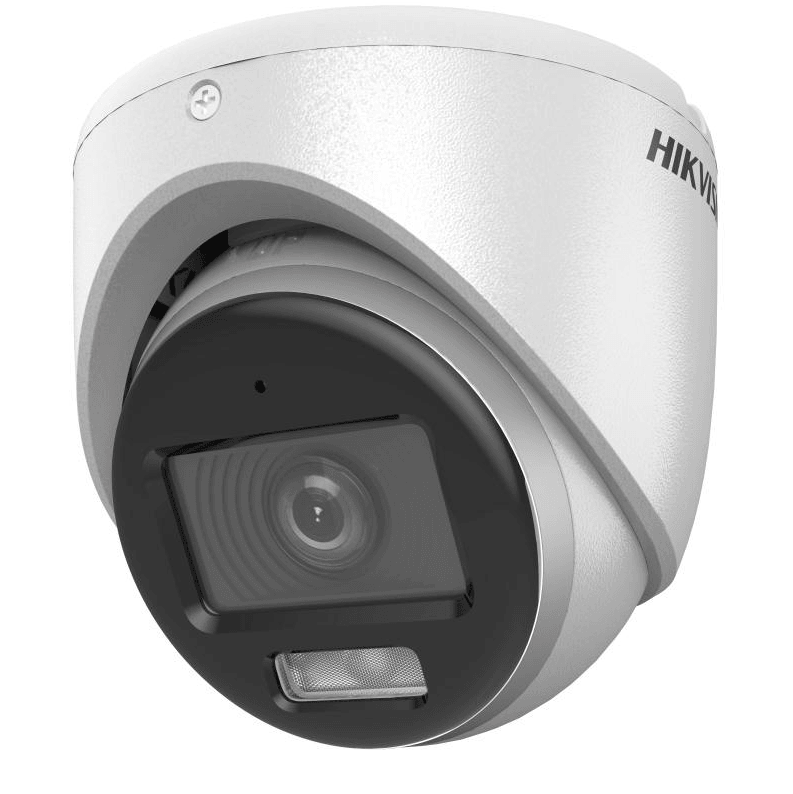

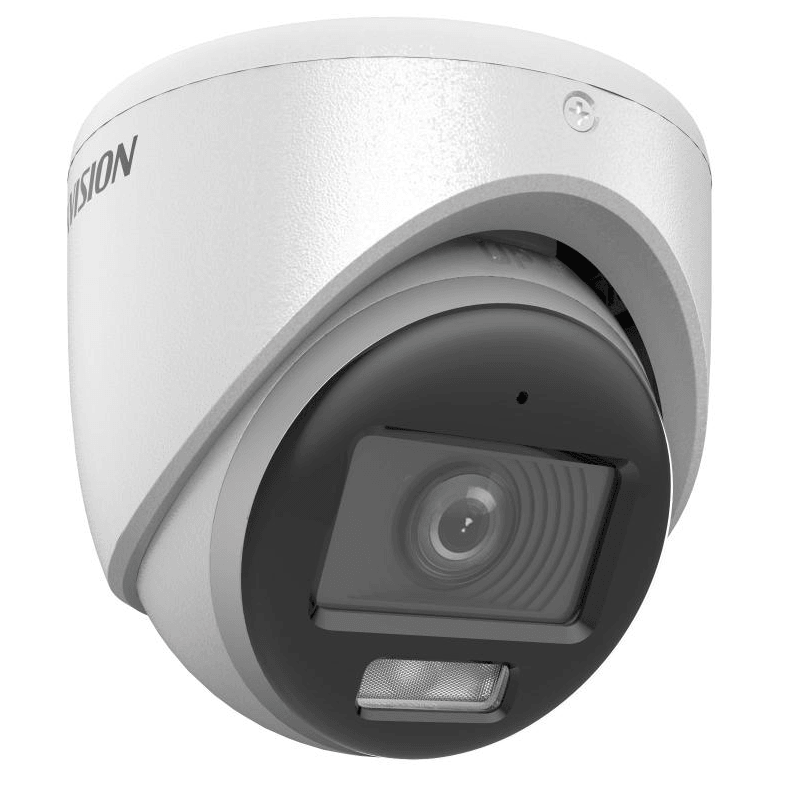

HIK 3K HYBRID COLORVU DOME 3.6MM DS-2CE70KF0T-LMFS
DS-2CE70KF0T-LMFS(3.6mm)
- High quality imaging with 3K, 2960 × 1665 resolution
- 24/7 color imaging with F1.0 aperture
- 2.8 mm and 3.6 mm fixed focal lens
- Up to 20 m IR distance for bright night imaging
- Up to 20 m white light distance for bright night imaging
- High quality audio with audio over coaxial cable, built-in mic
- One port for four switchable signals (TVI/AHD/CVI/CVBS)
- Water and dust resistant (IP67)
- Smart-Hybrid light, optimize your security with flexible lighting options
SPECS:
- Camera
- Image Sensor3K CMOS
- Signal System PAL/NTSC
- Resolution2960 (H) × 1665 (V)
-
Frame Rate
TVI: 3K @20 fps, 4 MP @25 fps/30 fps, 1080p @25 fps/30 fps
AHD: 5 MP @20 fps, 4 MP @25 fps/30 fps
CVI: 4 MP @25 fps/30 fps
CVBS: PAL/NTSC
- Min. Illumination0.001 Lux @(F1.0, AGC ON), 0 Lux with white light
- Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
- Lens2.8 mm, 3.6 mm fixed focal lens
-
Field Of View
2.8 mm, horizontal FOV: 110°, vertical FOV: 60°, diagonal FOV: 143°
3.6 mm, horizontal FOV: 94°, vertical FOV: 50°, diagonal FOV: 112°
- Lens MountM12
- Light Alarm Solid Light Alarm (White Light)
- Day & Night ICR
- WDR (Wide Dynamic Range)Digital WDR
- Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
- Illuminator
-
Supplement Light Type
IR,
White Light
- Supplement Light Range IR: Up to 20 m,White Light: Up to 20 m
- Smart Supplement Light Yes
- Image
- White Light Auto/Off
- Image Mode STD/HIGH-SAT/HIGHLIGHT
- AGC Yes
- Day/Night Mode Auto
- White Balance Auto/Outdoor/Global/Manual
- AE (Auto Exposure) ModeHLS;DWDR;BLC;HLC;Global
- Noise Reduction2D DNR
- Language English
- FunctionSmart IR;Brightness;Sharpness;AGC;Anti-Banding
- Interface
- Video Output Switchable TVI/AHD/CVI/CVBS
- Audio In Built-in mic
- General
- Power12 VDC ± 25%, max.3.9 W,*You are recommended to use one power adapter to supply the power for one camera.
- Operating Conditions-40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensing)
- Protection LevelIP67
- Material Metal
- Communication HIKVISION-C
- DimensionØ85.1 mm × 77.62 mm (Ø3.35" × 3.05")
- Weight Approx. 330 g (0.73 lb.)
HIK 3K HYBRID COLORVU DOME 3.6MM DS-2CE70KF0T-LMFS
DS-2CE70KF0T-LMFS(3.6mm)
- High quality imaging with 3K, 2960 × 1665 resolution
- 24/7 color imaging with F1.0 aperture
- 2.8 mm and 3.6 mm fixed focal lens
- Up to 20 m IR distance for bright night imaging
- Up to 20 m white light distance for bright night imaging
- High quality audio with audio over coaxial cable, built-in mic
- One port for four switchable signals (TVI/AHD/CVI/CVBS)
- Water and dust resistant (IP67)
- Smart-Hybrid light, optimize your security with flexible lighting options
SPECS:
- Camera
- Image Sensor3K CMOS
- Signal System PAL/NTSC
- Resolution2960 (H) × 1665 (V)
-
Frame Rate
TVI: 3K @20 fps, 4 MP @25 fps/30 fps, 1080p @25 fps/30 fps
AHD: 5 MP @20 fps, 4 MP @25 fps/30 fps
CVI: 4 MP @25 fps/30 fps
CVBS: PAL/NTSC
- Min. Illumination0.001 Lux @(F1.0, AGC ON), 0 Lux with white light
- Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
- Lens2.8 mm, 3.6 mm fixed focal lens
-
Field Of View
2.8 mm, horizontal FOV: 110°, vertical FOV: 60°, diagonal FOV: 143°
3.6 mm, horizontal FOV: 94°, vertical FOV: 50°, diagonal FOV: 112°
- Lens MountM12
- Light Alarm Solid Light Alarm (White Light)
- Day & Night ICR
- WDR (Wide Dynamic Range)Digital WDR
- Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
- Illuminator
-
Supplement Light Type
IR,
White Light
- Supplement Light Range IR: Up to 20 m,White Light: Up to 20 m
- Smart Supplement Light Yes
- Image
- White Light Auto/Off
- Image Mode STD/HIGH-SAT/HIGHLIGHT
- AGC Yes
- Day/Night Mode Auto
- White Balance Auto/Outdoor/Global/Manual
- AE (Auto Exposure) ModeHLS;DWDR;BLC;HLC;Global
- Noise Reduction2D DNR
- Language English
- FunctionSmart IR;Brightness;Sharpness;AGC;Anti-Banding
- Interface
- Video Output Switchable TVI/AHD/CVI/CVBS
- Audio In Built-in mic
- General
- Power12 VDC ± 25%, max.3.9 W,*You are recommended to use one power adapter to supply the power for one camera.
- Operating Conditions-40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensing)
- Protection LevelIP67
- Material Metal
- Communication HIKVISION-C
- DimensionØ85.1 mm × 77.62 mm (Ø3.35" × 3.05")
- Weight Approx. 330 g (0.73 lb.)
