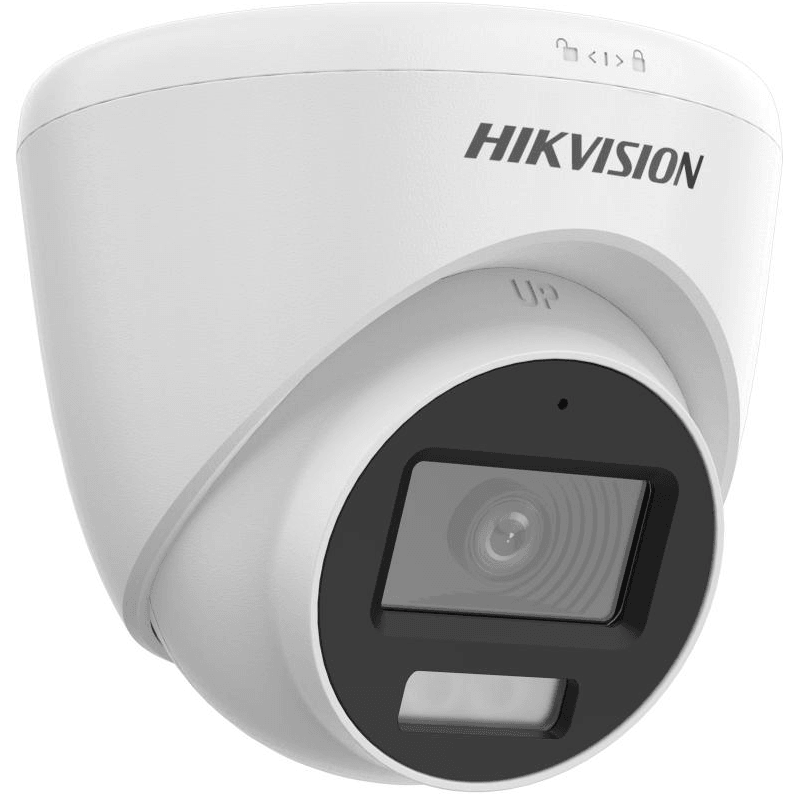

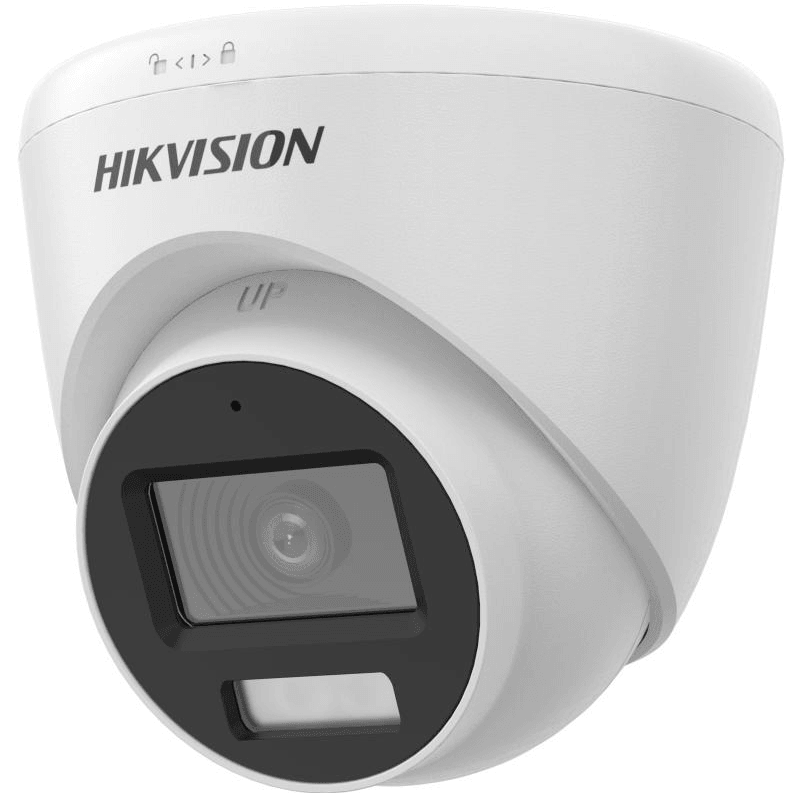

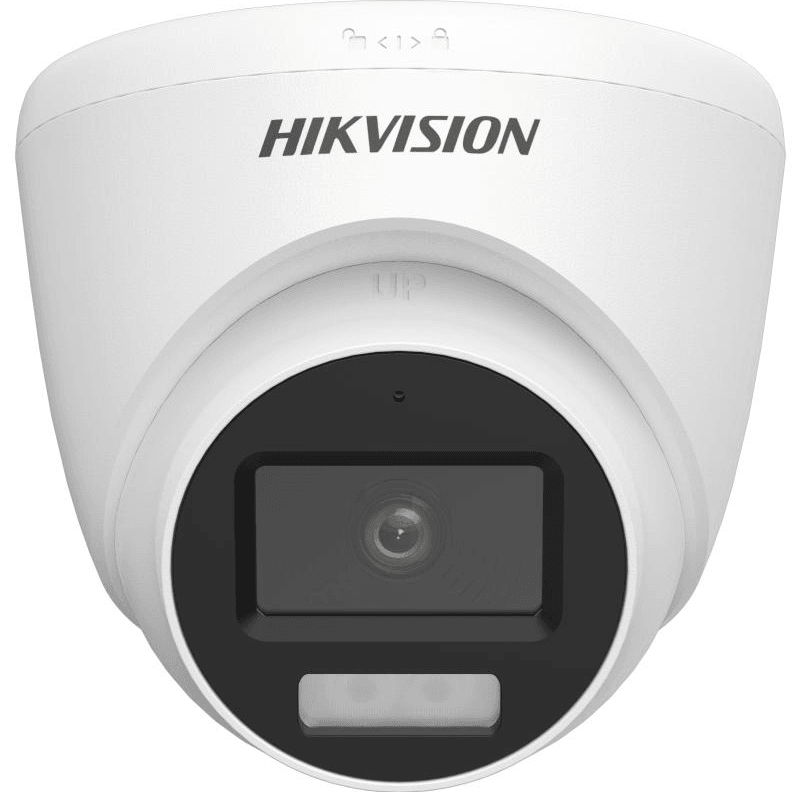

HIK 3K HYBRID AUDIO DOME 3.6MM DS-2CE78K0T-LFS
DS-2CE78K0T-LFS(3.6mm)
The HIK 3K Hybrid Audio Dome 3.6MM DS-2CE78K0T-LFS offers top-notch imaging capabilities with its 3K, 2960 × 1665 resolution, along with a fixed focal lens of 2.8 mm and 3.6 mm. Additionally, it boasts an impressive 40 m IR distance and 20 m white light distance for exceptional night imaging.
With just one port, users can switch between four signals (TVI/AHD/CVI/CVBS), making it a versatile choice. This camera is also water and dust resistant (IP67) and features high-quality audio via coaxial cable, including a built-in microphone. The Smart-Hybrid light feature allows for customizable lighting options, enhancing overall security.
FEATURES:
-
High quality imaging with 3K, 2960 × 1665 resolution
-
2.8 mm and 3.6 mm fixed focal lens
-
Up to 40 m IR distance for bright night imaging
-
Up to 20 m white light distance for bright night imaging
-
One port for four switchable signals (TVI/AHD/CVI/CVBS)
-
Water and dust resistant (IP67)
-
High quality audio with audio over coaxial cable, built-in mic
-
Smart-Hybrid light, optimize your security with flexible lighting options
SPECS:
- Camera
-
Image Sensor 3K CMOS
-
Max. Resolution 2960 (H) × 1665 (V)
-
Min. Illumination 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
-
Shutter TimePAL: 1/25 s to 1/50, 000 s; NTSC: 1/30 s to 1/50, 000 s
- Day & Night ICR
-
Angle Adjustment Pan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°
-
Signal System PAL/NTSC
- Lens
-
Lens Type 2.8 mm and 3.6 mm fixed focal lens
-
Focal Length & FOV
2.8 mm, horizontal FOV: 104.9°, vertical FOV: 67.3°, diagonal FOV: 129.8°
3.6 mm, horizontal FOV: 81.3°, vertical FOV: 50.7°, diagonal FOV: 102.4°
- Lens Mount M12
- Illuminator
-
Supplement Light Type White Light;IR
-
Supplement Light Range
IR : Up to 40 m
White Light : Up to 20 m
- Image
-
Image Settings Brightness, Sharpness, Smart IR
-
Frame Rate
TVI: 3K@20 fps, 4 MP@25 fps/30 fps, 1080p@25 fps/30 fps
AHD: 5 MP@20 fps, 4 MP@25 fps/30 fps
CVI: 4 MP@25 fps/30 fps
CVBS: PAL/NTSC
-
Day/Night ModeAuto/Color/BW (Black and White)
-
Wide Dynamic Range (WDR)Digital WDR
-
Image Enhancement DWDR/BLC/HLC/Global
-
White Balance Auto/Manual
-
AGCYes
- Interface
-
Video Output Switchable TVI/AHD/CVI/CVBS
-
Built-In Microphone Yes
