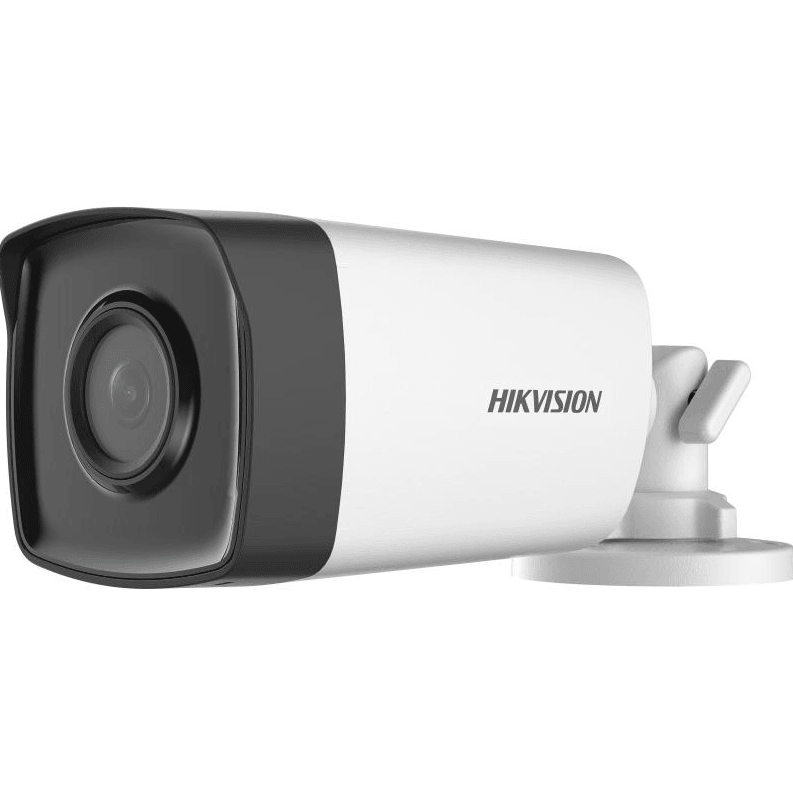

HIK 2MP TVI BULLET 3.6MM DS-2CE17D0T-IT5F
DS-2CE17D0T-IT5F(3.6mm)
Capture high-quality images with the 2 MP HIK TVI BULLET Camera. With a resolution of 1920×1080 and a variety of fixed focal lens options (3.6 mm, 6 mm, 8 mm, and 12 mm), this camera provides clear and detailed footage. It also boasts an impressive 80 m IR distance for superior night imaging. Plus, with the ability to switch between four signals (TVI/AHD/CVI/CVBS) using just one port, you'll have maximum flexibility. And don't worry about harsh weather conditions as this camera is water and dust resistant (IP67).
FEATURES:
-
High quality imaging with 2 MP, 1920 × 1080 resolution
-
3.6 mm, 6 mm, 8 mm, 12 mm fixed focal lens
-
Up to 80 m IR distance for bright night imaging
-
One port for four switchable signals (TVI/AHD/CVI/CVBS)
-
Water and dust resistant (IP67)
SPECS:
- Camera
-
Image Sensor 2 MP CMOS
-
Max. Resolution 1920 (H) × 1080 (V)
-
Min. Illumination 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
-
Shutter Time
PAL: 1/25 s to 1/50,000 s
NTSC: 1/30 s to 1/50,000 s
-
Day & Night ICR
-
Angle Adjustment Pan: 0 to 360°, Tilt: 0 to 180°, Rotation: 0 to 360°
-
Signal System PAL/NTSC
- Lens
-
Lens Type 3.6 mm, 6 mm, 8 mm, 12 mm fixed lens
-
Focal Length & FOV
3.6 mm, horizontal FOV: 79.6°, vertical FOV: 43.5°, diagonal FOV: 93.7°
6 mm, horizontal FOV: 51.9°, vertical FOV: 30°, diagonal FOV: 58.8°
8 mm, horizontal FOV: 39.9°, vertical FOV: 21.9°, diagonal FOV: 46.5°
12 mm, horizontal FOV: 24.6°, vertical FOV: 13.9°, diagonal FOV: 28.1°
-
Lens Mount M12
- Image
-
Image Parameters Switch STD/HIGH-SAT
-
Image Settings Brightness, Sharpness, Smart IR
-
Frame Rate
TVI: 1080P@30fps, 1080P@25fps
CVI: 1080P@30fps, 1080P@25fps
AHD: 1080P@30fps, 1080P@25fps
CVBS: PAL/NTSC
-
Day/Night ModeAuto/Color/BW (Black and White)
-
Wide Dynamic Range (WDR)Digital WDR
-
Image Enhancement DWDR/BLC/HLC/Global
-
Noise Reduction Yes
-
White Balance Auto/Manual
-
AGCYes
- Interface
-
Video Output Switchable TVI/AHD/CVI/CVBS
- General
-
Material
Front Cover: Metal
Main Body: Plastic
-
Dimension 78.9 mm × 75.4 mm × 216.6 mm (3.10" × 2.97" × 8.53")
-
Weight Approx. 320 g (0.71 lb.)
-
Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
-
Communication HIKVISION-C
-
Language English
-
Power Supply 12 VDC ± 25%
-
Consumption Max. 4.7 W
-
IR Range Up to 80 m
