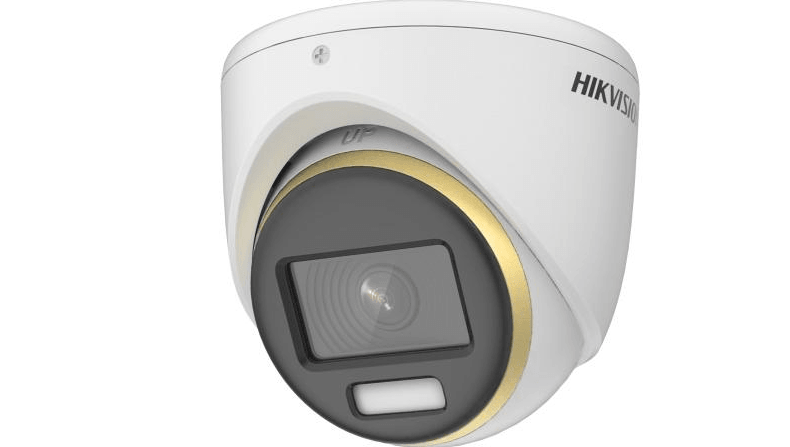

HIK 2MP TURBO COLORVU TURRET CAMERA 2.8MM

DS-2CE70DF3T-MF2.8MM

-The HIK 2MP TURBO COLORVU TURRET CAMERA 2.8MM offers unbeatable quality with its 2MP, 1920 × 1080 resolution for stunning imagery. -Experience 24/7 color imaging with its F1.0 aperture and capture clear images even in strong backlight thanks to its 130 dB true WDR technology. -Add depth and clarity to your footage with 3D DNR technology and choose from two fixed focal lens options, 2.8 mm or 3.6 mm. -Illuminate up to 20 m for crisp and bright night imaging with its powerful white light. -Simplify your setup with one port for four switchable signals (TVI/AHD/CVI/CVBS) and rest easy knowing this camera is water and dust resistant (IP67).

FEATURES:

High quality imaging with 2 MP, 1920 × 1080 resolution
24/7 color imaging with F1.0 aperture
Clear imaging against strong back light due to 130 dB true WDR technology
3D DNR technology delivers clean and sharp images
2.8 mm, 3.6 mm fixed focal lens
Up to 20 m white light distance for bright night imaging
One port for four switchable signals (TVI/AHD/CVI/CVBS)
Water and dust resistant (IP67)

SPECS:

Camera
Image Sensor 2 MP CMOS
Max. Resolution 1920 (H) × 1080 (V)
Min. Illumination 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light ON
Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Day & Night 24/7 Color Imaging
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°
Signal System PAL/NTSC
Slow Shutter Max. 16 times
Light Alarm Solid Light Alarm (White Light)

Lens
Lens Type 2.8 mm, 3.6 mm fixed focal lens
Focal Length & FOV
2.8 mm, horizontal FOV: 106°, vertical FOV: 56°, diagonal FOV: 129°

3.6 mm, horizontal FOV: 83°, vertical FOV: 44°, diagonal FOV: 100°
Lens Mount M12

Illuminator
Supplement Light Type White Light
Supplement Light Range Up to 20 m
Smart Supplement Light Yes

Image Parameters Switch STD/HIGH-SAT/HIGHLIGHT
Image Settings Brightness, Contrast, Mirror, Defective Pixel Correction, Sharpness, Anti-Banding, AGC
Frame Rate
TVI: 1080p@25fps/30fps

CVI: 1080p@25fps/30fps

AHD: 1080p@25fps/30fps

CVBS: PAL/NTSC
Day/Night Mode Color
Wide Dynamic Range (WDR)≥130 dB
Image Enhancement BLC, HLC, Global, HLS
Privacy Mask4 programmable privacy masks
Noise Reduction 3D DNR/2D DNR
White Balance Auto/Manual

Interface
Video Output Switchable TVI/AHD/CVI/CVBS

Event
Motion Detection 4 programmable motion areas

General
Power
12V DC ± 25%, max. 2.9 W

*You are recommended to use one power adapter to supply the power for one camera.
Material Metal
DimensionΦ 85.1 mm × 77.62 mm (Φ 3.35" × 3.05")
Weight Approx. 311.5 g (0.69 lb.)
Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
Communication HIKVISION-C
Language English
