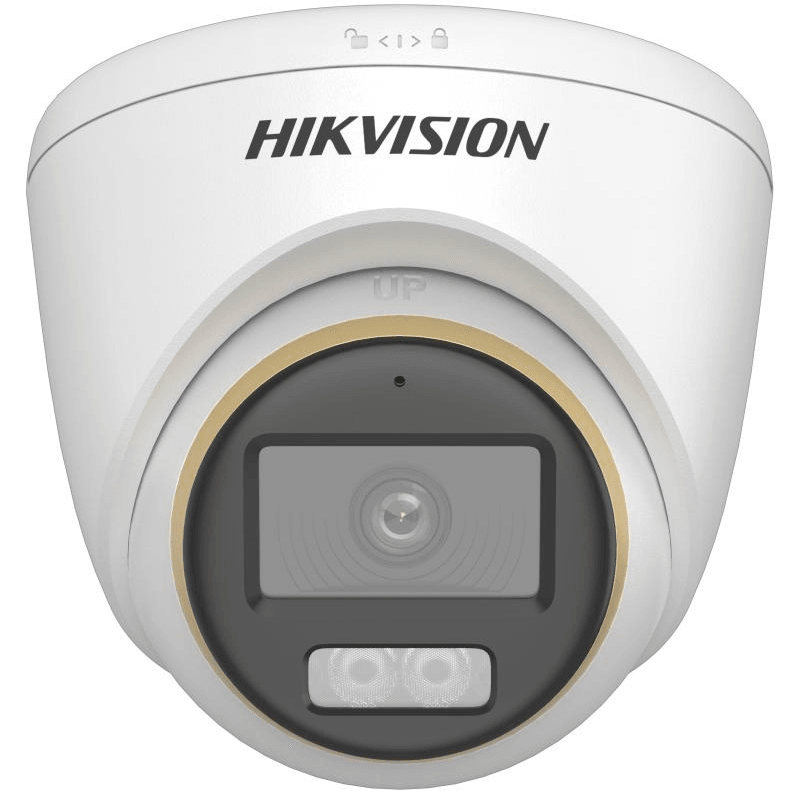

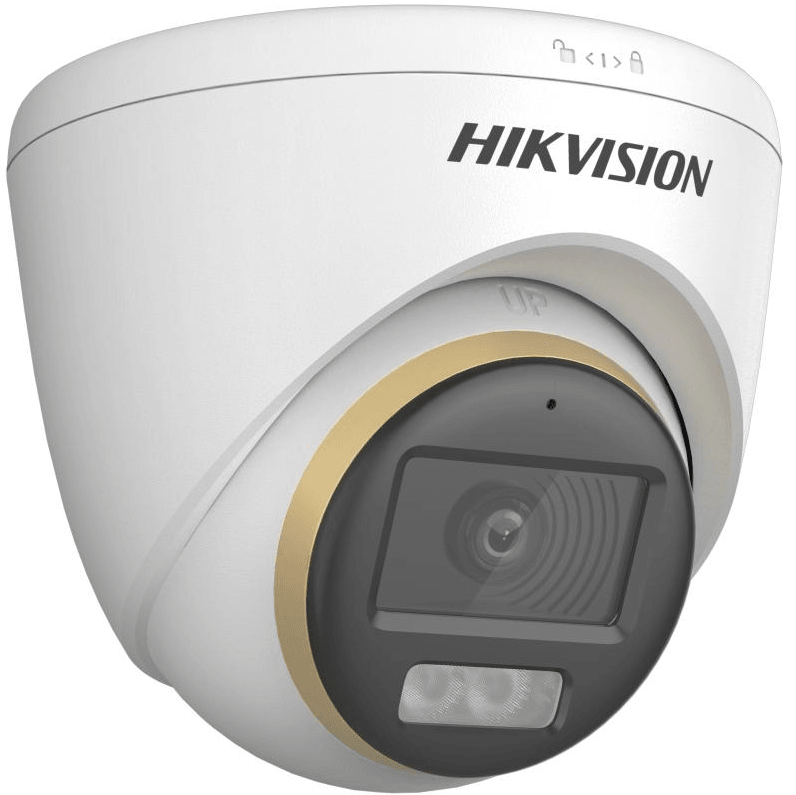

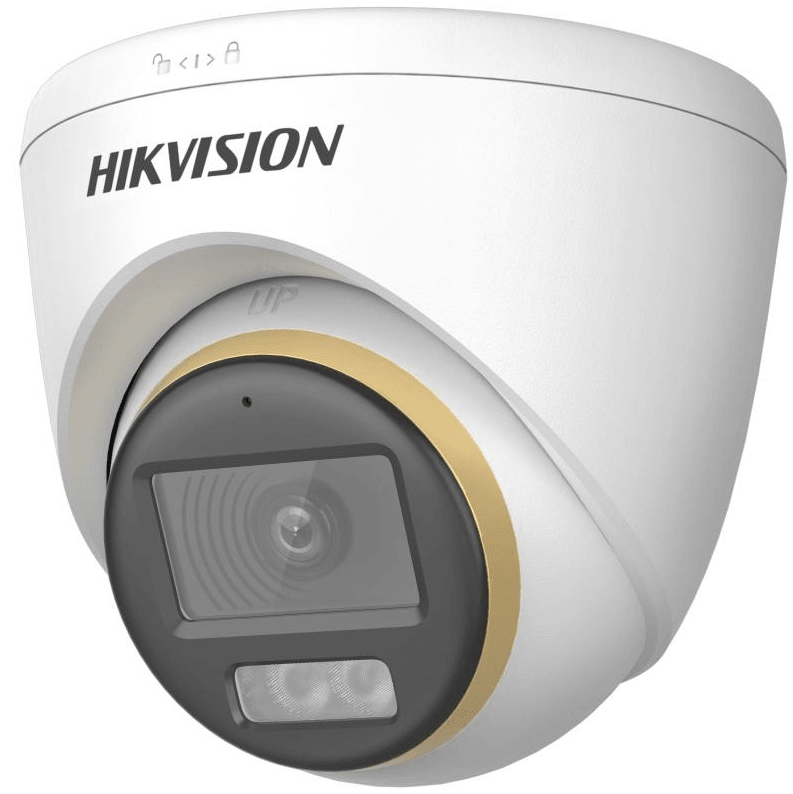

HIK 2MP HYBRID COLORVU DOME 3.6MM DS-2CE72DF3T-LFS
DS-2CE72DF3T-LFS(3.6mm)
- High quality imaging with 2 MP, 1920 × 1080 resolution
- 24/7 color imaging with F1.0 aperture
- Smart-Hybrid light, optimize your security with flexible lighting options
- Clear imaging against strong back light due to 130 dB true WDR technology
- 3D DNR technology delivers clean and sharp images
- 2.8 mm, 3.6 mm fixed focal lens
- Up to 40 m white light distance for bright night imaging
- Up to 40 m IR distance for bright night imaging
- High quality audio with audio over coaxial cable, built-in mic
- One port for four switchable signals (TVI/AHD/CVI/CVBS)
- Water and dust resistant (IP67)
SPECS:
- Camera
- Image Sensor 2 MP CMOS
- Max. Resolution 1920 (H) × 1080 (V)
- Min. Illumination 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
- Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
- Day & Night ICR
- Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
- Signal System PAL/NTSC
- Slow Shutter Max. 16 times
- Lens
- Lens Type 2.8 mm, 3.6 mm fixed focal lens
-
Focal Length & FOV
2.8 mm, horizontal FOV: 105°, vertical FOV: 56°, diagonal FOV: 123°
3.6 mm, horizontal FOV: 85°, vertical FOV: 46°, diagonal FOV: 98°
- Lens Mount M12
- Illuminator
-
Supplement Light Type
IR,
White Light
- Smart Supplement Light Yes
- Supplement Light Range IR: Up to 40 m, White Light: Up to 40 m
- Image
- Image Parameters Switch STD/HIGH-SAT/HIGHLIGHT
-
Image Settings
Brightness,
Contrast,
Sharpness,
Anti-banding,
AGC
-
Frame Rate
TVI: 1080p @25 fps/30 fps
CVI: 1080p @25 fps/30 fps
AHD: 1080p @25 fps/30 fps
CVBS: PAL/NTSC
- Day/Night Mode Auto
- Wide Dynamic Range (WDR)≥130 dB
-
Image Enhancement
WDR,
BLC,
HLC,
Global,
HLS
- Privacy Mask4 programmable privacy masks
- Noise Reduction3D DNR
-
White Balance
Auto,
Manual
- Interface
- Video Output Switchable TVI/AHD/CVI/CVBS
- Alarm Solid Light Alarm(White Light)
- Built-In Microphone Yes
- Event
- Motion Detection4 programmable motion areas
- General
- Material Main body: Metal, Enclosure: Plastic
- DimensionØ109.98 mm × 98.27 mm (Ø4.33" × 3.87")
- Weight Approx. 340 g (0.75 lb.)
- Operating Condition-40 °C to 60 °C (-40 °F to 140 °F). Humidity 90% or less (non-condensing)
- Communication HIKVISION-C
- Language English
-
Power
12 VDC ± 25%, max. 6.9 W
*You are recommended to use one power adapter to supply the power for one camera.
- Approval
- ProtectionIP67
