HIK 2MP HYBRID COLORVU DOME 3.6MM DS-2CE70DF3T-LPF
DS-2CE70DF3T-LPFS(3.6mm)

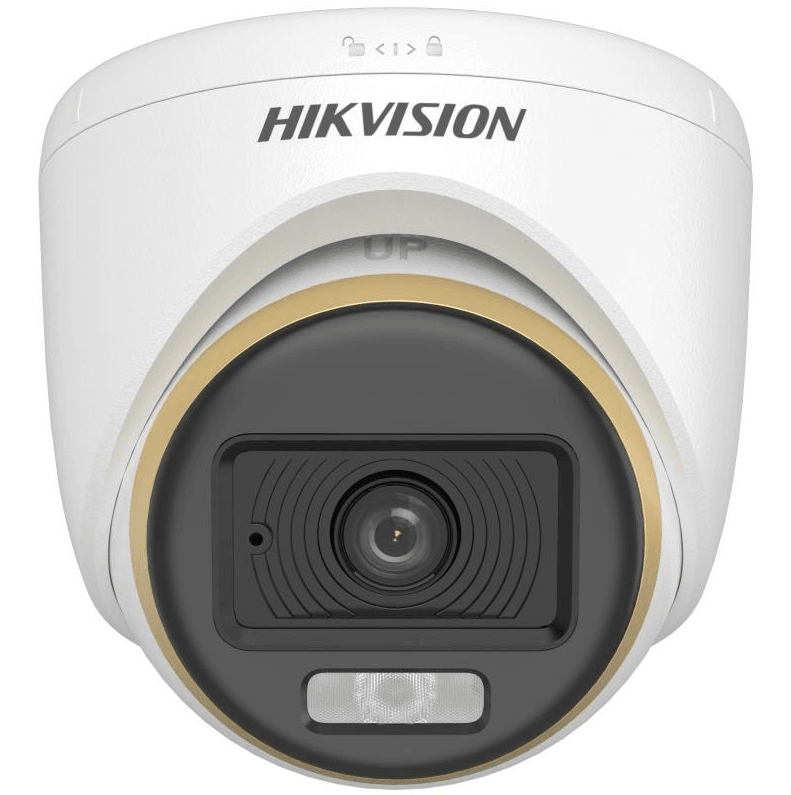

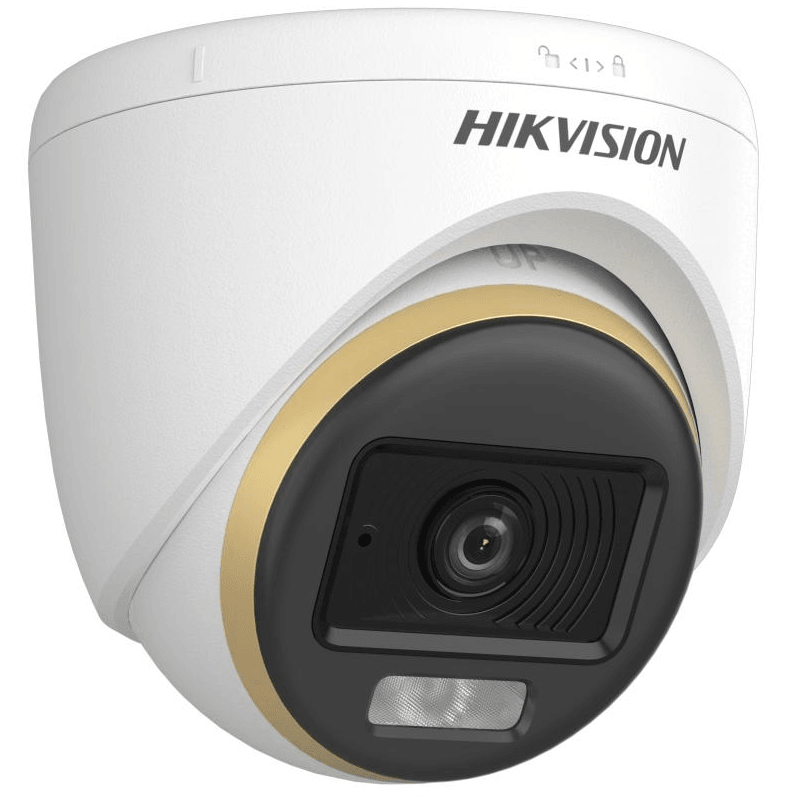

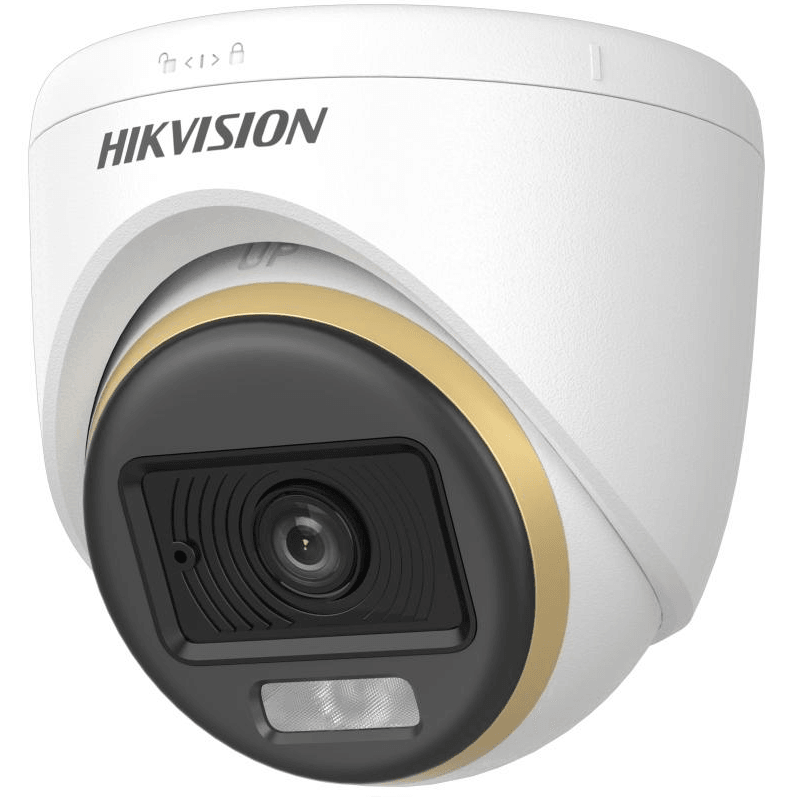

This 2 MP ColorVu Dual-light Indoor Fixed Turret Camera offers exceptional imaging quality with a 2 MP, 1920 × 1080 resolution and 24/7 color imaging thanks to its F1.0 aperture.
The Smart-Hybrid light allows for flexible lighting options to optimize your security, while the 130 dB true WDR technology ensures clear imaging against strong back light. With 3D DNR technology, you can expect clean and sharp images, and the 2.8 mm or 3.6 mm fixed focal lens provides versatility.
Offering up to 20 m of both white light and IR distance for bright night imaging, this camera also delivers high quality audio with its built-in mic and audio over coaxial cable. With one port for four switchable signals (TVI/AHD/CVI/CVBS), this camera is a must-have for any security setup.
FEATURES:
-
High quality imaging with 2 MP, 1920 × 1080 resolution
-
24/7 color imaging with F1.0 aperture
-
Smart-Hybrid light, optimize your security with flexible lighting options
-
Clear imaging against strong back light due to 130 dB true WDR technology
-
3D DNR technology delivers clean and sharp images
-
2.8 mm, 3.6 mm fixed focal lens
-
Up to 20 m white light distance for bright night imaging
-
Up to 20 m IR distance for bright night imaging
-
High quality audio with audio over coaxial cable, built-in mic
-
One port for four switchable signals (TVI/AHD/CVI/CVBS)
SPECS:
- Camera
-
Image Sensor2 MP CMOS
-
Max. Resolution1920 (H) × 1080 (V)
-
Min. Illumination0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
-
Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
- Day & Night ICR
-
Angle Adjustment Pan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°
-
Signal System PAL/NTSC
-
Slow Shutter Max. 16 times
- Lens
-
Lens Type2.8 mm, 3.6 mm fixed focal lens
-
Focal Length & FOV
2.8 mm, horizontal FOV: 105°, vertical FOV: 56°, diagonal FOV: 123°
3.6 mm, horizontal FOV: 85°, vertical FOV: 46°, diagonal FOV: 98°
- Lens Mount M12
- Illuminator
-
Supplement Light Type
IR,
White Light
-
Supplement Light Range IR: Up to 20 m, White Light: Up to 20 m
-
Smart Supplement Light Yes
- Image
-
Image Parameters Switch STD/HIGH-SAT/HIGHLIGHT
-
Image Settings
Brightness,
Contrast,
Sharpness,
Anti-banding,
AGC
-
Frame Rate
TVI: 1080p @25 fps/30 fps
CVI: 1080p @25 fps/30 fps
AHD: 1080p @25 fps/30 fps
CVBS: PAL/NTSC
-
Day/Night Mode Auto
-
Wide Dynamic Range (WDR)≥130 dB
-
Image Enhancement
WDR,
BLC,
HLC,
Global,
HLS
-
Privacy Mask 4 programmable privacy masks
-
Noise Reduction 3D DNR
-
White Balance
Auto,
Manual
- Interface
-
Video Output Switchable TVI/AHD/CVI/CVBS
-
Alarm Solid Light Alarm(White Light)
-
Built-In Microphone Yes
- Event
-
Motion Detection4 programmable motion areas
