HIK 2MP HYBRID COLORVU DOME 3.6MM DS-2CE70DF3T-LMF
DS-2CE70DF3T-LMFS(3.6mm)

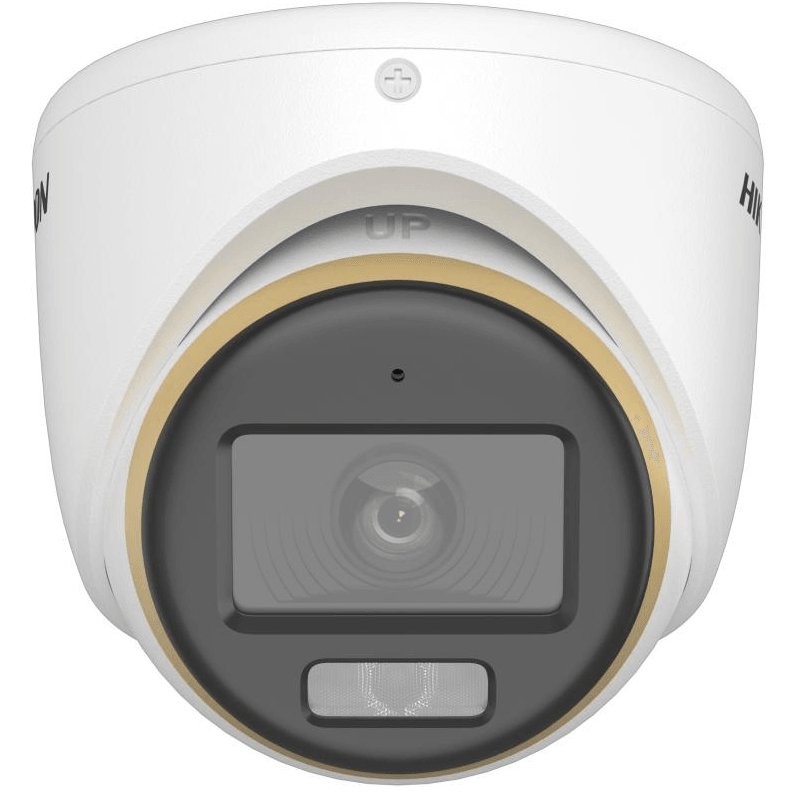

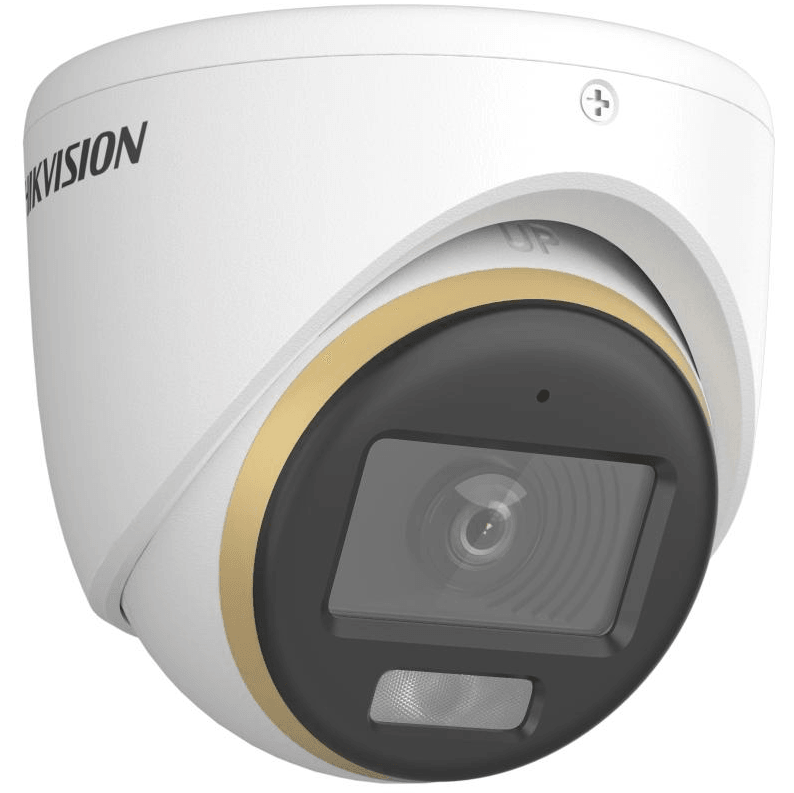

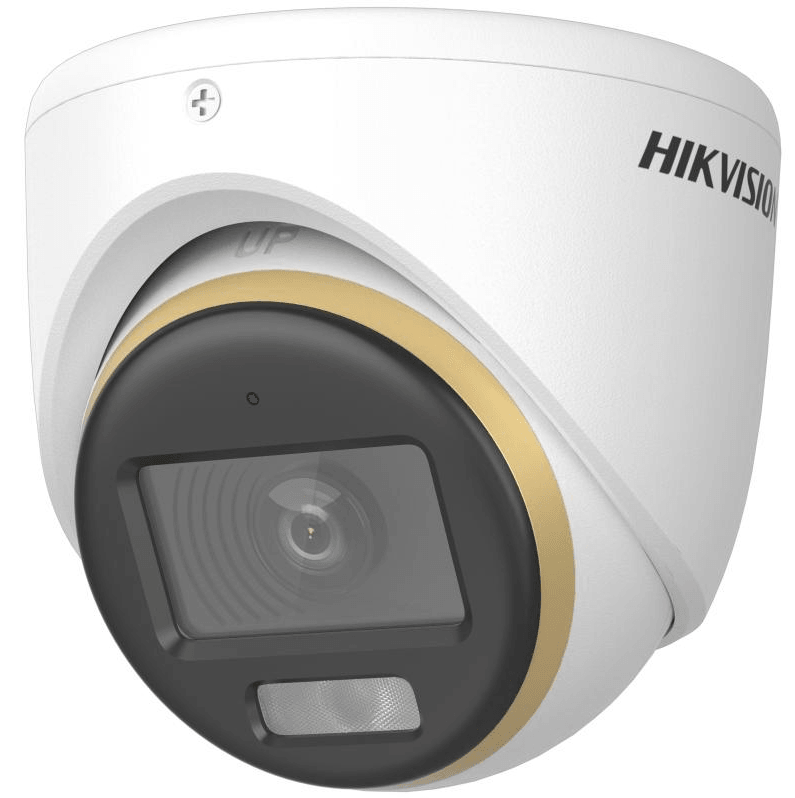

This 2 MP ColorVu Dual-light Fixed Turret Camera offers impressive 2 MP, 1920 × 1080 resolution imaging and 24/7 color imaging with F1.0 aperture. Its smart-hybrid light with flexible lighting options will optimize your security, while its 130 dB true WDR technology provides clear imaging even in strong back light.
With 3D DNR technology, you can expect clean and sharp images, and the fixed focal lens options of 2.8 mm and 3.6 mm provide versatility. Additionally, this camera offers up to 20 m of white light and IR distance for bright night imaging, as well as high quality audio with audio over coaxial cable and a built-in mic. This durable camera can handle any environment with its water and dust resistant (IP67) design.
FEATURES:
-
High quality imaging with 2 MP, 1920 × 1080 resolution
-
24/7 color imaging with F1.0 aperture
-
Smart-Hybrid light, optimize your security with flexible lighting options
-
Clear imaging against strong back light due to 130 dB true WDR technology
-
3D DNR technology delivers clean and sharp images
-
2.8 mm, 3.6 mm fixed focal lens
-
Up to 20 m white light distance for bright night imaging
-
Up to 20 m IR distance for bright night imaging
-
High quality audio with audio over coaxial cable, built-in mic
-
One port for four switchable signals (TVI/AHD/CVI/CVBS)
-
Water and dust resistant (IP67)
SPECS:
- Camera
-
Image Sensor 2MP CMOS
-
Max. Resolution 1920 (H) × 1080 (V)
-
Min. Illumination 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
-
Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
-
Day & Night ICR
-
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
-
Signal System PAL/NTSC
-
Slow Shutter Max. 16 times
- Lens
-
Lens Type 2.8 mm, 3.6 mm fixed focal lens
-
Focal Length & FOV
2.8 mm, horizontal FOV: 105°, vertical FOV: 56°, diagonal FOV: 123°
3.6 mm, horizontal FOV: 85°, vertical FOV: 46°, diagonal FOV: 98°
-
Lens Mount M12
- Illuminator
-
Supplement Light Type
IR,
White Light;White Light
-
Smart Supplement Light Yes
-
Supplement Light Range IR: Up to 20 m, White Light: Up to 20 m
- Image
-
Image Parameters Switch STD/HIGH-SAT/HIGHLIGHT
-
Image Settings
Brightness,
Contrast,
Sharpness,
Anti-banding,
AGC
-
Frame Rate
TVI: 1080p @25 fps/30 fps
CVI: 1080p @25 fps/30 fps
AHD: 1080p @25 fps/30 fps
CVBS: PAL/NTSC
-
Day/Night Mode Auto
-
Wide Dynamic Range (WDR)≥130 dB
-
Image Enhancement
WDR,
BLC,
HLC,
Global,
HLS
-
Privacy Mask 4 programmable privacy masks
-
Noise Reduction 3D DNR
-
White Balance
Auto,
Manual
- Interface
-
Video Output Switchable TVI/AHD/CVI/CVBS
-
Alarm Solid Light Alarm(White Light)
-
Built-In Microphone Yes
- Event
-
Motion Detection4 programmable motion areas
