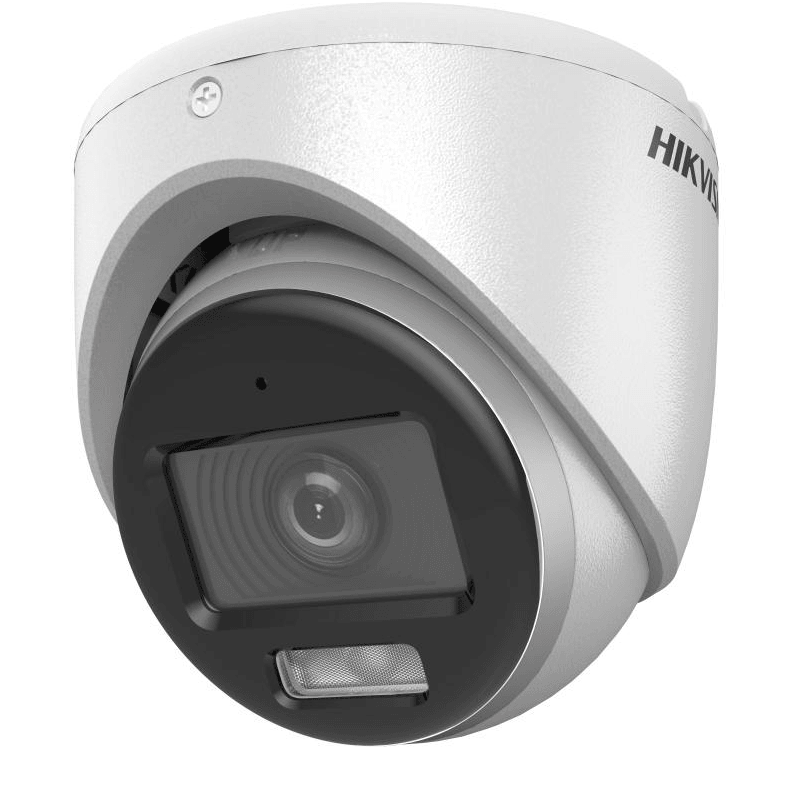

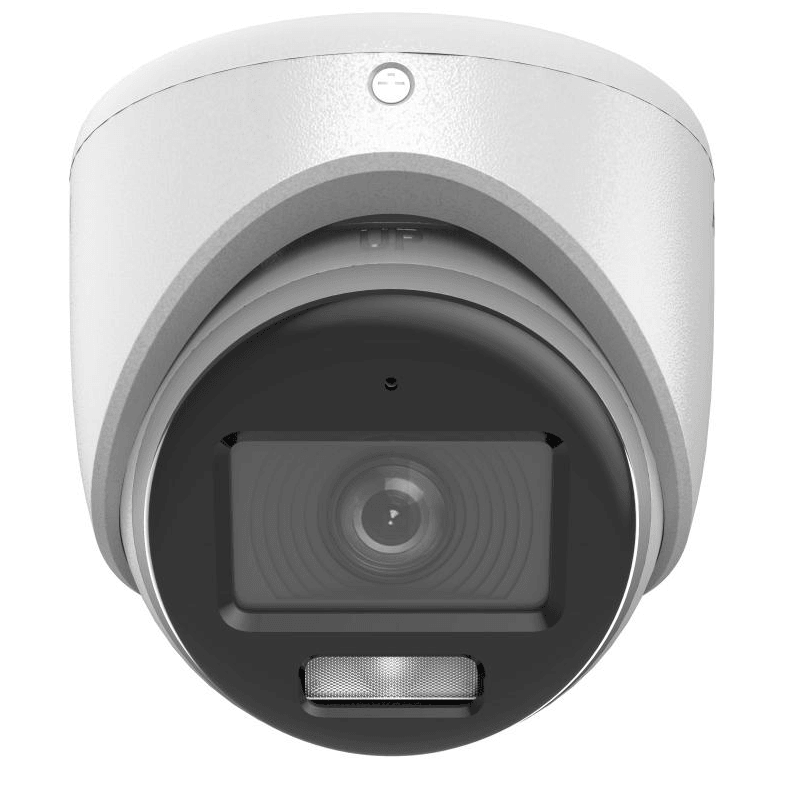

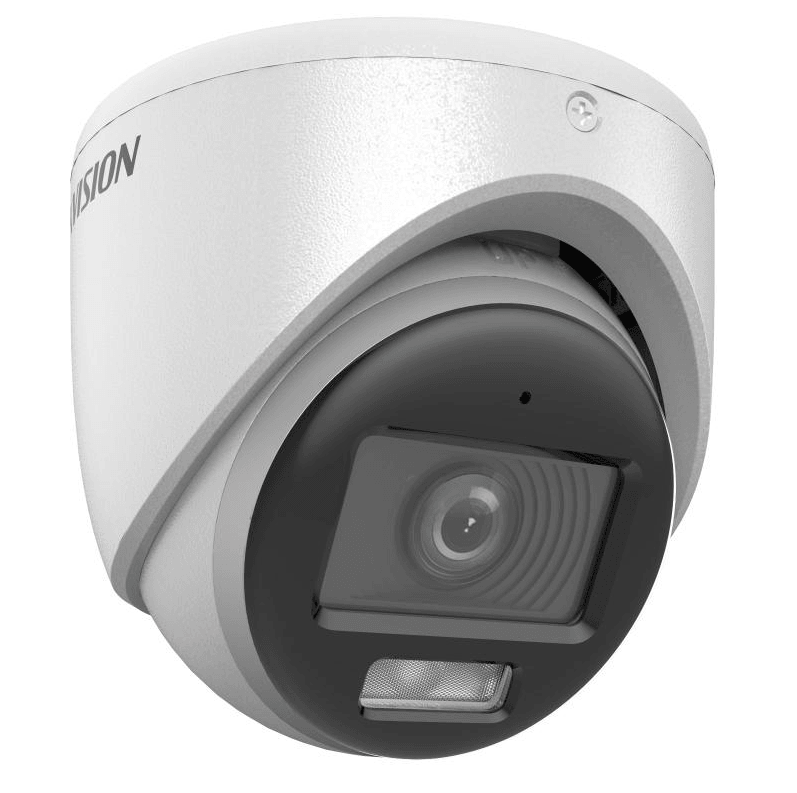

HIK 2MP HYBRID COLORVU DOME 3.6MM DS-2CE70DF0T-LMF
DS-2CE70DF0T-LMFS(3.6mm)
Passionately believe in the value of the HIK 2MP HYBRID COLORVU DOME 3.6MM DS-2CE70DF0T-LMF. Experience exceptional imaging with 2 MP, 1920 × 1080 resolution. Enjoy 24/7 color imaging thanks to the F1.0 aperture and Smart-Hybrid light. With flexible lighting options, your security will be optimized.
Plus, 3D DNR technology guarantees clean and sharp images. Choose between a 2.8 mm or 3.6 mm fixed focal lens. Feel safe at night with a bright white light and up to 20 m IR distance. Built-in mic allows for high quality audio over coaxial cable. One port provides you with four switchable signals (TVI/AHD/CVI/CVBS). And don't worry about water and dust - this camera is IP67 certified.
FEATURES:
-
High quality imaging with 2 MP, 1920 × 1080 resolution
-
24/7 color imaging with F1.0 aperture
-
Smart-Hybrid light, optimize your security with flexible lighting options
-
3D DNR technology delivers clean and sharp images
-
2.8 mm, 3.6 mm fixed focal lens
-
Up to 20 m white light distance for bright night imaging
-
Up to 20 m IR distance for bright night imaging
-
High quality audio with audio over coaxial cable, built-in mic
-
One port for four switchable signals (TVI/AHD/CVI/CVBS)
-
Water and dust resistant (IP67)
SPECS:
- Camera
-
Image Sensor 2mp CMOS
-
Max. Resolution 1920 (H) × 1080 (V)
-
Min. Illumination 0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light
-
Shutter TimePAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
- Day & Night ICR
-
Angle Adjustment Pan: 0° to 360°,Tilt: 0° to 75°,Rotate: 0° to 360°
-
Signal System PAL/NTSC
- Lens
-
Lens Type2.8 mm and 3.6 mm fixed focal lens
-
Focal Length & FOV
2.8 mm, horizontal FOV: 105°, vertical FOV: 56°, diagonal FOV: 126°
3.6 mm, horizontal FOV: 84°, vertical FOV: 46°, diagonal FOV: 98°
- Lens Mount M12
- Illuminator
-
Supplement Light Type
IR,
White Light
-
Supplement Light Range IR: Up to 20 m,White Light: Up to 20 m
-
Smart Supplement Light Yes
- Image
-
Image Parameters Switch STD/HIGH-SAT/HIGHLIGHT
-
Image Settings Brightness, Sharpness, Anti-banding, AGC
-
Frame Rate
TVI: 1080p @25 fps/30 fps
CVI: 1080p @25 fps/30 fps
AHD: 1080p @25 fps/30 fps
CVBS: PAL/NTSC
-
Day/Night ModeAuto/Color/BW (Black and White)
-
Wide Dynamic Range (WDR)Digital WDR
-
Noise Reduction 3D DNR/2D DNR
-
Image Enhancement
DWDR,
BLC,
HLC,
Global
-
White Balance Auto, Manual
- Interface
-
Video Output Switchable TVI/AHD/CVI/CVBS
- Built-In Microphone Yes
- General
- Material Metal
- Power 12v Dc ± 25%, max. 2.9 W,*You are recommended to use one power adapter to supply the power for one camera.
-
DimensionØ85.11 mm × 77.62 mm (Ø3.35" × 3.05")
- Weight Approx. 320 g (0.71 lb.)
-
Operating Condition-40 °C to 60 °C (-40 °F to 140 °F). Humidity 90% or less (non-condensing)
- Communication HIKVISION-C
- Language English
