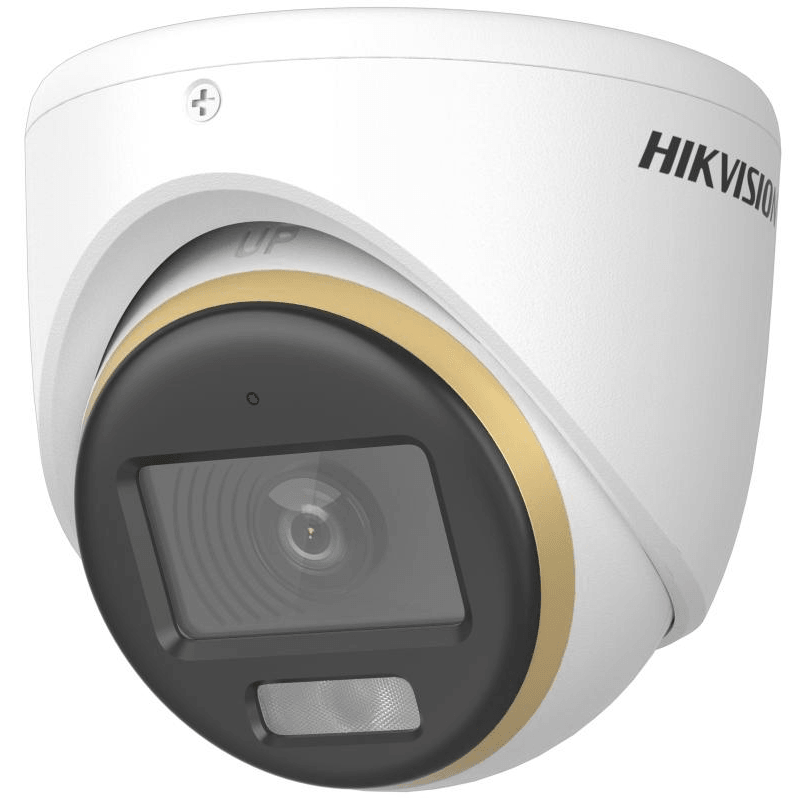

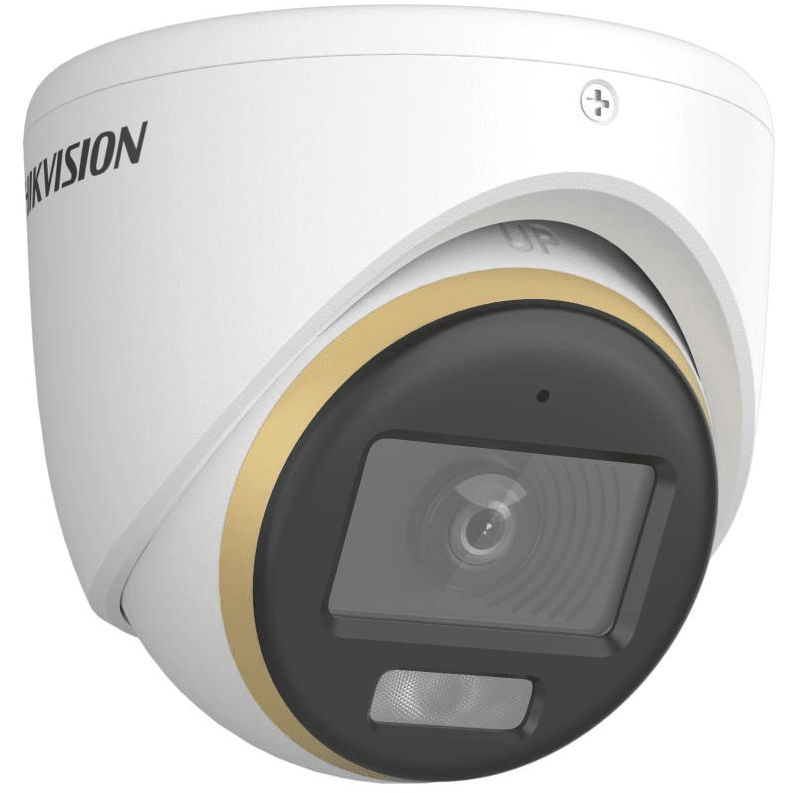

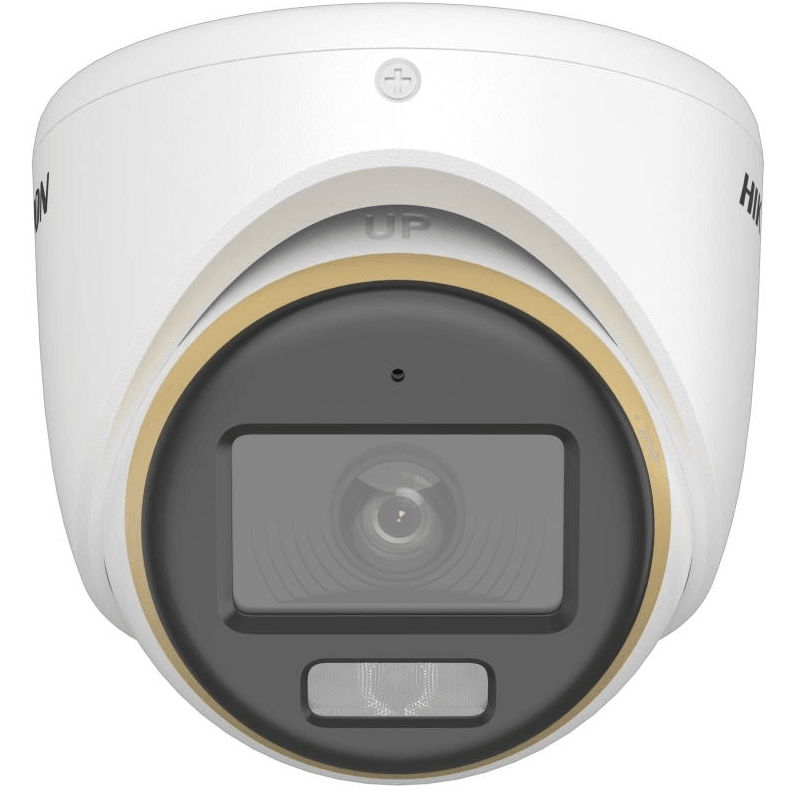

HIK 2MP HYBRID COLORVU DOME 2.8MM DS-2CE70DF3T-LMF
DS-2CE70DF3T-LMFS(2.8mm)
This 2 MP ColorVu Dual-light Fixed Turret Camera offers exceptional imaging at 1920 × 1080 resolution. With its F1.0 aperture and Smart-Hybrid light, you can optimize your security with flexible lighting options and achieve 24/7 color imaging.
The camera also features 130 dB true WDR technology for clear imaging against strong back light, as well as 3D DNR technology for clean and sharp images. With a 2.8 mm, 3.6 mm fixed focal lens, it has a white light distance of up to 20 m and an IR distance of up to 20 m for bright night imaging.
Plus, it offers high quality audio with audio over coaxial cable and a built-in mic, and has one port for four switchable signals (TVI/AHD/CVI/CVBS). With an IP67 rating, this camera is water and dust resistant, making it a reliable choice for your security needs.
FEATURES:
-
High quality imaging with 2 MP, 1920 × 1080 resolution
-
24/7 color imaging with F1.0 aperture
-
Smart-Hybrid light, optimize your security with flexible lighting options
-
Clear imaging against strong back light due to 130 dB true WDR technology
-
3D DNR technology delivers clean and sharp images
-
2.8 mm, 3.6 mm fixed focal lens
-
Up to 20 m white light distance for bright night imaging
-
Up to 20 m IR distance for bright night imaging
-
High quality audio with audio over coaxial cable, built-in mic
-
One port for four switchable signals (TVI/AHD/CVI/CVBS)
-
Water and dust resistant (IP67)
SPECS:
- Camera
-
Image Sensor 2mp CMOS
-
Max. Resolution 1920 (H) × 1080 (V)
-
Min. Illumination 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
-
Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
- Day & Night ICR
-
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
-
Signal System PAL/NTSC
-
Slow Shutter Max. 16 times
- Lens
-
Lens Type 2.8 mm, 3.6 mm fixed focal lens
-
Focal Length & FOV
2.8 mm, horizontal FOV: 105°, vertical FOV: 56°, diagonal FOV: 123°
3.6 mm, horizontal FOV: 85°, vertical FOV: 46°, diagonal FOV: 98°
- Lens Mount M12
- Illuminator
-
Supplement Light Type
IR,
White Light;White Light
-
Smart Supplement Light Yes
-
Supplement Light Range IR: Up to 20 m, White Light: Up to 20 m
- Image
-
Image Parameters Switch STD/HIGH-SAT/HIGHLIGHT
-
Image Settings
Brightness,
Contrast,
Sharpness,
Anti-banding,
AGC
-
Frame Rate
TVI: 1080p @25 fps/30 fps
CVI: 1080p @25 fps/30 fps
AHD: 1080p @25 fps/30 fps
CVBS: PAL/NTSC
- Day/Night Mode Auto
-
Wide Dynamic Range (WDR)≥130 dB
-
Image Enhancement
WDR,
BLC,
HLC,
Global,
HLS
-
Privacy Mask 4 programmable privacy masks
-
Noise Reduction 3D DNR
-
White Balance
Auto,
Manual
- Interface
-
Video Output Switchable TVI/AHD/CVI/CVBS
- Alarm Solid Light Alarm(White Light)
- Built-In Microphone Yes
- Event
-
Motion Detection4 programmable motion areas
