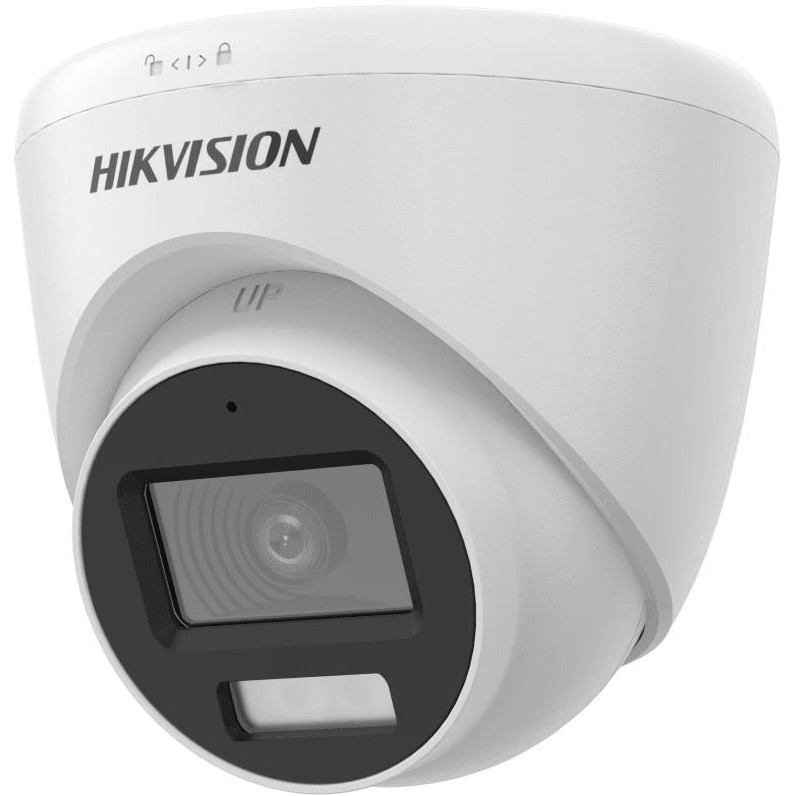

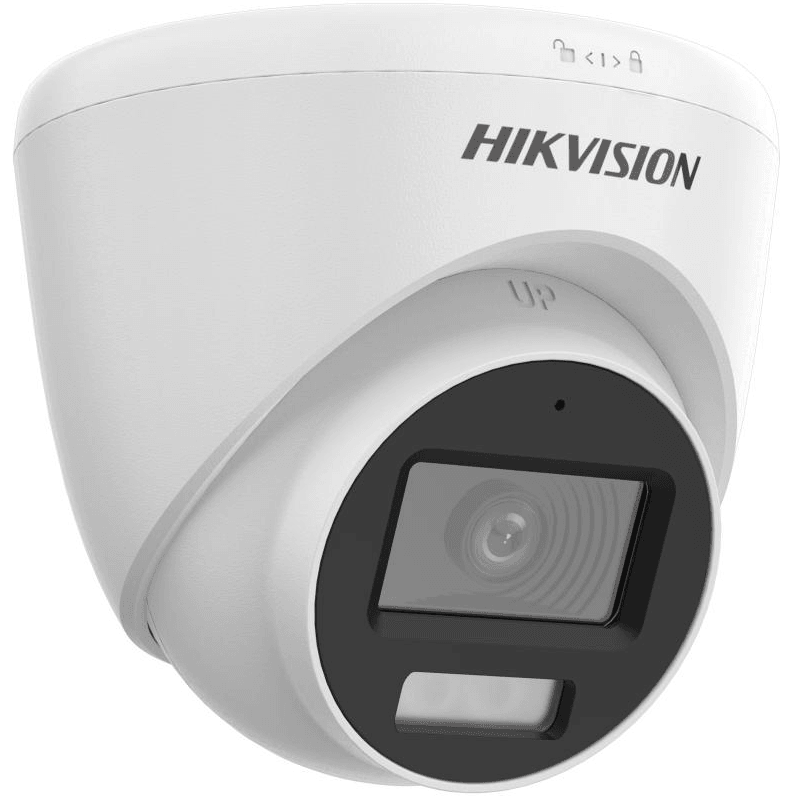

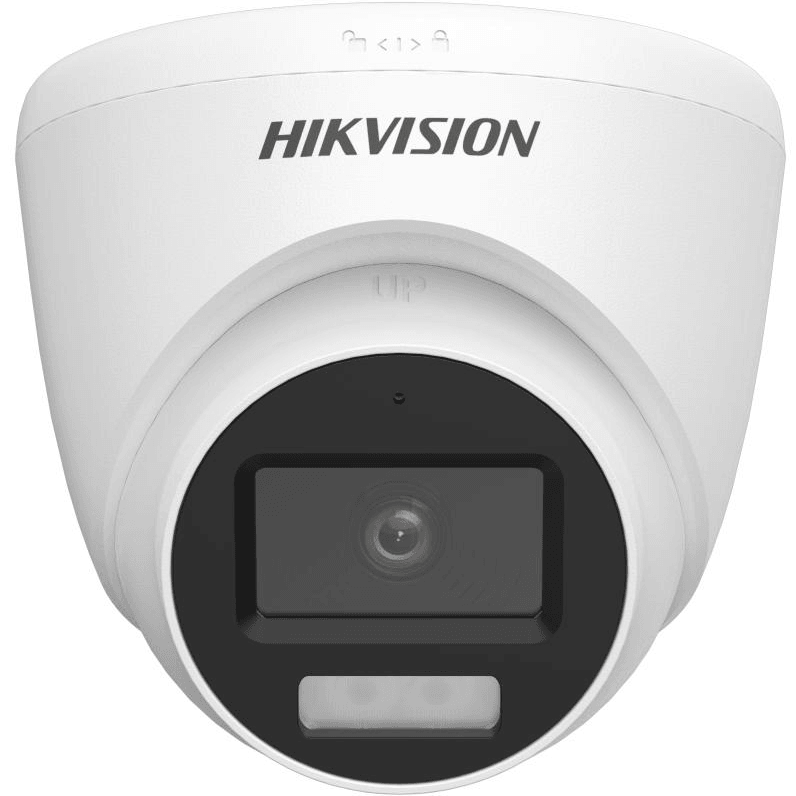

HIK 2MP HYBRID AUDIO DOME 3.6MM DS-2CE78D0T-LFS
DS-2CE78D0T-LFS(3.6mm)
Maximize your security with the 2MP Smart Hybrid Light Audio Fixed Turret Camera. This high-quality camera offers 2 MP imaging with 1920×1080 resolution and a fixed focal lens of either 2.8 mm or 3.6 mm. Enjoy bright night imaging with up to 40 m IR distance and 20 m white light distance.
The camera features one port for four switchable signals (TVI/AHD/CVI/CVBS) and high-quality audio transmission over coaxial cable with a built-in mic. Its IP67 water and dust resistance make it durable in various environments. With the Smart-Hybrid light, you have the power to optimize your security with flexible lighting options.
FEATURES:
-
High quality imaging with 2 MP, 1920×1080 resolution
-
Fixed focal lens, 2.8 mm and 3.6 mm optional
-
Up to 40 m IR distance for bright night imaging
-
Up to 20 m white light distance for bright night imaging
-
One port for four switchable signals (TVI/AHD/CVI/CVBS)
-
High quality audio with audio over coaxial cable, built-in mic
-
Water and dust resistant (IP67)
-
Smart-Hybrid light, optimize your security with flexible lighting options
SPECS:
- Camera
-
Image Sensor 2mp CMOS
-
Max. Resolution 1920 (H) × 1080 (V)
-
Min. Illumination 0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR
-
Shutter TimePAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
- Day & Night ICR
-
Angle Adjustment Pan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°
-
Signal System PAL/NTSC
- Lens
-
Lens Type Fixed focal lens, 2.8 mm and 3.6 mm optional
-
Focal Length & FOV
2.8 mm, horizontal FOV: 100°, vertical FOV: 55°, diagonal FOV: 116°
3.6 mm, horizontal FOV: 80°, vertical FOV: 43°, diagonal FOV: 95°
- Lens Mount M12
- Illuminator
-
Supplement Light Type White Light;IR
-
Supplement Light Range
IR : Up to 40 m
White Light : Up to 20 m
- Image
-
Image Settings Brightness, Sharpness, Smart IR
-
Frame Rate
TVI: 1080P@30fps, 1080P@25fps
AHD: 1080P@30fps, 1080P@25fps
CVI: 1080P@30fps, 1080P@25fps
CVBS: PAL/NTSC
-
Day/Night ModeAuto/Color/BW (Black and White)
-
Wide Dynamic Range (WDR)Digital WDR
-
Image Enhancement DWDR/BLC/HLC/Global
-
White Balance Auto/Manual
-
AGC Yes
- Interface
-
Video Output Switchable TVI/AHD/CVI/CVBS
- Built-In Microphone Yes
