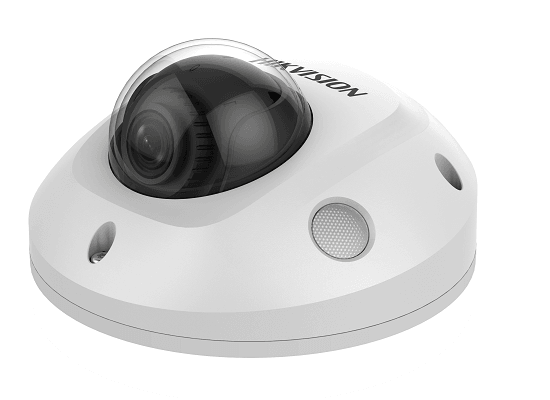

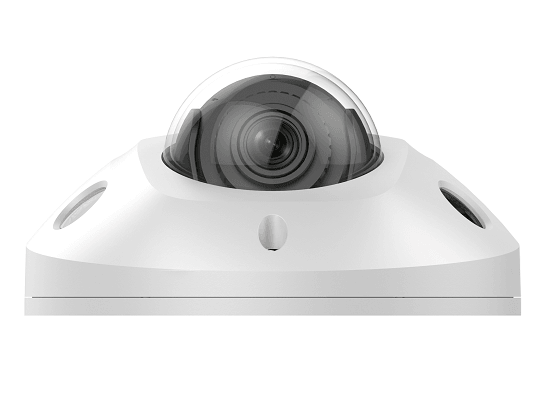

Camera - Specifications
-
Image Sensor: 1/2.8" Progressive Scan CMOS
-
Min. Illumination: Color: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR Color: 0.009 lux @(F1.6, AGC ON), 0 lux with IR
-
Shutter time: 1/3 s to 1/100,000 s
-
Slow shutter: Support
-
Lens Mount: M12
-
Adjustment Range: Pan: -30� to +30�, tilt: 0� to 75�, rotate: 0� to 360�
-
Day& Night: IR cut filter with auto switch
- Wide Dynamic Range: 120 dB
- Wide Dynamic Range:120 dB
- Digital noise reduction: 3D DNR
- Focus:Fixed
�
Compression Standard
-
Video Compression: H.265+/H.265/H.264+/H.264/MJPEG
-
Video bitrate: 32Kbps~16Mbps
-
Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM
-
Audio bitrate: 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
-
Triple Streams: Yes
-
Max. Image Resolution: 1920 x 1080
-
Image Enhancement: BLC/3D DNR/ROI/HLC
-
Image Settings: Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
-
Day/Night Switch: Day/Night/Auto/Schedule/ Triggered by Alarm In (-S)
Network
-
Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6
-
General Function: One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering
-
System Compatibility: ONVIF (Profile S, Profile G), ISAPI
�
�
Interface
-
Audio: with -S model?2 Inputs: line in or mic in (built-in microphone), 1 output: line out, mono sound, terminal block
-
Communication Interface: 1 RJ45 10M / 100M Ethernet interface
-
Alarm: with -S model?1 input, 1 output (max. 12 VDC, 30 mA), terminal block
-
On-board storage:Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
-
Reset Button: Yes
Audio
-
Environment Noise Filtering: Support(-S)
-
Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz
Smart Feature-set
-
Behavior Analysis:��Line crossing detection, Intrusion detection, Unattended baggage detection, Object removal detection
-
Line Crossing Detection: Cross a pre-defined virtual line
-
Intrusion Detection: Enter and loiter in a pre-defined virtual region
-
Unattended Baggage: Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
-
Object Removal: Objects removed from the pre-defined region, such as the exhibits on display.
-
Exception Detections: Scene change detection
-
Detection/Recognition: Face Detection
Wi-Fi Specification (-W)
-
Wireless Standards: IEEE802.11b, 802.11g, 802.11n
-
Frequency Range: 2.412 GHz to 2.4835 GHz
-
Channel Bandwidth: 20/40MHz Support
-
Transmission Rate: 11b: 11Mbps - 11g: 54Mbps - 11n: up to 150Mbps
-
Wireless Range: 50m(depend on environment)
-
Protocols: 802.11b: DQPSK, DBPSK, CCK - 802.11g/n: OFDM /64-QAM,16-QAM, QPSK, BPSK
-
Operating Conditions: -30 �C ~ 60 �C (-22 �F ~ 140 �F) Humidity 95% or less (non-condensing)
-
Power Supply: 12 VDC � 25%, PoE (802.3af Class3)
-
Power Consumption: 12 VDC, 0.625A, max. 7.5W PoE (802.3af, 36V to 57V), 0.26 A to 0.17 A, max. 9.5W
-
Impact Protection: IK08 Protection Level
-
Weather Proof: IP66
-
IR Range: Up to 10m
-
Dimensions: ?110 mm � 56.4 mm (?4.33" � 2.22")
-
Weight: Camera: Approx. 400 g (0.88 lb.)
