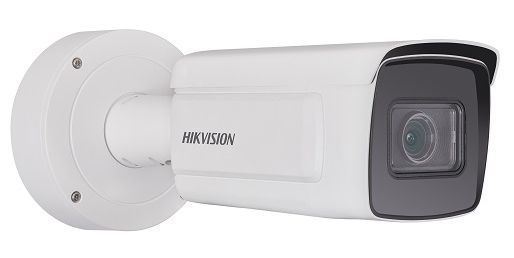

Camera
-
Image Sensor: 1/1.8" Progressive Scan CMOS
-
Signal System: PAL/NTSC
-
Min. Illumination: Color: 0.002 Lux @ (F1.2, AGC ON), 0 Lux with Light
-
Shutter time: 1 s to 1/100,000 s
-
Slow shutter: Yes
-
Lens: 2.8 to 12 mm: horizontal FOV 103.3� to 38.6�, vertical FOV 54.2� to 21.9�, diagonal FOV 124.2� to 44.3 - 8 to 32 mm: horizontal FOV 42.5� to 13.4�, vertical FOV 23.4� to 7.7�, diagonal FOV 49� to 15.3�
-
Adjustment Range: Bracket, pan: 0� to 355�, tilt: 0� to 90�, rotate: 0� to 360�
-
Day& Night: IR Cut Filter
-
Wide Dynamic Range: 140dB
Compression Standard
-
Video Compression: H.265+/H.265/H.264+/H.264/MJPEG
-
H.264 code profile: Baseline Profile/Main Profile/High Profile
-
Video bit rate: 32Kbps~16Mbps
Network
-
Network Storage: MicroSD/SDHC/SDXC card (256 GB), local storage and NAS (NFS, SMB/CIFS), ANR, Together with high-end Hikvision memory card, memory card encryption and health detection are supported
-
Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
-
API: ONVIF (PROFILE S, PROFILE G), ISAPI, SDK
-
Simultaneous Live View: Up to 20 channels
-
User/Host:�Up to 32 users. 3 user levels: administrator, operator and use
-
Client:�iVMS-4200, Hik-Connect, iVMS-5200, Hik-Central
Interface
-
Communication Interface: 1 RJ45 10M/100M/1000M Ethernet port, 1 RS-485 interface (half-duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
-
Audio: No
-
Alarm: 2 inputs, 2 outputs (up to 24 VDC 1A or 110 VAC 500 mA)
-
On-Board Storage: Built-in micro SD/SDHC/SDXC slot, up to 256 GB
-
Video Out: 1Vp-p composite output (75 ?/CVBS), only for adjustment
-
Firmware Version: 5.5.60
General
-
General Function: One-key reset, anti-flicker, five streams and custom stream, heartbeat, password protection, privacy mask, watermark, IP address filter
-
Startup And Operating Conditions: -30 �C to 60 �C (-22 �F to 140 �F), -H: -40 �C to 60 �C (-40 �F to 140 �F) Humidity 95% or less (non-condensing)
-
Power Supply: 12 VDC � 20%, two-core terminal block?PoE (802.3at, class 4?
-
Material: Aluminum alloy
-
Dimensions Camera: ?140 � 351 mm (?5.5? � 13.8?) With package: 405 � 190 � 180 mm (15.9? � 7.5? � 7.1?)
-
Weight Camera: approx. 2.5 kg (5.51 lb.) With package: approx. 2.75 kg (6.06 lb.)
-
Power Consumption And Current: -IZS: 12 VDC, 1.2 A, max. 14 W; PoE (802.3at, 42.5 V to 57 V), 0.4 A to 0.3 A -IZHS: 12 VDC, 1.4 A, max. 16.5 W; PoE (802.3at, 42.5 V to 57 V), 0.4 A to 0.3 A
INCLUDES 2 YEAR WARRANTY�
�
�
