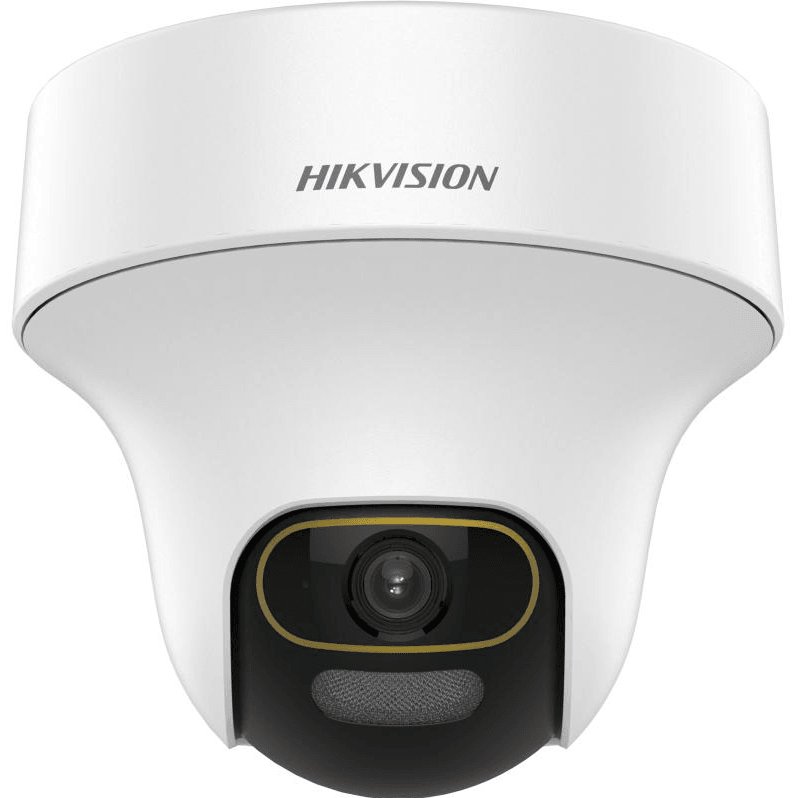

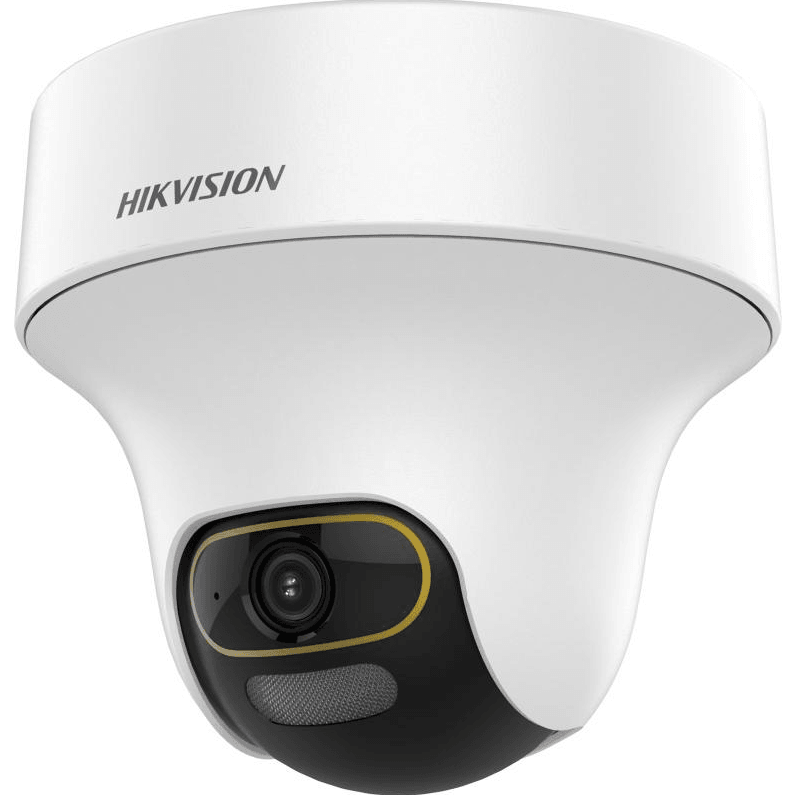

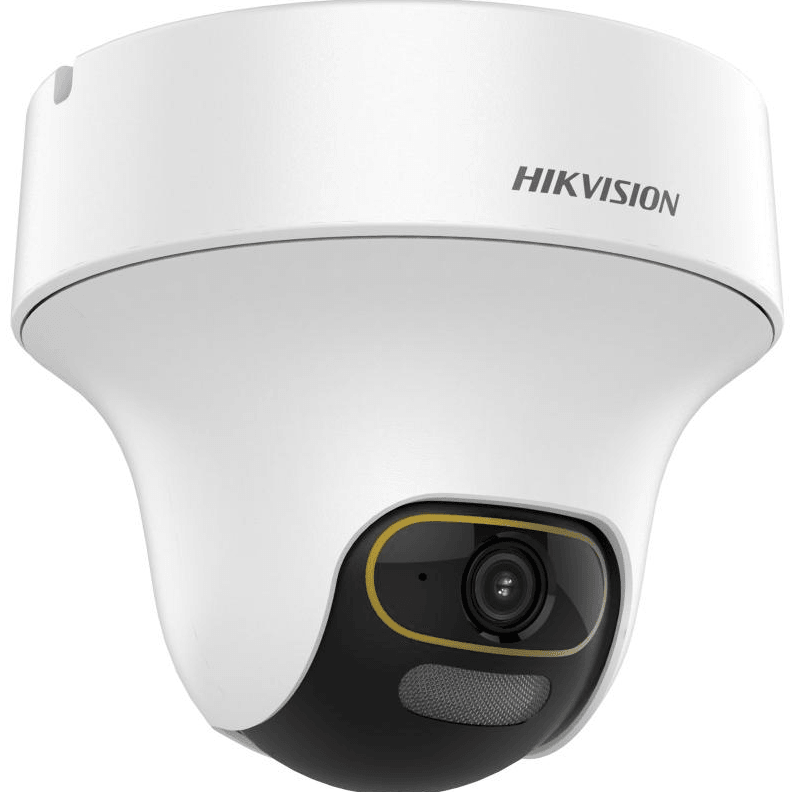

HIK 2MP COLORVU PT TURRET 2.8MM DS-2CE70DF3T-PTS

DS-2CE70DF3T-PTS(2.8mm)

The HIK 2MP COLORVU PT TURRET 2.8MM DS-2CE70DF3T-PTS provides high quality imaging with 2 MP, 1920 × 1080 resolution. It offers 24/7 color imaging with F1.0 aperture and clear imaging against strong back light thanks to its 130 dB true WDR technology. The 3D DNR technology ensures clean and sharp images, while the fixed focal lens of 2.8 or 3.6 mm gives you options to choose from.

With up to 20 m white light distance for bright night images and high quality audio over coaxial cable, including a built-in microphone, this camera is an essential addition to your security system. Experience the power and reliability of the HIK 2MP COLORVU PT TURRET 2.8MM DS-2CE70DF3T-PTS today!

FEATURES:

High quality imaging with 2 MP, 1920 × 1080 resolution
24/7 color imaging with F1.0 aperture
Clear imaging against strong back light due to 130 dB true WDR technology
3D DNR technology delivers clean and sharp images
Fixed focal lens, 2.8, and 3.6 mm optional
Up to 20 m white light distance for bright night images
High quality audio with audio over coaxial cable, built-in microphone

SPECS:

Camera
Image Sensor 2MP CMOS
Max. Resolution 1920 (H) × 1080 (V)
Min. Illumination 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Day & Night24/7 Color Imaging
Angle Adjustment
Pan: 0 to 350°, tilt: 0 to 75°

*DO NOT adjust the angle of the main body or enclosure manually.
Signal System PAL/NTSC
Slow Shutter Max. 16 times

Lens
Lens Type Fixed focal lens, 2.8 and 3.6 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV: 106°, vertical FOV: 57°, diagonal FOV: 126°

3.6 mm, horizontal FOV: 83°, vertical FOV: 44°, diagonal FOV: 99°
Lens Mount M12

Illuminator
Supplement Light Type White Light
Supplement Light Range Up to 20 m
Smart Supplement Light Yes

Image Parameters Switch STD/HIGH-SAT/HIGHLIGHT
Image Settings Brightness;Contrast;Mirror;Sharpness;Anti-Banding;Saturation;AGC
Frame Rate TVI: 1080P@25 fps/30 fps
Day/Night Mode Color
Wide Dynamic Range (WDR)≥130 dB
Image Enhancement BLC;HLC;Global;HLS
Privacy Mask 4 programmable privacy masks
Noise Reduction 3D DNR/2D DNR
White Balance Auto/Manual
White Light Auto/Off

Interface
Video Output1 HD analog output
Alarm Solid Light Alarm (White Light)
Built-In Microphone Yes

Event
Motion Detection4 programmable motion areas

General
Power
12V DC ± 25%, max. 7.4 W

*You are recommended to use one power adapter to supply the power for one camera.
Material Plastic
DimensionØ123.7 × 110.8 (4.9" × 4.4")
Weight Approx. 290 g (0.6 lb.)
Operating Condition-10 °C to 40 °C (14 °F to 104 °F). Humidity 90% or less (non-condensing)
Communication HIKVISION-C
Language English
