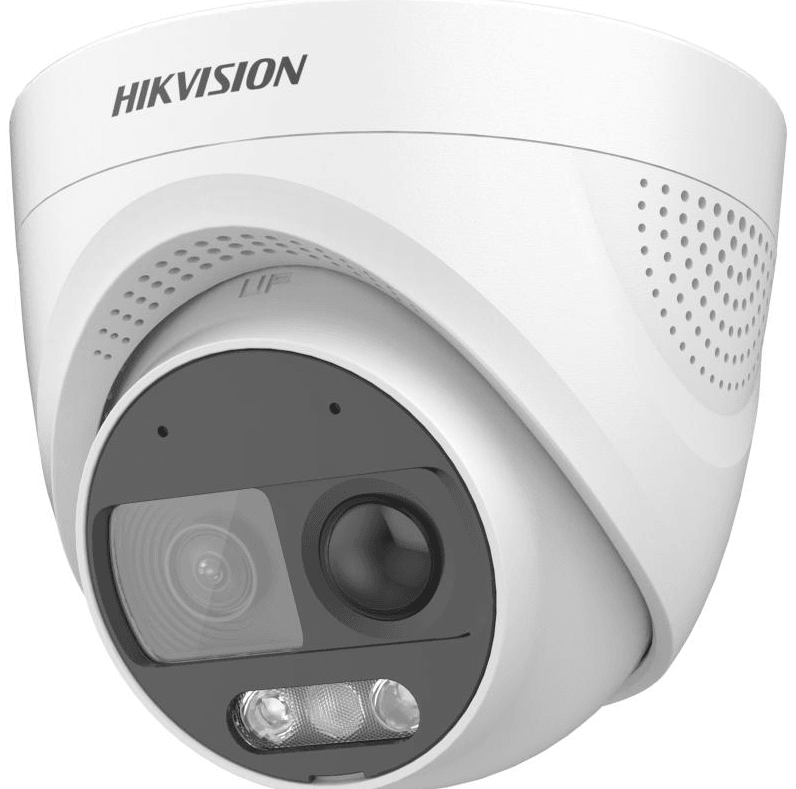

HIK 2MP COLORVU PIR SIREN TURRET 3.6MM DS-2CE72DF3

DS-2CE72DF3T-PIRXOS(3.6mm)

This 2 MP ColorVu PIR Siren Turret Camera offers superior imaging with its 2 MP, 1920 × 1080 resolution and F1.0 aperture for 24/7 color imaging. Even in strong back light, the camera maintains clear imaging thanks to its 130 dB true WDR technology.

The 3D DNR technology ensures clean and sharp images, while the 2.8 mm, 3.6 mm fixed focal lens allows for versatile use. With a white light distance of up to 20 m, this camera provides bright night imaging.

It also utilizes heat-sensitive passive infrared (PIR) technology to detect human body heat and has an active strobe light and audio alarm to deter intruders. The camera also boasts high quality audio with audio over coaxial cable, a built-in mic, and a built-in speaker. With an IP67 water and dust resistant rating, this camera is built to withstand various environments.

FEATURES:

High quality imaging with 2 MP, 1920 × 1080 resolution
24/7 color imaging with F1.0 aperture
Clear imaging against strong back light due to 130 dB true WDR technology
3D DNR technology delivers clean and sharp images
2.8 mm, 3.6 mm fixed focal lens
Up to 20 m white light distance for bright night imaging
Detects human body through heat-sensitive passive infrared (PIR)
Active strobe light and audio alarm to warn intruders off
High quality audio with audio over coaxial cable, built-in mic, and built-in speaker
Water and dust resistant (IP67)

SPECS:

Camera
Image Sensor 2mp CMOS
Max. Resolution 1920 (H) × 1080 (V)
Min. Illumination 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Day & Night24/7 Color Imaging
Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
Signal SystemPAL/NTSC
Slow ShutterMax. 16 times

Lens
Lens Type2.8 mm, 3.6 mm fixed focal lens
Focal Length & FOV
2.8 mm, horizontal FOV: 98°, vertical FOV: 52°, diagonal FOV: 116°

3.6 mm, horizontal FOV: 77°, vertical FOV: 42°, diagonal FOV: 91°
Lens MountM12

Illuminator
Supplement Light TypeWhite Light
Supplement Light RangeUp to 20 m
Smart Supplement LightYes

Image Parameters SwitchSTD/HIGH-SAT/HIGHLIGHT
Image SettingsBrightness, Contrast, Mirror, Defective Pixel Correction, Sharpness, Smart Light, Anti-Banding, AGC
Frame RateTVI: 1080p @ 25 fps/30 fps
Day/Night ModeColor
Wide Dynamic Range (WDR)≥130 dB
Image EnhancementWDR, BLC, HLC, Global, HLS
Privacy Mask4 programmable privacy masks
Noise Reduction3D DNR/2D DNR
White BalanceAuto/Manual

Supplement Detection(PIR)
PIR Range11 m
PIR AngleAngle : 110°

Interface
Video Output1 HD analog output
Alarm
1 line out

Flashing Light Alarm (Red & Blue)
Built-In MicrophoneYes

Event
Motion Detection4 programmable motion areas

General
Power
12 VDC ± 25%, max. 9.6 W

*You are recommended to use one power adapter to supply the power for one camera.
MaterialMain body: Metal, Enclosure: Plastic
DimensionØ 109.82 mm × 93.66 mm (Ø 4.3" × 3.7")
WeightApprox. 396 g (0.87 lb.)
Operating Condition-40°C to 60°C (-40°F to 140°F), humidity: 90% or less (non-condensing)
CommunicationHIKVISION-C
LanguageEnglish
