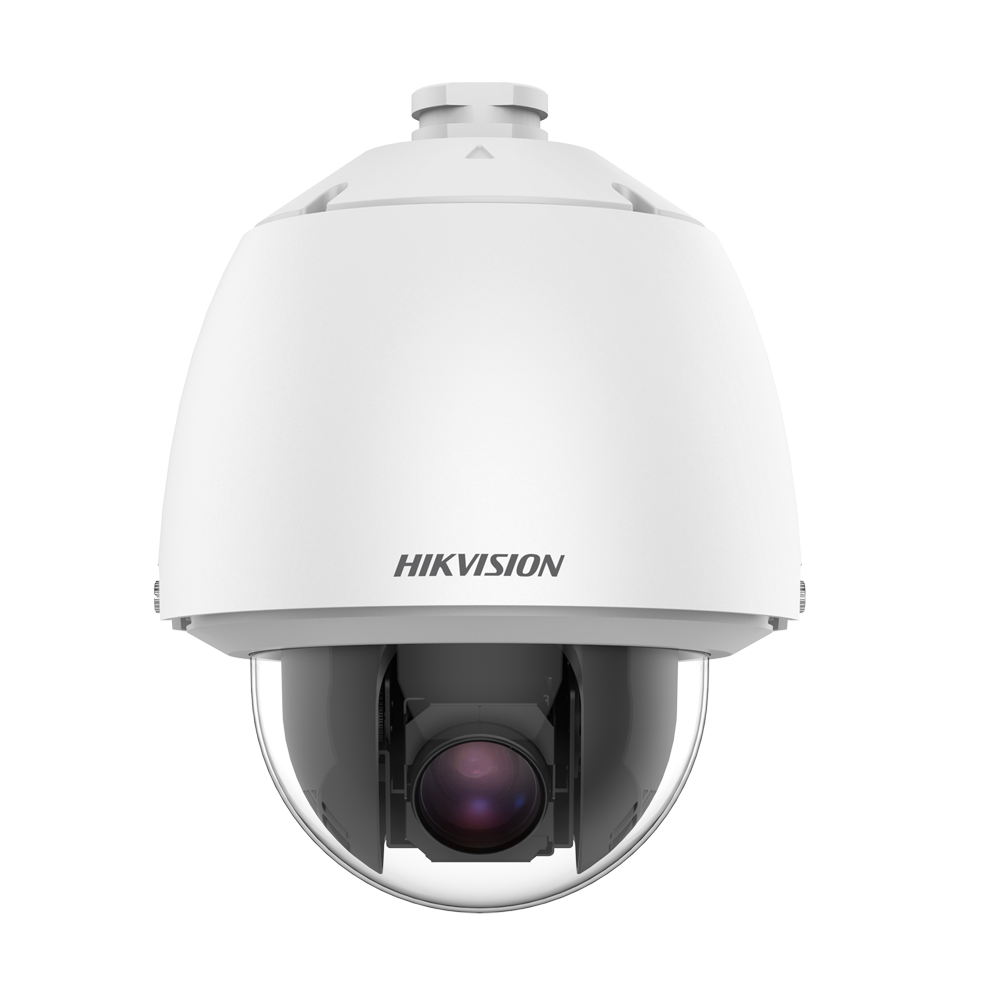

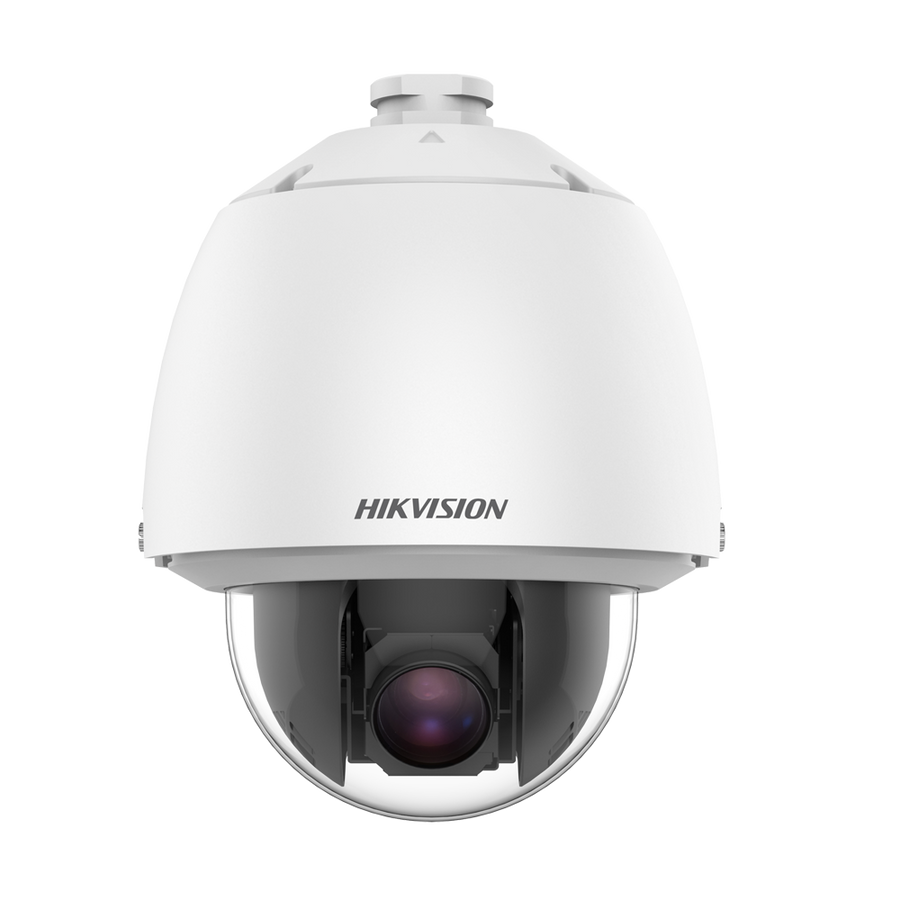

HIKVISION DS-2DE5232W-AE(T5) – 2MP 32× DarkFighter PTZ
Overview
The DS-2DE5232W-AE(T5) is a professional 2MP network PTZ speed dome delivering long-range zoom and strong low-light performance. Featuring a 1/2.8″ progressive scan sensor, 32× optical zoom lens (4.8–153.6 mm), Powered-by-DarkFighter technology and rugged IP66/IK10 housing, it is built for large outdoor perimeters, logistic yards, transport hubs and commercial campuses where both coverage and detail matter.
Key Features
-
2MP resolution — 1920 × 1080 output for effective monitoring and identification.
-
32× optical zoom — 4.8–153.6 mm lens for deep coverage and subject detail at distance.
-
DarkFighter low-light imaging — enhanced clarity in very low ambient light conditions.
-
Wide range pan/tilt — 360° pan and –5° to 90° tilt (auto-flip) support extensive area coverage.
-
Rugged outdoor build — IP66 plus IK10 resistance for reliable external deployment.
-
Efficient compression — supports H.265+/H.265/H.264+/H.264 formats to optimise bandwidth and storage.
Technical Specifications (summary)
-
Sensor: 1/2.8″ progressive scan CMOS
-
Resolution: 1920 × 1080 (2MP)
-
Lens / Zoom: 4.8–153.6 mm (32× optical); digital zoom up to 16×
-
Field of View (approx): Horizontal ~50.8° to ~2.6°; Vertical ~29.4° to ~1.5°
-
Minimum Illumination: Colour 0.005 Lux @ F1.6; B/W 0.001 Lux
-
Pan / Tilt: Pan 360° endless; Tilt –5° to +90° (auto-flip)
-
Video Compression: H.265+/H.265/H.264+/H.264
-
Zoom Speed: Approx. 4.8 seconds from wide to tele
-
Ingress Protection: IP66 housing with IK10 resistance
Recommended Applications
- Large open outdoor perimeters, logistics yards, airports and large estate grounds.
- Sites requiring both wide area coverage and detailed zoom-in capability for long distances.
- Commercial and industrial sites where low-light performance and rugged build are critical.
Installation Notes
- Select mounting height and angle to make full use of the 32× zoom range and ensure the lens is clear of obstructions.
- Verify network and power infrastructure supports high data throughput and stable connection for zoomed-in use cases.
- Secure the camera on a dedicated surveillance network segment; enable strong credentials and firmware updates.
- Test night-time performance during commissioning to verify clarity at distance and adjust if necessary.
What’s in the Box (Typical)
- DS-2DE5232W-AE(T5) PTZ camera
- Mounting template and basic fixings
- Quick start guide
