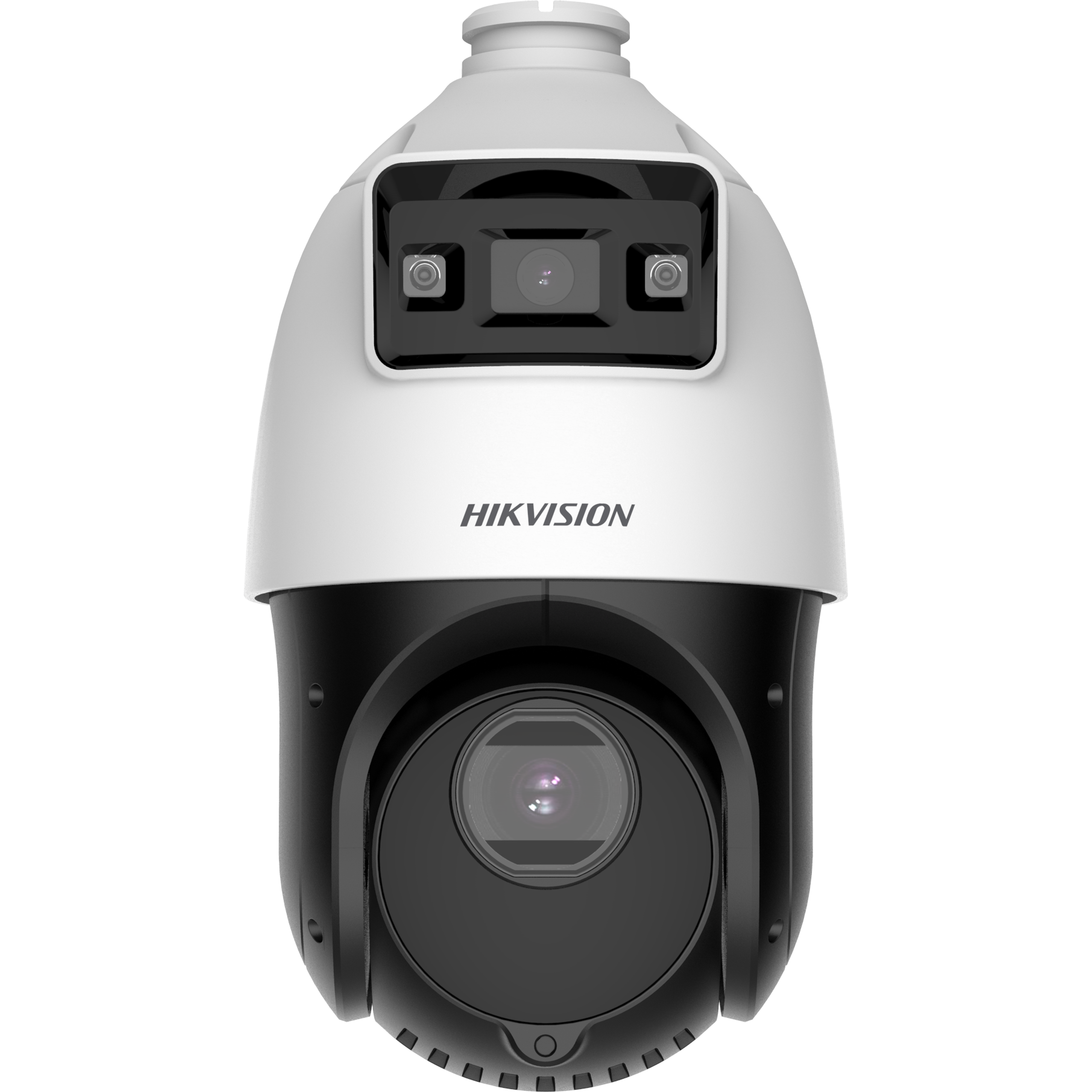

The Hikvision DS‑2SE4C225MWG‑E(12F0) is a professional TandemVu PTZ that pairs a wide‑angle fixed channel with a long‑reach 25× optical zoom PTZ. Designed for large perimeters, estates and commercial sites, it combines ColourVu and DarkFighter low‑light technologies, powerful zoom, reliable environmental protection and smart analytics — all in one compact unit.
Why choose this camera?
-
TandemVu dual‑channel design: continuous situational awareness from the wide channel, with fast zoom‑in detail from the PTZ channel.
-
Excellent low‑light performance: ColourVu + DarkFighter technologies produce usable colour and detail in very low light.
-
Long reach zoom: 25× optical zoom (4.8–120mm) plus 16× digital for accurate identification at distance.
-
Rugged and reliable: IP66/67 rated housing, lightning protection and wide operating temperature for tough South African exteriors.
-
Flexible power & connectivity: PoE+ (IEEE 802.3at) or 12V DC options make installation versatile.
Key specifications
-
Sensor / Resolution: 2 MP (1920 × 1080)
-
Dual channels: Wide fixed channel (2.8mm) + PTZ channel (4.8–120mm, 25× optical)
-
Zoom: 25× optical (PTZ); up to 16× digital
-
Field of view (wide): Approx. 106° horizontal (2.8mm wide channel)
-
Minimum illumination:
- Wide channel: 0.0005 Lux @ F1.0 (colour-capable with lighting)
- PTZ channel: Colour mode 0.005 Lux @ F1.6; B/W 0.001 Lux; with IR/white light 0 Lux
-
Night vision range: PTZ IR up to 100 m; wide channel white light up to ~30 m (model-dependent)
-
Pan / Tilt: Pan 360° continuous; Tilt −15° to 90°; pan/tilt speeds up to 80°/s
-
Video compression: H.265 / H.264 (H.265 Pro+ support depending on firmware)
-
Smart features: Human / vehicle classification, region focus, privacy masking, intelligent tracking and presets/patrols
-
Network & protocols: Standard IP networking, ONVIF support, HTTPS and secure access options
-
Power: PoE+ (IEEE 802.3at) or 12V DC
-
Housing & protection: IP66 / IP67, 6000 V lightning protection, wide temp range (approx. −30°C to +65°C)
-
Mounting: Wall/ceiling/pole options with compatible mount accessories
Suggested applications
- Large perimeter security for factories, distribution centres and mines
- Estate and complex monitoring where both wide situational awareness and zoom detail are required
- Stadiums, parking facilities and campuses requiring active tracking and deterrence
- Critical infrastructure and commercial compound entrances
Installation & configuration notes
- Mount the camera using the correct bracket and ensure the housing is shielded from direct spray (if possible).
- Power planning: confirm PoE+ budget on the switch or use 12V DC if PoE infrastructure is limited. Account for cable run length and voltage drop for 12V installations.
- Configure detection regions, PTZ presets and patrols after mounting to reduce false alarms and optimise coverage.
- Use VLANs and strong passwords; enable HTTPS and limit management access to trusted IPs for improved security.
- Set up NVR or VMS recording profiles to use H.265 compression where possible to save storage without sacrificing quality.
What’s in the box

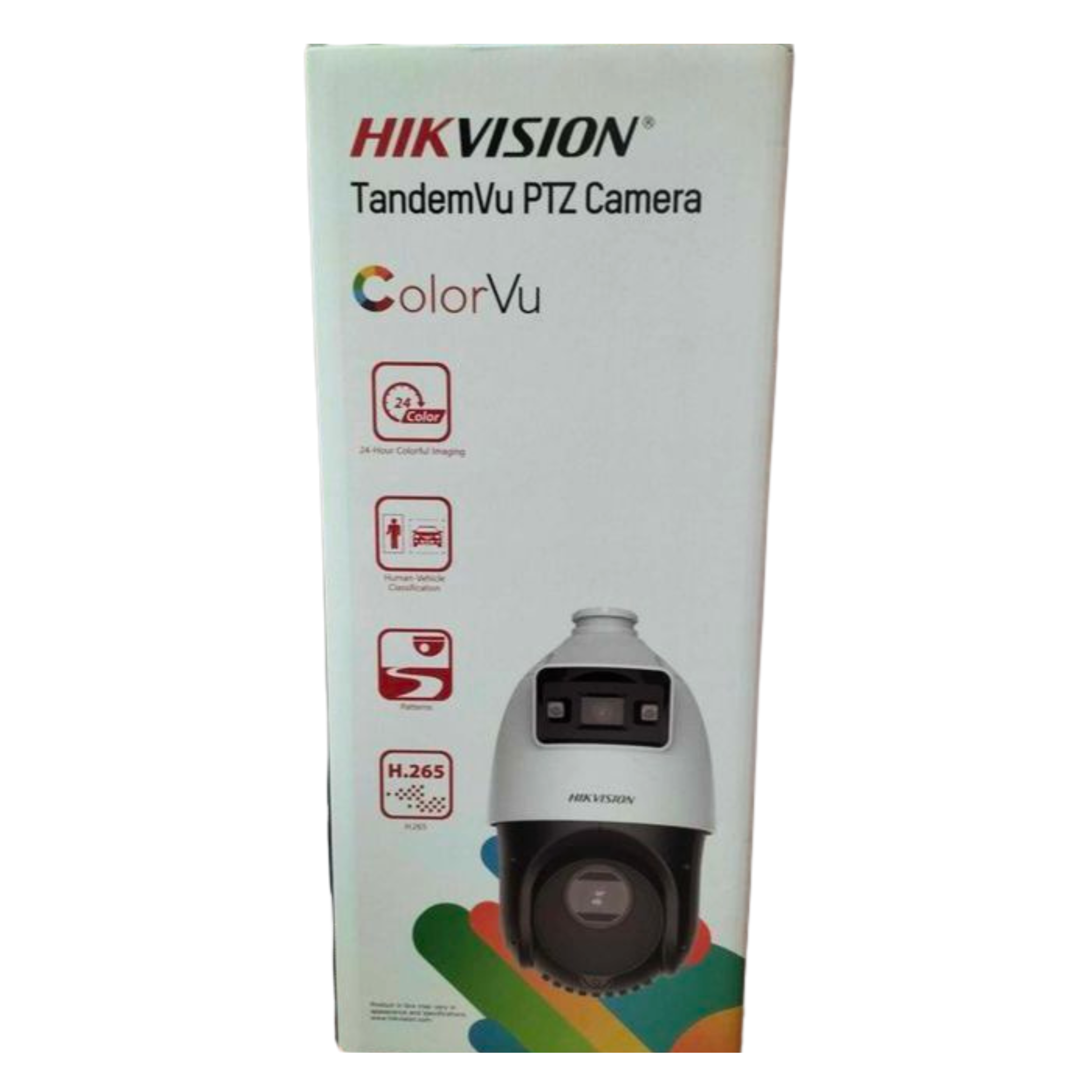

- DS‑2SE4C225MWG‑E(12F0) PTZ camera
- Quick start guide and warranty card
- Mounting template and basic screws/anchors (check supplied accessories)
