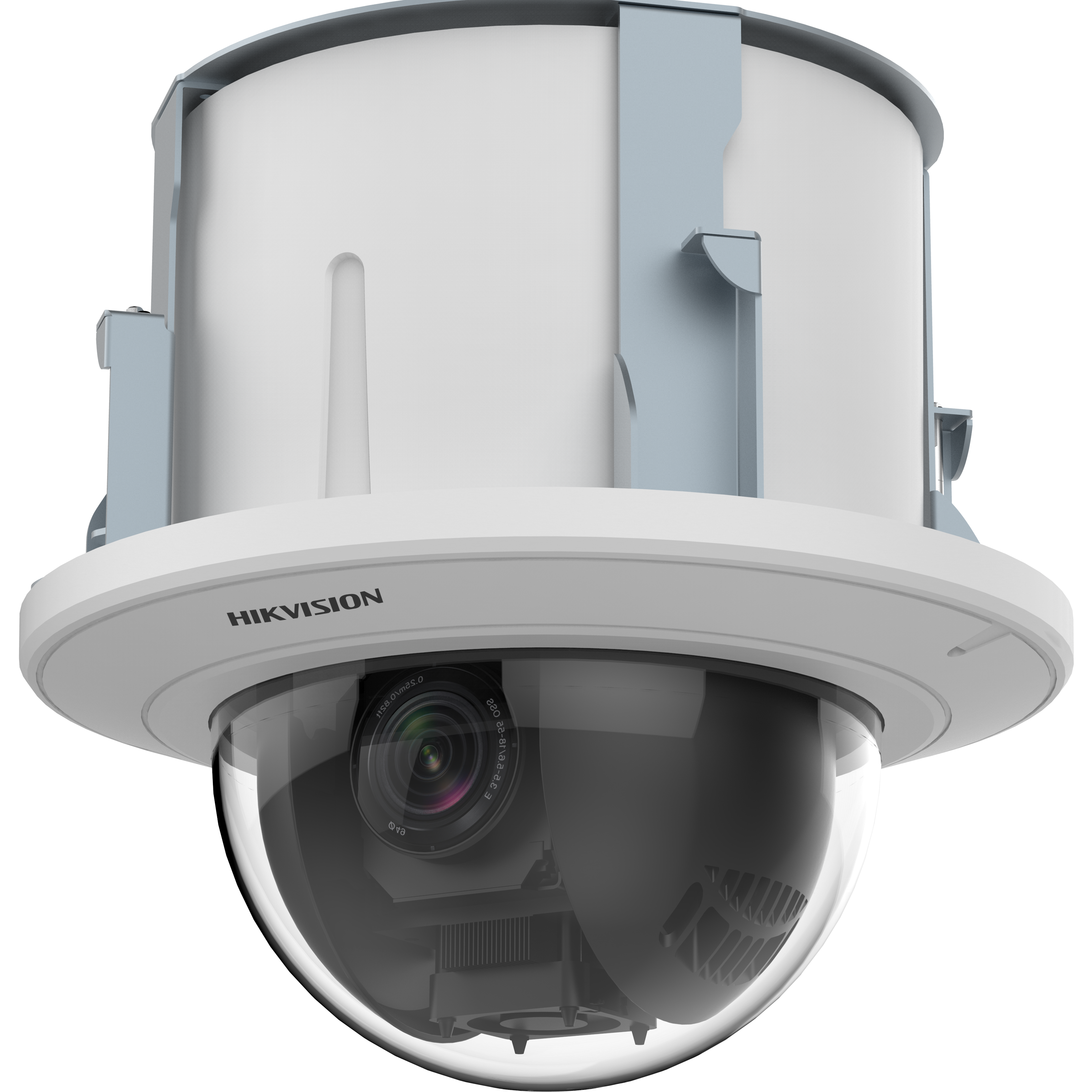

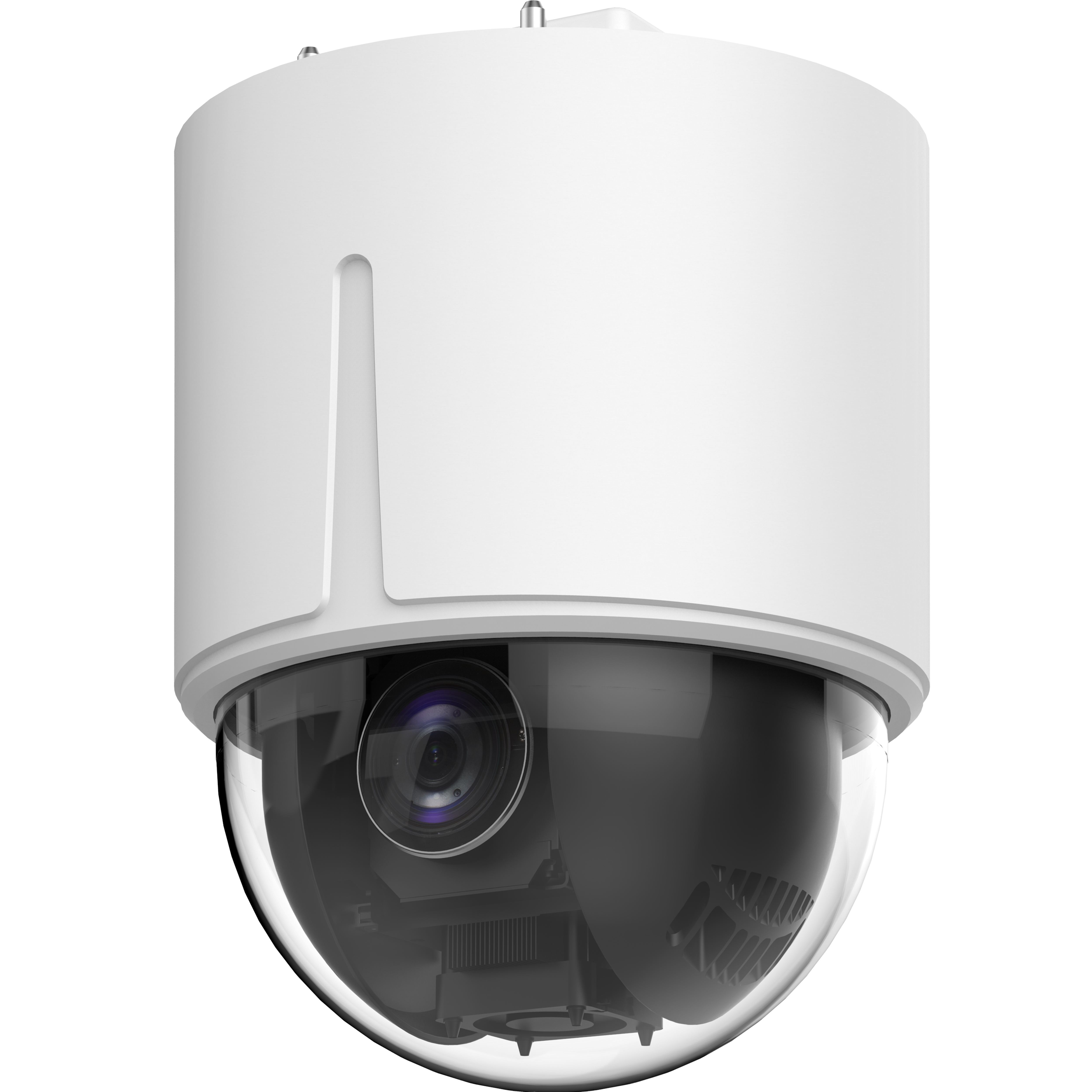

HIK 2MP 25× DarkFighter PTZ — DS-2DE5225W-AE3-T5
Overview
The DS-2DE5225W-AE3-T5 is a high-performance 2MP PTZ speed-dome built for long-range outdoor surveillance. It combines a sensitive 1/2.8″ sensor with DarkFighter low-light technology and a 25× optical zoom lens to deliver dependable identification and tracking across large sites. Robust housing and flexible power options make this PTZ suitable for perimeters, estates, transport hubs and industrial yards.
Key features
-
2MP resolution — 1920 × 1080 output for clear live view and recordings.
-
25× optical zoom — 4.8–120 mm lens for confident long-distance detail capture.
-
DarkFighter low-light imaging — improved colour and detail in low ambient light.
-
Long-range night coverage — IR illumination for extended night performance.
-
Flexible power — supports PoE+ and AC power (site dependent), allowing versatile installations.
-
Rugged build — IP66 rating for reliable outdoor operation in tough environments.
-
Advanced PTZ control — smooth 360° pan, wide tilt range, presets, patrols and scan modes.
-
Efficient encoding — H.265+/H.265 and H.264 support to reduce storage and bandwidth use.
Technical specifications (summary)
-
Image sensor: 1/2.8″ progressive scan CMOS
-
Resolution: 1920 × 1080 (2MP)
-
Lens / Zoom: 4.8–120 mm, 25× optical; up to 16× digital
-
Minimum illumination: Colour approx. 0.005 Lux @ F1.6; B/W 0.001 Lux; 0 Lux with IR
-
IR distance: Long-range IR (model dependent)
-
Field of view (approx): Wide to tele based on zoom range
-
Pan / Tilt: Pan 360° continuous; Tilt range approx. −15° to +90°
-
Video compression: H.265+/H.265/H.264+/H.264
-
Network: Standard IP networking, ONVIF compatible
-
Power: PoE+ (where supported) and AC power options (site dependent)
-
Ingress protection: IP66 (outdoor rated)
-
Operating temperatures: Designed for wide temperature ranges expected in outdoor environments
Recommended applications
- Large perimeter security for industrial sites, logistics yards and farms
- Estate and campus surveillance where long-distance identification is required
- Transport hubs, car parks and large open areas requiring PTZ coverage
- Sites that need high-quality night performance and minimal camera count
Installation notes
- Select mounting height to match the camera’s zoom range and ensure the field of view covers priority zones.
- Prefer PoE+ where available for simplified cabling and central power management; verify switch power budget on site.
- If using AC power, plan cable routes and isolation/transformer requirements according to local wiring standards.
- Configure PTZ presets and patrols during commissioning to automate routine coverage and reduce operator load.
- Use VLANs, strong passwords and secure access practices to protect camera management interfaces on the network.
- Test night modes (IR / low-light) in final conditions to set appropriate thresholds and avoid glare or over-illumination.
What’s in the box (typical)
- DS-2DE5225W-AE3-T5 PTZ camera
- Mounting template and basic fixings
- Quick start guide
