Overview

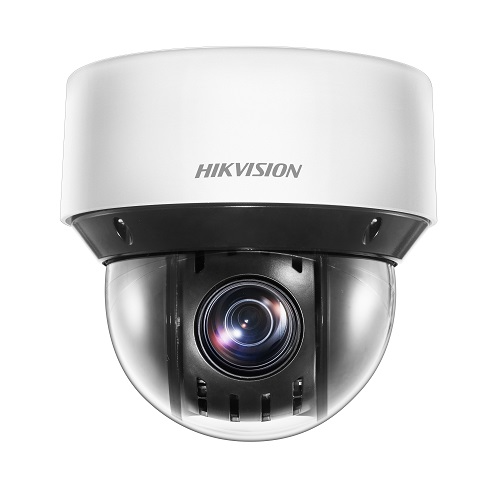

The DS-2DE4A225IWG-E is a professional 2MP network PTZ camera designed for large outdoor zones where long-range zoom and night visibility are critical. Featuring a 1/2.8″ progressive scan sensor, 25× optical zoom (4.8-120 mm), Powered-by-DarkFighter low-light technology and a rugged IP66 housing, it’s built for estates, logistics yards, transport hubs and commercial perimeters.
Key Features
-
2MP resolution — 1920 × 1080 output for high-quality video with efficient storage.
-
25× optical zoom — 4.8-120 mm lens for identifying distant subjects with clarity.
-
DarkFighter low-light imaging — enhanced colour and detail in low ambient light.
-
IR night range up to approx. 50 m — dependable coverage when light is minimal.
-
Wide dynamic range (120 dB) — handles scenes with strong back-lighting and contrast.
-
Full PTZ capability — pan 0°-360°, tilt -5° to +90°, supporting advanced patrols and scanning.
-
Outdoor ready — IP66 ingress protection, lightning and surge protection built-in.
-
Efficient encoding — supports H.265+/H.265/H.264 formats for reduced bandwidth and storage usage.
Technical Specification Highlights
-
Sensor: 1/2.8″ Progressive Scan CMOS
-
Resolution: 1920 × 1080 (2 MP)
-
Lens / Zoom: 4.8-120 mm motorised (25× optical), 16× digital
-
Field of View (approx.): Horizontal ~54.9° to ~2.7°, vertical ~31.5° to ~1.5°
-
Minimum Illumination: Colour ~0.005 Lux @ F1.6, B/W ~0.001 Lux, 0 Lux with IR
-
Illuminator: IR up to ~50 m
-
Pan / Tilt: Pan 0°–360°; Tilt -5° to +90°
-
Video Compression: H.265+/H.265/H.264+/H.264
-
On-board Storage: microSD/SDHC/SDXC up to 256 GB
-
Network Interface: 1 × RJ-45 10/100 Mbps
-
Power Supply: 12 V DC or PoE+ (802.3at) — maximum approx. 24 W
-
Environmental Rating: IP66; Operating temperatures approx. -30 °C to +65 °C
-
Dimensions: Ø 169 mm × 161 mm; Weight approx. 2.45 kg
Recommended Applications
- Large industrial perimeters, logistics and warehouse yards.
- Estate and campus monitoring where long-range zoom and PTZ functionality are required.
- Transport hubs, large car parks and external façades needing strong night performance.
Installation Notes
- Select mounting height such that the zoom and illuminator range match the site’s coverage requirements.
- Ensure network and power infrastructure supports PoE+ if used — verify switch budget.
- Configure PTZ tours, presets and scanning patterns during commissioning to maximise automated coverage.
- Secure network access via VLANs, non-default passwords and HTTPS where remote access is enabled.
- Check lens view and IR objective during night conditions to avoid flare or obstruction.
What’s in the Box (Typical)
- DS-2DE4A225IWG-E PTZ camera
- Mounting template and basic fixings
- Quick start guide
