Overview

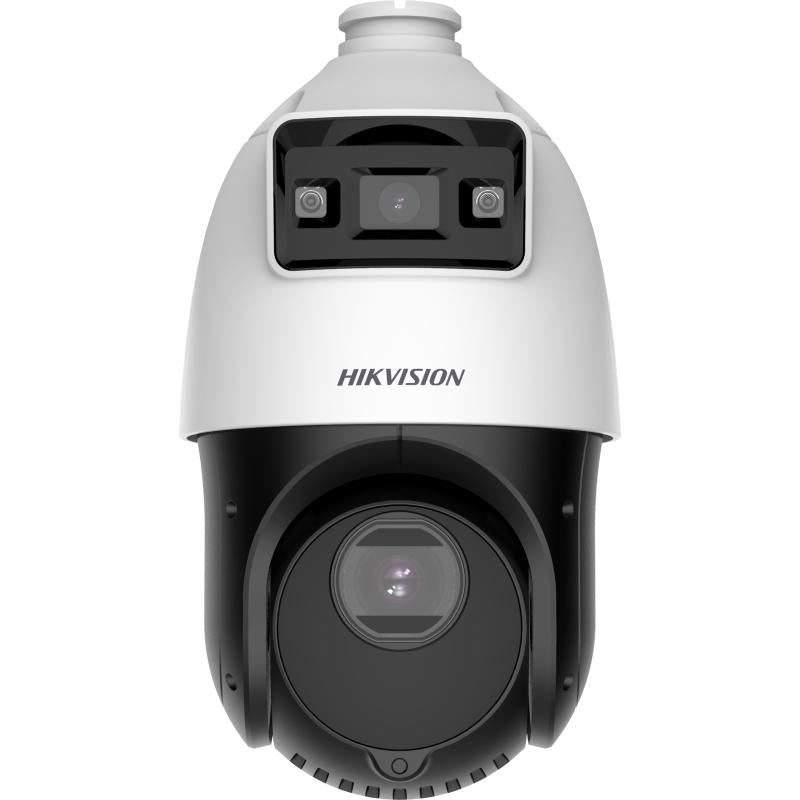

The Hikvision DS-2SE4C215MWG-E/12(F0) is a dual-channel TandemVu network speed-dome combining a wide-angle fixed view and a motorised 15× optical zoom PTZ channel in one compact housing. Designed for outdoor perimeter and large-area monitoring, it delivers broad coverage and fine detail in one unit.
Key benefits
- 2 MP resolution (1920 × 1080) across both channels for efficient storage and clear viewing.
- TandemVu design: fixed wide channel plus 15× optical zoom channel reduce total camera count and simplify coverage.
- Powered-by-DarkFighter low-light technology and ColorVu support for strong performance after dark.
- Supplement lighting: wide channel white-light up to ~30 m; zoom channel IR up to ~100 m for night-time clarity.
- Outdoor ready: IP66 rated, pan 360°, tilt down to -15°, built for South African conditions. Technical specifications
-
Image sensors: Both channels: 1/2.8″ progressive scan CMOS.
-
Resolution: 1920 × 1080 (2 MP) on both bullet (wide) and PTZ channels.
-
Lens: Bullet channel: 2.8 mm fixed; PTZ channel: 5–75 mm, 15× optical zoom.
-
Field of view (approx.): Bullet channel: ~106.1° horizontal; PTZ channel wide-to-tele ~54.8° to ~4°.
-
Minimum illumination: Bullet channel: 0.0005 Lux @ F1.0 (AGC ON); PTZ channel: Colour 0.005 Lux @ F1.6 / B/W 0.001 Lux; 0 Lux with IR.
-
Supplement lighting range: White-light ~30 m (bullet); IR ~100 m (PTZ) (model dependent).
-
Pan / Tilt: Pan 360°; Tilt -15° to +90°; preset speed up to ~80°/s.
-
Video compression: H.265, H.264, MJPEG.
-
On-board storage: microSD slot supporting up to 256 GB.
-
Power: 12 V DC or PoE+ (IEEE 802.3at) — max power approx. 24 W (includes heater / lighting) in some variants.
-
Environmental rating: IP66; operating temperature approx. -30 °C to +65 °C (humidity < 90%).
-
Dimensions & weight: Ø 166 mm × 375 mm; ~2.4 kg.
Recommended applications
- Large outdoor areas, perimeter fences, logging yards and estates where both wide-angle coverage and zoom detail are needed.
- Transport hubs, parking lots and campuses requiring advanced tracking, zoom and surveillance flexibility.
- Installations where reducing total camera count is important but high coverage and performance can’t be compromised.
Installation notes
- Ensure mounting height allows the PTZ channel’s 15× zoom to reach relevant details (faces, plates) while still covering wide view from the fixed channel.
- Check PoE budget if using PoE+, especially since heater/lighting functions may increase power draw.
- Configure presets, patrols and pattern scans during commissioning to fully utilise the PTZ channel’s capabilities.
- Update firmware and enable HTTPS, strong passwords and VLAN segmentation to secure network access.
- Seal camera junctions and cabling entries to prevent moisture ingress and maintain long-term reliability in outdoor South African environments.
