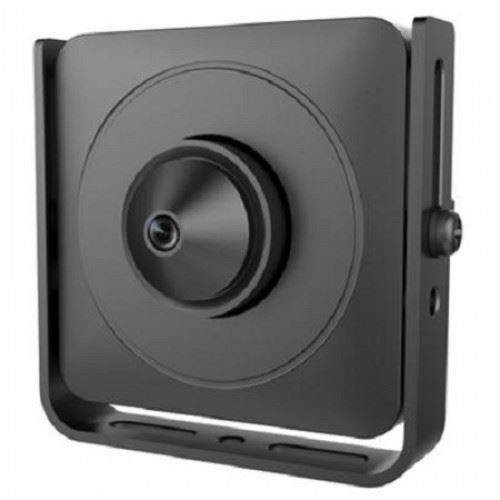

![HIK 1MP WDR SPY PINHOLE CAMERA DS-2CS54C8T-PH - NeonSales South Africa](http://neonsales.co.za/cdn/shop/products/hik-1mp-wdr-spy-pinhole-camera-ds-2cs54c8t-ph-neonsales-south-africa.jpeg?v=1717758138&width=500)
TECHNICAL SPECIFICATIONS :
- WDR (Wide Dynamic Range): > 120 dB
- Image Sensor: 1MP CMOS Image Sensor
- Signal System: PAL/NTSC
- Effective Pixels: 1280(H)*720(V)
- Min. Illumination: Color: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR
- Shutter Time: 1/25(1/30) s to 1/50,000 s
- Lens Mount: M12
- Day& Night: Electronic
- Video Frame Rate: 720p@25fps/720p@30fps
- HD Video Output: 1 Analog HD output
- Synchronization: Internal Synchronization
- Video Output: 1Vp-p Composite Output (75?/BNC)
- Horizontal Field of View
- 3D DNR (Digital Noise Reduction): Level 1 to 10
- Backlight Compensation: WDR/BLC/OFF
- D/N Mode: Auto / Color / B/W
- White Balance: ATW/MANUAL
- Private Mask: ON/OFF, 4 programmable privacy masks
- Motion Detection: 4 programmable motion areas
- AGC: Support
- Language: English/Chinese
- Material: Metal
- Operating Conditions: -40 C - 60 C (-40 F - 140 F) Humidity 90% or less (non-condensing)
- Power Supply: 12 VDC 20% -A: 12 VDC 20% 24 VAC 20%
- Communication: Up the coax, Protocol: HIKVISION-C (TVI output)
- Dimension: 32.4 mm 32.4 mm 22.0 mm (1.28" 1.28" 0.87")
- Weight: Approx. 200 g (0.44 lb.)
TECHNICAL SPECIFICATIONS :
- WDR (Wide Dynamic Range): > 120 dB
- Image Sensor: 1MP CMOS Image Sensor
- Signal System: PAL/NTSC
- Effective Pixels: 1280(H)*720(V)
- Min. Illumination: Color: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR
- Shutter Time: 1/25(1/30) s to 1/50,000 s
- Lens Mount: M12
- Day& Night: Electronic
- Video Frame Rate: 720p@25fps/720p@30fps
- HD Video Output: 1 Analog HD output
- Synchronization: Internal Synchronization
- Video Output: 1Vp-p Composite Output (75?/BNC)
- Horizontal Field of View
- 3D DNR (Digital Noise Reduction): Level 1 to 10
- Backlight Compensation: WDR/BLC/OFF
- D/N Mode: Auto / Color / B/W
- White Balance: ATW/MANUAL
- Private Mask: ON/OFF, 4 programmable privacy masks
- Motion Detection: 4 programmable motion areas
- AGC: Support
- Language: English/Chinese
- Material: Metal
- Operating Conditions: -40 C - 60 C (-40 F - 140 F) Humidity 90% or less (non-condensing)
- Power Supply: 12 VDC 20% -A: 12 VDC 20% 24 VAC 20%
- Communication: Up the coax, Protocol: HIKVISION-C (TVI output)
- Dimension: 32.4 mm 32.4 mm 22.0 mm (1.28" 1.28" 0.87")
- Weight: Approx. 200 g (0.44 lb.)
