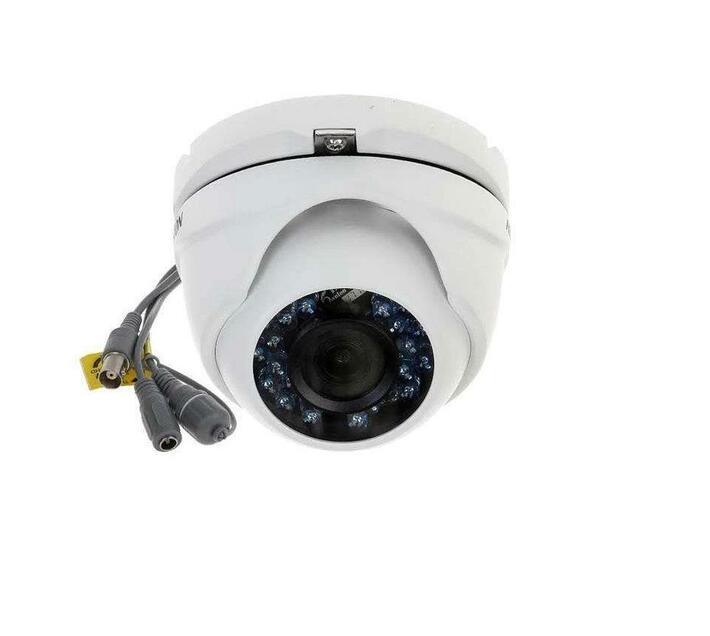

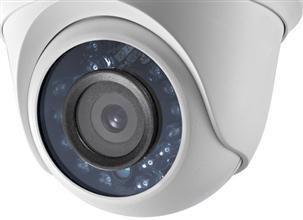

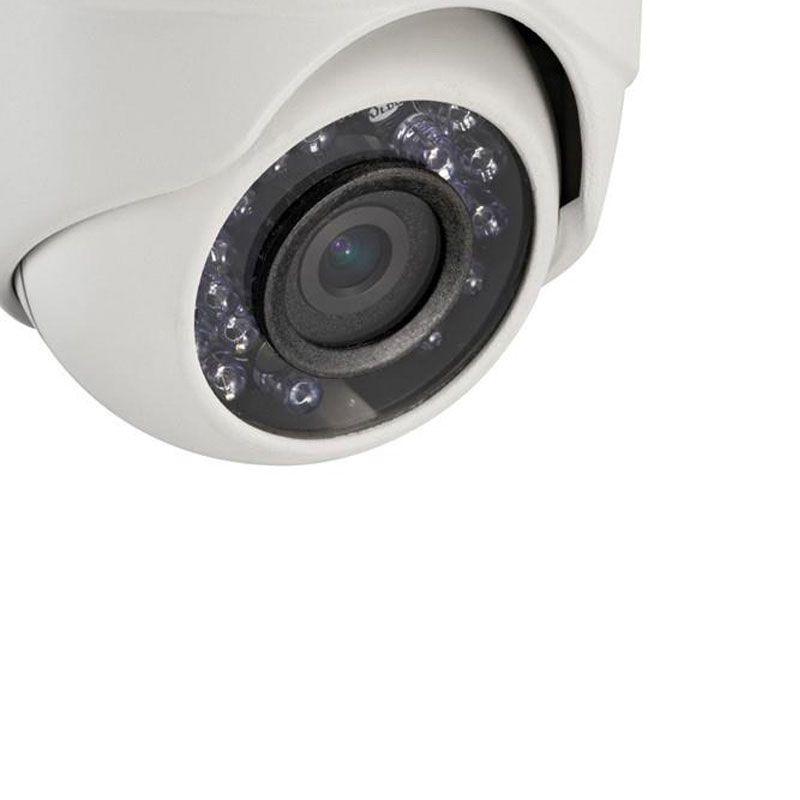

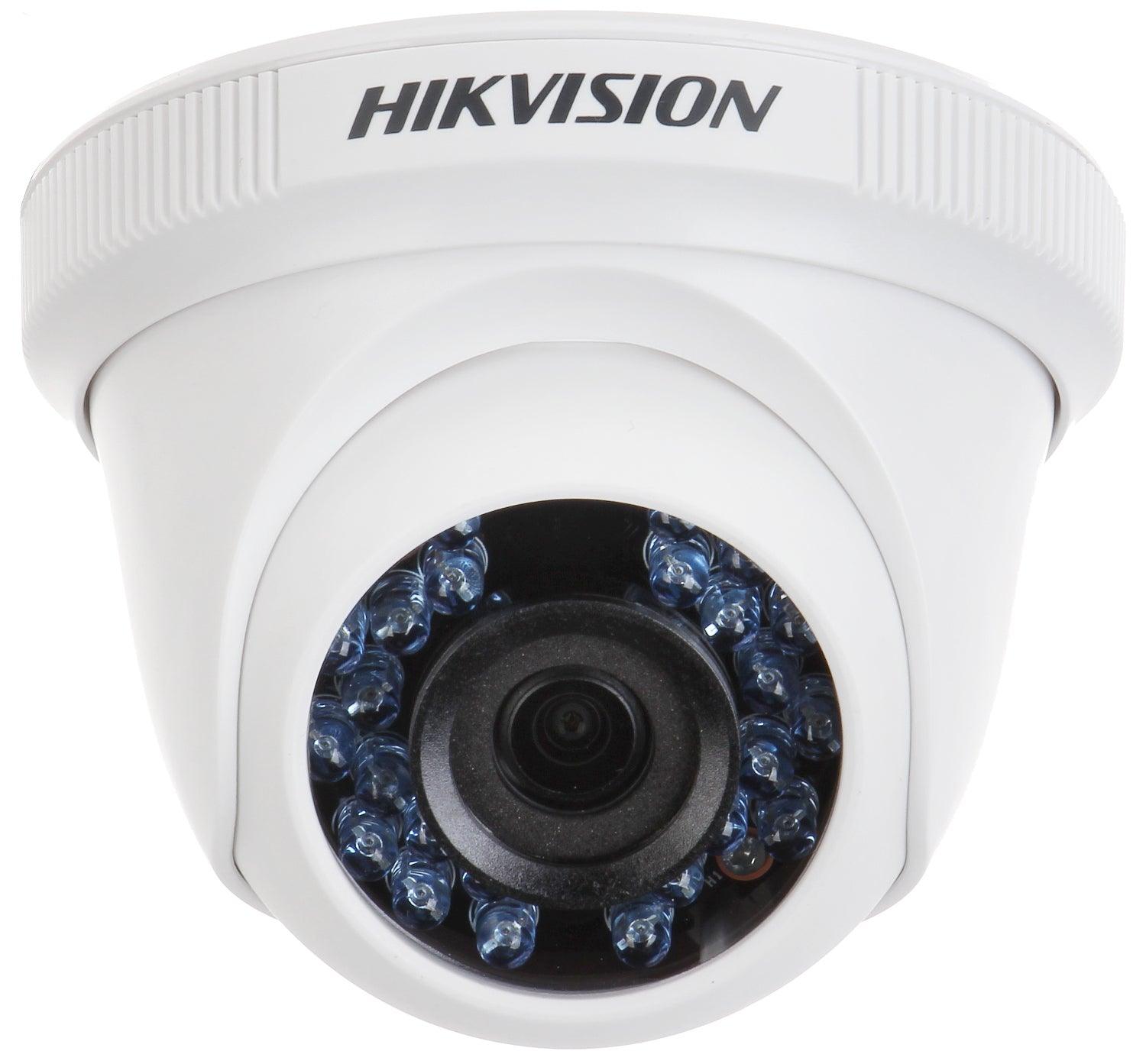

HIK 1MP FIXED TURRET DOME DS-2CE56C0T-IRMF2.8

Detailed specifications :

Camera:
Image Sensor
1 MP CMOS Image Sensor
Max. Resolution
1296 (H) × 732 (V)
Min. Illumination
0.01 Lux (F1.2, AGC ON), 0 Lux with IR
Shutter Time
1/25 (1/30) s to 1/50,000 s
Day & Night
ICR
Angle Adjustment
Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
Signal System
PAL/NTSC

Lens:
Lens Type
Field of view: 70.9° (3.6 mm), 92° (2.8 mm), 56.7° (6 mm)
Lens Mount
M12

Image:
Frame Rate
720p@25fps/720p@30fps
SNR
>62 dB

Interface:
Video Output
Switchable TVI/AHD/CVI/CVBS

General:
Dimension
89.47 × 67.6 mm (3.52" × 2.7")
340 g (0.75 lb.)
Operating Condition
-40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)

Power Supply:
12 V DC±15%

Consumption:
Max. 4 W

IR Range:
Up to 20 m

IN THE BOX

1 x Hikvision 1MP Fixed Turret CMOS Sensor Camera (DS-2CE56C0T-IRMF 28MM CVBS), User's manual, quick installation guide
