Product Description

Smart managed switches are developed by Hikvision, featuring in easy management and maintenance. You can easily deploy, monitor and expand your surveillance system anytime and anywhere with our software platforms. You can view the network topology, monitor the health of the network and receive device alarms in real time, which greatly reduces the cost of network operation and maintenance.

Ports
10/100M RJ45:		16
10/100/1000M RJ45:		2
1000M SFP:		2 (multiplex)
Port of high priority:		Port 1 to 8

Performance
Store-and-forward:		Support
MAC address table:		4K
MAC address learning:		Automatic learning/Aging
Backplane bandwidth:		7.2 Gbps

Power Over Ethernet
PoE Standard:		IEEE 802.3af, IEEE802.3at
PoE cable core:		Supports 8-core power supply and simultaneous power supply via the 1236 and 4578 line order.
PoE port:		Port 1 to 16
Port max. power:		30W
Switch max. power:		230W

General
Power Supply:		100 to 240 VAC, 50/60Hz
Working Temperature:		0 oC to +40 oC (+32 oF to +104 oF)
Working Humidity:		10% to 90% (Relative humidity, without condensation)
Storage Temperature:		-40 oC to +70 oC (-40 oF to +158 oF)
Storage Humidity:		5% to 90% (Relative humidity, without condensation)

Lighting Protection Grade
For port:		4 KV
For power supply:		6 KV

Data Transfer Rate
Ethernet:		10 Mbps (half-duplex)/20 Mbps (full-duplex)
Fast Ethernet:		100 Mbps (half-duplex)/200 Mbps (full-duplex)
Gigabit Ethernet:		2000 Mbps (full-duplex)

Network Media
Ethernet:		UTP/STP of CAT3 or above
Fast Ethernet:		UTP/STP of CAT5 or above
Gigabit Ethernet:		Recommended UTP/STP of CAT5e or CAT6
1000 Base-SX:		MMF (Multi-Mode Fiber)
1000 Base-LX:		MMF (Multi-Mode Fiber) or SMF (Single Mode Fiber)

Parameters
Network Standard:		IEEE 802.3, IEEE 802.3u, IEEE802.3ab, IEEE 802.3af, IEEE802.3at, IEEE 802.3x, IEEE802.3z
Port:		When the EXTEND mode is enabled, the maximum data transmission (for 10 Mbps full/half duplex communication only) and power supply distance can be extended to 250 meters via CAT5e twisted pair or above
PoE:		IEEE 802.3at/IEEE 802.3af Enable/Disable PoE PoE over-temperature protection Display power supply status and output power of the PoE port Dynamic power supply of the PoE port. Power supply priority (Port 1 > Port 2 > > Port 16 > Port 24)
Security Feature:		MAC address binding
VLAN:		One-key enable VLAN Port VLAN (Max. 18/26 groups can be configured) IEEE 802.1Q VLAN (Max. 31 groups can be configured)
Port Trunk:		3 groups: Port 1, 2, 3 and 4 Port 5, 6, 7 and 8 Port G1/G1-F and G2/G2-F
STP (Spanning Tree):		IEEE 802.1d Spanning Tree Protocol IEEE 802.1w RSTP (Rapid Spanning Tree Protocol)
Multicast:		IGMP Snooping and IGMP v1/v2
Mirroring:		N: 1 port mirroring
QoS:		FIFO (First-in First-out) SP (Strict Priority) WP (Weighted Priority)
MAC Address Management:		MAC address aging and static MAC address configuration
Loading and Upgrade:		HTTP upgrade Import/Export configuration file
Management and Maintenance:		SNMP v1/v2 WEB management

Your wishlist is empty

Continue shopping

Free shipping on orders over R2000

R99 Shipping on orders under R2000

2-3 Working Days Shipping, Nationwide

Product

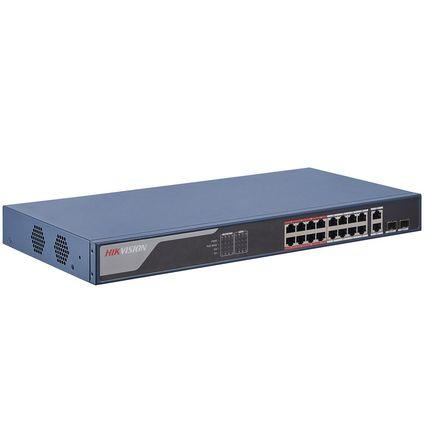

Hik 16port 100 mbps managed poe switch ds-3e1318p-

HIK 16PORT 100 MBPS MANAGED POE SWITCH DS-3E1318P-

Name: HIK 16PORT 100 MBPS MANAGED POE SWITCH DS-3E1318P-
Brand: HIKVISION
SKU: BK0210
Price: 5600.27 ZAR
Availability: OutOfStock

HIKVISION

SKU:BK0210

R 5,600.27
