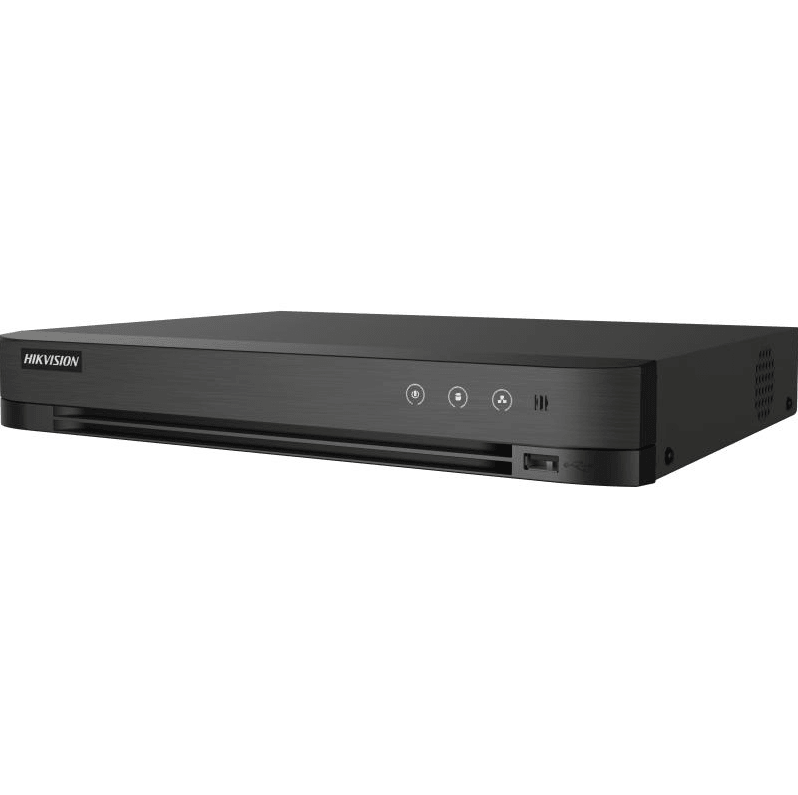

HIK 16CH ACUSENSE DVR - 4CH FALSE ALARM FILTER
The HIK 16CH ACUSENSE DVR - 4CH FALSE ALARM FILTER offers the ability to enable H.265 Pro+ compression, resulting in improved encoding efficiency and reduced data storage costs. With a storage capacity of up to 10 TB, it can record at 3K / 5 MP Lite resolution and features smart search and playback functions for efficient use. The system also utilizes deep learning technology for human and vehicle classification, as well as perimeter protection. Network access and management is made easy with compatibility for major Wi-Fi dongle products and Hik-Connect & DDNS support.
FEATURES:
- 16 channels and 1 HDD 1U AcuSense DVR
-
False alarm reduction through human and vehicle target classification based on deep learning
-
Efficient H.265 pro+ compression technology
-
Encoding ability up to 3K/5M Lite @ 12 fps
-
5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
-
Up to 24 network cameras can be connected.
SPECS:
- Motion Detection 2.0
-
Human/Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
Quick search by object or event type is supported;
- Perimeter Protection
-
Human/Vehicle AnalysisUp to 4-ch
- Facial Detection
-
Facial Detection And CaptureFace picture detection, face picture search
- Recording
-
Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
-
Encoding Resolution
When 1080p Lite mode is not enabled:
3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF;
When 1080p Lite mode is enabled:
3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF
-
Frame Rate
Main stream:
When 1080p Lite mode not enabled:
For 3K stream access: 3K lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps
For 5 MP stream access: 5 MP lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps
For 4 MP stream access: 4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
When 1080p Lite mode enabled:
3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
Sub-stream:
WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
-
Video Bitrate32 Kbps to 6 Mbps
-
Dual-StreamSupport
-
Stream TypeVideo, Video & Audio
-
Audio CompressionG.711u
-
Audio Bitrate64 Kbps
- Video And Audio
-
IP Video Input
2-ch (up to 18-ch)
Up to 6 MP resolution
Enhanced IP mode on:
8-ch (up to 24-ch), each up to 4 Mbps
;Support H.265+/H.265/H.264+/H.264 IP cameras
-
Analog Video Input16-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
-
HDMI Output1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
-
VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
-
CVBS InputPAL/NTSC
-
CVBS Output
1-ch, BNC (1.0 Vp-p, 75 Ω),
resolution: PAL: 704 × 576, NTSC: 704 × 480
-
Synchronous Playback16-ch
-
HDTVI Input3K(2960 x 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps
-
AHD Input5 MP(2592 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
-
HDCVI Input5 MP(2592 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
-
Audio Output1-ch, RCA (Linear, 1 KΩ)
-
Audio Input1-ch, RCA (2.0 Vp-p, 1 KΩ)，16-ch via coaxial cable;1
-
Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
- Auxiliary Interface
-
SATA1 SATA interface
-
CapacityUp to 10 TB capacity for each disk
-
Serial InterfaceRS-485 (half-duplex)
-
USB Interface
1 × USB 2.0；
1 × USB 3.0
-
Alarm In/OutN/A
- General
-
Power Supply12 VDC
-
Consumption≤ 24 W
-
Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
-
Working Humidity10% to 90%
-
Dimension (W × D × H)315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
-
Weight≤ 2 kg (4.4 lb)
