- Vendor: HIKVISION
- Type: CCTV
- SKU: 11180

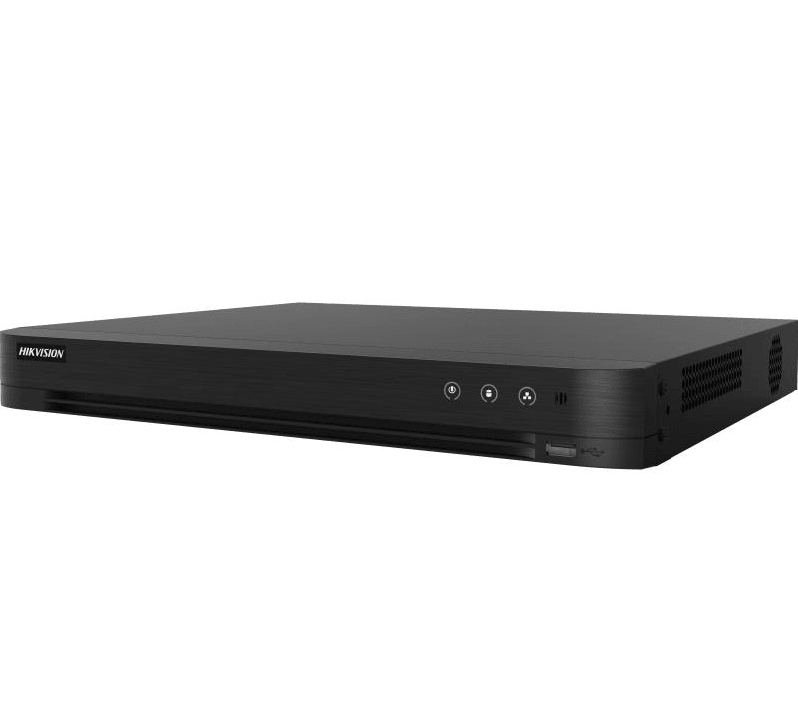

HIK 16CH ACUSENSE DVR - 4CH FALSE ALARM FILTER
Safe & Secure Payment Options
Visa & Mastercard
Payfast By Network
Float
PayJustNow
Yoco Payment
Happy Pay
Payflex
HIK 16CH ACUSENSE DVR - 4CH FALSE ALARM FILTER
The HIK 16CH ACUSENSE DVR - 4CH FALSE ALARM FILTER offers improved encoding efficiency with H.265 Pro+ video compression, reducing data storage costs. With full channel recording and playback at up to 1080p resolution, along with smart search capabilities, this device is equipped with two SATA interfaces and supports multiple VCA events.
Its network and Ethernet access is compatible with popular Wi-Fi dongles, and it also features Hik-Connect and DDNS for easy network management. Plus, the output bandwidth can be configured to your needs. Enhance your security with deep learning-based motion detection and perimeter protection using this innovative DVR.
FEATURES:
- Deep learning-based motion detection 2.0 for all analog
- channels
- Deep learning-based perimeter protection
- H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 video compression
- HDTVI/AHD/CVI/CVBS/IP video inputs
- Audio via coaxial cable
- Up to 24-ch IP camera inputs (up to 6 MP)
- Up to 10 TB capacity per HDD
- 16 channels and 2 HDDs 1U AcuSense DVR
- False alarm reduction through human and vehicle target classification based on deep learning
- Efficient H.265 pro+ compression technology
- Encoding ability up to 3K/5M Lite @ 12 fps
- 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
- Up to 24 network cameras can be connected
SPECS:
- Motion Detection 2.0
-
Human/Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
Quick search by object or event type is supported;
- Perimeter Protection
- Human/Vehicle Analysis Up to 4-ch
- Facial Detection
- Facial Detection And Capture Face picture detection, face picture search
- Recording
- Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
-
Encoding Resolution
When 1080p Lite mode is not enabled:
3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF;
When 1080p Lite mode is enabled:
3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF
-
Frame Rate
Main stream:
When 1080p Lite mode not enabled:
For 3K stream access: 3K lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps
For 5 MP stream access: 5 MP lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps
For 4 MP stream access: 4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
When 1080p Lite mode enabled:
3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
Sub-stream:
WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
- Video Bitrate 32 Kbps to 6 Mbps
- Dual-StreamSupport
- Stream Type Video, Video & Audio
- Audio Compression G.711u
- Audio Bitrate 64 Kbps
- Video And Audio
-
IP Video Input
2-ch (up to 18-ch)
Up to 6 MP resolution
Enhanced IP mode on:
8-ch (up to 24-ch), each up to 4 Mbps
;Support H.265+/H.265/H.264+/H.264 IP cameras
- Analog Video Input 16-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
- HDMI Output 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920x1080/60Hz, 1280x1024/60Hz, 1280 × 720/60Hz
- CVBS Input PAL/NTSC
-
CVBS Output
1-ch, BNC (1.0 Vp-p, 75 Ω),
resolution: PAL: 704 × 576, NTSC: 704 × 480
- Synchronous Playback 16ch
- HDTVI Input3K(2960 x 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps
- AHD Input 5 MP(2592 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
- VGA Output 1-ch, 1920x1080/60Hz, 1280x1024/60Hz, 1280x720/60Hz
- HDCVI Input5 MP(2592 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
- Video Output Mode HDMI/VGA simultaneous output
- Audio Output 1-ch, RCA (Linear, 1 KΩ)
- Audio Input 1-ch, RCA (2.0 Vp-p, 1 KΩ)
- Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
- Network
- Total Bandwidth128 Mbps
- Network Protocol TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
- Remote Connection 128
-
Network Interface
1,RJ45 10M/100M/1000M self-adaptive
Ethernet interface
- Auxiliary Interface
- SATA 2 SATA interface
- Capacity Up to 10 TB capacity for each disk
- Serial InterfaceRS-485 (half-duplex)
-
USB Interface
1 × USB 2.0；
1 × USB 3.0
- Alarm In/Out/A
- General
- Power Supply12 VDC
- Consumption≤ 40 W
- Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
- Working Humidity10% to 90%
- Dimension (W × D × H)380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch)
- Weight≤ 2 kg (4.4 lb)
