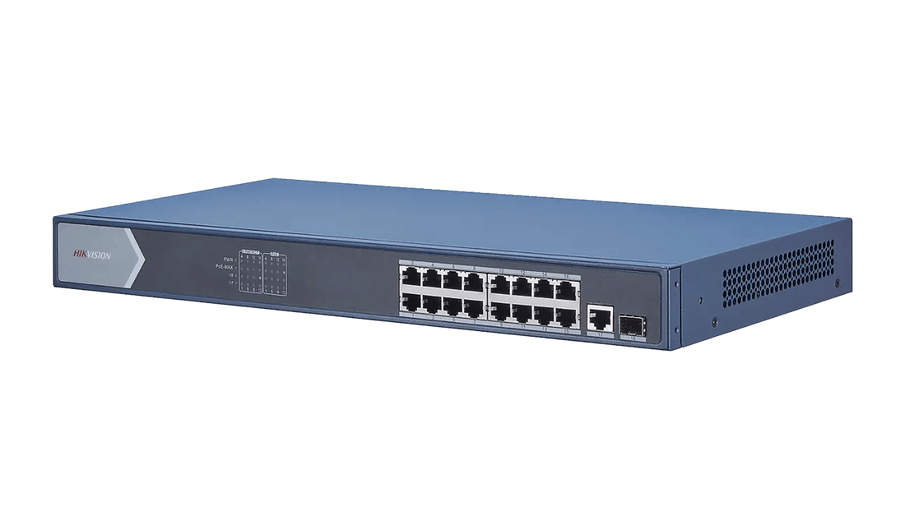

HIK 16 PORT GIGABIT POE SWITCH DS-3E0518P-E

DS-3E0518P-E switches are layer 2 Gigabit PoE unmanaged switches, providing 16 Gigabit PoE ports, one 10/100/1000 Mbps RJ45 port, and one 10/100/1000 Mbps SFP fiber optical port. The switches provide advanced PoE technology and connect other devices with high performance. Meanwhile, all Gigabit ports guarantee stable transmission of data.

Feature and Functions :

• 16 × Gigabit PoE ports, 1 × Gigabit RJ45 port, and 1 × Gigabit SFP fiber optical port.
• IEEE 802.3at/af standard.
• IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z standard.
• 6 KV surge protection for PoE ports.
• PoE power management.
• Gigabit network access.
• Wire-speed forwarding and non-blocking design.
• Store-and-forward switching.
• Solid high-strength metal shell

Specification

Model DS-3E0518P-E

Network

Parameters : Port number 16 × Gigabit PoE ports, 1 × Gigabit RJ45 port, and 1 × Gigabit SFP fiber
optical port : Port type RJ45 port, full duplex, MDI/MDI-X adaptive
Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z
Forwarding mode : Store-and-forward switching
MAC address table 8 K : Switching capacity 36 Gbps
Packet forwarding rate : 26.784 Mpps
Internal cache : 4.1 Mbits

PoE power supply

PoE standard : IEEE 802.3af, IEEE 802.3at
PoE power pin : Support 4-core power supply, and Ethernet cable 1/2/3/6 provide

Power Supply.

PoE port Ports : 1 to 16
Max. port power : 30 W
PoE power budget : 230 W
Max. power consumption : 250 W

General

Shell Metal material : Gross weight 3.53 kg (7.78 lb)
Net weight : 2.67 kg (5.89 lb)
Dimension : (L × H × D) 440 mm × 44 mm × 220.8 mm (17.3” × 1.7” × 8.7”)
Operating temperature : -10 °C to 55 °C (14 °F to 131 °F)
Storage temperature : -40 °C to 85 °C (-40 °F to 185 °F)
Operating humidity : 5% to 95% (no condensation)
Storage humidity : 5% to 95% (no condensation)
Power supply : 100 to 240 VAC, 50/60 Hz, Max. 4 A
Power consumption in idle : 20 W

What's Included :

1 X Hikvision 16-Port Gigabit POE Switch
1 X Power Plug
1 X Quick Start Up Guide
