ANDOWL
SKU:3289
Couldn't load pickup availability
Recently viewed products
WE DELIVER ANYWHERE
2 - 3 WORKING DAY NATIONWIDE DELIVERY
GREAT PRICES
FOUND IT CHEAPER? LET US KNOW
FIVE STAR SERVICE
OUR SUPPORT TEAM IS ONLY A CLICK AWAY
FLEXIBLE PAYMENT OPTIONS
MULTIPLE PAYMENT OPTIONS
This extender includes a transmitter and a receiver. The transmitter combines HDMI video, audio and control signal, then transmits them through single CAT5e/CAT6 cable. The receiver get the signal, then separate signal and rebuild video, audio and control ones, outputting through HDMI interfaces. This product supports USB HID mouse and keyboard, remote IR (RX->TX) and bi-direction RS232 URAT. This product can achieve all functions through the single CAT5/CAT6 e cable. The extending distance is 60 meters for 1080P 60Hz HD signal
Features:HDMI over CAT5E/CAT6 extender is a tool for extending your HDMI signal over long distances to a compatible displaySupport audio formats, Dolby True HD, DTS-master etc.Support 3D signals (7 formats), such as Frame Packing, Side-by-Side, Top-to-Bottom etc.When transmitting a signal in 1080P resolution the CAT5E/CAT6 operating distance is 60 metersSimple deign, plug -in- play, no need to install other softwareSupport EDID call backSupport CEC pass throughVESA DDC and Hot Plug Detect (HPD)3.8Khz remote IR (RX->TX)Bi-direction RS232 UART communicationCompatible with HDCP 1.2Compatible DVI 1.0Support cascade to enhance extending distanceIndustrial metal case, easy to installWith compact portable design
Specifications:Power : Video Bandwidth: maximum TMDS clock frequency 225MHZ, 6.75GbpsResolution and distance : 1080P 170ft (60 meters)-CAT5e / 270ft (80 meters)-CAT6 720P/1080i 270ft (80 meters)-CAT5e / 330ft (100 meters)-CAT6Audio Formats : 8-channel, support Dolby TrueHD and DTS MasterTMDS Input Signal : 1.2 Volts (point to point)DDC Input Signal : 5 Volts (point to point)Indicator : power-green, video link-yellowHD Interface Standard : HDMI 1.3 standard (HDMI 1.4 3D function), HDCP1.2, support CEC, EDIDURAT Data Rate : Support 4800bps, 9600bps, 19200bps, 39400bps, 57600bpsRemote IR : 35KHzUSB Interface : USB HID compatible devices, plug & play, no need to install softwareTemperature Range : 0 ~ 40 degree centigrade (operation), -20 ~ 60 degree centigrade (stock)Color : BlackItem size : Transmitter (11.0 * 8.1 * 2.8cm/4.3 * 3.1 * 1.1inch), Receiver (11.0 * 8.1 * 2.8 cm/4.3 * 3.1 * 1.1inch)Package size : 22.0 * 18.0 * 5.0cm/8.7 * 7.0 * 1.97inchItem weight : Transmitter 232g, Receiver Package weight : 878g

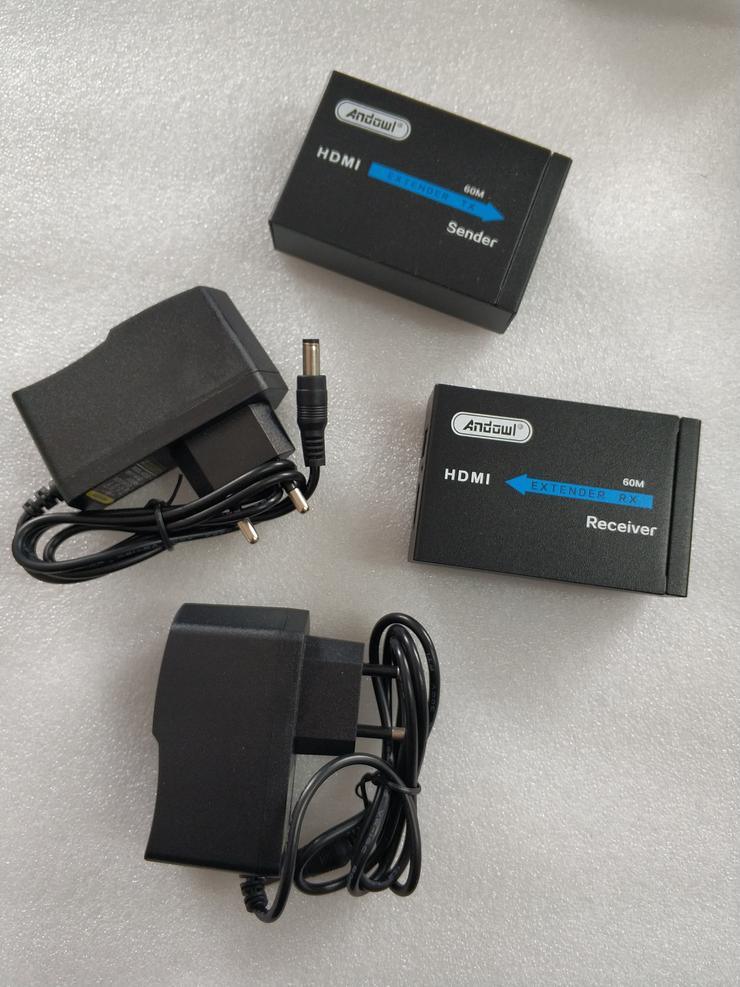

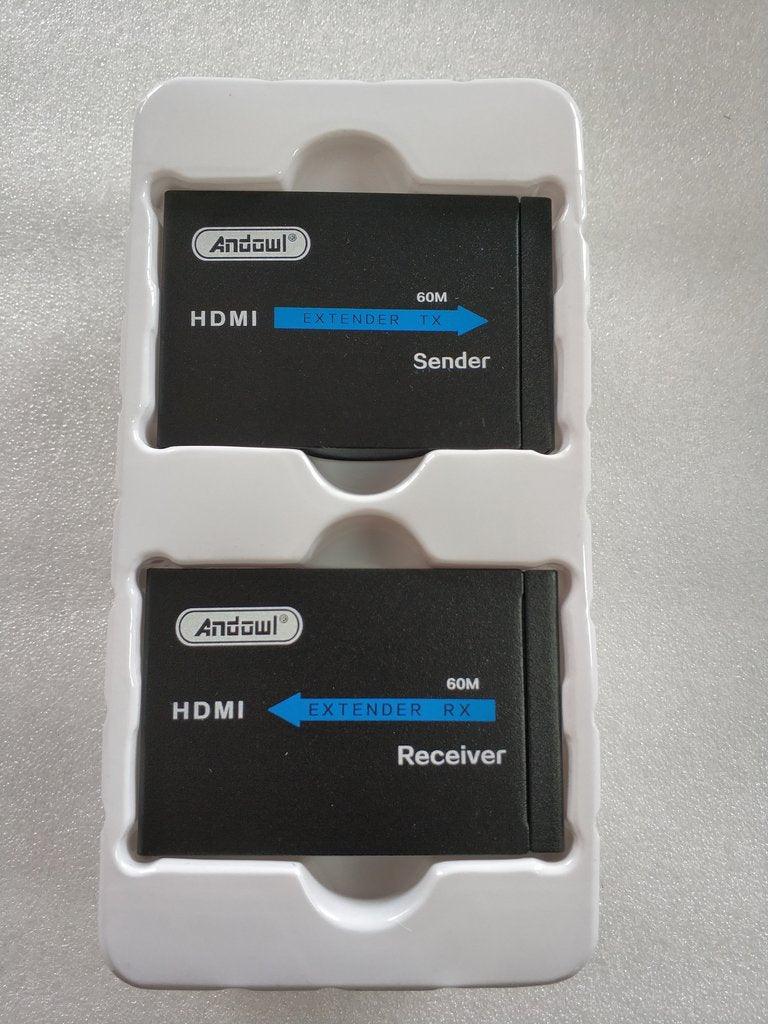

Package Contents:1 x Transmitter1 x Receiver1 x English User Manual
