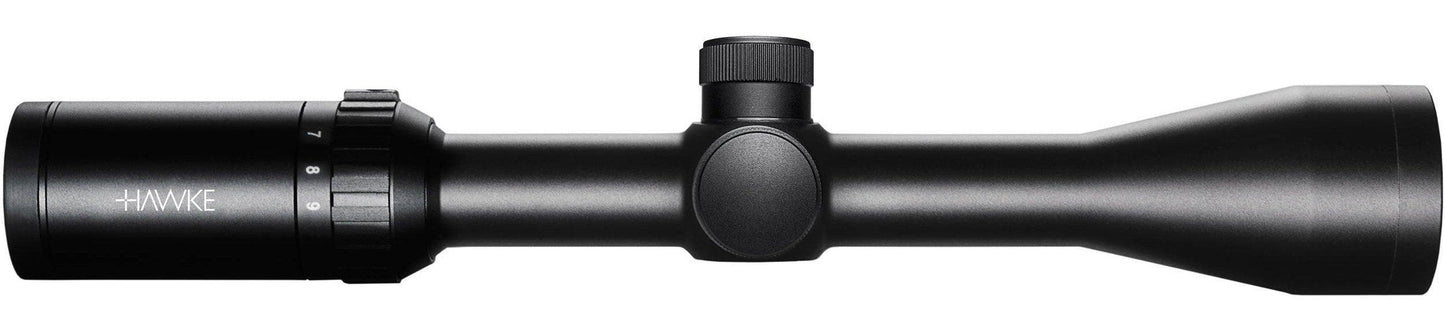

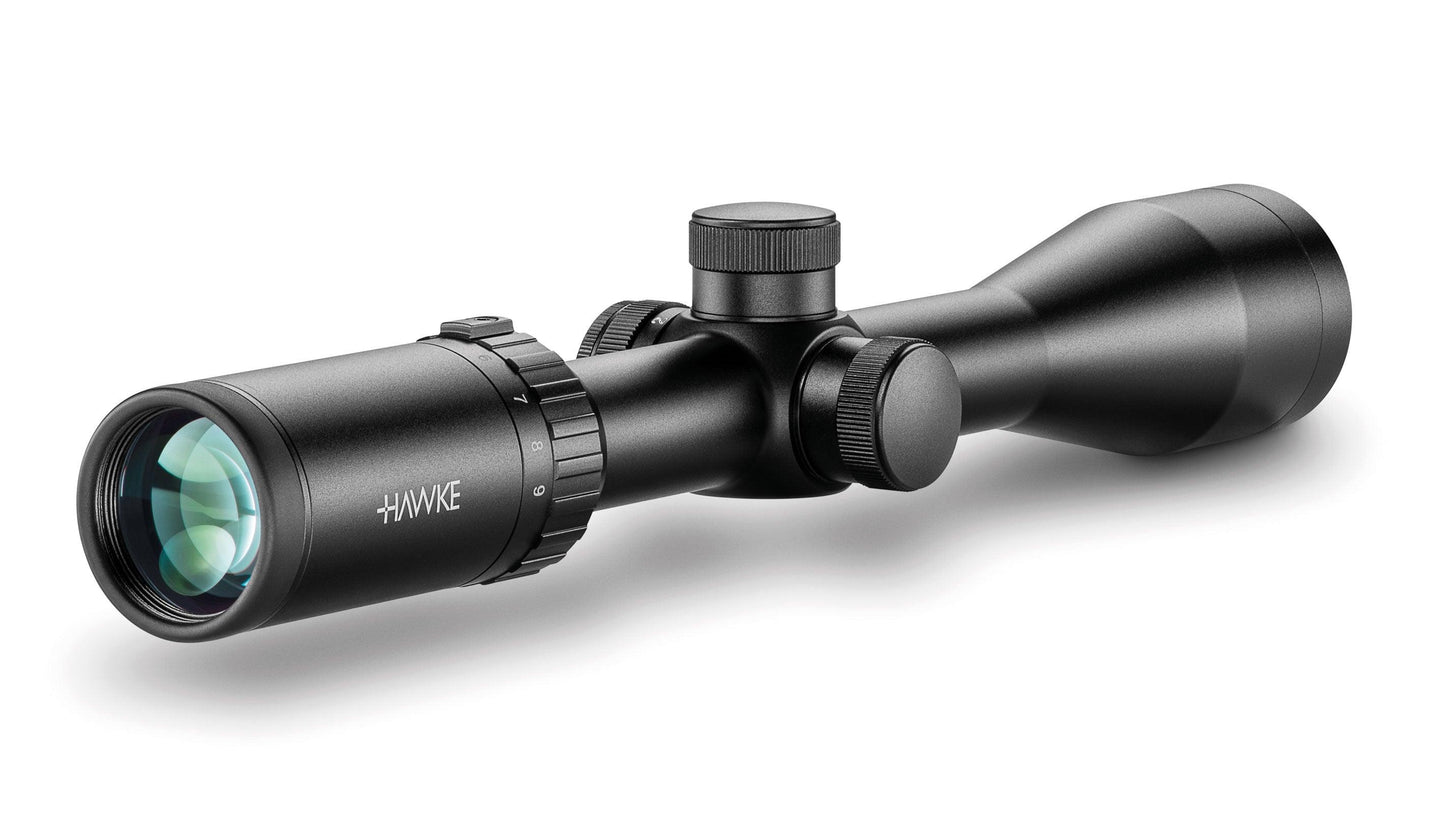

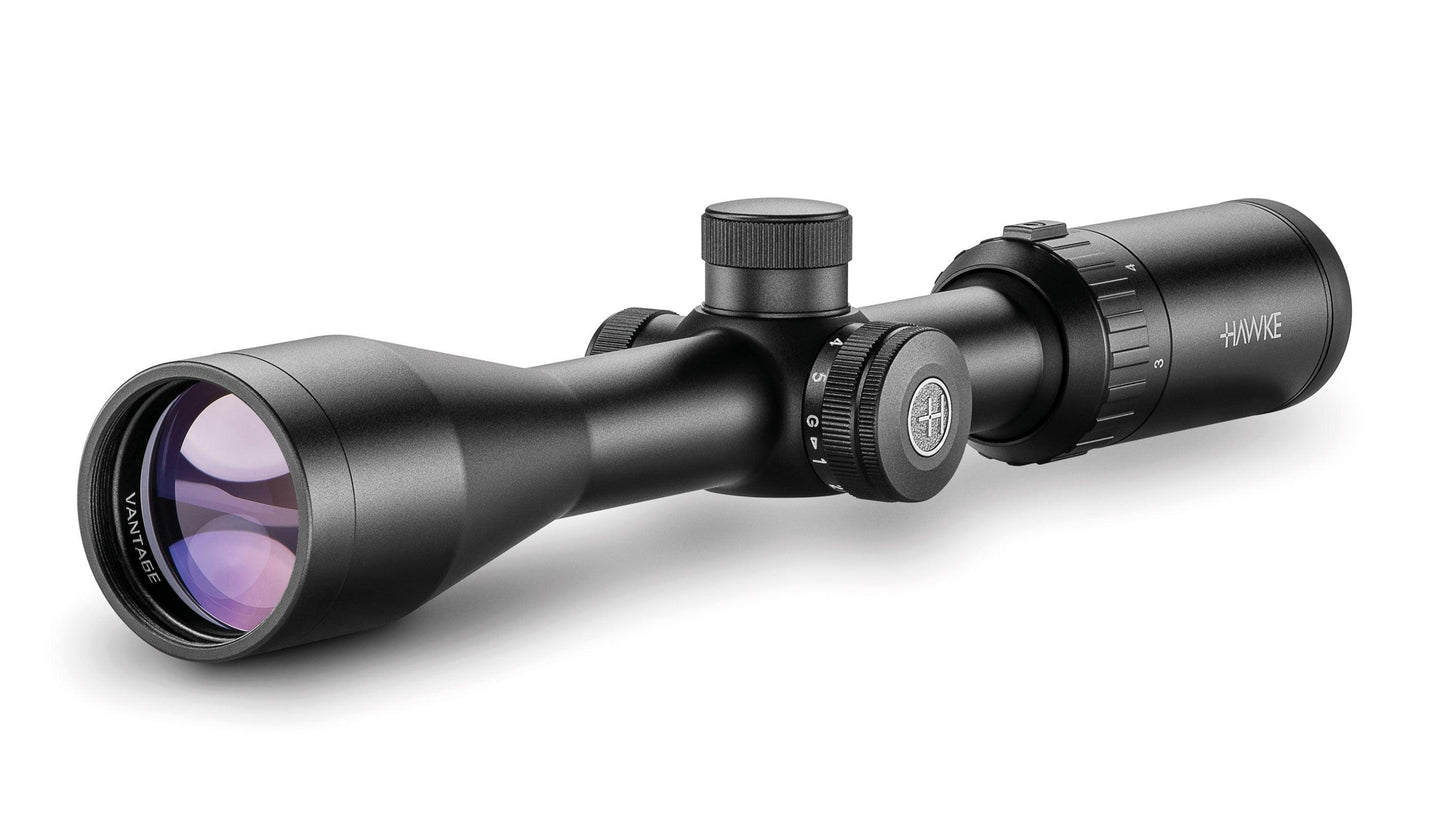

An extensive range of scopes to suit all calibres and disciplines.
All Vantage riflescopes feature our H2 optics in a variety of configurations.
IR models feature precision glass etched reticles with multi-stage illumination in both red and green.

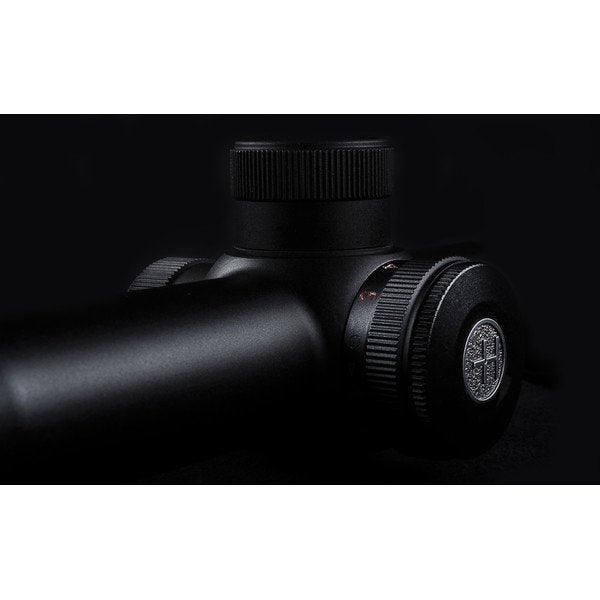

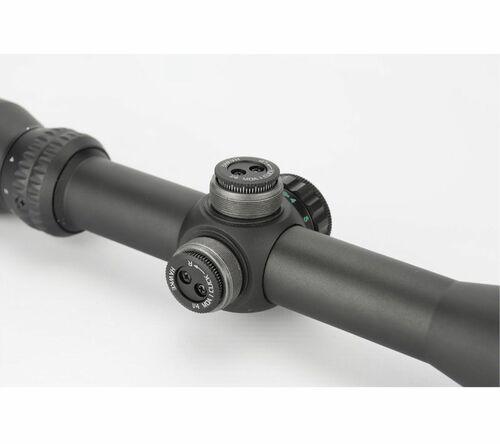

- Capped Low-Profile Turrets
- 1 Inch Mono-Tube Chassis
- Illumination
- 11 Layer Fully Multi-Coated Lenses
- High Torque Zoom Ring
- Fast Focus Eyebell
Nitrogen purged. Shockproof. Waterproof. Fog proof.
All calibre rated.
Hawke Warranty.
Rimfire .22 LR HV 9x Reticle
Registered reticle design exclusive to Hawke. Aim points calculated for your specific caliber. Easy to zero and outstanding downrange accuracy with illuminated aim points for all lighting conditions. Distances etched into the reticle field of view, designed for use on maximum magnification.
Designed for the .22 LR High Velocity (HV) caliber. Zero on 9x magnification at 50 yards and all aim points are pre-calculated. 1260 fps (384 m/s).
The scope can also be used for 50m zero with aimpoints correct in metric when the magnification is set to 7.8x.
PRESET CORRECT: @ 9.0x magnification for Yards or 7.8x magnification for Metres.
Ballistic Coefficient: 0.1262
Zero(ed) Range: 50 yds
Scope Height: 1.75″

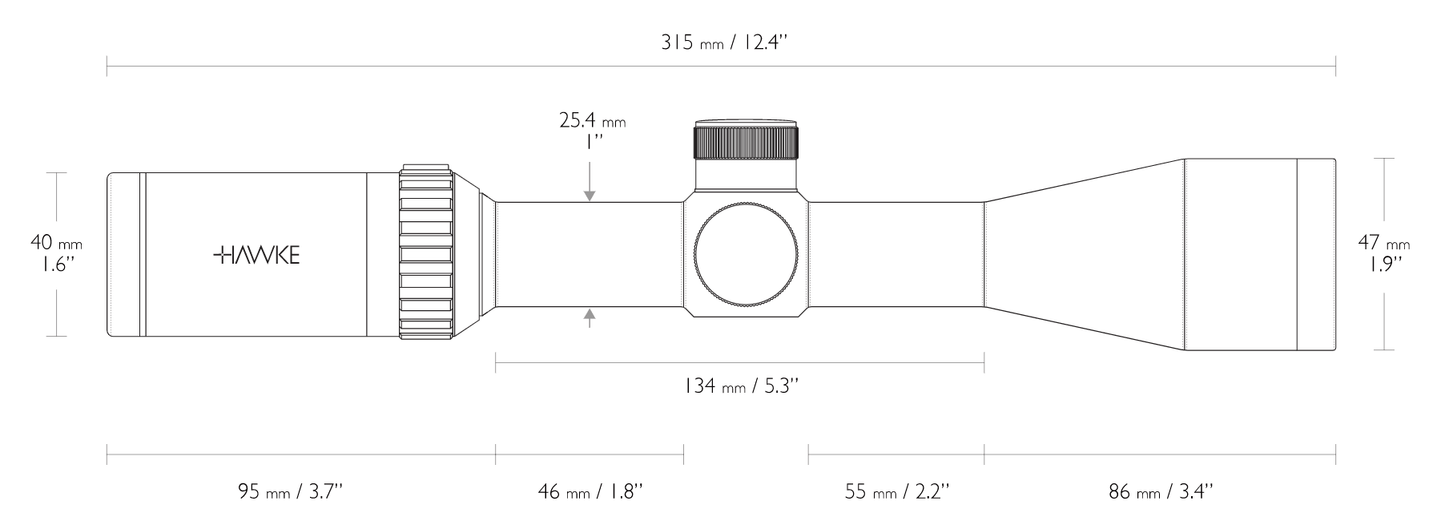

Technical Specifications;
Length: |
315mm |
Weight: |
430g |
Eye relief: |
89mm |
Focus/Parallax – Fixed |
69m |
Field of View: |
13-4.2m @100m |
Exit Pupil: |
13.3-4.4mm |
Chassis: |
1" Mono-tube |
Optical System: |
3-9x |
Objective: |
40mm |
Illumination: |
Red / Green |
Reticle: |
Rimfire .22 LR HV |

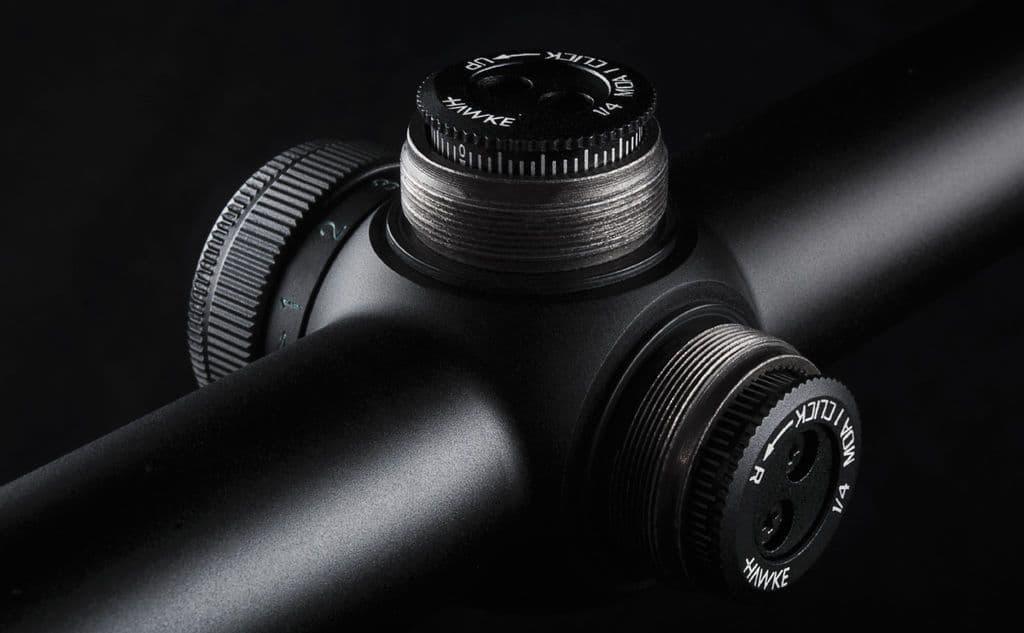

Elevation Increment: |
1⁄4 MOA |
Elevation Adjustment Range: |
100 MOA |
Windage Increment: |
1⁄4 MOA |
Windage Adjustment Range: |
100 MOA |
Material: |
Aluminium |
Ocular Type: |
Fast Focus |
Lens Coating: |
Fully Multi-Coated - 11 Layers |

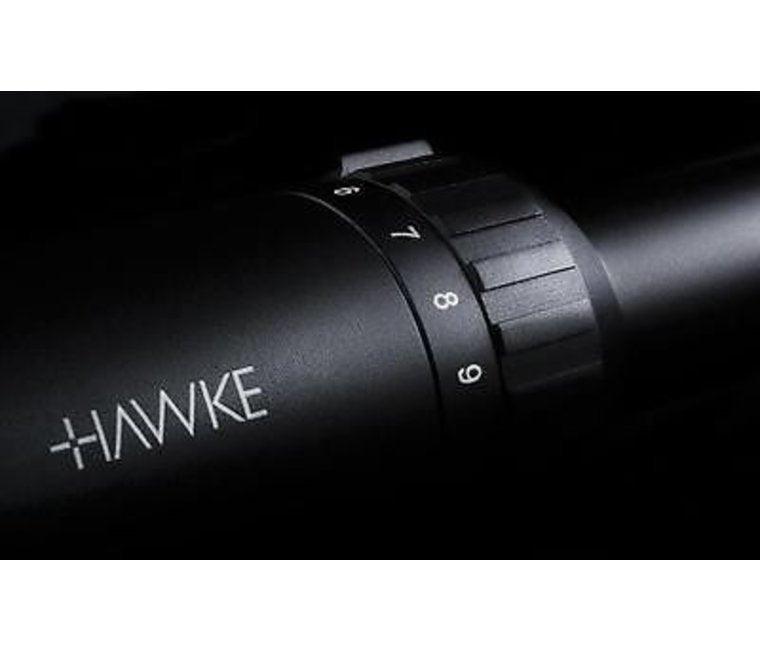

Power Selector Style: |
Knurled Posi-Grip |
Focal Plane: |
Second Focal Plane (SFP) |
Turret Caps: |
Yes |
Turret Type: |
Low Profile |
An extensive range of scopes to suit all calibres and disciplines.
All Vantage riflescopes feature our H2 optics in a variety of configurations.
IR models feature precision glass etched reticles with multi-stage illumination in both red and green.
- Capped Low-Profile Turrets
- 1 Inch Mono-Tube Chassis
- Illumination
- 11 Layer Fully Multi-Coated Lenses
- High Torque Zoom Ring
- Fast Focus Eyebell
Nitrogen purged. Shockproof. Waterproof. Fog proof.
All calibre rated.
Hawke Warranty.
Rimfire .22 LR HV 9x Reticle
Registered reticle design exclusive to Hawke. Aim points calculated for your specific caliber. Easy to zero and outstanding downrange accuracy with illuminated aim points for all lighting conditions. Distances etched into the reticle field of view, designed for use on maximum magnification.
Designed for the .22 LR High Velocity (HV) caliber. Zero on 9x magnification at 50 yards and all aim points are pre-calculated. 1260 fps (384 m/s).
The scope can also be used for 50m zero with aimpoints correct in metric when the magnification is set to 7.8x.
PRESET CORRECT: @ 9.0x magnification for Yards or 7.8x magnification for Metres.
Ballistic Coefficient: 0.1262
Zero(ed) Range: 50 yds
Scope Height: 1.75″
Technical Specifications;
Length: |
315mm |
Weight: |
430g |
Eye relief: |
89mm |
Focus/Parallax – Fixed |
69m |
Field of View: |
13-4.2m @100m |
Exit Pupil: |
13.3-4.4mm |
Chassis: |
1" Mono-tube |
Optical System: |
3-9x |
Objective: |
40mm |
Illumination: |
Red / Green |
Reticle: |
Rimfire .22 LR HV |
Elevation Increment: |
1⁄4 MOA |
Elevation Adjustment Range: |
100 MOA |
Windage Increment: |
1⁄4 MOA |
Windage Adjustment Range: |
100 MOA |
Material: |
Aluminium |
Ocular Type: |
Fast Focus |
Lens Coating: |
Fully Multi-Coated - 11 Layers |
Power Selector Style: |
Knurled Posi-Grip |
Focal Plane: |
Second Focal Plane (SFP) |
Turret Caps: |
Yes |
Turret Type: |
Low Profile |
