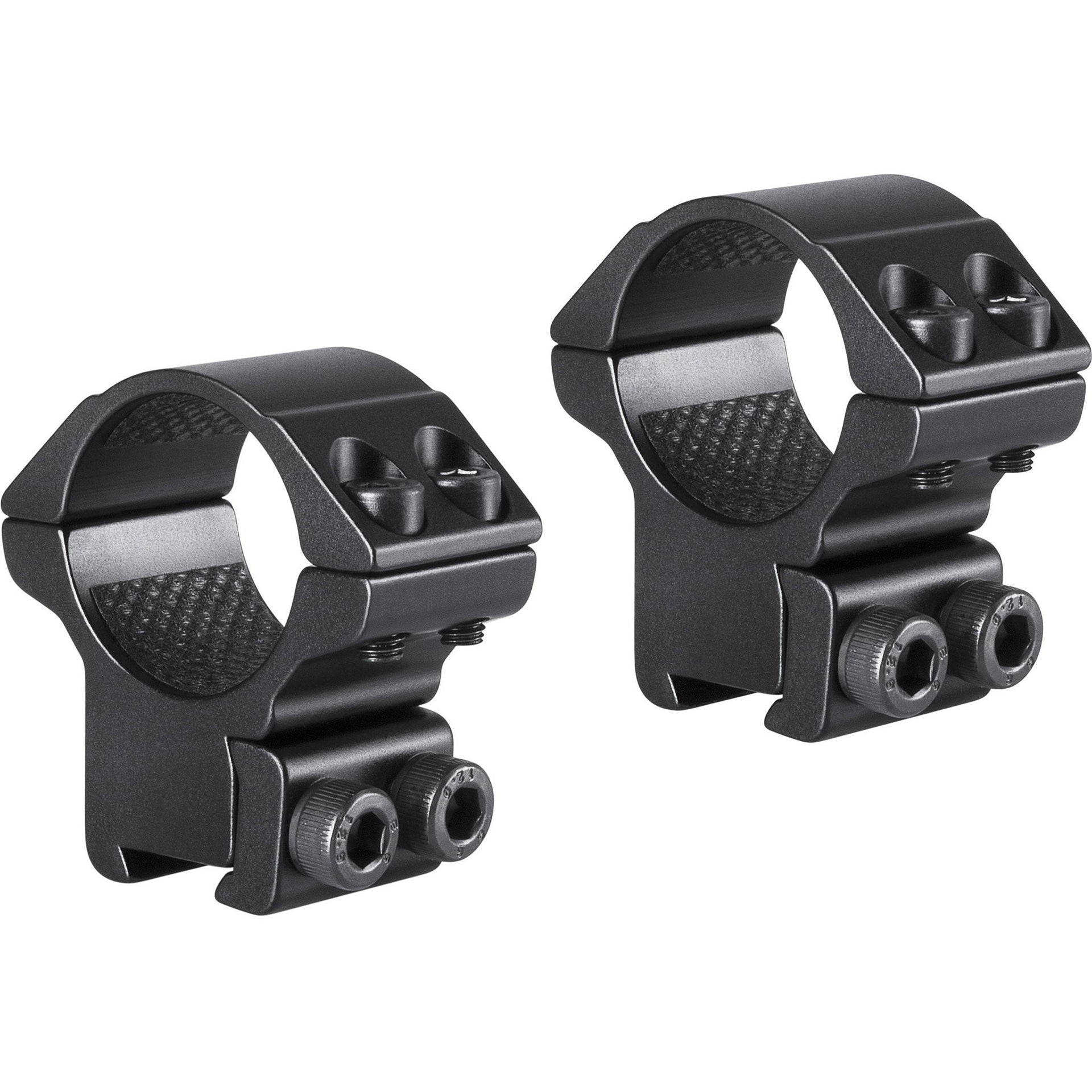

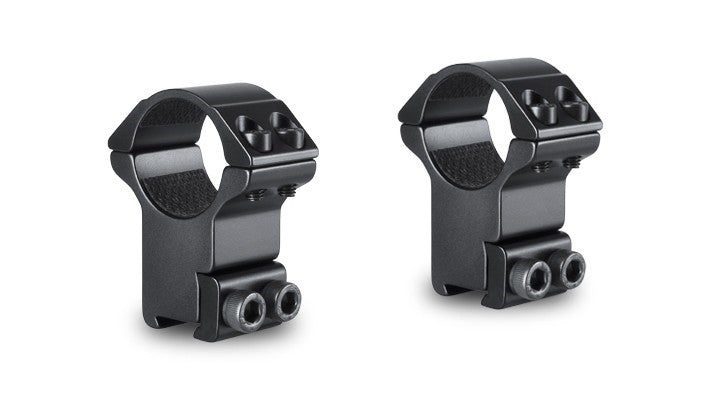

Precision engineered from high grade aluminium with rounded edges prevent scope damage.
Please read fitting carefully. Mount returns due to choosing the wrong size are WAY too common - cost us both - and are so easily avoidable! If unsure please ask....
Summary - 25mm/1" tube - 9-11mm dovetail base fit (airgun and rimfire type) - HIGH profile height with 22mm saddle to best suit 40-60mm lens scopes. Maximum scope *OUTER* objective case diameter 68mm
Double hex screws to hold your scope firmly in place
Recoil stop pin
Reversible dove tail clamp that fits 9-11mm and 3/8 inch airgun and rimfire bases
Internal cushion tape prevents marking and damage
High grade aluminium anodised in matte black
Base: Fits 9-11mm width dovetail bases commonly found on airguns and rimfire. See http://www.tacticalscope.co.uk/blog/?p=50 if unsure how to determine what you have.
Ring Diameter: 1 inch / 25.4mm tube scope
Height: High - Distance from base of mount to bottom of ring (the saddle) is 22mm (0.9")
Scope Lens size suitability - based on scope being fitted onto a flat base rail and scope lens objective being flush to the gun body
Maximum outer scope case size = 68mm (22mm + 12.5mm ring radius x2)
This equates to an approx. maximum scope lens size of 60mm as most scope outsides add around 7-12mm.
Can be more than 7-12mm if flip up lens caps are being used so please take this into consideration.
However if the end of the scope will hang over the gun barrel or if the rail is raised then larger lens scopes can be accommodated.
Configuration: 2 Piece
Ring Size (Diameter): 25mm/1"
Height: High
Rail: 9-11mm (3/8"-11mm)
Fixings (Rail & Top Cap): Double Hex Screw
Internal Cushion: Yes
Retractable 'Recoil Stop' Pin: Yes
Height: 51mm / 2″
Weight: 102g / 3.6oz
Configuration:
2 Piece
Ring Size (Diameter):
25.4mm1"
Height:
High
Rail:
9-11mm (For Centerfire & Air Rifle/ 3/8" Dovetail (for Rimfire)
Fixings (Rail & Top Cap):
Double Hex Screw
Internal Cushion:
Yes
Retractable 'Recoil Stop' Pin:
51mm2"
Weight:
102g3.6oz
