Specialist scopes designed by airgunners for airgunners!

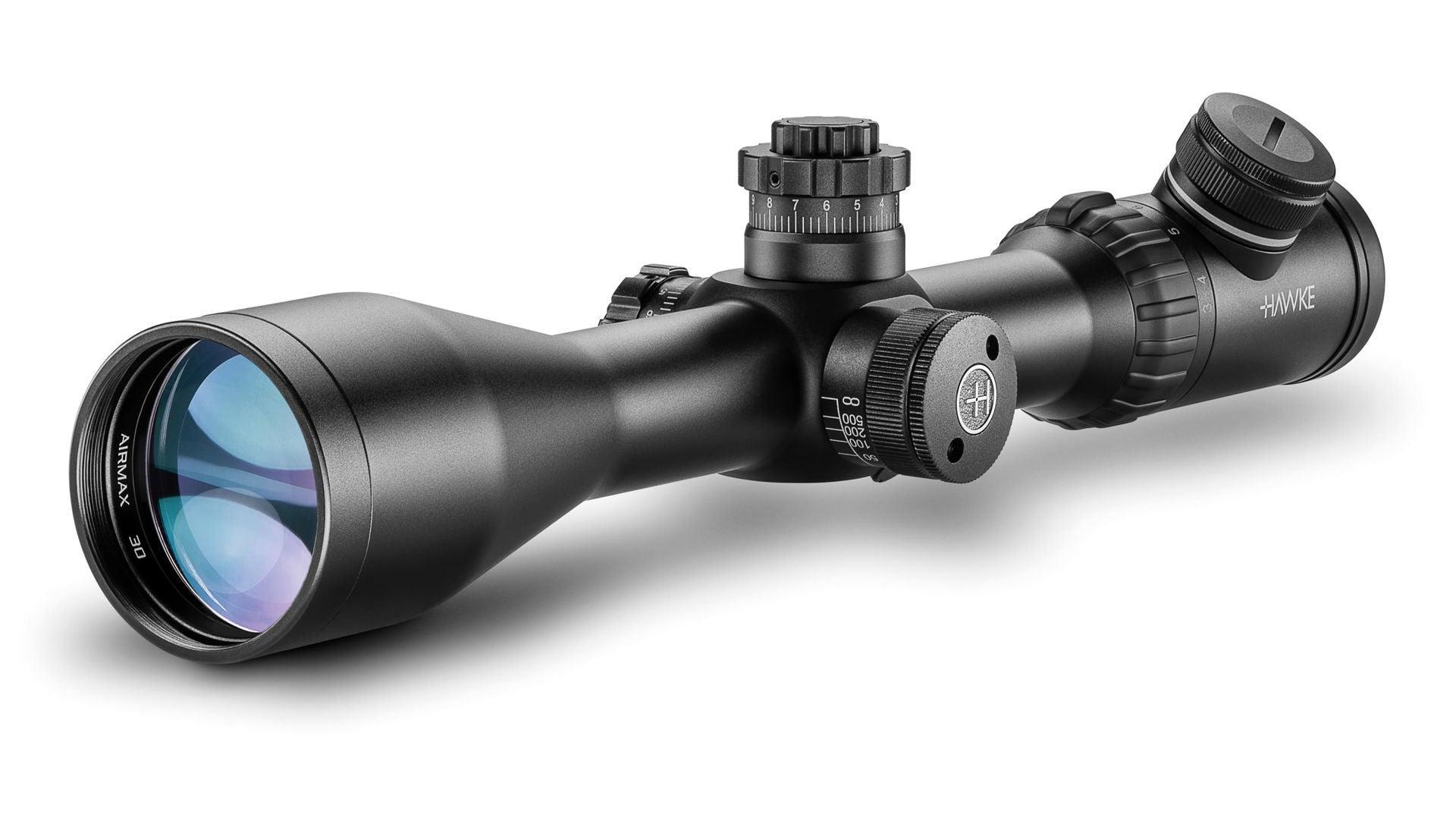

HAWKE has updated their range of optics for 2015 and now come with an improved design including their new high torque zoom ring. These Airmax 30 SF scopes with the AMX reticle are perfect for airgunning of any type but particularly target shooting.

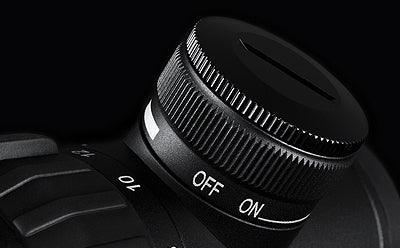

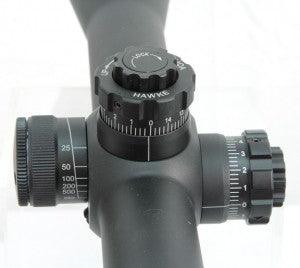

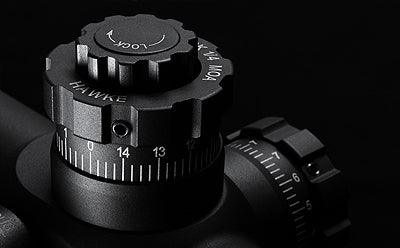

The Airmax 30 Side Focus offers a specialised optical setup for airgunners. One truly exceptional feature of the Airmax 30 SF scopes is the AMX airgun fully floating Mil Dot reticle. The Airmax 30 SF family of scopes focuses on long and short range Airgun hunting and Airgun Target shooting. Designed in the UK, the New Airmax 30 SF family provides the shooter a feature-rich scope. The exciting new cosmetic for the Airmax 30 family is just the start of the innovation. New locking resettable turrets make adjustments easy and repeatable, even when used with gloved hands. Boasting a stepless rheostat control that allows for virtually infinite adjustment, ensuring your reticle is visible in almost any light condition.

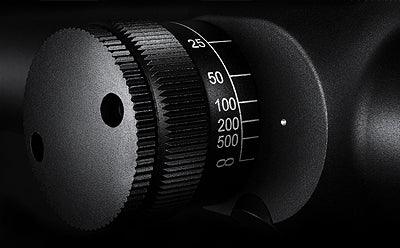

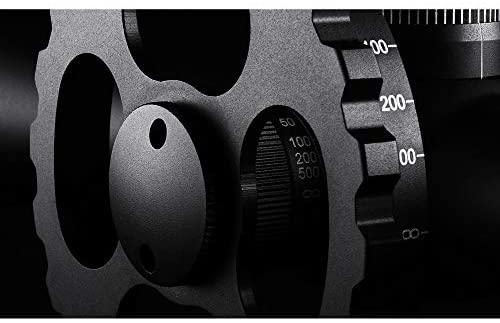

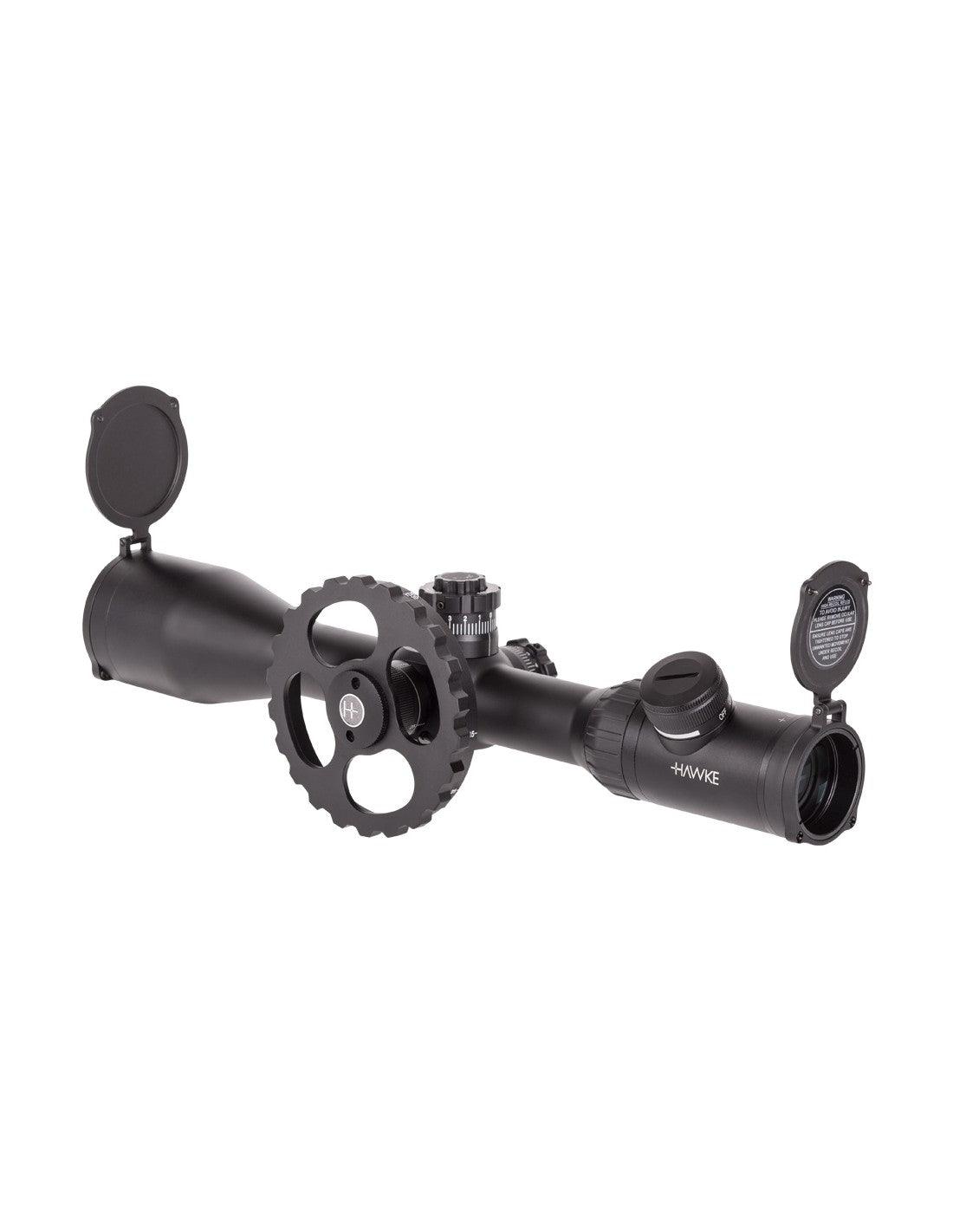

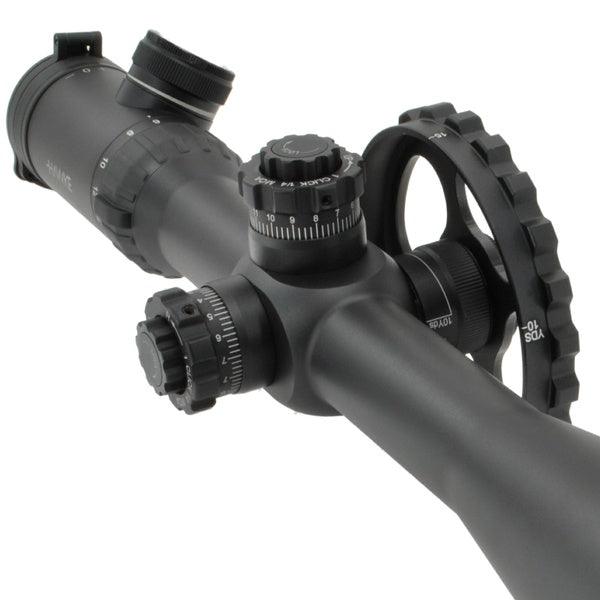

The new Airmax 30 SF scopes are equipped with a side focus parallax adjustment, with a range of 10 yards to infinity. This enables the shooter to be parallax free and in focus at all target distances. The Patented design allows for the addition of a larger wheel (100mm dia. wheel supplied) to be installed direct to the central axis. This allows for easier, more accurate operation. One truly exceptional feature of the new Airmax 30 SF scopes is the new AMX airgun reticle available for the first time in this scope family. Based on a fully floating Mil Dot with additional half milspacing marks below centre, windage marks as well as segmented hollow posts, the reticle is perfectly suited for airgun shooting. Fully BRC/Chairgun Pro compatible, the AMX is an efficient, reliable reticle, that any airgun hunter or target shooter can appreciate. Built around a 30mm mono-tube chassis, the Airmax 30 SF scopes are designed to provide years of reliable use. Four magnification ranges (3-12, 4-16, 6-24 and 8-32) mean no compromising when it comes to scope selection.
All Hawke Airmax 30 SF scopes have lenses that are fully multicoated for the best possible light transmission and management. Waterproof, shockproof, and nitrogen purged to be fog proof; all Airmax 30 SF scopes are covered by the Hawke® Worldwide Warranty (10 years in Europe and ROW). Additionally, the Airmax AMX reticles are supported by the free Hawke BRC and Chairgun software programs (PC, Mac, iOS and Android). Supported by your true ballistic information, the BRC allows you to blueprint your projectile to any Hawke multiple aim point reticle.
Airmax scopes feature our H2 optics in a variety of configurations designed to suit airgun characteristics.
- Exposed Locking Turrets
- 30mm Mono-Tube Chassis
- Side Focus
- Side Wheel (Removable)
- Illumination
- 16 Layer Fully Multi-Coated Lenses
- High Torque Zoom Ring
- Fast Focus Eyebell
- AMX Reticle Designed For Airguns
Nitrogen purged. Shockproof. Waterproof. Fog proof.
All calibre rated.
Hawke Warranty.
AMX Reticle
Both the AMX and AMX IR glass etched reticles are based on the spacing of a 10x Mil Dot. The AMX offers multiple aim points, useful when shooting air guns with loopy trajectories.
Half Mil Dot spacing on the lower post provides increased aim points for long shots.
The horizontal bars are calculated at 0.5, 1.5, 2.5, 3.5 and 4.5 mil spacing. Hollow posts are segmented into mil spacing and can be used for bracketing
|

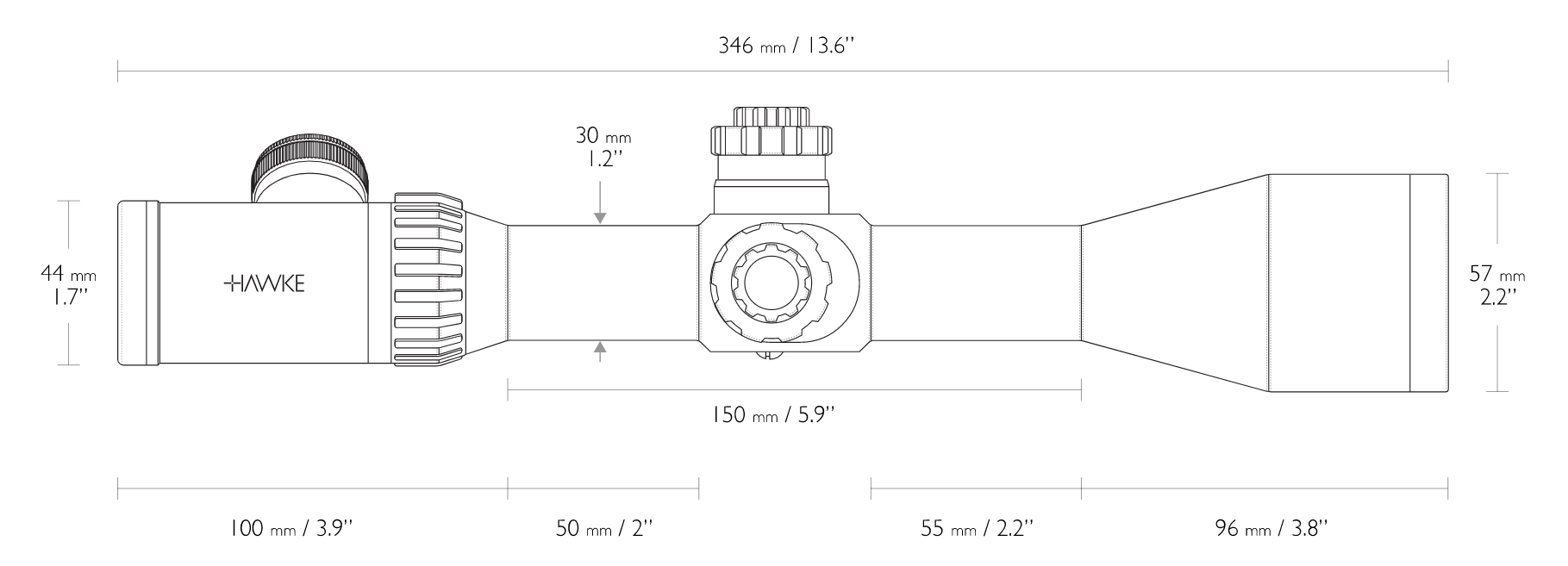

Length: |
346mm 13.6" |
|
Weight: |
780g 27.5oz |
|
Eye relief: |
102mm 4" |
|
Focus/Parallax - Side Focus: |
9m - ∞ 10yds - ∞ |
|
Field of View: |
10.3 - 2.8m @100m 30.9 - 8.3ft @100yds |
|
Exit Pupil: |
17-4mm 0.7-0.2" |
|
Chassis: |
30mm Mono-tube |
|
Optical System: |
3-12x |
|
Objective: |
50mm |
|
Illumination: |
Red |
|
Reticle: |
AMX IR |
|
Elevation Increment: |
1⁄4 MOA |
|
Elevation Adjustment Range: |
95 MOA |
|
Windage Increment: |
1⁄4 MOA |
|
Windage Adjustment Range: |
95 MOA |
|
Material: |
Aluminium |
|
Ocular Type: |
Fast Focus |
|
Lens Coating: |
Fully Multi-Coated - 16 Layers |
|
Power Selector Style: |
Rubber Coated Posi-Grip |
|
Focal Plane: |
Second Focal Plane (SFP) |
|
Turret Caps: |
No |
|
Turret Type: |
Exposed |
