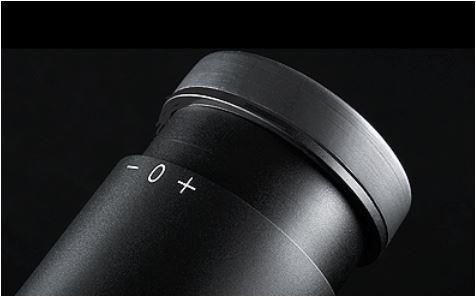

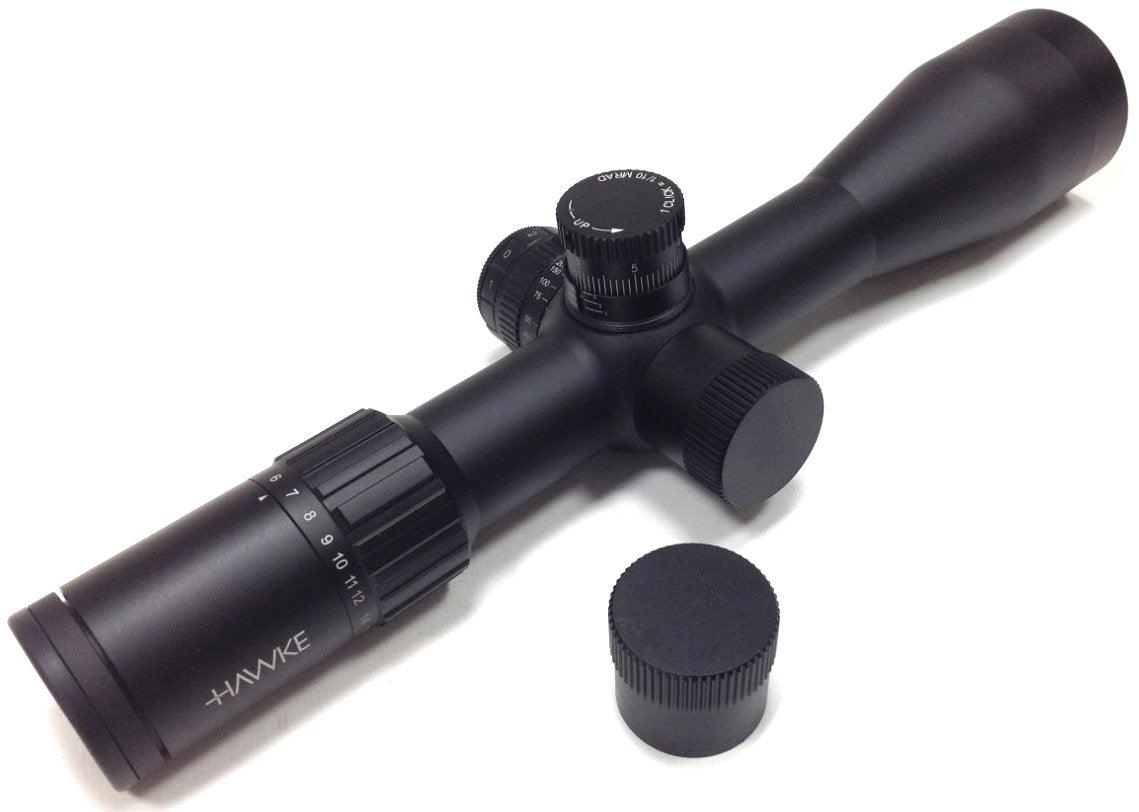

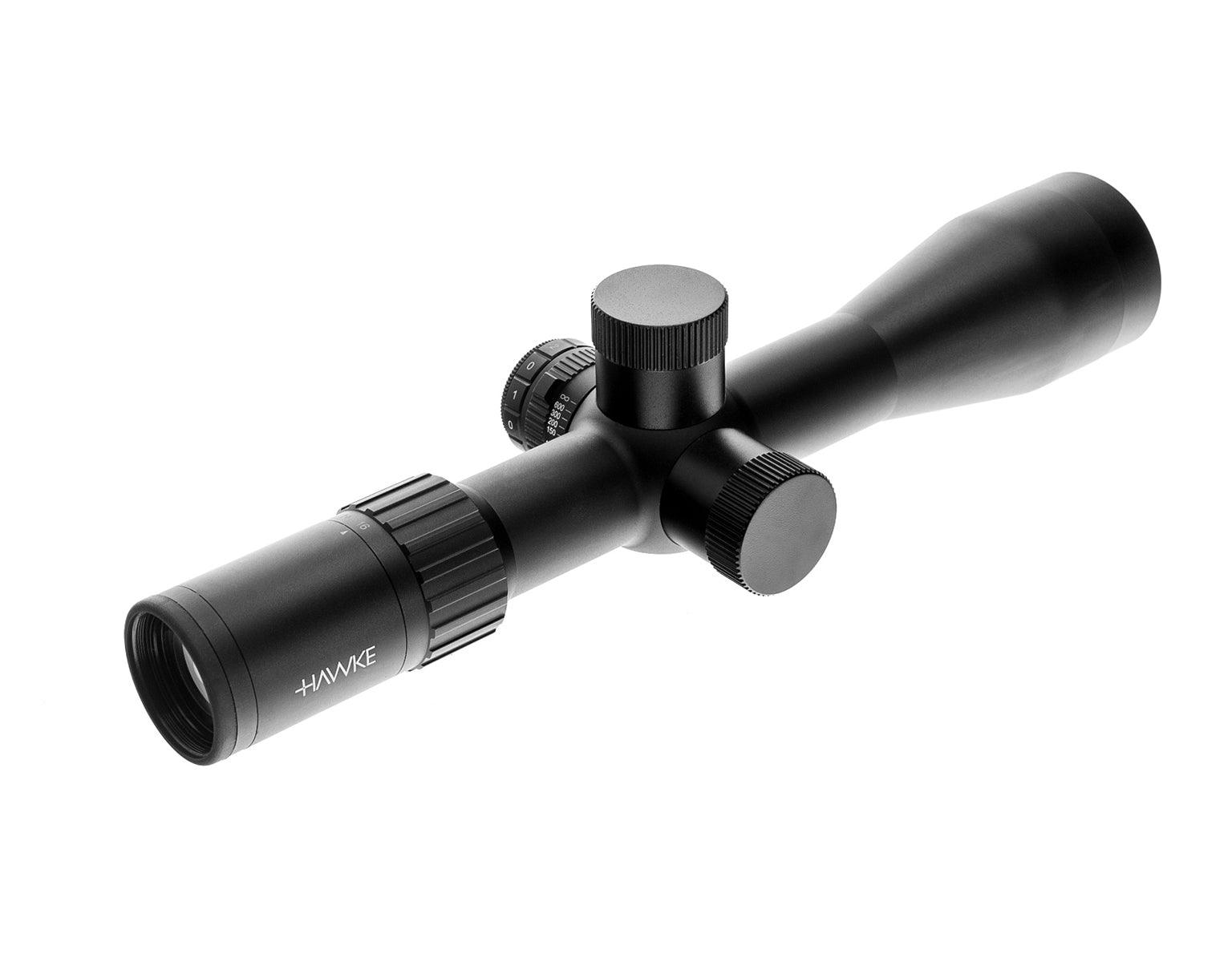

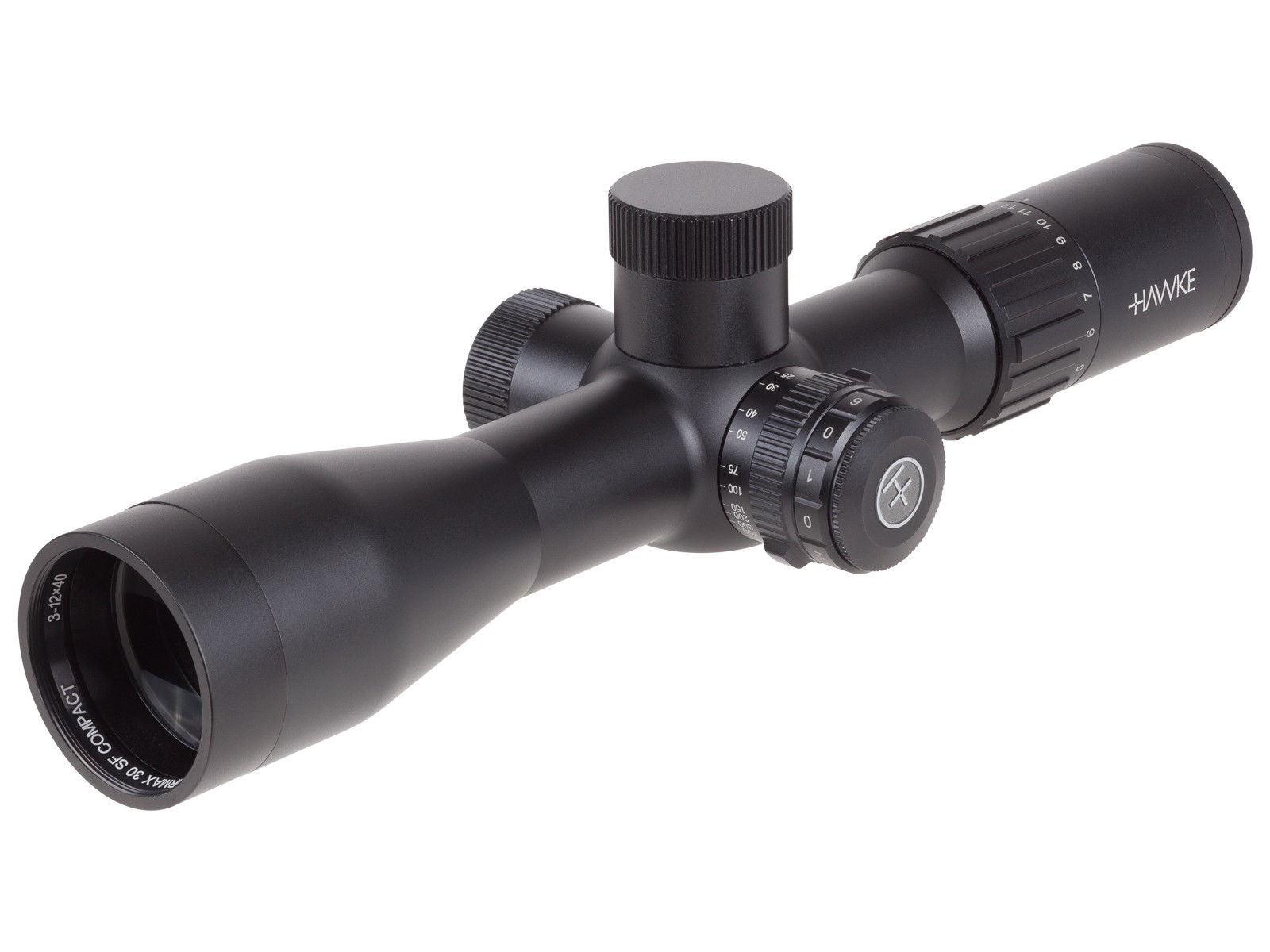

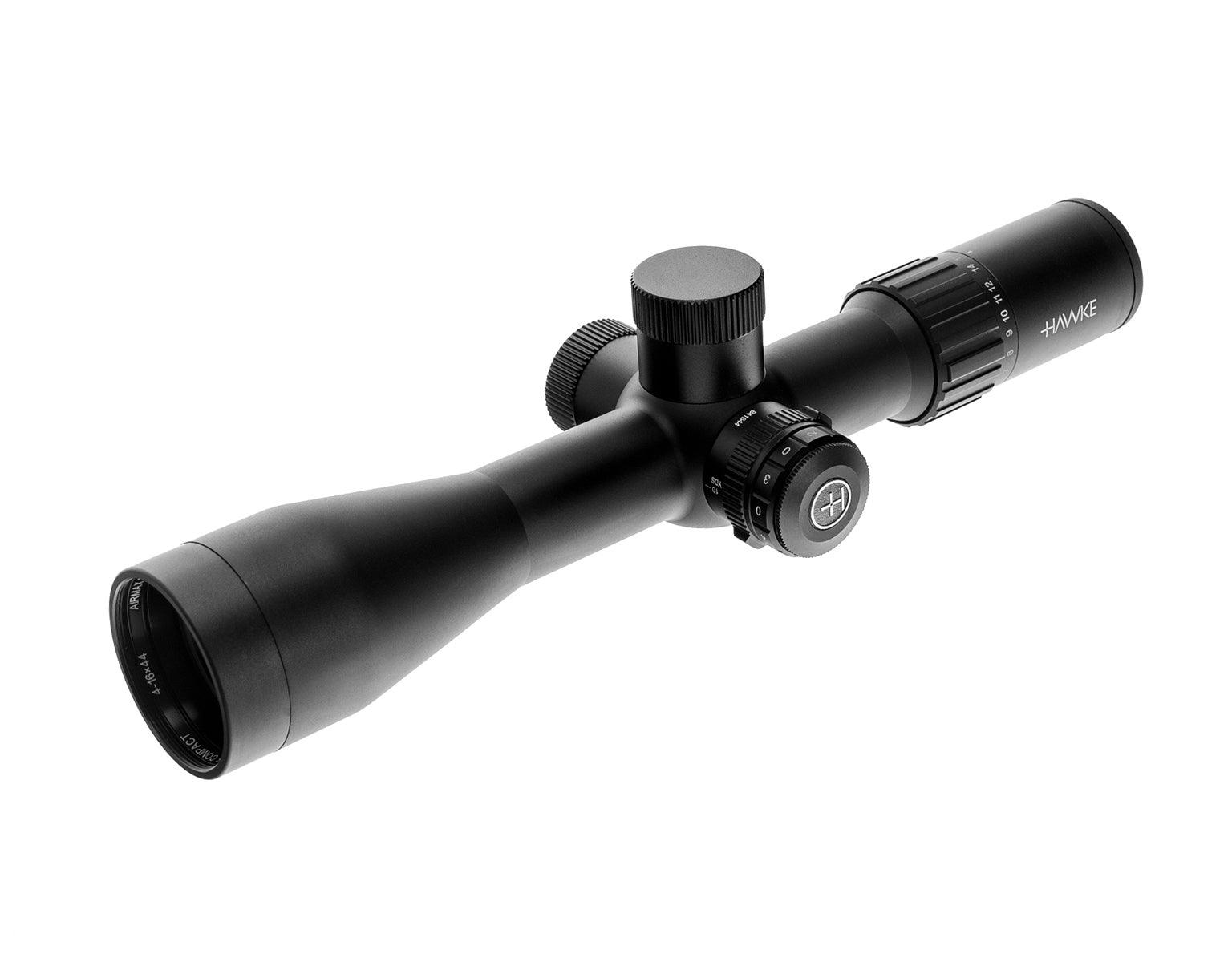

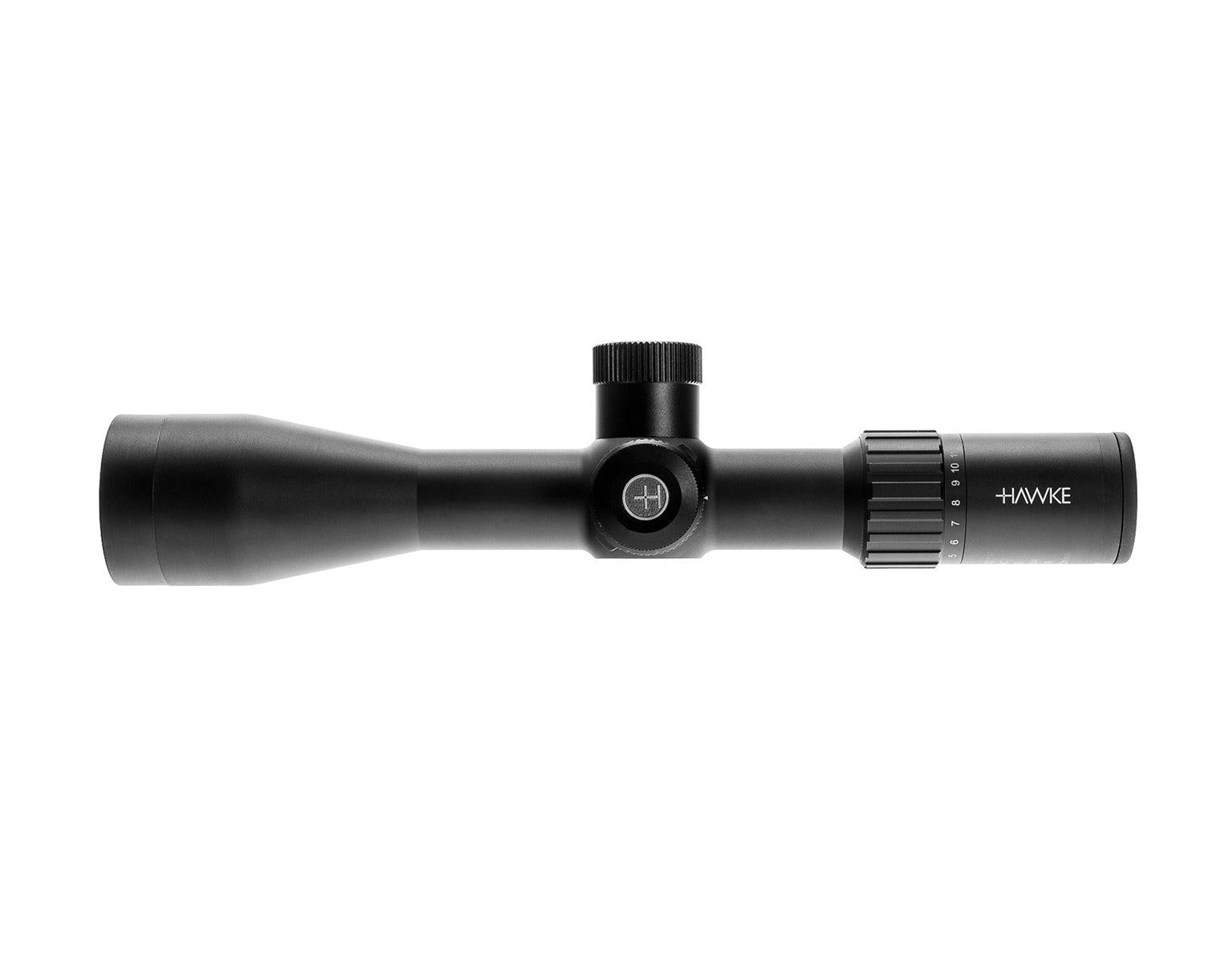

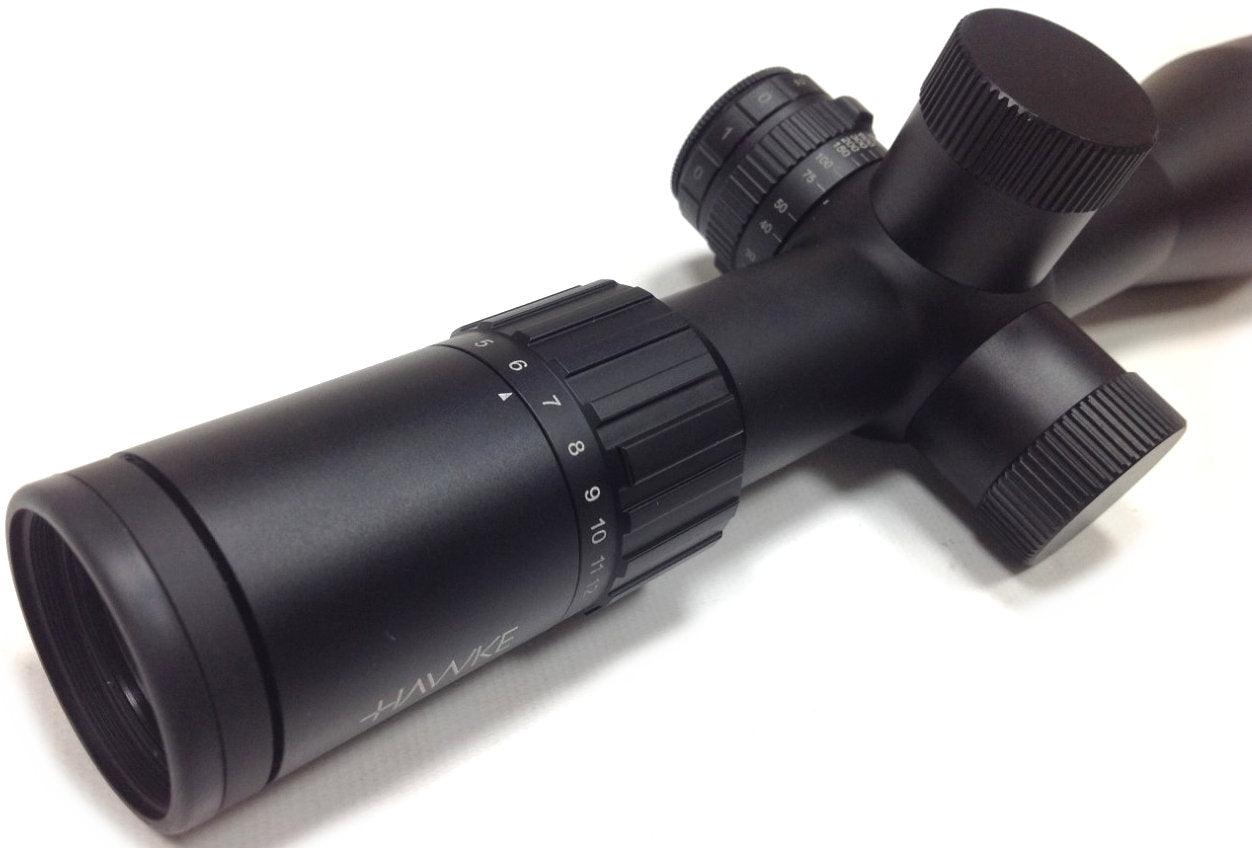

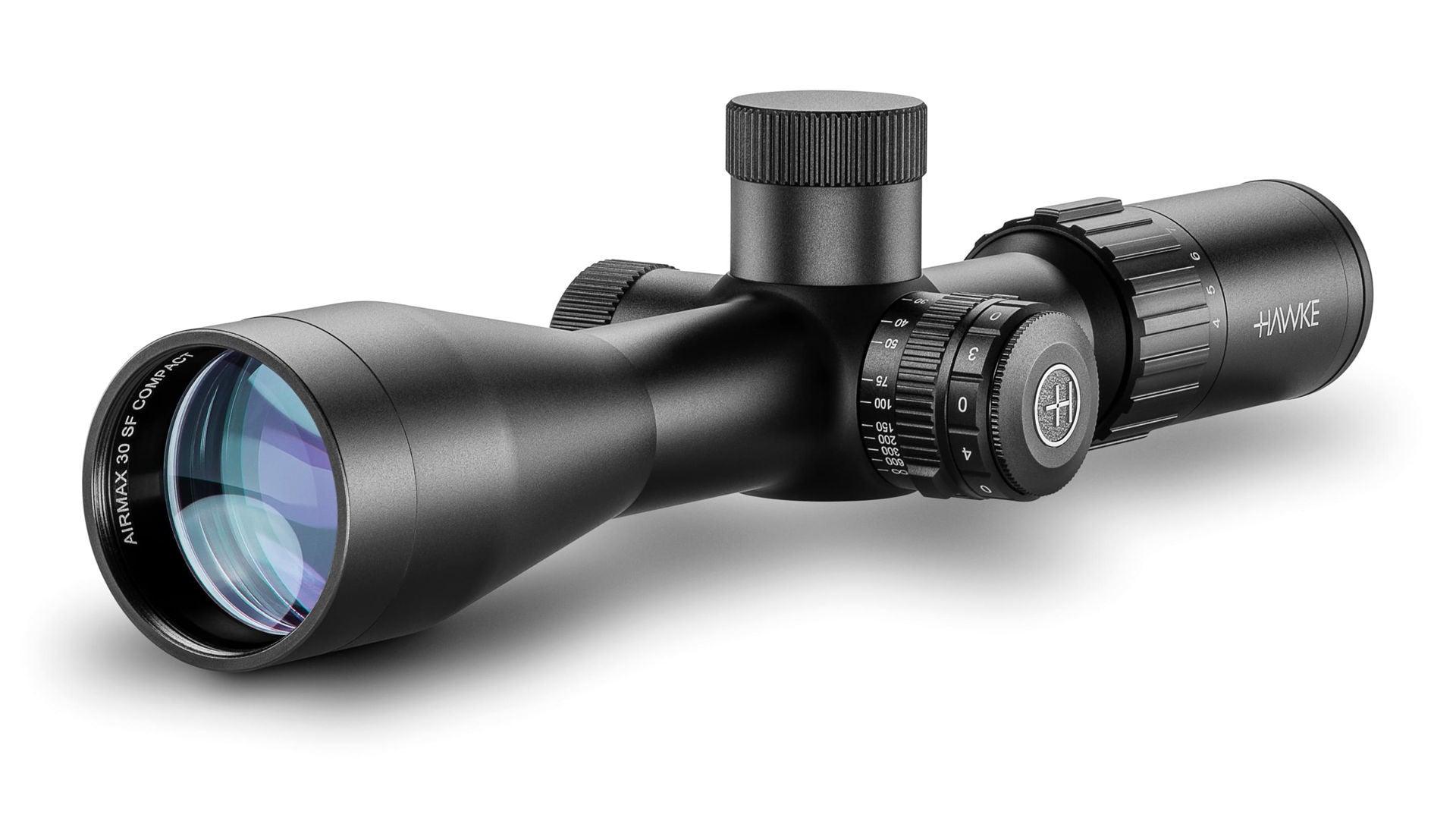

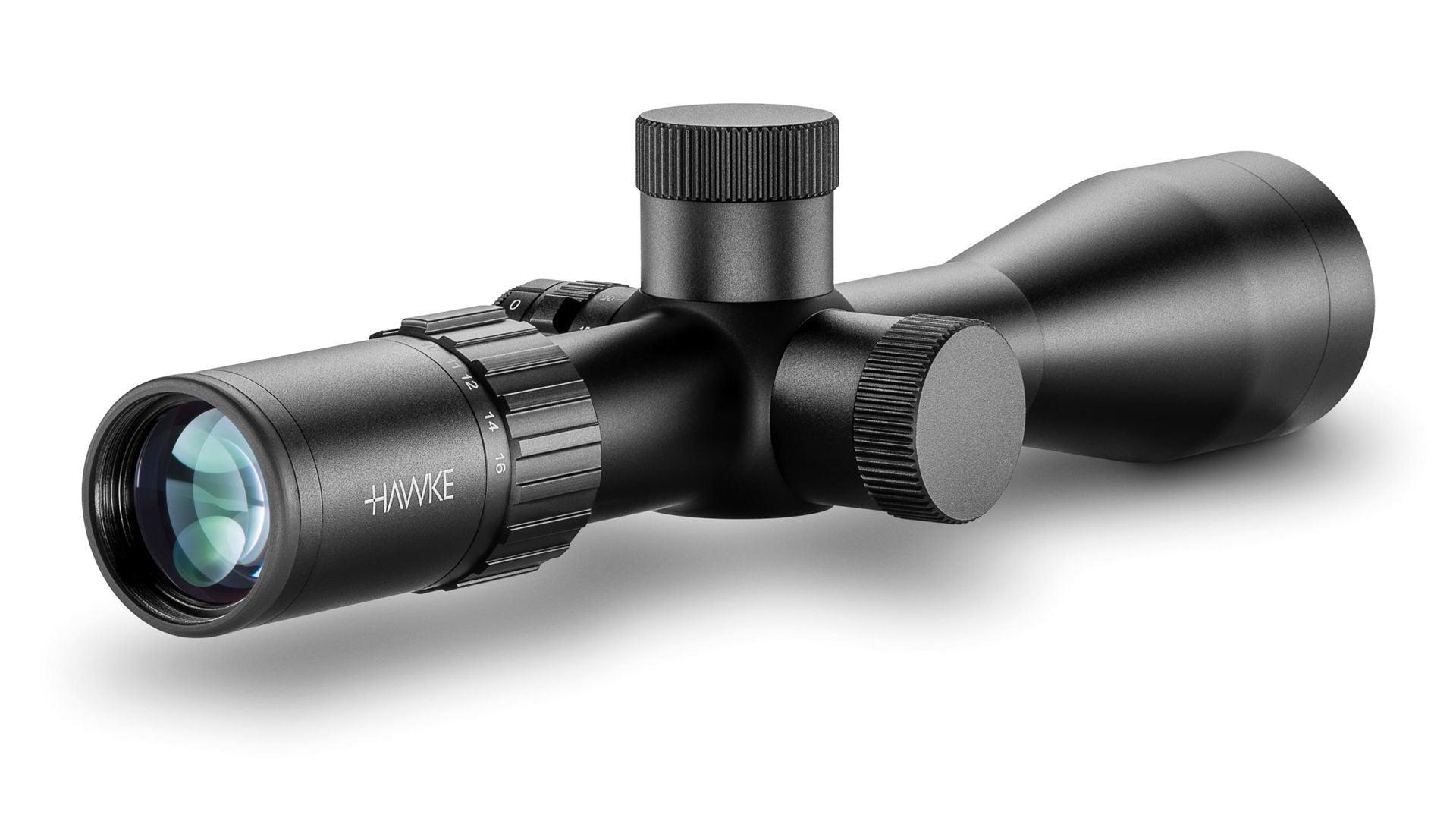

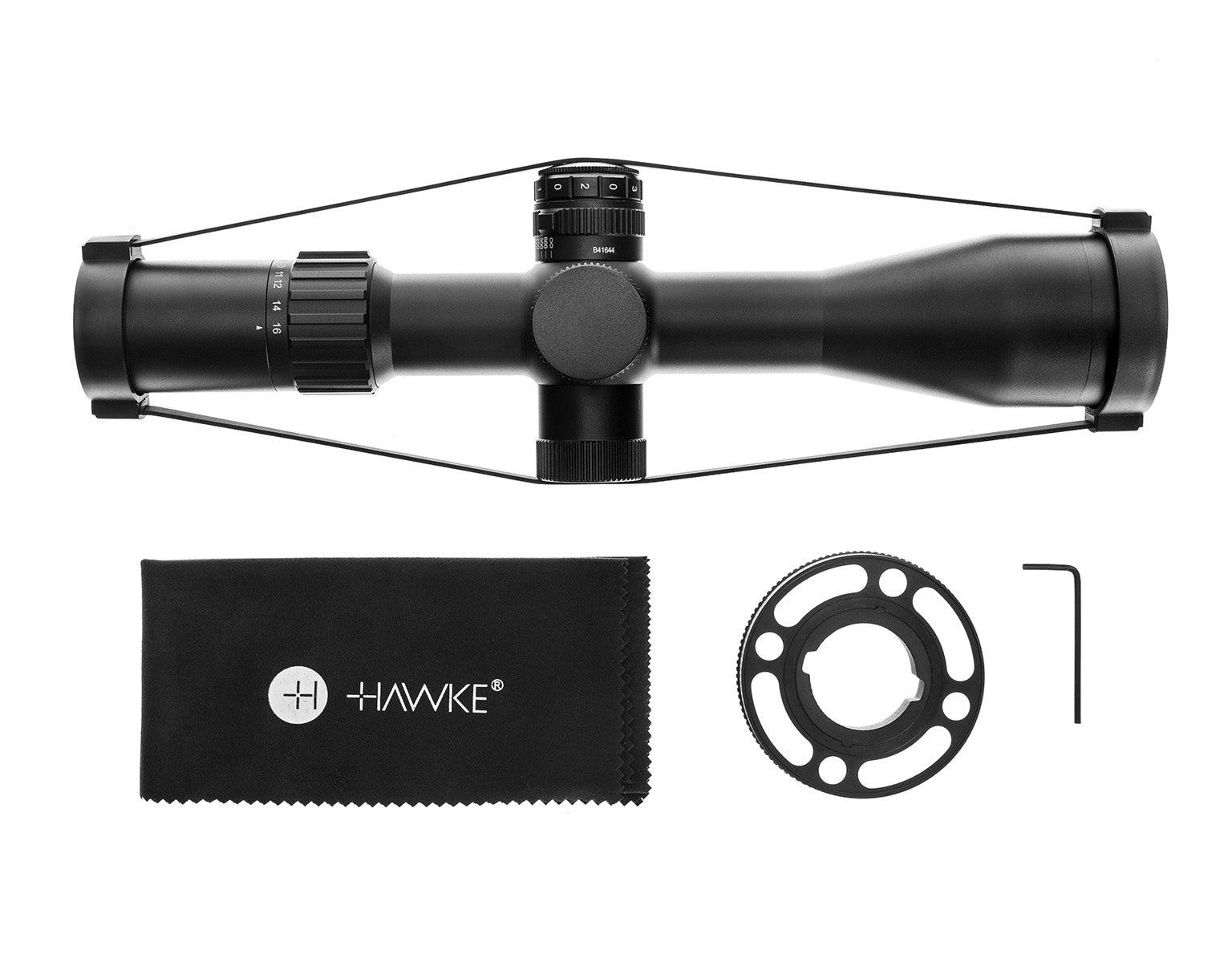

Designed for use on airguns, the Hawke 4-16x44 Airmax 30 SF Compact Riflescope employs a broad magnification range, a generous objective, fully multi-coated optics, and a partially illuminated reticle. The duplex ranging AMX IR reticle is based on a mil-dot system and provides multiple aiming points on all axes, which allows you to compensate for loopy trajectories quickly without having to manipulate the windage and elevation turrets. The reticle's center crosshairs, mil dots, and stadia have six brightness levels, with off positions in between.The scope's 44mm objective lens and 16-layer anti-reflection optical coatings increase light transmission to enhance its low-light performance, such as at dawn, dusk, or in heavily canopied woods. Capped, resettable target turrets adjust at 1/10 MRAD per click, with a total elevation and windage adjustment range of 20 MRAD, allow for precise impact point correction, and a side parallax adjustment with removable wheel allows correction of parallax errors from 10 yards to infinity. Complementing the performance of the scope is a lightweight and durable anodized aluminum housing with a robust 30mm one-piece maintube that is nitrogen filled and O-ring sealed to be water and fogproof.
Airmax scopes feature our H2 optics in a variety of configurations designed to suit airgun characteristics.
Nitrogen purged. Shockproof. Waterproof. Fog proof.
All calibre rated.
Hawke Warranty.
Both the AMX and AMX IR glass etched reticles are based on the spacing of a 10x Mil Dot. The AMX offers multiple aim points, useful when shooting air guns with loopy trajectories.
Half Mil Dot spacing on the lower post provides increased aim points for long shots.
The horizontal bars are calculated at 0.5, 1.5, 2.5, 3.5 and 4.5 mil spacing. Hollow posts are segmented into mil spacing and can be used for bracketing.

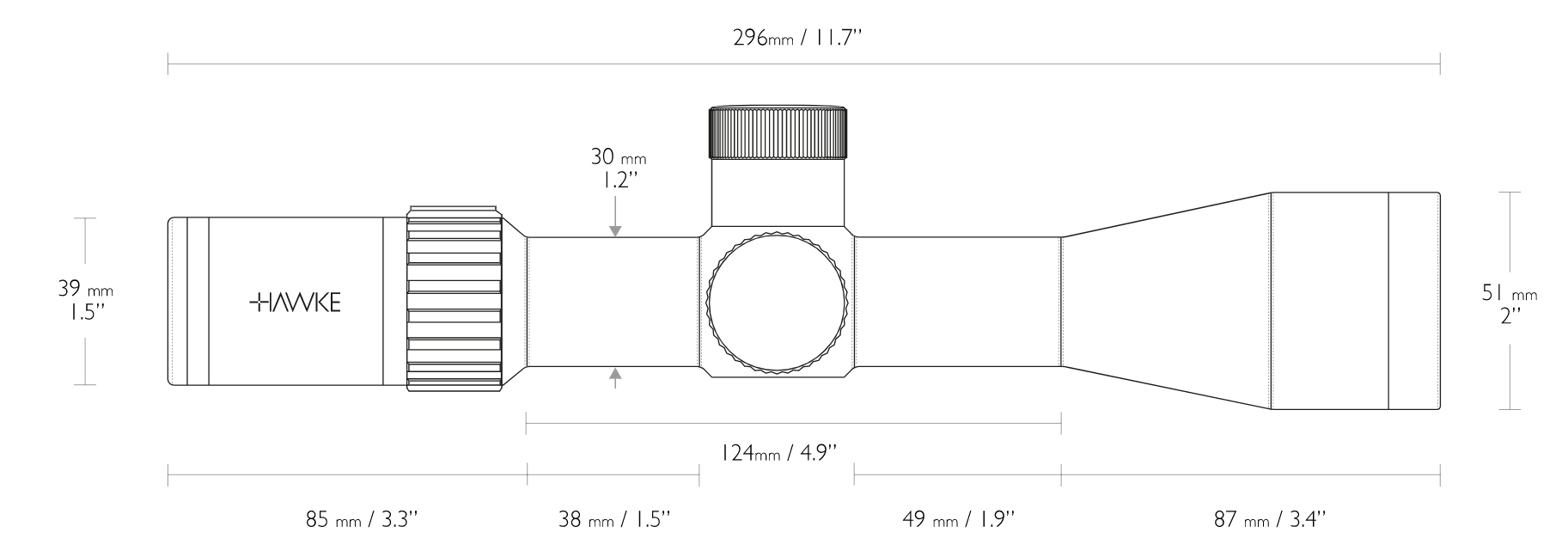

Length:
296mm
11.7"
Weight:
621g
21.9oz
Eye relief:
76mm3"
Focus/Parallax - Side Focus:
9m - ∞
10yds - ∞
Field of View:
10.9 - 2.7m @100m
32.8 - 8.2ft @100yds
Exit Pupil:
11-2.8mm
0.43-0.11"
Chassis:
30mm Mono-tube
Optical System:
4-16x
Objective:
44mm
Illumination:
Red
Reticle:
AMX IR
Elevation Increment:
1⁄10 MRAD
Elevation Adjustment Range:
20 MRAD
Windage Increment:
Windage Adjustment Range:
Material:
Aluminium
Ocular Type:
Fast Focus
Lens Coating:
Fully Multi-Coated - 16 Layers

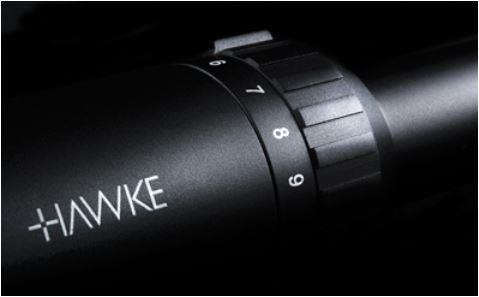

Power Selector Style:
Knurled Posi-Grip
Focal Plane:
Second Focal Plane (SFP)
Turret Caps:
Yes
Turret Type:
Capped Target Turrets
Downloads:
Instruction manual in .PDFReticle booklet in .PDF
